Fsbecl JXPIY111 Lift Top Coffee Table User Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Fsbecl JXPIY111 Lift Top Coffee Table. Designed for versatility and style, this round coffee table features a practical lift-top mechanism and a spacious hidden storage compartment, blending modern and farmhouse aesthetics.

Key features include:

• Practical Lift-Top Design: Effortlessly raises from 15.7 inches to 19.8 inches, providing a comfortable surface for working or dining.
• Large Hidden Storage: A spacious compartment beneath the lift-top and an additional flip-top section offer ample space for organizing household items.
• Classic Farmhouse Style: A simple round design with unique vertical fluted panels and a wood grain finish.
• Solid Structure: Constructed from high-quality wood with a thickened desktop and reinforced base for stability.

2. Safety Information

Please read and understand all safety instructions before assembling or using this product. Failure to follow these instructions may result in injury or product damage.

• Keep all small parts and packaging materials away from children and pets.
• Do not stand or sit on the coffee table, except for its intended use as a surface.
• Ensure the table is placed on a flat, stable surface to prevent tipping.
• Do not overload the lift-top mechanism or the storage compartments.
• Exercise caution when operating the lift-top to avoid pinching fingers or hands.
• Periodically check all fasteners to ensure they remain tight.

3. Package Contents

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Tabletop panels (lift-top and fixed sections)
• Base panels and fluted side panels
• Lift mechanism components
• Hardware pack (screws, bolts, connectors, pneumatic struts)
• Assembly Guide

4. Setup and Assembly

Assembly typically requires a screwdriver. Follow the numbered steps in the included assembly guide carefully. It is recommended to assemble the table with two people for easier handling and alignment of parts.

1. Unpack and Identify Parts: Lay out all components on a clean, soft surface to prevent scratches. Refer to the parts list in your assembly guide to identify each piece.
2. Assemble the Base: Connect the base panels and fluted side panels according to the instructions. Ensure all connections are secure.
3. Install Internal Supports: Attach any internal support structures or dividers for the storage compartment.
4. Attach Lift Mechanism: Securely fasten the lift mechanism components to the designated areas on the table base and the lift-top panel. Pay close attention to the orientation of the brackets and pneumatic struts. Incorrect installation can affect functionality and stability.
5. Attach Tabletop Panels: Carefully attach the lift-top panel and any fixed tabletop sections. Ensure proper alignment before tightening all screws.
6. Final Check: Once assembled, gently test the lift-top mechanism and verify that all connections are tight and the table is stable.

Image: Detailed view of the table's construction, highlighting the floor-to-ceiling legs, the desktop's ability to open, and the spacious internal storage.

5. Operating Instructions

The Fsbecl Lift Top Coffee Table is designed for ease of use, offering both a raised surface and convenient storage.

5.1. Using the Lift-Top Mechanism

To raise the tabletop, gently pull the designated section of the tabletop upwards. The pneumatic struts will assist in a smooth and controlled lift. To lower, gently push the tabletop down until it rests securely in its closed position. Avoid forcing the mechanism.

Image: The coffee table with its lift-top extended, providing an ergonomic surface for activities like using a laptop.

5.2. Accessing Hidden Storage

The main hidden storage compartment is located beneath the lift-top section. When the lift-top is raised, the compartment becomes accessible. Additionally, a separate flip-top section on the other side of the table provides quick access to another storage area. This allows for organized storage of blankets, books, remote controls, or other items.

Image: The coffee table with its lift-top open, revealing the organized internal storage space.

6. Maintenance

Proper care will extend the life and appearance of your coffee table.

• Cleaning: Wipe the table surface with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or polishes that may damage the finish.
• Spills: Immediately wipe up any spills to prevent staining or water damage.
• Protection: Use coasters under drinks and placemats under hot items to protect the tabletop.
• Mechanism Care: The lift mechanism is designed for durability. Avoid applying excessive force. If the mechanism becomes stiff, a small amount of silicone-based lubricant can be applied to moving parts, avoiding contact with wood surfaces.

7. Troubleshooting

If you encounter issues with your coffee table, refer to the following common solutions:

• Lift-Top Does Not Operate Smoothly:
  • Check for any obstructions in the mechanism's path.
  • Ensure all screws securing the lift mechanism are properly tightened.
  • Verify that the pneumatic struts are installed correctly and are not damaged.
• Table Feels Unstable or Wobbly:
  • Confirm that all assembly screws and bolts are fully tightened.
  • Ensure the table is on a level surface. Adjust floor glides if present.
• Tabletop Panels Do Not Align Properly:
  • Review the assembly instructions to ensure all panels and brackets are oriented correctly.
  • Loosen relevant screws slightly, adjust alignment, then re-tighten.

8. Specifications

Detailed specifications for the Fsbecl JXPIY111 Lift Top Coffee Table:

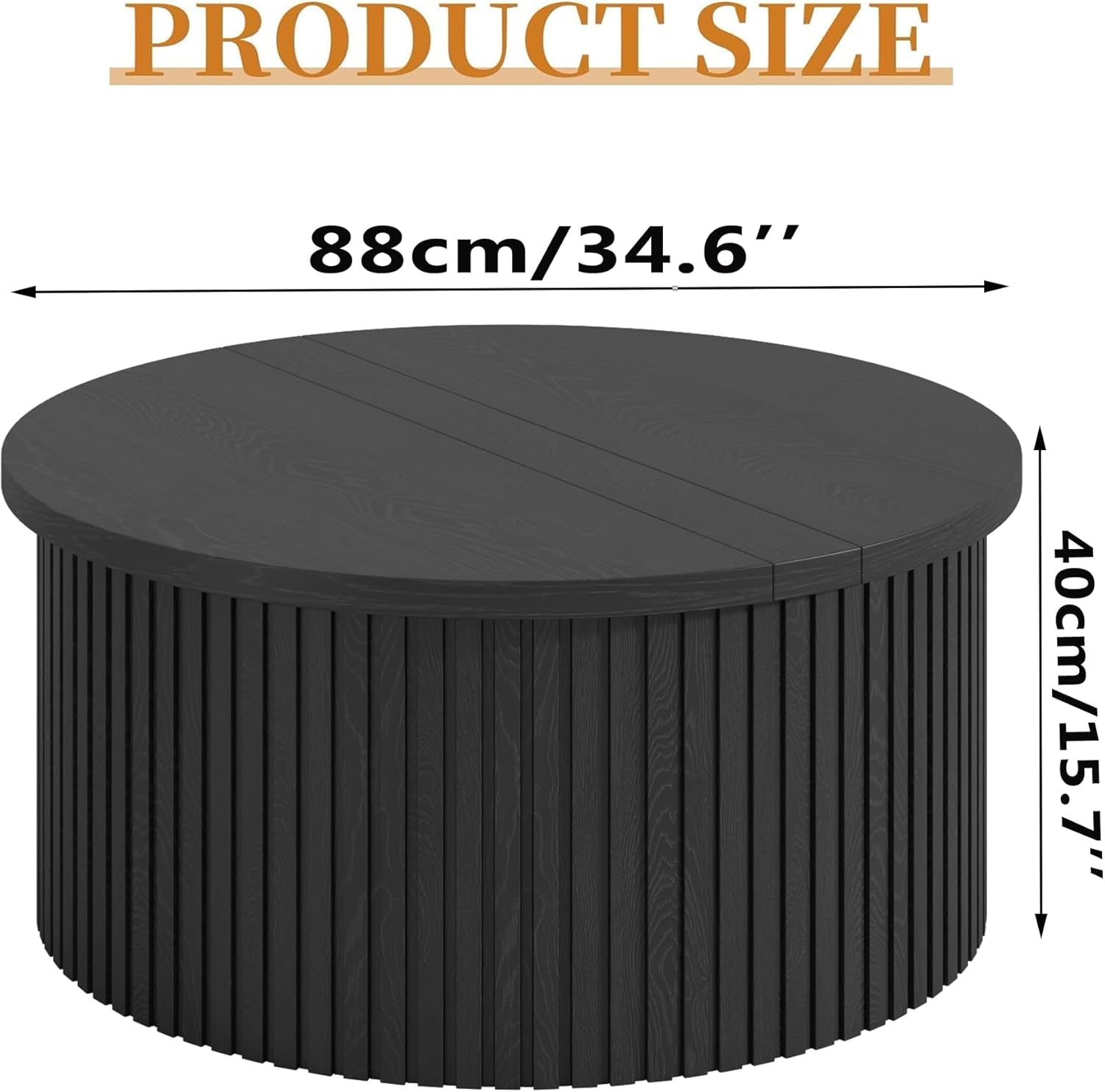

Image: Visual representation of the coffee table's dimensions.

9. Warranty Information

This Fsbecl product is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included in your package or contact Fsbecl customer support for specific warranty terms and conditions.

10. Customer Support

For assembly assistance, missing parts, or any other inquiries, please contact Fsbecl customer support. Have your model number (JXPIY111) and purchase information ready when contacting support.

Contact information can typically be found on the product packaging, the included assembly guide, or the official Fsbecl website.

11. Product Videos

No relevant instructional videos from the seller were found in the provided product data to embed in this manual.
