HOMCOM Mini Fridge with Freezer User Manual

Introduction

Thank you for purchasing the HOMCOM Mini Fridge with Freezer. This compact two-door refrigerator is designed for efficient and convenient food storage in various settings such as bedrooms, dorms, and kitchens. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.

Figure 1: Front view of the HOMCOM Mini Fridge with Freezer.

Safety Instructions

To reduce the risk of fire, electric shock, or injury when using your appliance, follow these basic precautions:

• Read all instructions before using the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Ensure the appliance is properly grounded.
• Unplug the appliance before cleaning or performing any maintenance.
• Do not damage the refrigerant circuit.
• Keep ventilation openings clear of obstruction.
• This appliance is intended for household use only.
• Do not allow children to play with or inside the appliance.
• Dispose of the appliance according to local regulations for flammable refrigerants and gases.

Package Contents

Verify that all components are present and undamaged upon unpacking:

• HOMCOM Mini Fridge with Freezer Unit
• Removable Glass Shelves (Quantity may vary)
• Crisper Drawer
• User Manual (This document)

Figure 2: Illustration of the product packaging.

Setup

1. Placement: Place the refrigerator on a flat, stable surface away from direct sunlight and heat sources. Ensure adequate ventilation around the unit. Allow at least 10 cm (4 inches) of space on the back and sides for proper air circulation.


   Figure 3: Example of proper placement in a room.

2. Leveling: Use the adjustable feet at the bottom of the unit to level the refrigerator. Proper leveling is crucial for efficient operation and to prevent vibrations.


   Figure 4: Adjustable foot pad for leveling.
3. Door Reversal (Optional): The door hinge can be adjusted for right or left opening to suit your space. Refer to the detailed instructions in the separate door reversal guide (if provided) or contact customer support for assistance.
4. Initial Cleaning: Before first use, wipe the interior and exterior of the refrigerator with a soft cloth and mild detergent. Rinse with clean water and dry thoroughly.
5. Power Connection: Plug the refrigerator into a dedicated, grounded electrical outlet. Allow the unit to stand upright for at least 2-4 hours before plugging it in to allow the refrigerant to settle.

Operating Instructions

Temperature Control

The refrigerator features an adjustable thermostat with 7 settings to control the temperature of both the fridge and freezer compartments.

• Fridge Temperature Range: 33.8°F to 50°F (1°C to 10°C)
• Freezer Temperature Range: -11.2°F to 6.8°F (-24°C to -14°C)

Turn the thermostat dial to your desired setting. Higher numbers indicate colder temperatures. For initial setup, it is recommended to start at a medium setting (e.g., 4) and adjust as needed based on food load and ambient temperature.

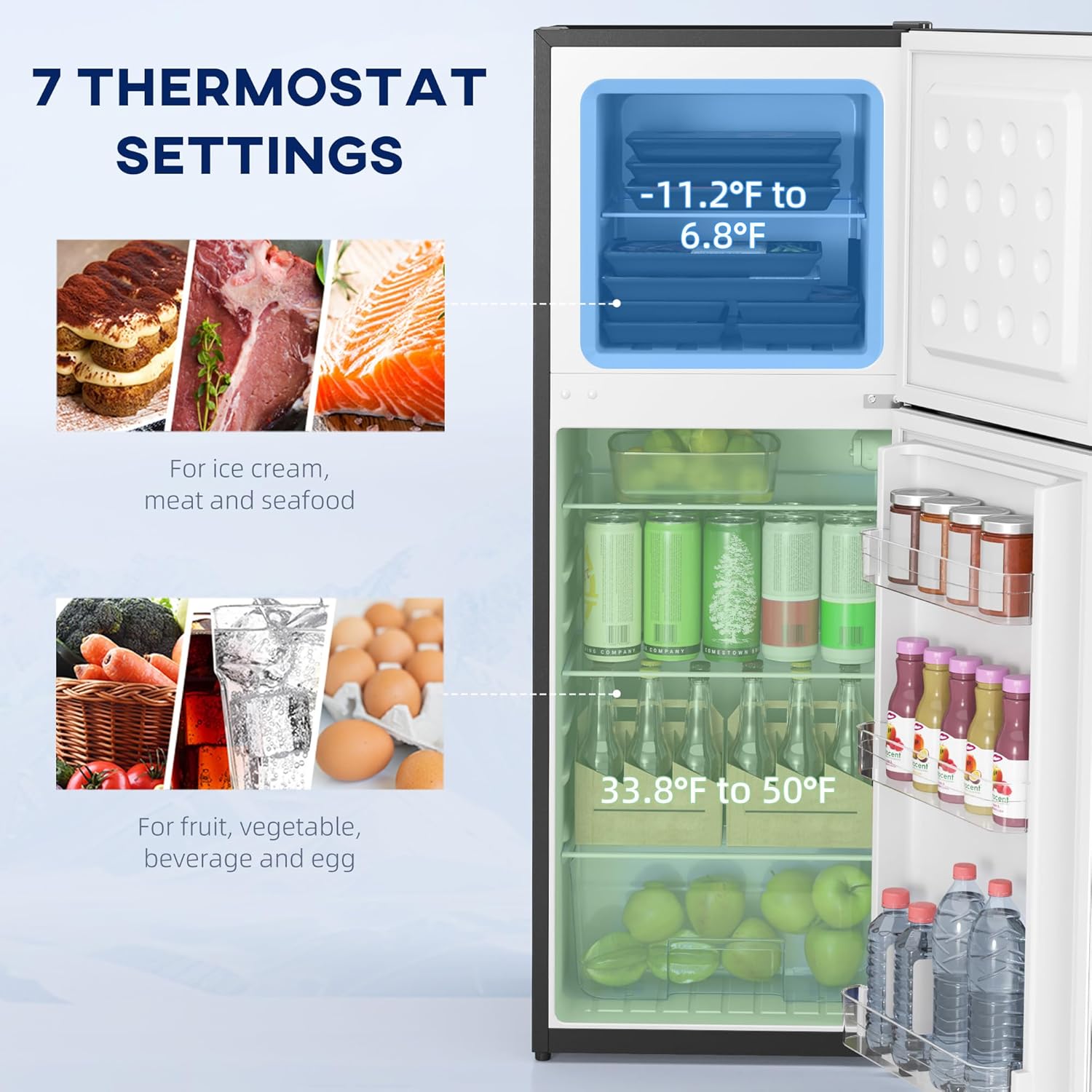

Figure 5: Thermostat dial and temperature ranges for different food types.

Storage Organization

The refrigerator is designed with various storage options for optimal organization:

• Removable Glass Shelves: These shelves can be adjusted or removed to accommodate items of different heights.
• Door Storage: Ideal for beverages, condiments, and smaller items.
• Pull-out Crisper Drawer: Designed to keep fruits and vegetables fresh.

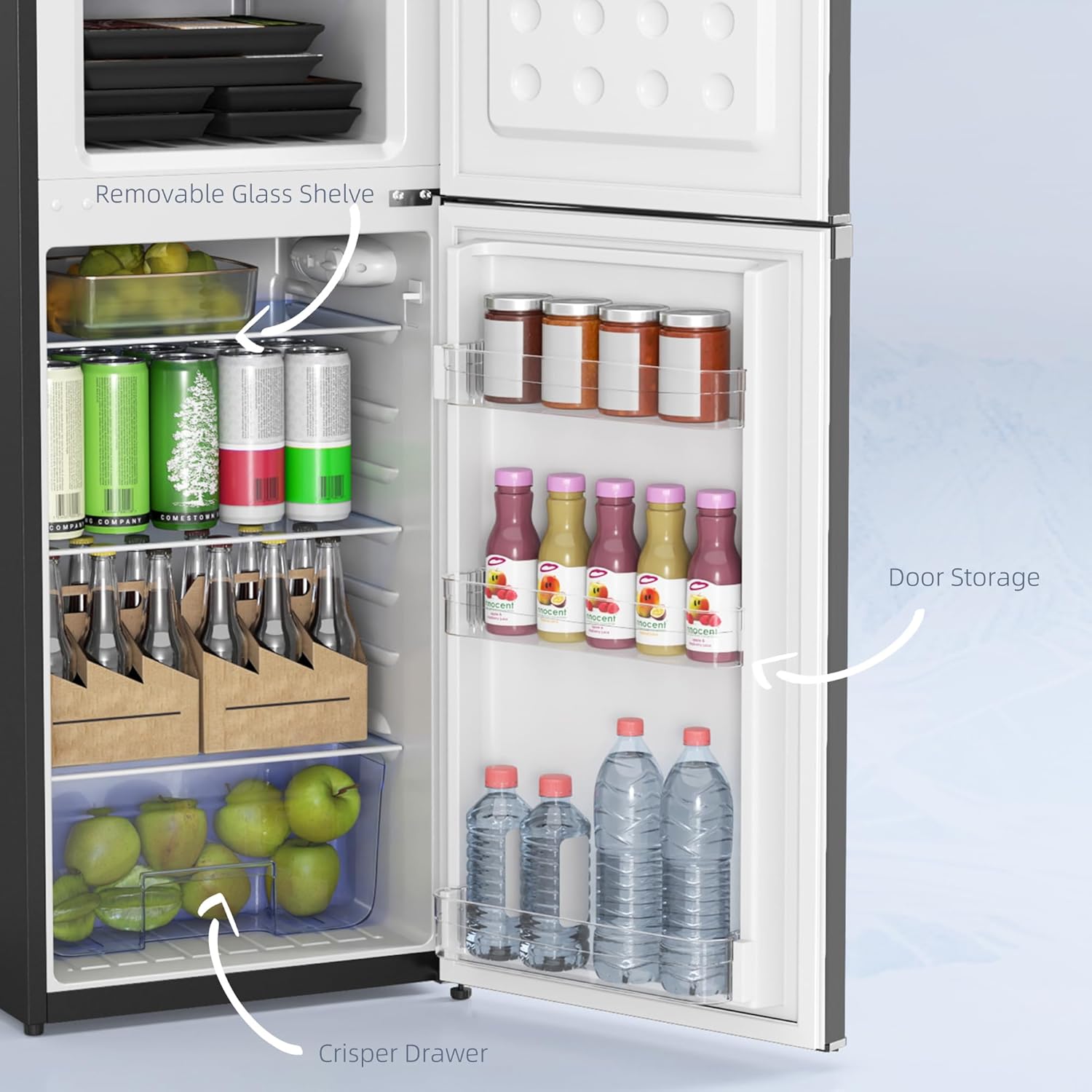

Figure 6: Interior layout with storage features.

The unit features an interior light for easy visibility of contents.

Maintenance

Cleaning

• Always unplug the refrigerator before cleaning.
• Clean the interior with a solution of mild detergent and warm water. Avoid abrasive cleaners or solvents.
• Wipe down the exterior with a soft, damp cloth.
• Clean the door gaskets regularly to ensure a proper seal.
• Vacuum or brush the condenser coils at the back of the unit periodically (at least twice a year) to maintain efficiency.

Defrosting

This refrigerator features a manual defrost system for the freezer compartment. Frost buildup can reduce cooling efficiency.

1. Unplug the refrigerator.
2. Remove all food items from both compartments. Store frozen items in a cooler to prevent thawing.
3. Leave the freezer door open to allow frost to melt naturally. You can place towels at the bottom to absorb water.
4. Do not use sharp objects or heating devices to speed up defrosting, as this can damage the unit.
5. Once defrosted, clean and dry the interior thoroughly before plugging the unit back in and returning food.

Troubleshooting

If the problem persists after attempting these solutions, please contact HOMCOM customer support.

Specifications

Figure 7: Product dimensions diagram.

Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official HOMCOM website. Contact details for Aosom Canada, the manufacturer, are typically available on their website or the product packaging.

Manufacturer: Aosom Canada

Place of Business: Markham, Ontario, CA Tel.1-416-792-6088

For online support, you may visit the HOMCOM Store on Amazon.ca.
