1. Product Overview
This instruction manual provides detailed information for the installation, operation, and maintenance of the VNAPARTS Washer Suspension Rod Kit. This kit is designed to restore balance, reduce vibration, and eliminate loud noises in top-loading washing machines, ensuring a smoother and quieter operation.
What's Included
The VNAPARTS Washer Suspension Rod Kit includes the following components:

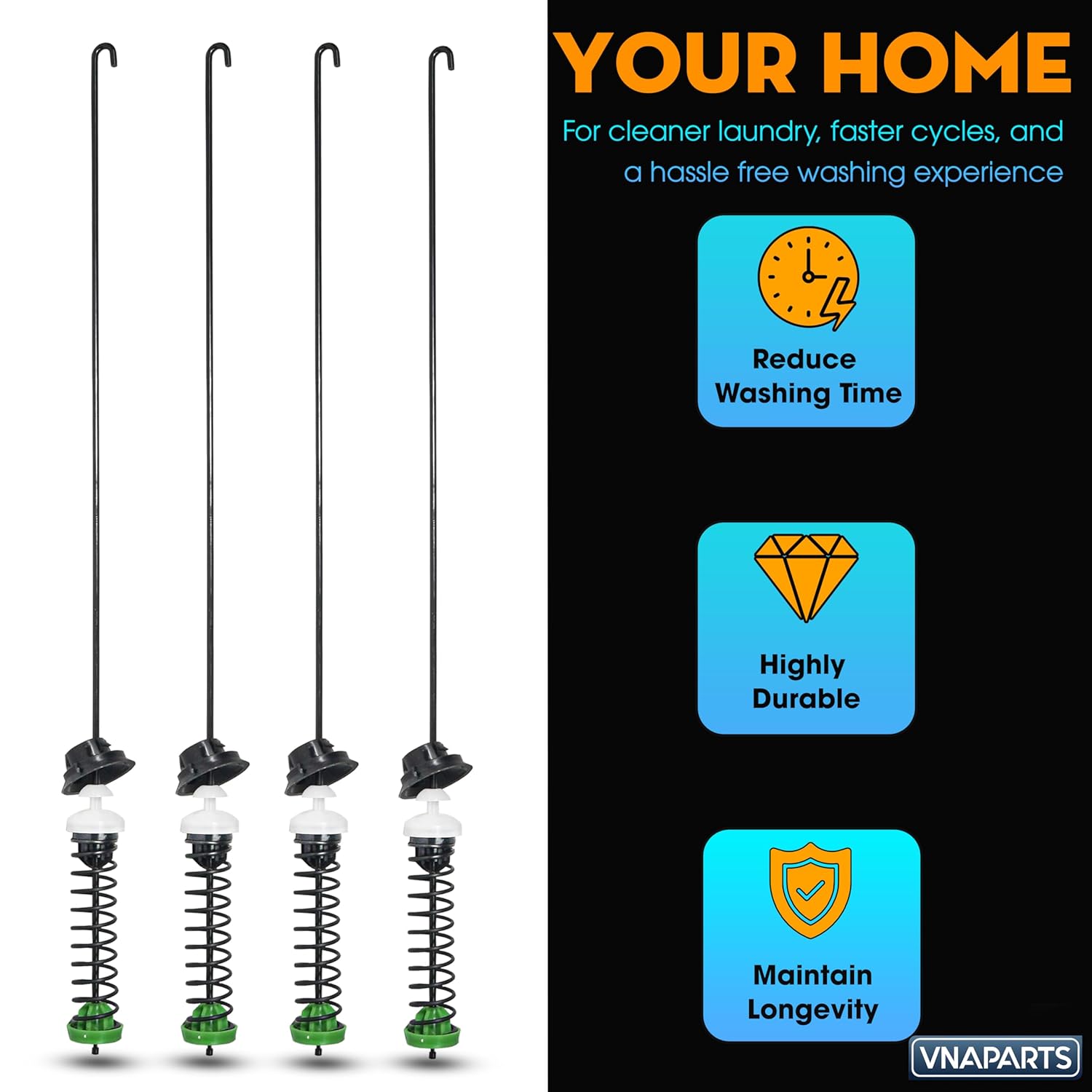

- 4 x Washer Suspension Rods
- Associated mounting components (bushings, springs, and dampeners)
This kit is an upgraded replacement for original part numbers W11396716 and W11171694, offering enhanced durability and performance.
2. Compatibility
The VNAPARTS Washer Suspension Rod Kit is broadly compatible with a wide range of top-loading washing machines from Kenmore, Whirlpool, and Maytag. Below is a list of some compatible models and part numbers:
Compatible Brands and Models:
- Maytag: MVW6500MW0, MVW6500MBK0, MVW6230RHW3, MVW6230RHW2, MVW6230RHW1, MVW6230RHW0, MVW6230HW2, MVW6230HW1, MVW6230HW0, MVW6230HC3, MVW6230HC2, MVW6230HC1, MVW6230HC0, MVW6200KW4, MVW6200KW3, MVW6200KW2, MVW6200KW1, MVW6200KW0, MVW5435PW1, MVW5435PW0, MVW5435PBK1, MVW5435PBK0, MVW5430PBK1, MVW5430PBK0, MVW5430MW2, MVW5430MW0
- Whirlpool: WTW6120HW3, WTW6120HW2, WTW6120HW1, WTW6120HW0, WTW6120HC3, WTW6120HC2, WTW6120HC1, WTW6120HC0, WTW5105HW2, WTW5105HW1, WTW5105HW0, WTW5105HC1, WTW5105HC0, WTW5100HW3, WTW5100HW2, WTW5100HW0, WTW5100HC3, WTW5100HC2, WTW5100HC1, WTW5057LW1, WTW5057LW0
- Kenmore: 8TWTW5057PW0, 11031312022, 11031312021, 11021112022, 11021112021, 11021112020
This kit is designed to replace suspension rod systems in various models, including Maytag Bravos and specific Kenmore models, ensuring a reliable and precise fit.
3. Installation Guide
The VNAPARTS Washer Suspension Rod Kit is designed for DIY installation, typically taking less than 30 minutes with basic tools. Follow these steps carefully to ensure proper installation and optimal performance.
Before You Begin: Safety First
- Disconnect Power: Always unplug your washing machine from the power outlet before beginning any repair or maintenance.
- Turn Off Water Supply: Close the hot and cold water supply valves to the washer.
- Drain Water: Ensure there is no water remaining in the washer tub.
- Gather Tools: You may need basic tools such as pliers, screwdrivers, and possibly a wrench.
Step-by-Step Installation:
- Access the Suspension Rods: Depending on your washer model, you may need to remove the top panel or front panel to access the suspension rods. Refer to your washer's specific service manual for detailed access instructions.
- Remove Old Rods: Carefully unhook the old suspension rods from the washer tub and the frame. Note their orientation for reference.
- Install New Rods: Attach the new VNAPARTS suspension rods, ensuring the springs and bushings are correctly seated. The rods should hook into the washer tub and the frame securely.
- Verify Installation: Double-check that all four rods are properly installed and securely fastened. The washer tub should feel stable and centered.
- Reassemble Washer: Replace any panels or covers that were removed.
- Restore Power and Water: Reconnect the power cord and turn on the water supply.
- Test Washer: Run a small, empty cycle to ensure the washer operates smoothly and quietly.
4. Operation and Performance Benefits
Once installed, the VNAPARTS Washer Suspension Rod Kit significantly improves your washing machine's operation by enhancing stability and reducing mechanical stress.
Key Performance Improvements:
- Reduced Vibration and Noise: The reinforced dampening technology minimizes excessive vibration and loud banging or thumping sounds during wash and spin cycles.
- Improved Balance: Helps maintain the balance of the washing drum, preventing uneven loads and ensuring efficient spinning.
- Extended Washer Lifespan: By reducing stress on internal components, the kit contributes to the longevity of your washing machine.
- Efficient Washing: A stable tub allows for more effective washing and spinning, leading to cleaner clothes and potentially reduced drying time.
5. Troubleshooting Common Issues
The VNAPARTS Washer Suspension Rod Kit is designed to resolve several common problems experienced with top-loading washing machines. If you encounter any of the following symptoms, replacing your washer's suspension rods with this kit may provide a solution.

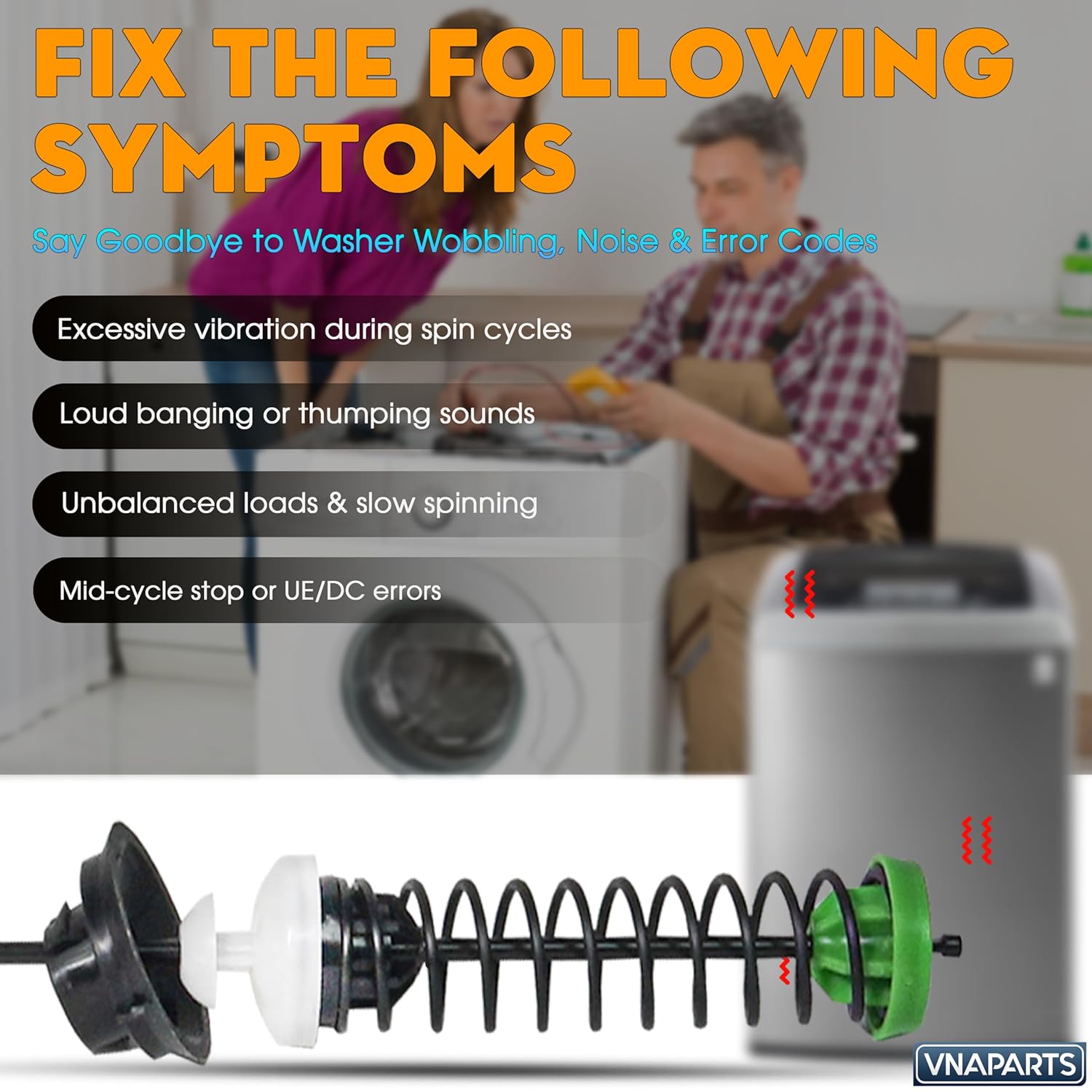

Symptoms Addressed by This Kit:
- Excessive Vibration: If your washer shakes violently or moves significantly during spin cycles.
- Loud Banging or Thumping Sounds: Unusual loud noises emanating from the washer, especially during agitation or spin.
- Unbalanced Loads & Slow Spinning: When the washer struggles to balance loads, leading to inefficient or incomplete spin cycles.
- Mid-cycle Stop or UE/DC Errors: Errors related to unbalanced loads that cause the washer to pause or stop mid-cycle.
If these issues persist after proper installation, consult a qualified appliance technician.
6. Care and Maintenance

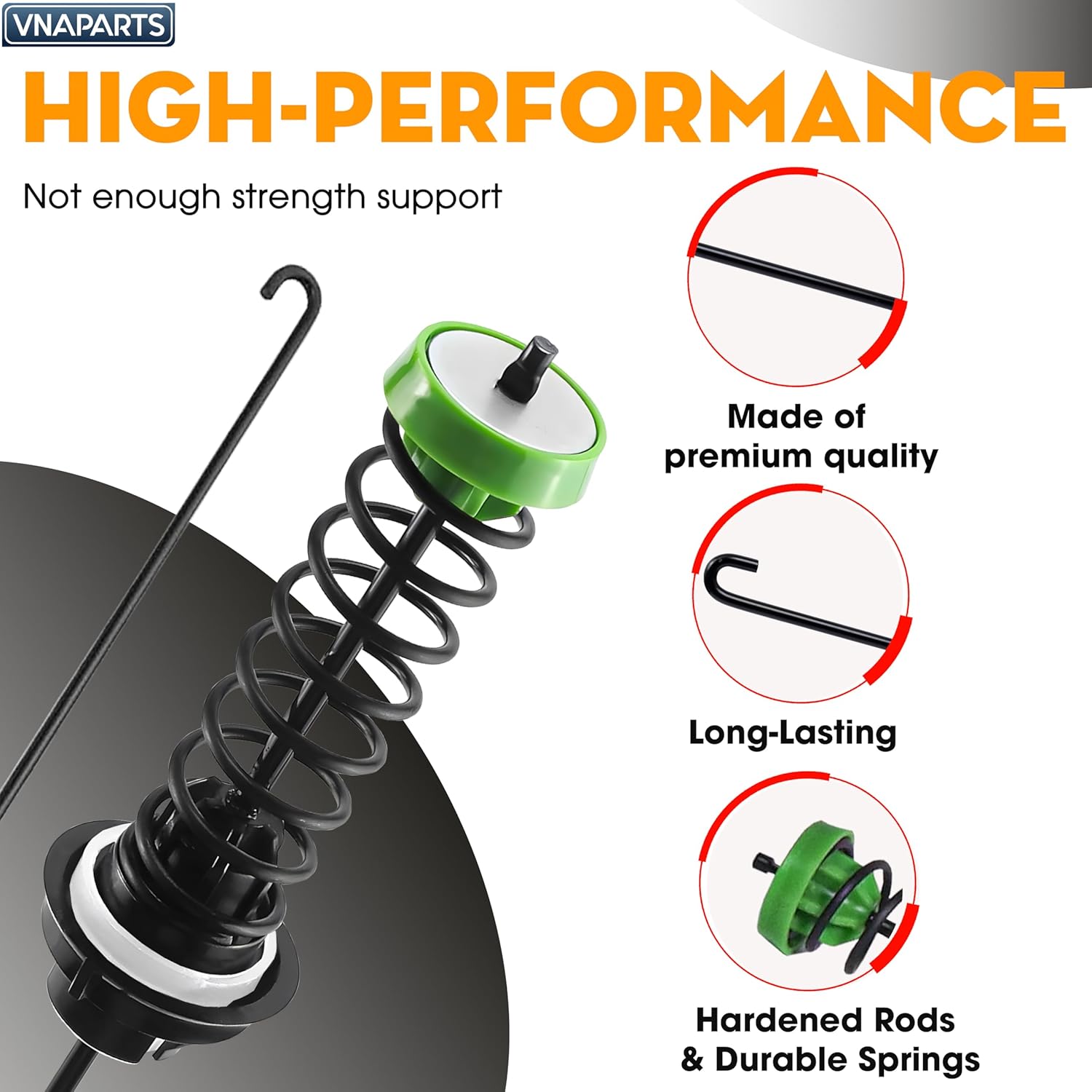

The VNAPARTS Washer Suspension Rod Kit is engineered for enhanced durability and long-term performance. Made with high-quality stainless steel and featuring reinforced dampening technology, these rods are designed to withstand the rigors of high-speed spin cycles and reduce wear on your appliance.
Maintaining Optimal Performance:
- Regular Inspection: Periodically inspect the suspension rods for any signs of wear, damage, or corrosion. While designed to prevent rust, extreme conditions or prolonged use may warrant a check.
- Proper Loading: Always ensure your washer is loaded correctly and not overloaded. Uneven or excessive loads can still put undue stress on the suspension system over time.
- Cleanliness: Keep the area around the washer and its components clean to prevent debris buildup that could interfere with proper function.
By following these simple maintenance tips, you can help ensure the continued reliable operation of your washer and the longevity of your VNAPARTS suspension rods.
7. Product Specifications
Detailed specifications for the VNAPARTS Washer Suspension Rod Kit:
| Attribute | Detail |
|---|---|
| Product Dimensions | 24.4 x 1.4 x 1.4 inches (each rod) |
| Item Weight | 1.6 Pounds (total kit) |
| Item Model Number | WTW5105HC0 WTW5105HW1 (primary listed) |
| Manufacturer | VNAPARTS |
| Material | Metal (Stainless Steel) |
| Outside Diameter | 24.4 Inches (rod length) |
| Washer Type Compatibility | Top-Load Washers |
| Replaces Part Numbers | W11396716, W11171694 |
