OSKOS Outdoor 24-Hour Light Timer with Photocell Sensor

1. Safety Information

Please read and understand all safety instructions before operating this device. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Outdoor Use Only: This timer is designed for outdoor use. Ensure it is mounted in a vertical position with the outlets facing downwards to prevent water ingress.
• Electrical Rating: Do not exceed the maximum electrical rating of 15A, 125V, 1875W, 15A Resistive, 1/2HP. Overloading the timer can cause damage or fire.
• Grounding: Always connect the timer to a grounded outlet. The timer features two grounded outlets for safe operation.
• Water Resistance: While water-resistant, avoid submerging the timer in water. Ensure the swivel safety covers are closed when outlets are not in use to protect against dust and water.
• Cord Integrity: The 14AWG heavy-duty cord is durable and weather-resistant. Inspect the cord for any damage before each use. Do not use if the cord is frayed or damaged.
• UL Certified: This product is UL certified, ensuring it meets recognized safety standards.

2. Product Overview

The OSKOS Outdoor 24-Hour Light Timer is designed to automate the control of outdoor lighting and other electrical devices. It features a photocell sensor for dusk-to-dawn operation and a single button for easy programming of various timing modes.

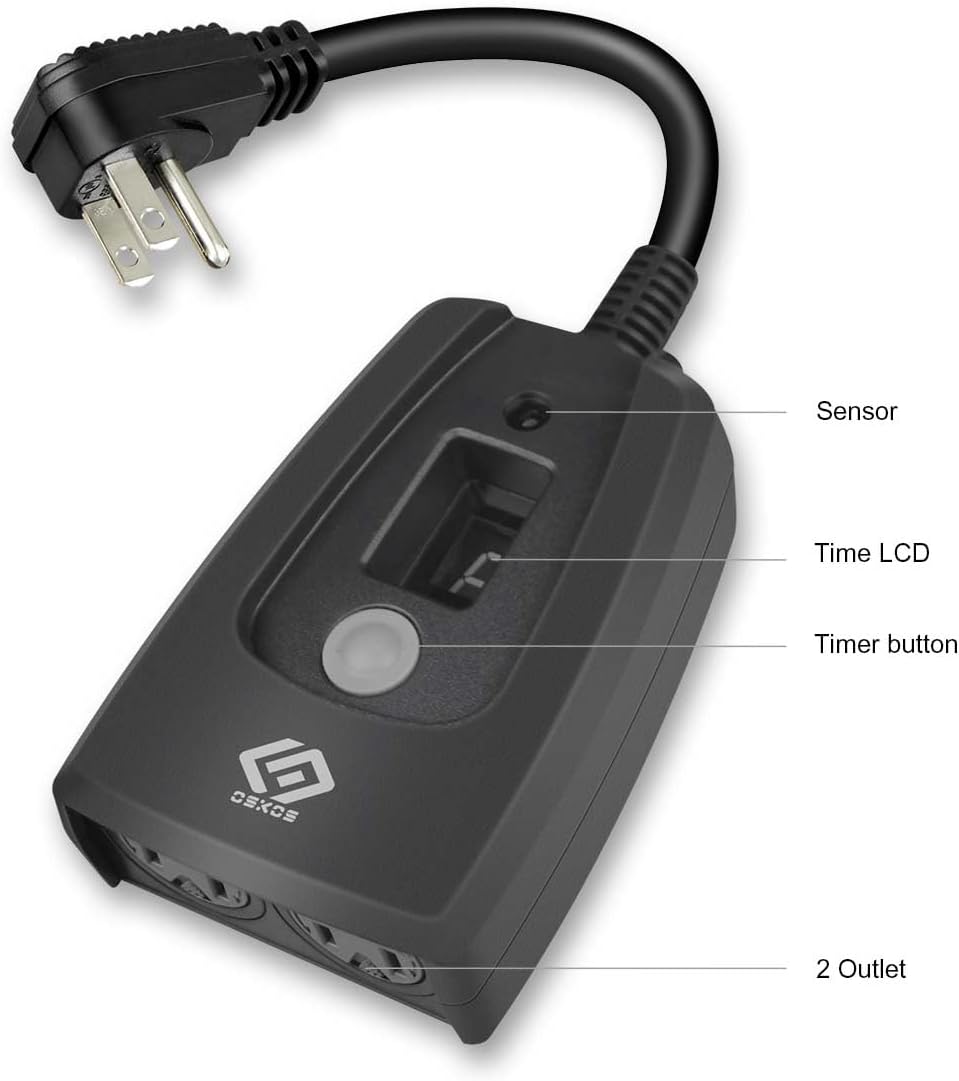

Image Description: A top-down view of the OSKOS outdoor timer, highlighting its key components. Labels point to the light sensor, the digital time LCD display, the single timer button for mode selection, and the two grounded outlets located at the bottom of the unit.

Key Components:

• Photocell Sensor: Detects ambient light levels for dusk-to-dawn operation.
• Time LCD: Digital display showing current mode or countdown time.
• Timer Button: Used to cycle through and select operating modes.
• Grounded Outlets (x2): Two three-prong outlets for connecting devices, each with a swivel safety cover.
• Mounting Hole: Located on the back for secure vertical installation.

3. Setup

Follow these steps to properly set up your OSKOS Outdoor Light Timer:

1. Select Location: Choose an outdoor location that is protected from direct heavy rain and where the photocell sensor will receive adequate ambient light. Avoid areas under eaves or heavy shade that might interfere with dusk/dawn detection.
2. Mounting: Securely mount the timer in a vertical position using the mounting hole on the back. Ensure the outlets face downwards to prevent water accumulation.
3. Plug In: Plug the timer's power cord into a grounded outdoor electrical outlet.
4. Connect Devices: Plug your outdoor lights or other electrical devices into the two grounded outlets on the timer. Ensure the swivel safety covers are fully open when in use and closed when an outlet is not in use.

Image Description: The OSKOS outdoor timer is shown installed vertically on an exterior brick wall, connected to an outdoor power outlet. It is actively controlling two sets of garden lights, demonstrating a typical outdoor application.

4. Operating Instructions

The OSKOS timer operates with a single button to cycle through its various programming modes. Once a mode is set, it will repeat daily.

To Program the Timer:

1. Press the Timer Button repeatedly to cycle through the available modes. The selected mode will be displayed on the Time LCD.
2. Stop pressing the button when your desired mode is displayed. The timer will automatically save the setting after a few seconds.

Available Modes:

• ON: The connected devices will remain continuously ON.
• OFF: The connected devices will remain continuously OFF.
• Countdown (1-9 hours): The connected devices will turn ON immediately and remain ON for the selected duration (1 to 9 hours), then turn OFF.
• Dusk to Dawn: The connected devices will turn ON when the photocell sensor detects darkness (dusk) and turn OFF when it detects light (dawn).
• Dusk + Countdown (1-9 hours): The connected devices will turn ON at dusk and remain ON for the selected duration (1 to 9 hours), then turn OFF.

5. Maintenance

Proper maintenance ensures the longevity and reliable operation of your timer.

• Cleaning: Disconnect the timer from the power source before cleaning. Wipe the exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Photocell Sensor: Keep the photocell sensor clean and free from obstructions (e.g., dirt, leaves, snow) to ensure accurate dusk/dawn detection.
• Storage: If storing the timer for an extended period, disconnect it from power, clean it, and store it in a cool, dry place away from direct sunlight.
• Cord Inspection: Periodically inspect the power cord and connected device cords for any signs of wear, cuts, or damage. Replace damaged cords immediately.

6. Troubleshooting

If you encounter issues with your OSKOS timer, refer to the following common problems and solutions:

7. Specifications

8. Warranty and Support

Specific warranty information for the OSKOS Outdoor 24-Hour Light Timer (Model TM-044) is not provided within this manual. For details regarding warranty coverage, technical support, or customer service, please contact OSKOS directly through their official website or the retailer where the product was purchased.
