YUXIANG F07-V UH-1 Huey RC Helicopter Instruction Manual

1. Introduction

Thank you for purchasing the YUXIANG F07-V UH-1 Huey RC Helicopter. This highly detailed 1/34 scale model is designed for advanced RC pilots, offering both 3D aerobatic and 6G stabilized flight modes. Please read this manual thoroughly before operating the helicopter to ensure safe and optimal performance. This product is recommended for users aged 16 and above.

Image 1.1: The YUXIANG F07-V UH-1 Huey RC Helicopter with its remote controller, batteries, and other included accessories.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in injury or damage to the product or property.

• Always operate the helicopter in an open area, away from people, animals, buildings, and other obstacles.
• Do not fly near power lines, roads, or water bodies.
• Ensure the battery is fully charged before each flight.
• Never touch the rotating blades during operation.
• Keep hands, face, and loose clothing away from moving parts.
• Do not operate in strong winds or adverse weather conditions.
• Store the helicopter and batteries in a cool, dry place, away from direct sunlight and heat sources.
• This product is not a toy. It is intended for experienced RC enthusiasts.

3. Package Contents

Verify that all items listed below are included in your package:

• 1 × F07-V UH1D Huey RC Helicopter
• 1 × 2.4GHz Remote Controller
• 1 × 7.4V 1200mAh 25C LiPo Battery (Note: Product may include multiple batteries depending on the purchased variant)
• 1 × Charger (Type-C USB Fast Charging)
• 1 × User Manual
• Spare Rotor Blades (if included)

4. Product Features

The YUXIANG F07-V UH-1 Huey RC Helicopter boasts advanced features for a superior flight experience:

• 3D/6G Dual-Mode Flight: Easily switch between 3D aerobatic mode for complex tricks and 6G stabilized mode for smooth, controlled flights.
• Highly Detailed Military Aircraft Design: A 1/34 scale replica of the legendary UH-1 Huey, featuring realistic military paint and aerodynamic contours.
• Advanced Stability: Equipped with a 6-axis gyroscope and electronic stability system for precise attitude control and stable flight.
• Efficient Brushless Power System: Features a high-performance 2511 1200KV main brushless motor and 1204 5500KV tail brushless motor for exceptional power and accuracy.
• Durable Construction: Made from impact-resistant nylon and carbon fiber composite, with CNC machined metal rotor head and swashplate for high strength and durability.

Image 4.1: The F07-V UH1D Huey helicopter showcasing its detailed military design and flight capabilities.

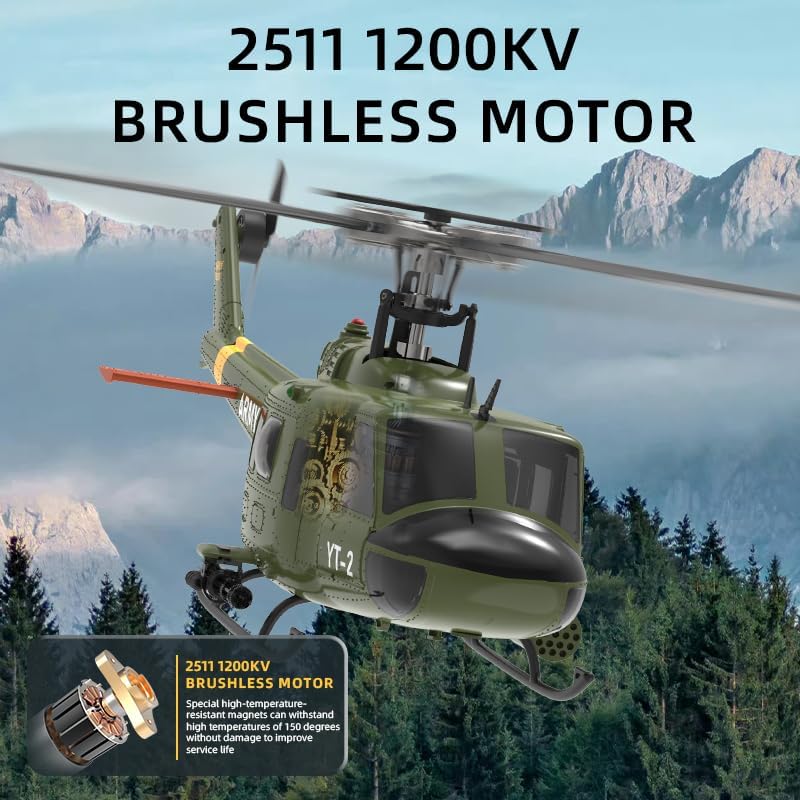

Image 4.2: Illustration of the 2511 1200KV Brushless Motor, highlighting its high-temperature resistant magnets for improved service life.

Image 4.3: The helicopter demonstrating stable flight, supported by its 6-axis gyroscope system for precise control.

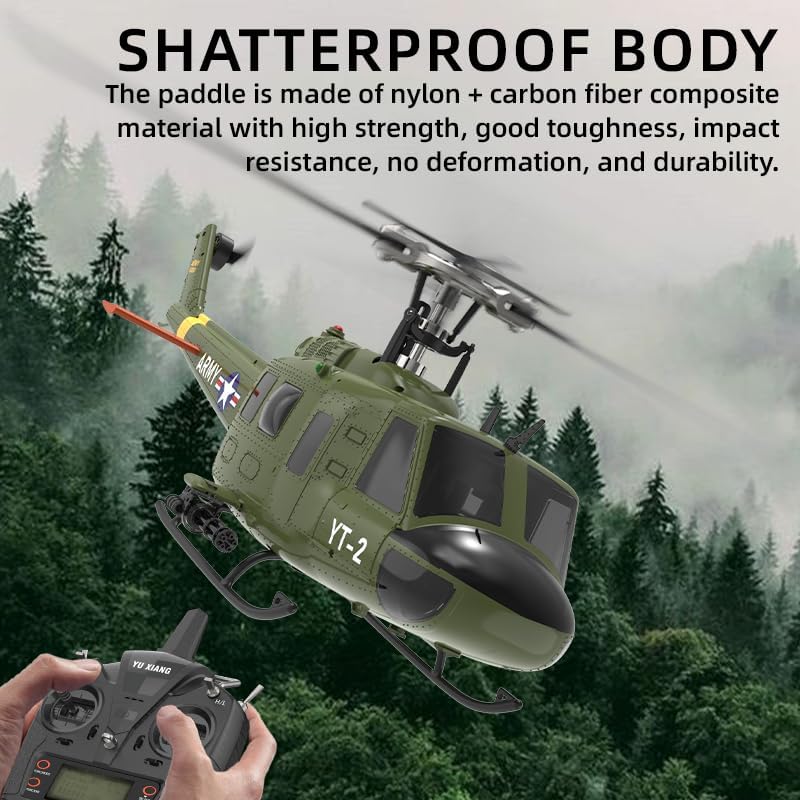

Image 4.4: The helicopter's robust construction, featuring a body made of high-strength nylon and carbon fiber composite material for impact resistance and durability.

5. Setup

5.1 Battery Charging

1. Connect the provided Type-C USB charging cable to the charger.
2. Plug the USB end into a compatible USB power adapter (e.g., computer USB port, wall adapter).
3. Connect the battery to the charger. Ensure correct polarity.
4. The charging indicator light will show the charging status (refer to charger manual for specific light patterns).
5. Once fully charged (approx. 90 minutes), disconnect the battery from the charger. Do not overcharge.

5.2 Remote Controller Setup

1. Install 4 AA batteries (not included) into the remote controller, observing correct polarity.
2. Turn on the remote controller. The LCD display will illuminate.
3. Familiarize yourself with the controls: throttle stick (left), cyclic stick (right), trim buttons, and mode switch (3D/6G).
4. The remote controller supports Futaba S-FHSS transmission protocol and is compatible with DSMX / DSM2 / PPM / S-BUS receivers.

5.3 Helicopter Preparation

1. Carefully attach the main rotor blades if they are not pre-installed. Ensure they are securely fastened but can still pivot freely.
2. Insert the fully charged LiPo battery into the helicopter's battery compartment. Secure it to prevent movement during flight.
3. Connect the battery to the helicopter's power connector.

6. Operating Instructions

6.1 Pre-Flight Check

• Ensure both the helicopter and remote controller batteries are fully charged.
• Check all screws and connections for tightness.
• Verify that the rotor blades are free from damage and can rotate smoothly.
• Perform a range check of the remote control system.

6.2 Binding Procedure

1. Turn on the remote controller first.
2. Connect the helicopter battery. The helicopter's indicator light will flash.
3. Wait for the indicator light on the helicopter to become solid, indicating a successful bind.
4. If binding fails, turn off both devices and repeat the process.

6.3 Flight Modes

• 6G (Stabilized) Mode: Ideal for stable flight and beginners. The 6-axis gyroscope provides automatic stabilization, making it easier to control.
• 3D (Aerobatic) Mode: For advanced pilots. This mode allows for complex aerobatic maneuvers such as inverted flight, rolls, and flips. Requires precise control and experience.

Image 6.1: The helicopter demonstrating its 3D flying capabilities, allowing for a variety of aerobatic maneuvers.

6.4 Take-off and Landing

1. Place the helicopter on a flat, level surface.
2. Slowly increase the throttle stick. The main rotor will begin to spin.
3. Continue to increase throttle until the helicopter lifts off smoothly.
4. To land, slowly decrease the throttle stick until the helicopter gently descends.
5. Once on the ground, immediately reduce throttle to zero and disconnect the battery.

Expected flight time per charge is approximately 9-12 minutes, depending on flight style and conditions.

7. Maintenance

• Cleaning: After each flight, gently wipe down the helicopter with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals.
• Blade Inspection: Regularly check the main and tail rotor blades for any cracks, chips, or deformation. Replace damaged blades immediately.
• Motor and Gear Inspection: Periodically check the brushless motors and gears for any signs of wear or obstruction. Ensure smooth rotation.
• Battery Care: Store LiPo batteries at room temperature and a storage charge (around 3.8V per cell) if not used for extended periods. Do not fully discharge or overcharge.
• Storage: When not in use, store the helicopter in its original packaging or a protective case to prevent damage.

8. Troubleshooting

9. Specifications

10. Warranty and Support

For warranty information, technical support, or replacement parts, please contact the seller or manufacturer directly. Retain your proof of purchase for any warranty claims.

Manufacturer: RCFUNXTOY
