Decerk 6-inch Mini Cordless Chainsaw Instruction Manual

Introduction

The Decerk 6-inch Mini Cordless Chainsaw is a portable, battery-powered tool designed for light to medium wood cutting tasks such as pruning, trimming branches, and cutting small logs. This manual provides essential information for safe and efficient operation, maintenance, and troubleshooting. Please read this manual thoroughly before first use and retain it for future reference.

Image Description: A comprehensive view of the Decerk 6-inch Mini Cordless Chainsaw along with its accessories, including two batteries, charger, extra chains, gloves, safety glasses, and a carrying case.

Important Safety Instructions

WARNING: Failure to follow these safety instructions may result in serious injury or death.

• Always wear appropriate Personal Protective Equipment (PPE) including safety glasses, hearing protection, and heavy-duty gloves when operating the chainsaw.
• Ensure the work area is clear of bystanders, children, and pets.
• Keep hands and all body parts away from the chain when the tool is connected to the battery.
• Never operate the chainsaw in wet conditions or near flammable liquids or gases.
• Always remove the battery pack before making any adjustments, changing accessories, or storing the tool.
• Secure the workpiece firmly before cutting to prevent movement.
• Maintain a firm grip on the chainsaw with both hands during operation.
• Do not overreach. Maintain proper footing and balance at all times.
• Inspect the chainsaw for damage or loose parts before each use. Do not operate if damaged.

Package Contents

Verify that all items are present and undamaged upon opening the package.

Image Description: An image displaying the complete package contents of the Decerk Mini Chainsaw. Items include the assembled 6-inch mini chainsaw, two 2.0Ah Gan-Pro batteries, two saw chains (one pre-installed), safety goggles, gloves, a brush, a US charger, a user manual, and a storage box.

• 1 x 6-inch Mini Chainsaw (Assembled)
• 2 x 2.0Ah Gan-Pro Battery
• 2 x Saw Chains (1 has been installed)
• 1 x Goggles & Gloves
• 1 x Brush
• 1 x US Charger
• 1 x User Manual (this document)
• 1 x Storage Box

Setup

1. Battery Charging

Before first use, fully charge both batteries.

1. Connect the charger to a standard power outlet.
2. Insert the battery into the charger.
3. The indicator light on the charger will show red during charging and turn green when fully charged.
4. A full charge typically takes 1.5 to 2 hours.

Image Description: A visual guide showing a battery connected to a charger plugged into a power strip. Two close-up circles illustrate the charging status: a red light indicates "Charging" and a green light indicates "Fully Charged."

2. Battery Installation

1. Align the battery with the battery slot on the chainsaw handle.
2. Press the button on the battery and slide it firmly into place until it clicks.
3. Ensure the battery is securely seated before operation.

Image Description: An illustration demonstrating how to insert the battery into the chainsaw. A hand presses a button on the battery while sliding it into the base of the chainsaw handle.

3. Chain Installation and Tensioning

One chain is pre-installed. If you need to install a new chain or adjust tension:

1. Ensure the battery is removed.
2. Place the chain onto the guide bar, ensuring the cutting direction is correct as indicated by the arrows on the chain and guide bar.
3. Attach the side covers.
4. Lightly tighten the top nut.
5. Rotate the bottom knob to adjust the chain tightness. The chain should be snug but still able to be pulled around the guide bar by hand.
6. Once tension is correct, fully tighten the top nut.

Image Description: A diagram illustrating the correct chain installation direction and how to attach the side covers. It also shows a hand adjusting the chain tension using a knob on the side of the chainsaw.

Image Description: A close-up view of the chainsaw's side, highlighting the tool-free tensioning knob. Arrows indicate the rotation for adjusting chain tightness, emphasizing ease of adjustment.

4. Oiling the Chain

The chainsaw features a transparent reservoir for chain oil. Regular oiling is crucial for chain longevity and cutting performance.

1. Locate the transparent oil reservoir (max 30ml capacity).
2. Fill the reservoir with appropriate chainsaw bar and chain oil.
3. Press the bulb to deliver oil to the blade and chain, reducing friction during operation.

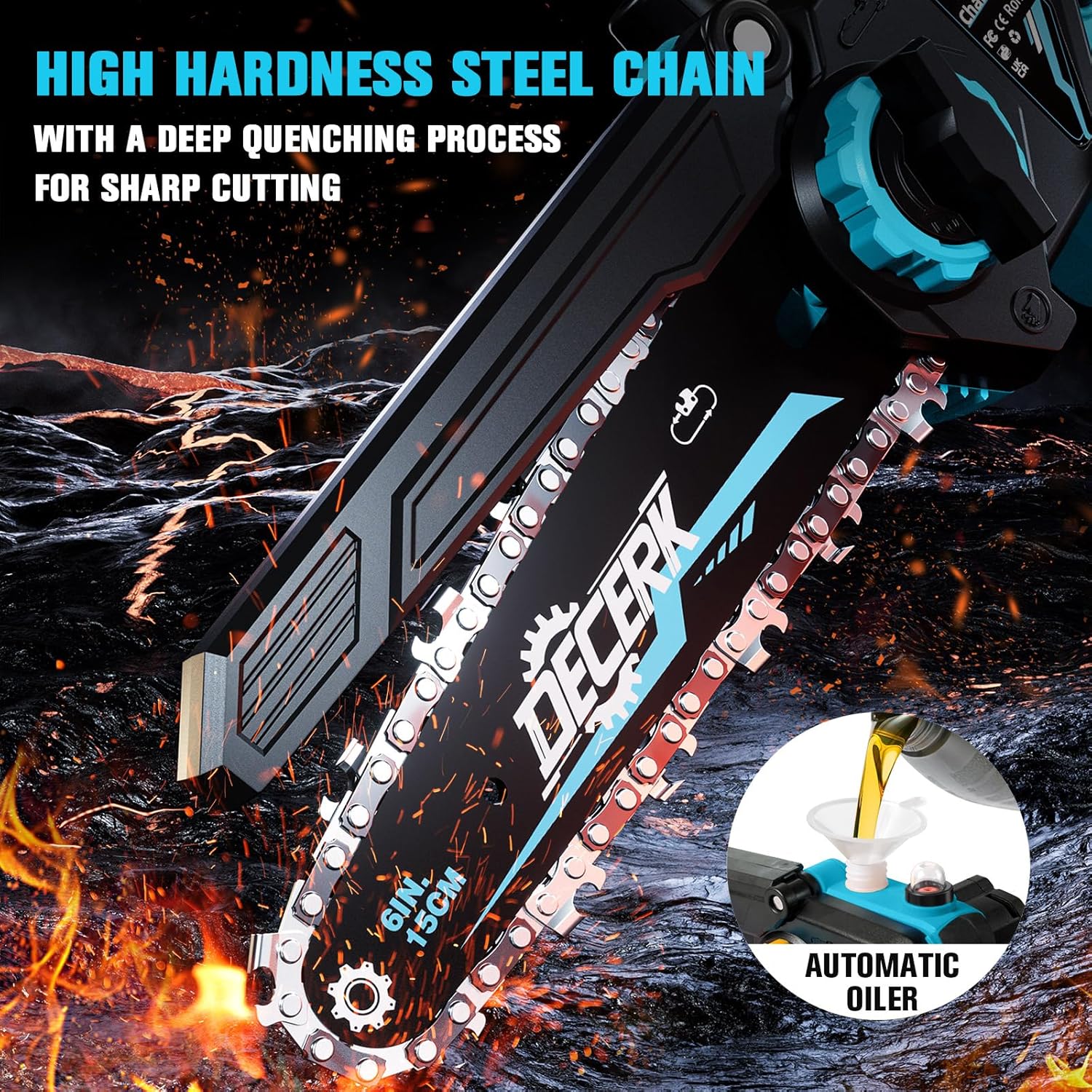

Image Description: A close-up of the chainsaw chain and guide bar, showing a funnel pouring oil into the automatic oiler reservoir. This illustrates the process of lubricating the chain.

Operating Instructions

1. Starting the Chainsaw

1. Ensure the battery is fully charged and securely installed.
2. Hold the chainsaw firmly with both hands.
3. Press the safety lock button (usually located near the trigger).
4. Squeeze the trigger to start the chainsaw. Release the trigger to stop.

2. Cutting Techniques

• Always maintain a firm grip and stable footing.
• Allow the chainsaw to reach full speed before engaging the wood.
• Apply light, consistent pressure. Do not force the saw through the wood.
• Be aware of kickback, especially when cutting with the tip of the guide bar.
• For branches, cut from the top down to prevent pinching. For larger logs, make a relief cut on the underside first.
• The chainsaw is designed for cutting branches up to 6 inches in diameter, but can handle logs up to 8 inches with proper technique.

Image Description: A person wearing gloves operates the Decerk mini chainsaw to cut a log. The image highlights the 6-inch cutting capacity and the speed of 32.8 ft/s.

Image Description: A person using the compact Decerk mini chainsaw for pruning. The image emphasizes the lightweight (1.5kg) and versatile design, suitable for various tasks including home repairs, chopping firewood, and camping.

Image Description: A collage of four images showing the mini chainsaw being used in different scenarios: wood cutting/outdoor camping, DIY home repairs/maintenance, gardening/pruning branches, and yard maintenance/tree trimming.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your chainsaw. Always remove the battery before performing any maintenance.

• Chain Inspection and Sharpening: Regularly check the chain for sharpness and damage. A dull chain reduces efficiency and increases kickback risk. Sharpen or replace the chain as needed.
• Cleaning: After each use, clean sawdust and debris from the guide bar, chain, and motor housing using the provided brush or compressed air.
• Oiling System: Ensure the oil reservoir is filled before each use. Check the oil delivery system for clogs.
• Battery Care: Store batteries in a cool, dry place. Do not expose them to extreme temperatures. Charge them fully before long-term storage.
• General Inspection: Periodically check all screws and fasteners for tightness. Inspect the power cord of the charger for damage.

Troubleshooting

Specifications

Warranty and Support

Your satisfaction is our priority. For any questions, concerns, or product support, please contact us directly.

To get product support:

1. Go to "My Orders" on the platform where you purchased the product.
2. Locate your order for the Decerk 6-inch Mini Cordless Chainsaw.
3. Click on "Get Product Support" or a similar option to chat with us directly.

Please refer to your purchase documentation for specific warranty terms and conditions.
