Introduction
Thank you for purchasing the PowerXL Smokeless Grill Elite. This appliance is designed to provide an indoor grilling experience with minimal smoke, thanks to its integrated AirFlow Technology and Smoke Capture Fan. Please read this manual thoroughly before operating the grill to ensure safe and efficient use. Keep these instructions for future reference.
Important Safeguards
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions carefully before use.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the main unit in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
- This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
Parts and Components
Familiarize yourself with the various parts of your PowerXL Smokeless Grill Elite.

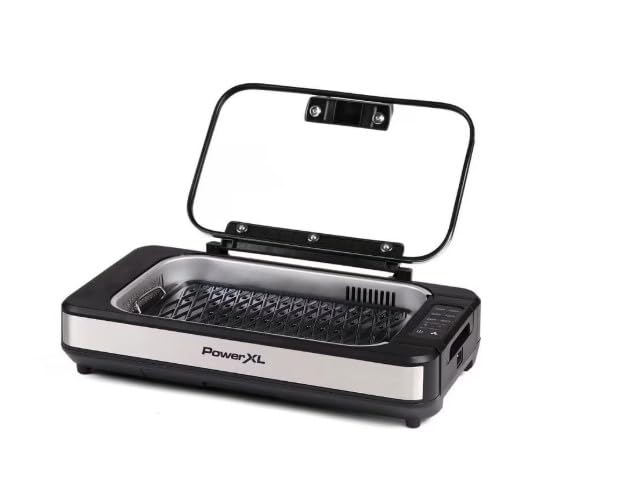

This image displays the PowerXL Smokeless Grill Elite. The appliance is black and silver, with a clear lid hinged open, revealing the non-stick grill plate and the underlying drip tray. The PowerXL logo is visible on the front panel.
- Glass Lid: Transparent lid to monitor cooking and help contain heat and smoke.
- Grill Plate: Die-cast, non-stick cooking surface for grilling.
- Drip Tray: Collects excess grease and liquids during cooking.
- Base Unit: Houses the heating element, fan, and control panel.
- Control Panel: Digital interface for temperature and fan control.
- Power Cord: Detachable cord for electrical connection.
- Smoke Capture Fan: Integrated fan to reduce smoke during indoor grilling.
Setup
Before using your PowerXL Smokeless Grill Elite for the first time, follow these steps:
- Unpack: Remove all packaging materials, stickers, and labels.
- Clean Components: Wash the Glass Lid, Grill Plate, and Drip Tray in warm, soapy water. Rinse and dry thoroughly. The base unit should be wiped with a damp cloth only.
- Assemble: Place the Drip Tray into the Base Unit. Ensure it is seated correctly. Then, place the Grill Plate on top of the Drip Tray, making sure it aligns with the heating element.
- Position: Place the assembled grill on a stable, heat-resistant, and level surface. Ensure there is adequate ventilation around the unit.
- Connect Power: Ensure the power cord is firmly plugged into both the heating element on the grill and a grounded electrical outlet.
Operating Instructions
Preheating
- Plug the unit into a power outlet.
- Press the Power Button on the control panel. The fan will automatically turn on.
- Set your desired cooking temperature using the temperature controls. The grill heats up to 450°F (232°C). Always set the temperature above 200°F (93°C) for optimal performance.
- Allow the grill to preheat for 5–10 minutes. The indicator light will typically change or turn off when the set temperature is reached.
Cooking
- Once preheated, carefully place your food onto the grill plate.
- Close the glass lid to help contain smoke and heat, and to speed up cooking.
- Monitor your food and adjust cooking time as needed. The ceramic-coated surface prevents sticking and reduces the need for excessive oil.
- Use a meat thermometer to ensure food is cooked to a safe internal temperature.
Temperature Control
The digital control panel allows precise temperature adjustment. Refer to the control panel markings for specific temperature settings. Adjust time and temperature as needed to avoid under- or overcooking.
Cleaning and Maintenance
Proper cleaning and maintenance will extend the life of your PowerXL Smokeless Grill Elite.
- Unplug and Cool: Always unplug the grill from the power outlet and allow it to cool completely before cleaning.
- Remove Components: Carefully remove the Glass Lid, Grill Plate, and Drip Tray from the Base Unit.
- Dishwasher Safe Parts: The Grill Plate and Drip Tray are dishwasher safe for easy cleanup. For best results, rinse off large food particles before placing them in the dishwasher.
- Hand Washing: For hand washing, use warm, soapy water and a non-abrasive sponge or cloth. Rinse thoroughly and dry completely.
- Base Unit: Wipe the Base Unit with a clean, damp cloth. Never immerse the Base Unit in water or any other liquid.
- Smoke Capture Fan: Clean the mesh filter regularly for proper airflow and heat performance. The fan cover can usually be removed for access to the fan blades for cleaning with a soft brush or cloth. Ensure it is dry before reassembly.
- Storage: Once all parts are clean and dry, reassemble the grill or store components separately in a clean, dry place.
Troubleshooting
If you encounter issues with your PowerXL Smokeless Grill Elite, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Grill does not turn on. | Power cord not properly connected; no power from outlet. | Ensure the power cord is firmly plugged into both the grill and a working electrical outlet. Check circuit breaker. |
| Excessive smoke during cooking. | Drip tray not clean; fan not operating; too much fat on food. | Ensure the drip tray is clean and contains some water (if recommended by specific model instructions). Verify the fan is turned on. Trim excess fat from food. Clean the mesh filter. |
| Food not cooking evenly. | Grill not preheated; uneven food placement. | Allow the grill to fully preheat. Arrange food in a single layer for even cooking. |
| Food sticking to grill plate. | Insufficient oil (if used); grill plate not clean. | Ensure the grill plate is clean. A small amount of cooking oil can be lightly brushed on the plate before preheating. |
Specifications
- Model Number: 7-52356-83915-4
- Special Feature: Non-Stick Coating, Temperature Control
- Color: Black
- Material: Aluminum, Cast Iron
- Product Dimensions: 23.27"D x 6.54"W x 14.88"H
- Wattage: 1500 watts
- Item Weight: 17.2 Pounds
- Included Components: Lid
Limited Warranty
The PowerXL Smokeless Grill Elite comes with a limited warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration. This warranty typically covers defects in materials and workmanship under normal household use. It does not cover damage resulting from misuse, accident, alteration, neglect, or commercial use.
Customer Support
For further assistance, parts, or service, please contact PowerXL customer support. Contact information can typically be found on the product packaging, the official PowerXL website, or the warranty card.
Online Support: Visit the official PowerXL website for FAQs and support resources.
Telephone Support: Refer to your product documentation for the customer service phone number.
