1. Product Overview
This manual provides essential information for the installation, maintenance, and troubleshooting of the FyJcBdd Universal Joint Cross Shaft Component, Model FyJcBdd38. This component is specifically designed for KZM STELS 500GT drive shafts, featuring dimensions of 23.88MM x 58MM. Constructed from high-toughness materials, it offers strong impact and compression resistance, contributing to reduced accidental damage and extended service life.

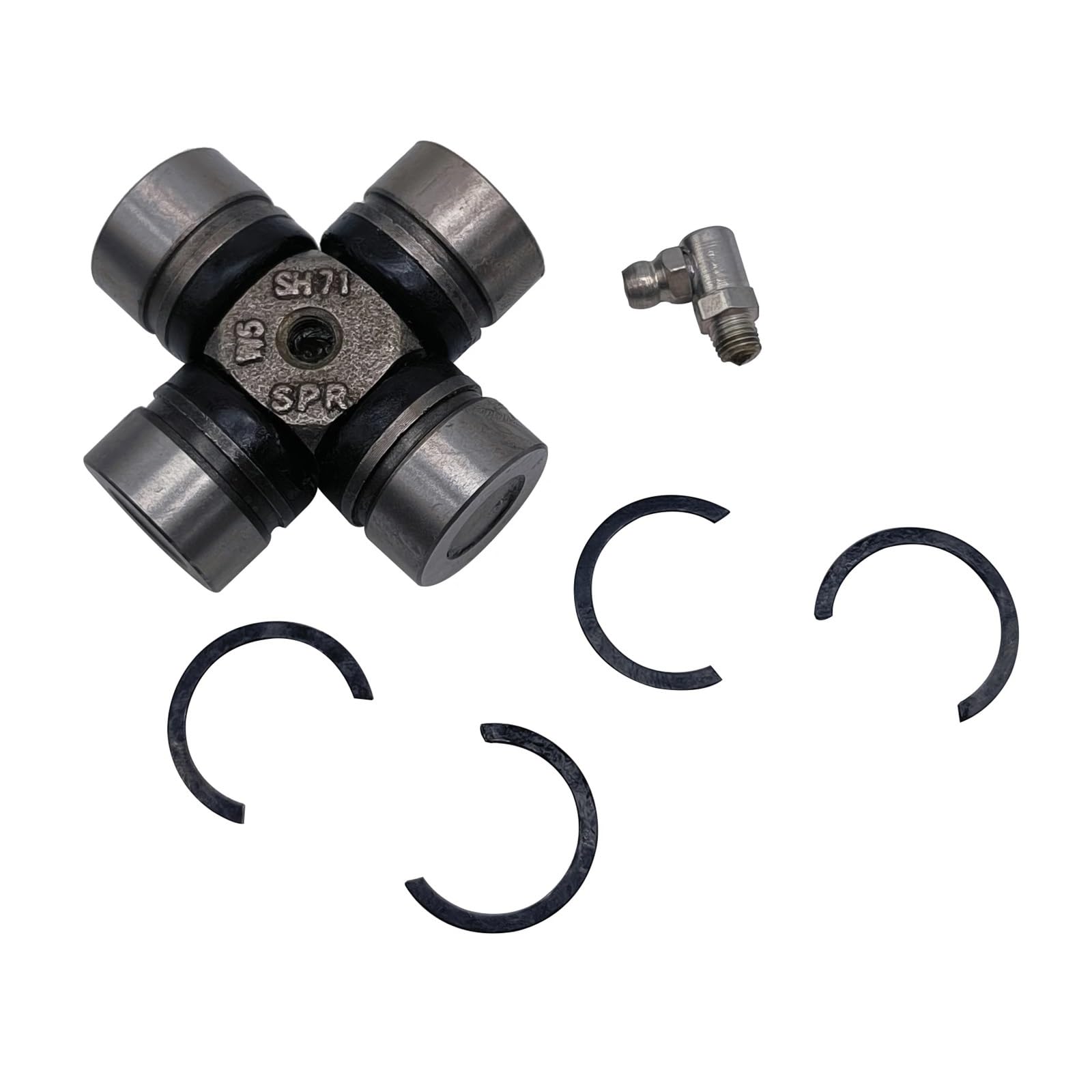

Figure 1: FyJcBdd Universal Joint Cross Shaft Component with retaining C-clips.
2. Important Safety Instructions
Read and understand all instructions before installation or maintenance. Failure to follow these safety guidelines may result in injury or damage to the product or vehicle.
- Professional Installation Recommended: Installation of automotive components can be complex. It is highly recommended that this universal joint be installed by a qualified mechanic.
- Eye Protection: Always wear appropriate eye protection when working with tools and automotive parts.
- Proper Tools: Use only the correct tools for installation and removal to prevent damage to the component or injury.
- Vehicle Support: Ensure the vehicle is securely supported on jack stands or a lift before working underneath it. Never rely solely on a jack.
- Cleanliness: Keep the work area clean and free of debris. Ensure all mating surfaces are clean before assembly.
- Chemical Handling: This product contains no highly concerned chemicals. However, standard precautions for handling automotive greases and cleaners should be observed.
3. Product Components
The package typically includes the following items:
- 1 x FyJcBdd Universal Joint Cross Shaft Component (Model FyJcBdd38)
- 4 x Retaining C-clips

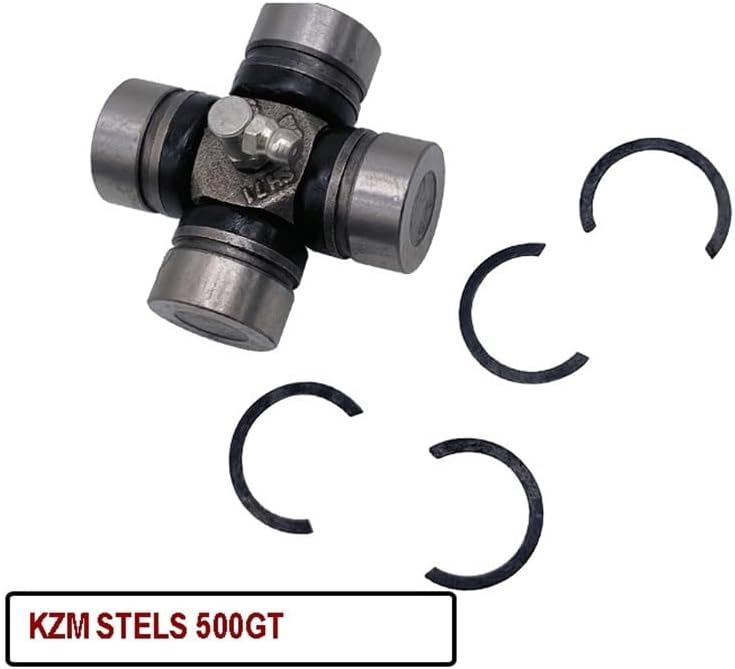

Figure 2: Universal Joint and included C-clips.
4. Installation Guide
This section outlines the general steps for replacing a universal joint. Specific procedures may vary depending on the vehicle model (KZM STELS 500GT) and drive shaft design. Always refer to the vehicle's service manual for detailed instructions.
- Prepare Vehicle: Park the vehicle on a level surface, engage the parking brake, and place wheel chocks. Lift the vehicle using a jack and secure it with jack stands.
- Remove Drive Shaft: Carefully remove the drive shaft from the vehicle, noting its orientation for reinstallation.
- Remove Old Universal Joint: Using appropriate tools (e.g., a press or vise with sockets), remove the retaining clips and press out the old universal joint cups and cross.
- Clean Yokes: Thoroughly clean the drive shaft yokes, removing any rust, dirt, or old grease. Ensure the bearing bores are smooth and free of burrs.
- Install New Universal Joint:
- Remove two opposing bearing cups from the new universal joint.
- Insert one trunnion (cross arm) into the drive shaft yoke.
- Place a bearing cup over the trunnion and press it into the yoke until the retaining clip groove is exposed. Install the retaining clip.
- Repeat for the opposing trunnion and cup.
- Rotate the drive shaft 90 degrees and repeat the process for the remaining two trunnions and cups.
- Secure Retaining Clips: Ensure all four C-clips are properly seated in their grooves.
- Lubricate: If equipped with a grease fitting (as shown in Figure 3), lubricate the universal joint with appropriate grease until grease purges from all four seals.
- Reinstall Drive Shaft: Reinstall the drive shaft into the vehicle, ensuring correct orientation and proper torque specifications for all fasteners.
- Final Check: Lower the vehicle and perform a functional check to ensure smooth operation and no abnormal noises or vibrations.
Figure 3: Close-up of the universal joint, highlighting the grease nipple for lubrication.
5. Maintenance and Care
Regular maintenance ensures optimal performance and extends the lifespan of your universal joint.
- Lubrication: Periodically lubricate the universal joint through its grease fitting (if present) using a high-quality chassis grease. Follow your vehicle manufacturer's recommended lubrication schedule.
- Inspection: Regularly inspect the universal joint for signs of wear, looseness, rust, or damage to the bearing cups and seals. Check for any play in the joint.
- Cleanliness: Keep the area around the universal joint clean to prevent dirt and contaminants from entering the bearings.
6. Troubleshooting
If you experience issues after installation, consult the table below for common symptoms and potential solutions.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Vibration during acceleration or deceleration | Worn or damaged universal joint, improper installation, unbalanced drive shaft | Inspect universal joint for wear. Ensure proper installation and balance of drive shaft. Replace if necessary. |
| Clunking or banging noise when shifting gears or accelerating | Excessive play in universal joint, loose fasteners | Check for play in the joint. Ensure all drive shaft fasteners are torqued to specification. Replace universal joint if excessive play is found. |
| Squeaking or chirping noise | Lack of lubrication, worn seals | Lubricate the universal joint. Inspect seals for damage and replace the joint if seals are compromised. |
7. Technical Specifications
| Feature | Specification |
|---|---|
| Brand | FyJcBdd |
| Model Number | FyJcBdd38 |
| Compatibility | KZM STELS 500GT Drive Shaft |
| Dimensions (Cross Shaft) | 23.88MM x 58MM |
| Item Weight | 1.76 ounces (approximately 50 grams) |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Material | High-toughness materials for impact and compression resistance |
| Chemical Concerns | None (as per product description) |
8. Warranty Information
For specific warranty terms and conditions, please consult the retailer where the product was purchased or contact FyJcBdd directly. Warranty coverage typically applies to manufacturing defects and does not cover damage due to improper installation, misuse, or normal wear and tear.
9. Customer Support
If you have any questions regarding the installation, operation, or maintenance of your FyJcBdd Universal Joint Cross Shaft Component, please contact your retailer or the manufacturer for assistance. Provide your product model number (FyJcBdd38) and purchase details when seeking support.
