Kingston Slumber Single Bed Frame with Pop-Up Trundle User Manual

Introduction

This user manual provides essential information for the assembly, operation, maintenance, and troubleshooting of your Kingston Slumber Single Bed Frame with Pop-Up Trundle. Designed for functionality and space-saving, this bed frame offers a comfortable sleeping solution for children and includes a convenient pull-out trundle for additional guests. Please read these instructions carefully before assembly and use to ensure safe and proper operation.

Figure 1: Kingston Slumber Single Bed Frame with Pop-Up Trundle. This image displays the main bed with the trundle bed neatly stored underneath, highlighting its compact design.

Setup and Assembly

The Kingston Slumber Single Bed Frame is designed for straightforward assembly. It is recommended that two adults assemble the bed frame to ensure safety and ease of construction. All necessary hardware and pre-drilled holes are provided for a smooth process.

Before You Begin:

• Unpack all components and verify against the parts list (refer to the included assembly guide for a detailed list).
• Ensure you have a clear, spacious area for assembly.
• Keep small parts out of reach of children.
• Tools required: Typically a Phillips head screwdriver and an Allen key (often included).

Assembly Steps:

1. Assemble the Main Bed Frame: Attach the side rails to the headboard and footboard using the provided bolts and nuts. Ensure all connections are secure but do not fully tighten until all major components are in place.
2. Install Bed Slats: Place the wooden slats onto the support rails of the main bed frame. Secure them using the provided screws or plastic caps, ensuring even spacing for mattress support.
3. Assemble the Trundle Frame: Construct the trundle bed frame by attaching its side rails to the end panels. Install the castor wheels onto the bottom of the trundle frame.
4. Install Trundle Slats: Secure the wooden slats onto the trundle frame, similar to the main bed.
5. Final Tightening: Once all components are assembled, carefully tighten all bolts and screws. Do not overtighten.
6. Positioning: Carefully move the assembled bed frame to its desired location.

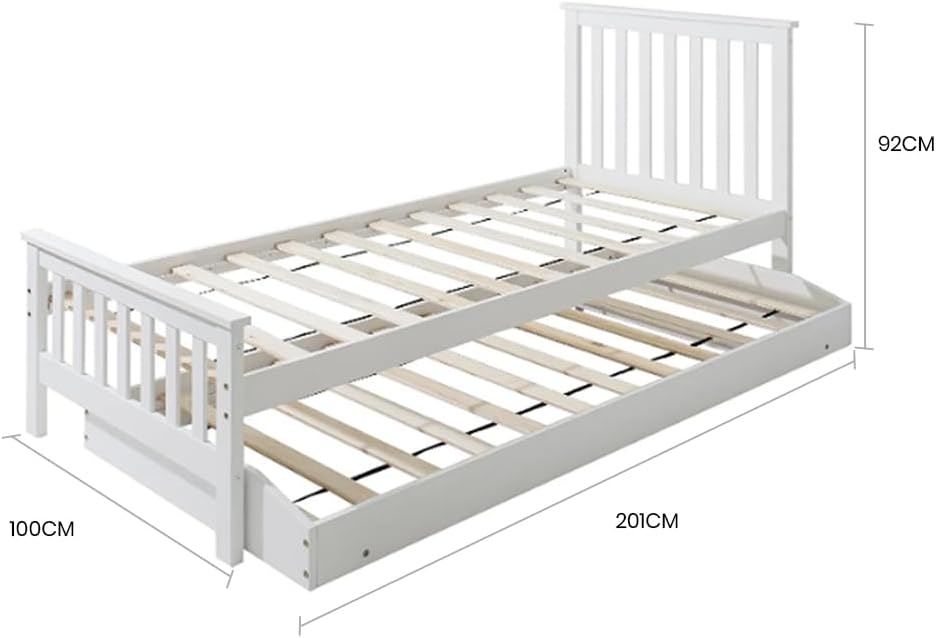

Figure 2: Product Dimensions. This diagram illustrates the overall length, width, and height of the bed frame, providing essential measurements for space planning.

Operation

The Kingston Slumber bed frame features a convenient pop-up trundle, allowing for an additional sleeping space when needed and compact storage when not in use.

Using the Pop-Up Trundle:

1. To Extend: Gently pull the trundle bed frame out from underneath the main bed. The trundle is equipped with smooth-rolling castors for easy movement.
2. To Elevate (if applicable): Some trundle models feature a pop-up mechanism. If your model has this feature, lift the trundle frame until it locks into an elevated position, aligning with the height of the main bed. This transforms it into a separate, full-height single bed.
3. To Retract: If elevated, disengage the pop-up mechanism (refer to specific instructions if provided with your model). Gently push the trundle bed back underneath the main bed until it is fully stored.

Note: The trundle bed is designed to accommodate a single mattress with a maximum thickness of 16cm to allow for proper storage underneath the main bed.

Figure 3: Trundle in Use. This image demonstrates the trundle bed pulled out and positioned as a separate sleeping area, showcasing the dual-bed functionality.

Figure 4: Dual Bed Setup. A lifestyle shot showing both the main bed and the trundle bed (when popped up) in a room, illustrating how they can be used side-by-side.

Care and Maintenance

Proper care will extend the life and appearance of your Kingston Slumber bed frame.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals, abrasive cleaners, or polishes that may damage the non-toxic paint finish.
• Fasteners: Periodically check all bolts and screws to ensure they remain tight. Retighten as necessary to maintain stability and prevent squeaking.
• Weight Distribution: Ensure weight is evenly distributed on the bed frame. The maximum weight limit for this bed frame is 120kg.
• Avoid Excessive Moisture: Protect the wooden frame from prolonged exposure to moisture or extreme temperature changes.

Troubleshooting

If you encounter any issues with your bed frame, refer to the following common solutions:

Specifications

• Brand: Kingston Slumber
• Model: Single Bed Frame with Pop-Up Trundle
• Colour: White
• Material: Solid Pine
• Product Dimensions (L x W x H): 201 cm x 100 cm x 92 cm
• Item Weight: 36 kg
• Maximum Weight Capacity: 120 kg
• Compatible Mattress Size (Main & Trundle): Single (188 x 92 cm)
• Maximum Trundle Mattress Thickness: 16 cm
• Features: 100% formaldehyde-free materials, non-toxic paint, premium pinewood slats, smooth-rolling castors for trundle.

Warranty and Support

For warranty information, product support, or to inquire about replacement parts, please contact Kingston Slumber customer service or the retailer from whom you purchased the product. Please retain your proof of purchase for any warranty claims.

No official product videos are available for this model at this time.
