Introduction
This manual provides essential instructions for the safe and efficient use of your Toshiba Front Load Washing Machine, Model TW-BK90GF4EG. Please read this manual thoroughly before operating the appliance and retain it for future reference.

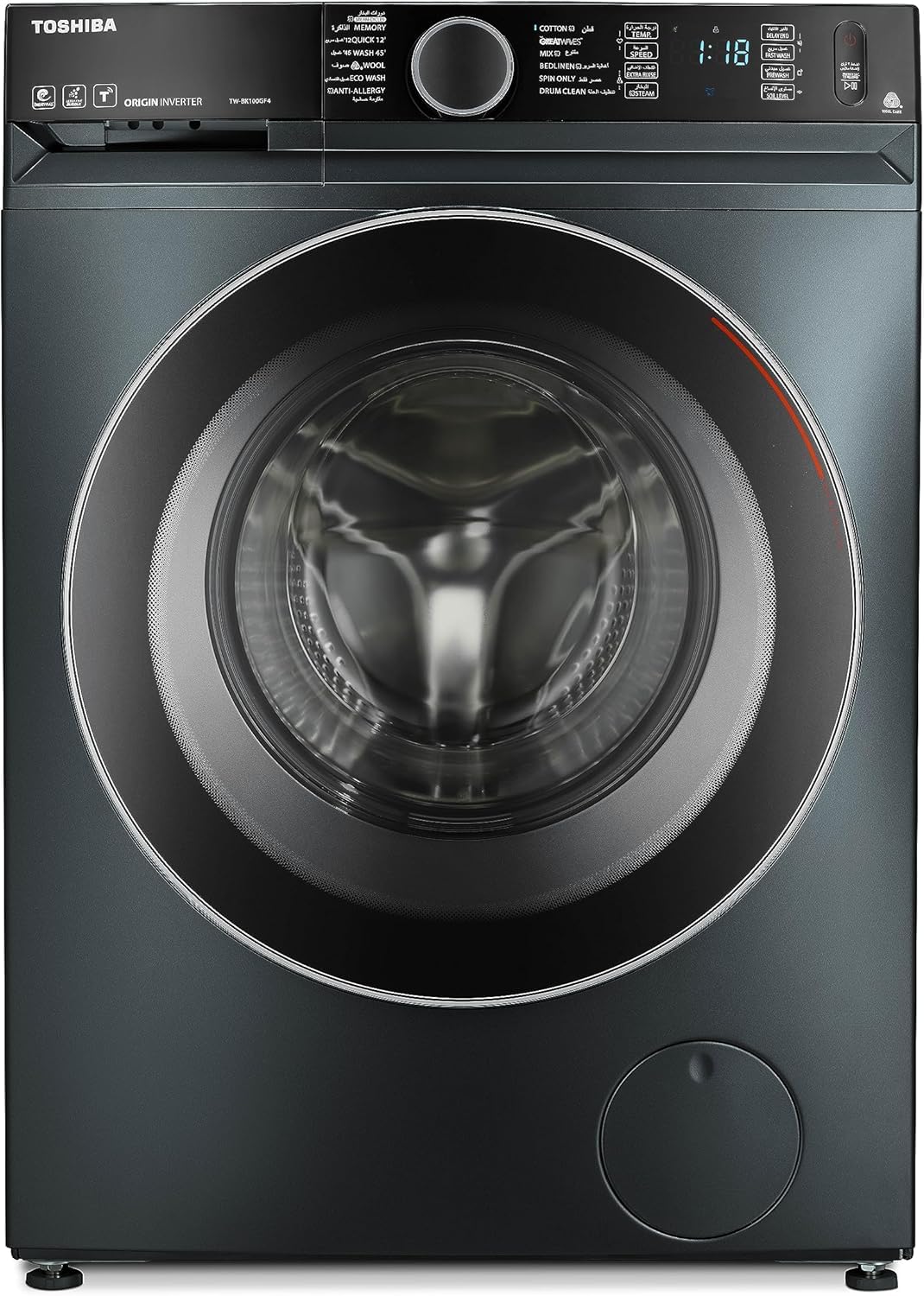

Figure 1: Toshiba Front Load Washing Machine, closed view. This image shows the washing machine with its door closed, displaying the control panel and the overall sleek design.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.
- Ensure the washing machine is properly grounded.
- Do not allow children to play on or in the appliance.
- Keep flammable materials away from the appliance.
- Do not operate the machine if it is damaged or malfunctioning.
- Unplug the appliance before cleaning or performing any maintenance.
Setup and Installation
1. Unpacking
Carefully remove all packaging materials. Inspect the machine for any damage incurred during transit. Remove all transit bolts from the rear of the machine before use. Failure to do so will cause severe vibration and damage.
2. Leveling the Appliance
Place the washing machine on a firm, level surface. Adjust the leveling feet at the bottom of the machine to ensure it is stable and does not wobble. Proper leveling reduces noise and vibration during operation.
3. Water Connection
Connect the water inlet hoses to the corresponding hot and cold water taps and to the machine's inlet valves. Ensure all connections are tight to prevent leaks.
4. Power Connection
Plug the power cord into a grounded electrical outlet (220V). Do not use extension cords or adapters.
Operating Instructions
1. Control Panel Overview
The control panel features a central knob for program selection, a digital display, and various touch buttons for additional functions and settings.
Figure 2: Toshiba Front Load Washing Machine with door open. This image displays the interior of the drum, highlighting its design and capacity, ready for loading laundry.
2. Loading Laundry
Open the washing machine door and load your laundry. Do not overload the machine; ensure there is enough space for clothes to tumble freely. The machine has an 8 kg capacity.
3. Adding Detergent
Pull out the detergent dispenser drawer. Add the appropriate amount of detergent and fabric softener to their respective compartments. This model features a single storage space for detergents.
4. Selecting a Wash Program
Turn the program selection knob to choose one of the 12 available wash programs. Common cycles include:
- Normal
- Heavy Duty
- Delicates
- Quick Wash
- Rinse
5. Special Features
- Wave Flume Technology: The crystal inner drum with 2196 water outlets and long-diameter 'S' type lifting paddles effectively increases contact area with clothes, dissolving stains and providing a more effective wash. The cold wash process, based on flow waves, achieves a standard 40°C cleaning effect without heating, saving up to 67% energy and protecting colors.
- Ultra Fine Bubbles (UFB): Nano bubble water enhances grease washing rate by 18% and reduces residue by 15%. Nano-sized bubbles penetrate fabric fibers to remove deep stains, bacteria, and residues, preventing yellowing and keeping fabrics fresh.
- Smart Control (T-Smart Life via Wi-Fi): Control your washing machine remotely using the dedicated T-Smart Life app on your mobile device, offering full control and enhanced convenience.
- Steam Wash: Before the main wash, a small amount of water is heated above 60°C to generate steam. This function raises the inner drum temperature and deeply penetrates fabric fibers, achieving 99.99% fabric sterilization and effective odor removal, while also reducing wrinkles.
- Origin Inverter Motor: The original inverter motor operates quietly (10% noise reduction), efficiently (up to 80% efficiency), and offers a durable lifespan of over 10 years. This results in energy savings of up to 67% and lower noise levels.
- Cyclone Mix Technology: An impeller in the detergent drawer increases the detergent dissolution rate by 20% and the washing rate by 10%, reducing detergent residue and saving time.
- Anti-Bacterial Gasket: The anti-bacterial gasket effectively prevents bacterial growth, ensuring a clean and hygienic wash every time.
- Drum Clean: This function activates a strong water flow through the gap between the inner and outer drums to remove odors and dirt, preventing secondary contamination of clothes. It also uses 90°C high-temperature sterilization for enhanced hygiene and extends the drum's lifespan.
6. Starting a Cycle
After selecting the program and any desired options, press the Start/Pause button to begin the wash cycle.
Maintenance
Regular maintenance ensures optimal performance and longevity of your washing machine.
1. Cleaning the Drum
Utilize the dedicated Drum Clean function periodically to remove residue and odors from the drum. This cycle uses high-temperature water to sterilize and clean the drum effectively.
2. Cleaning the Detergent Dispenser
Remove the detergent dispenser drawer and rinse it under running water to clear any detergent or softener buildup. Clean the housing of the dispenser with a brush if necessary.
3. Cleaning the Filter
Locate the drain pump filter, usually at the bottom front of the machine. Open the cover, drain any residual water, and carefully remove and clean the filter of lint and debris. Reinstall securely.
4. General Exterior Cleaning
Wipe the exterior of the washing machine with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
Troubleshooting
Before contacting service, check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged, door not closed properly, power outage | Check power connection, ensure door is latched, check circuit breaker |
| No water filling | Water taps closed, inlet hose kinked, water supply issue | Open water taps, straighten hose, check household water supply |
| Excessive vibration/noise | Transit bolts not removed, machine not level, uneven load | Remove transit bolts, adjust leveling feet, redistribute laundry |
| Water leakage | Hose connections loose, drain hose blocked, detergent overdose | Tighten hose connections, clear drain hose, use correct detergent amount |
Specifications
- Brand Name: Toshiba
- Model Number: TWBK90GF4EGMK
- Capacity: 8 kg
- Access Location: Front Load
- Color: Morandi Grey
- Finish Type: Painted - Morandi Grey
- Control Type: Knob
- Operation Mode: Fully Automatic
- Maximum Spin Speed: 1400 RPM
- Voltage: 220 Volts
- Number of Programs: 12
- Cycle Options: Normal, Heavy Duty, Delicates, Quick Wash, Rinse
- Special Features: Drum Clean
- Item Weight: 1 Kilograms (Note: This might be a packaging weight, actual product weight will be higher)
- Material: Glass (for door)
- Washing Machine Drum Material: Glass
- Installation Type: Freestanding
- Washing Machine Dispenser Options: Single storage space for detergents
- Product Dimensions (Depth x Width x Height): 9 cm x 9 cm x 9 cm (Note: These dimensions appear to be placeholder or incorrect, actual product dimensions will be larger)
- Recommended Uses For Product: Commercial, Residential
- Manufacturer: Toshiba
- Made in: Egypt
Warranty and Support
Warranty Information
This Toshiba washing machine comes with a 6-year warranty from Miraco. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use conditions.
Customer Support
For technical assistance, service requests, or inquiries regarding your product, please contact Toshiba customer support or your local authorized service center. Refer to your warranty card or the official Toshiba website for contact details.
