1. Introduction
Thank you for choosing the KikkaBoo i-Pass Child Car Seat. This manual provides essential information for the correct installation, use, and maintenance of your car seat. Designed for children from approximately 15 months to 12 years (76-150 cm, 9-36 kg), the i-Pass car seat offers a secure and comfortable travel solution, adapting to your child's growth.
Image: Overview of the KikkaBoo i-Pass i-Size car seat, highlighting its crash-approved status, full-body support cushion, and shoulder-padded harness system.
2. Safety Information
The KikkaBoo i-Pass car seat is designed and tested to meet the highest safety standards. It complies with UN Regulation No. R129/03 (i-Size), ensuring optimal protection for your child.
- i-Size Compliance: Certified for children from 76 cm to 150 cm, providing enhanced safety performance.
- 5-Point Harness System: Features a secure 5-point harness with padded shoulder straps for maximum child restraint and comfort.
- Crash Tested: Rigorously tested and approved by TÜV Nord, ensuring reliability in impact situations.
Image: The KikkaBoo i-Pass car seat, displaying its crash test approval and i-Size certification, confirming adherence to safety regulations.
Image: A detailed view of the robust 5-point harness system, designed to keep your child securely fastened.
3. Product Features
The i-Pass car seat is equipped with features designed for your child's safety and comfort throughout their growth stages.
- 13-Position Adjustable Headrest: Easily adjusts with one hand to accommodate your child's increasing height, ensuring proper head and neck support.
- Memory Foam Headrest: Provides superior comfort and adapts to your child's posture for a pleasant journey.
- Soft Full-Body Support Cushion: Offers additional comfort and support, especially for younger children.
- Padded Shoulder Straps: Enhance comfort and prevent irritation from the harness.
- Removable and Washable Cover: The cover can be easily removed and hand or machine washed at 30°C for convenient maintenance.

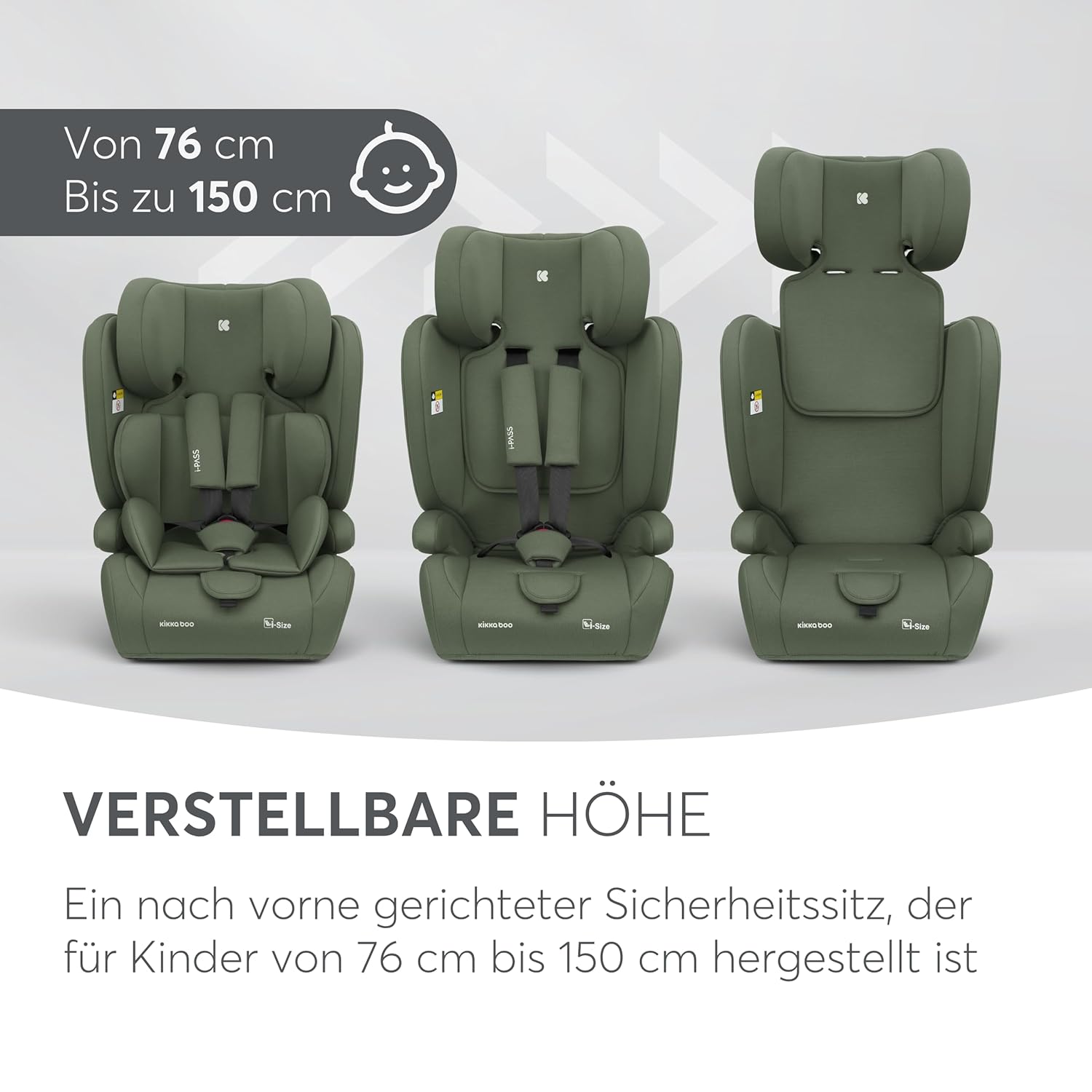

Image: Illustration demonstrating the adjustable height range of the car seat, suitable for children from 76 cm up to 150 cm.
Image: Key features of the i-Pass car seat, including the 13-position adjustable headrest, shoulder pads, soft full-body support cushion, and one-hand harness adjustment.
Image: A detailed diagram illustrating the components of the car seat, including the memory foam headrest, soft supporting cushion, 5-point harness system, and the 13 headrest positions.
4. Setup and Installation
The KikkaBoo i-Pass car seat is designed for forward-facing installation using your vehicle's 3-point seat belt.
- Position the Car Seat: Place the i-Pass car seat on the vehicle's rear seat, ensuring it is stable and flush against the seatback.
- Route the Vehicle Belt: Guide the vehicle's 3-point seat belt through the designated belt guides on the car seat. Ensure the lap belt is low across the child's hips and the diagonal belt passes over the child's shoulder and across the chest.
- Buckle the Belt: Fasten the vehicle's seat belt securely.
- Tighten the Belt: Pull the vehicle's seat belt firmly to remove any slack, ensuring the car seat is tightly secured to the vehicle seat. There should be minimal movement (less than 1 inch) when you try to move the seat at the belt path.
Image: Demonstrates the installation of the car seat using the vehicle's seat belt, emphasizing both safety and comfort features like padding and memory foam.
5. Operating Instructions
Proper use of the car seat ensures your child's safety and comfort on every journey.
- Securing Your Child: Place your child in the car seat. Bring the 5-point harness straps over their shoulders and buckle them into the central buckle.
- Adjusting the Harness: Pull the harness adjustment strap (usually located at the front of the seat) to tighten the harness until it is snug against your child's body. Ensure you can only fit one finger between the harness and your child's collarbone.
- Adjusting the Headrest: Use the one-hand adjustment mechanism (typically a lever or button on the back or top of the headrest) to raise or lower the headrest. The headrest should be positioned so that the shoulder straps are at or just above your child's shoulders.
- Removing Child: To unbuckle the harness, press the red button on the central buckle. Loosen the harness if necessary and remove your child.
Image: A visual guide demonstrating how to adjust the headrest to the correct height for your child.
Image: A child comfortably and securely seated in the KikkaBoo i-Pass car seat, demonstrating proper harness usage.
6. Maintenance and Care
Regular cleaning and maintenance will prolong the life of your car seat and ensure continued hygiene.
- Fabric Cover: The fabric cover is removable and can be hand or machine washed at 30°C. Do not bleach, tumble dry, or iron. Allow to air dry completely before reattaching.
- Plastic Parts: Wipe plastic parts with a damp cloth and mild soap. Do not use abrasive cleaners or solvents.
- Harness System: Inspect the harness straps regularly for any signs of wear or damage. Clean with a damp cloth. Do not immerse the buckle in water.
- Storage: When not in use, store the car seat in a cool, dry place away from direct sunlight.
7. Troubleshooting
If you encounter any issues with your KikkaBoo i-Pass car seat, please refer to the following common solutions:
- Harness Difficult to Adjust: Ensure the harness straps are not twisted. Check for any obstructions in the adjustment mechanism. If the cover has been removed, ensure it is reattached correctly and not interfering with the strap path.
- Car Seat Feels Loose: Re-read the installation instructions carefully. Ensure the vehicle's seat belt is routed correctly through all designated guides and pulled taut. Apply pressure to the car seat while tightening the belt to remove all slack.
- Buckle Not Latching: Check for any debris or foreign objects in the buckle mechanism. Ensure both buckle tongues are inserted fully until you hear a click.
If the problem persists, please contact Kikka Boo customer support for assistance.
8. Specifications
| Product Dimensions | 47 x 43 x 82 cm |
| Item Weight | 5.7 Kilograms |
| Recommended Max. Body Weight | 36 Kilograms |
| Child Height Range | 76 - 150 cm |
| Age Group | Approx. 15 Months - 12 Years |
| Safety Standard | UN Regulation No. R129/03 (i-Size) |
| Material Composition | 20% Polyester, 20% Steel, 60% Plastic |
| Color | Army Green |
9. Warranty and Support
For information regarding warranty coverage, claims, or technical support, please refer to the warranty card included with your product or visit the official Kikka Boo website. You may also contact the retailer from whom you purchased the product.
Contact Information:
Please refer to the contact details provided on the Kikka Boo official website or your purchase documentation.
