1. Important Safety Information
Please read all instructions carefully before assembly and use. Keep this manual for future reference.
- Inspect all components upon receipt to ensure no damage occurred during shipping. Do not proceed with assembly if any parts are damaged.
- Ensure all fasteners are tightened securely before use. Periodically check and re-tighten fasteners as needed.
- Do not exceed the maximum weight capacity of 1200 lbs.
- Keep small parts away from children during assembly to prevent choking hazards.
- Use on a level surface to prevent tipping.
2. Product Overview
The AMERLIFE Full Bed Frame, Model BPB100, is designed for comfort and functionality, featuring integrated storage and charging capabilities. This bed frame eliminates the need for a box spring.
Figure 2.1: Overall view of the AMERLIFE Full Bed Frame, showcasing its design and integrated features.

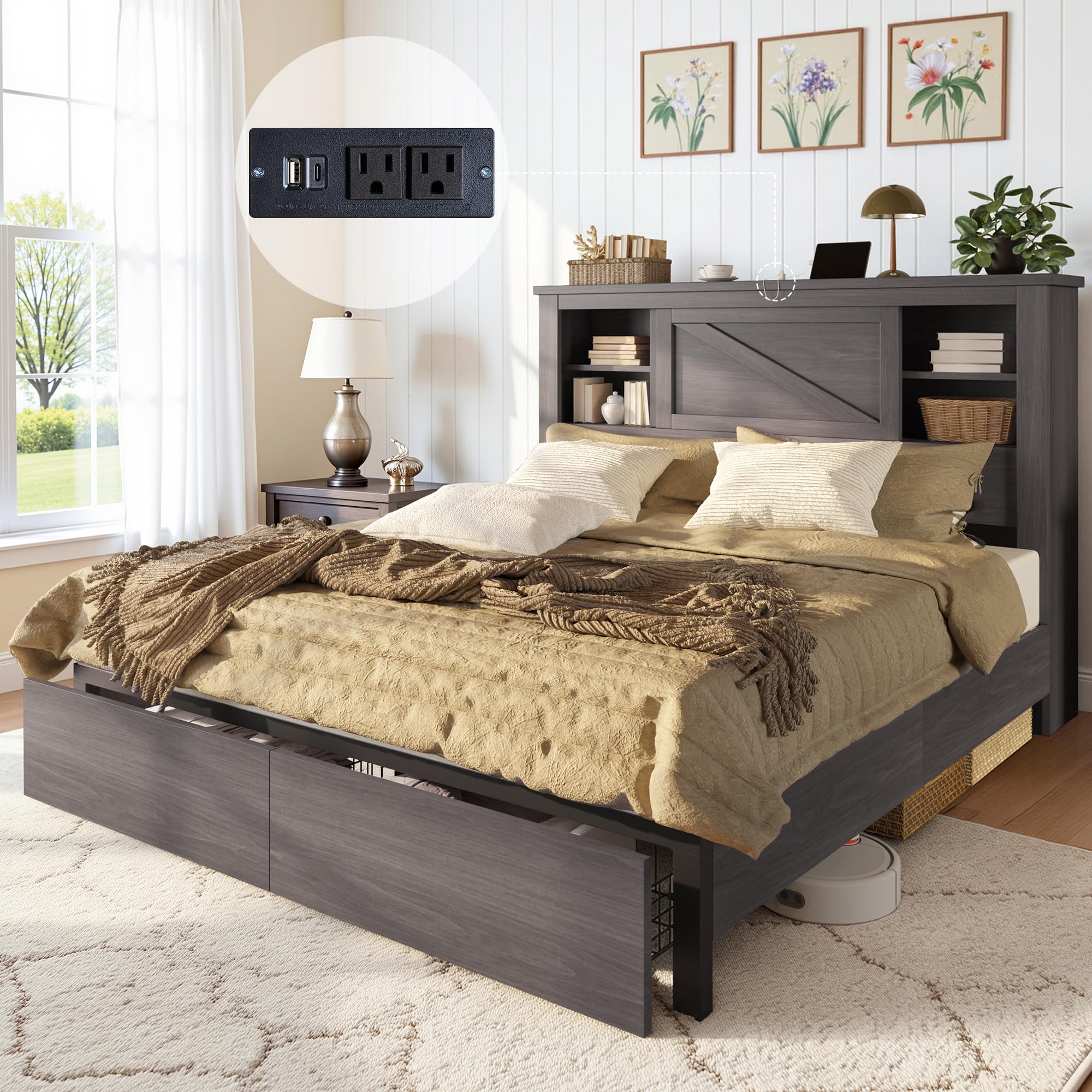

Figure 2.2: The bed frame in a bedroom setting, highlighting the headboard storage and under-bed drawers.
Figure 2.3: Illustration of the under-bed clearance, useful for cleaning and additional storage.
Key Features:
- 47.2-inch Headboard with Hidden Storage: Features a tall headboard with concealed compartments behind sliding barn doors.
- Adjustable Shelves: The headboard storage includes adjustable shelves for personalized organization.
- Integrated Charging Station: Equipped with 2 standard AC outlets, 1 USB port, and 1 Type-C port for convenient device charging.
- 10.2-inch Top Shelf: A wide top surface on the headboard provides space for essentials like books, lamps, or decorative items.
- Two Storage Drawers: Two spacious, dust-free drawers located under the bed offer additional storage for clothing or other items. These drawers are fitted with wheels and latches for easy access and secure placement.
- Sturdy Wooden Slats: The bed frame is supported by durable wooden slats with EVA pads, designed to provide stable support for mattresses ranging from 9 to 16 inches thick.
- Anti-Slip Feature: Includes a mechanism to prevent mattress shifting, enhancing safety and stability.
3. Specifications
Figure 3.1: Detailed dimensions of the AMERLIFE Full Bed Frame (Model BPB100).
| Feature | Detail |
|---|---|
| Model Number | BPB100 |
| Size | Full |
| Material | Engineered Wood |
| Overall Dimensions (Full) | 86.4" L x 56.3" W x 47.2" H (2.19m L x 1.43m W x 1.2m H) |
| Headboard Height | 47.2 inches |
| Top Shelf Width | 10.2 inches |
| Clearance from Ground | 5.5 - 11.4 inches |
| Weight Capacity | 1200 lbs |
| Mattress Compatibility | 9-16 inch thickness, 53" x 75" (Full size) |
| Charging Ports | 2 AC Outlets (110V/12A), 1 USB Port (5V/2A), 1 Type-C Port (5V/2A) |
| Power Cord Length | 4.5 feet |
| Assembly Required | Yes |
| Color | Grey |
4. Setup and Assembly
Assembly of the AMERLIFE bed frame requires careful attention to detail. It is recommended to have at least two people for assembly. All parts are clearly labeled for easy identification.
Before You Begin:
- Clear a spacious area for assembly.
- Unpack all components and verify against the parts list (usually included in the packaging).
- Ensure all necessary tools are available. Basic tools like screwdrivers and hex wrenches are typically included.
- Familiarize yourself with the illustrations and instructions provided in the physical manual.
Assembly Steps (General Guidance):
- Headboard Assembly: Begin by assembling the headboard components. Pay close attention to the orientation of parts, especially for the hidden storage and charging station sections.
- Side Rails and Footboard: Attach the side rails to the headboard, followed by the footboard. Ensure all connections are secure.
- Slat Installation: Install the wooden slats across the bed frame. Ensure they are evenly spaced and securely fastened to provide proper mattress support. The EVA pads on the slats should face upwards.
- Drawer Assembly: Assemble the two storage drawers according to the instructions. Install the wheels and latches.
- Drawer Insertion: Slide the assembled drawers into their designated spaces under the bed frame.
- Final Checks: Double-check all screws and bolts to ensure they are tight. Confirm the bed frame is stable and level.
Note: Some users have found that using a low-torque electric drill can expedite certain steps, but extreme caution is advised to prevent damage to the engineered wood components. Always start with the lowest torque setting and apply minimal pressure.
Figure 4.1: View of the bed frame's internal structure, showing the wooden slats and metal support.
Figure 4.2: Close-up of the under-bed storage drawers, illustrating the wheels and latch mechanism for smooth operation.
5. Operating Instructions
5.1 Using the Headboard Storage
The headboard features hidden storage compartments accessible via sliding barn doors. These doors can be adjusted to various positions to reveal or conceal items as desired.
- To access the storage, gently slide the barn door panels horizontally.
- The internal shelves are adjustable. To change shelf height, remove the shelf, reposition the support pins to the desired slots, and reinsert the shelf.
- The 10.2-inch wide top shelf provides an open surface for frequently used items.
Figure 5.1: The headboard's customizable barn doors, showing their sliding functionality to access hidden storage.
Figure 5.2: Headboard storage in use, demonstrating how items can be stored and devices charged.
5.2 Using the Integrated Charging Station
The headboard includes a built-in charging station for your electronic devices.
- Plug the bed frame's power cord into a standard wall outlet.
- Use the two AC outlets for larger electronics or chargers.
- Connect your devices to the USB or Type-C ports for direct charging.
- Ensure devices are compatible with the provided voltage and amperage (110V/12A for AC, 5V/2A for USB/Type-C).
Figure 5.3: Close-up of the charging station, detailing the AC outlets, USB, and Type-C ports.
5.3 Using the Storage Drawers
Two large drawers are located under the bed for additional storage.
- To open a drawer, gently pull the handle. The drawers are equipped with wheels for smooth movement.
- To close, push the drawer back until the latch engages, securing it in place and preventing dust accumulation.
6. Maintenance
Proper maintenance will extend the life and appearance of your bed frame.
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that can damage the finish.
- Fasteners: Periodically check all screws, bolts, and connections. Re-tighten any loose fasteners to maintain stability and prevent squeaking.
- Slats: Ensure wooden slats remain properly seated and undamaged. Replace any broken slats immediately to maintain mattress support.
- Drawers: Keep drawer wheels free of debris to ensure smooth operation.
- Charging Station: Keep the charging ports clean and free of dust. Do not expose the charging station to liquids.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or squeaks. | Loose fasteners. Uneven floor. | Check and tighten all screws and bolts. Ensure the bed is on a level surface; use shims if necessary. |
| Mattress slides on the frame. | Anti-slip feature not engaged or missing. | Ensure the anti-slip mechanism (if applicable) is correctly installed. A non-slip mattress pad can also be used. |
| Drawers do not slide smoothly. | Debris in wheels or tracks. Drawer overloaded. | Clean wheels and tracks. Reduce the weight in the drawer. Check for proper assembly of drawer components. |
| Charging station not working. | Power cord not plugged in. Wall outlet not functioning. Device incompatibility. | Ensure the bed frame's power cord is securely plugged into a working wall outlet. Test the wall outlet with another device. Verify your device's charging requirements match the station's output. |
| Difficulty with assembly. | Misinterpretation of instructions. Incorrect part orientation. | Review the assembly manual carefully, paying close attention to illustrations. Ensure parts are oriented correctly before tightening. Contact customer support if issues persist. |
8. Warranty and Support
AMERLIFE is committed to providing quality products and customer satisfaction.
- Warranty Information: For specific warranty details regarding your AMERLIFE bed frame, please refer to the warranty card included with your purchase or contact customer service.
- Customer Support: If you encounter any issues during assembly or use, or have questions about your product, please contact AMERLIFE customer service. We aim to provide professional support and respond to inquiries within 24 hours.
- Contact Information: Please refer to the contact details provided on the product packaging or the official AMERLIFE website for the most up-to-date support channels.
