TINIANHHCT Roof Rack Cross Bars User Manual

1. Introduction

Thank you for choosing the TINIANHHCT Roof Rack Cross Bars. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new roof rack system. Designed specifically for the Buick Enclave 2025 with existing roof rails, these cross bars allow you to transport various cargo securely on your vehicle's roof.

Please read this manual thoroughly before installation and keep it for future reference.

2. Safety Information

• Maximum Load Capacity: Do not exceed the maximum load capacity of 225 lbs (102 kg) for these cross bars. Always refer to your vehicle's owner's manual for its specific roof load limits, and never exceed the lower of the two ratings.
• Secure Attachment: Ensure all components are securely fastened before driving. Regularly check the tightness of all bolts and connections, especially after initial installation and before long trips.
• Weight Distribution: Distribute cargo weight evenly across the cross bars. Place heavier items at the bottom and center.
• Cargo Securing: Always use appropriate straps, nets, or other securing devices to prevent cargo from shifting or falling off during transit.
• Vehicle Clearance: Be aware of increased vehicle height and width when carrying cargo on the roof, especially when entering garages, car washes, or low-clearance areas.
• Driving Habits: Adjust your driving speed and style to account for the added weight and wind resistance. Avoid sudden maneuvers, hard braking, or high speeds.
• Regular Inspection: Periodically inspect the cross bars for any signs of wear, damage, or corrosion. Replace damaged parts immediately.

3. Package Contents

Verify that all components are present and undamaged before beginning installation.

• 2 x Roof Rack Cross Bars (Front and Rear)
• 4 x Mounting Brackets
• 1 x Screw Package (containing all necessary fasteners)
• 1 x Installation Tool Kit (e.g., Allen wrench)
• 1 x Installation Instructions (this manual)

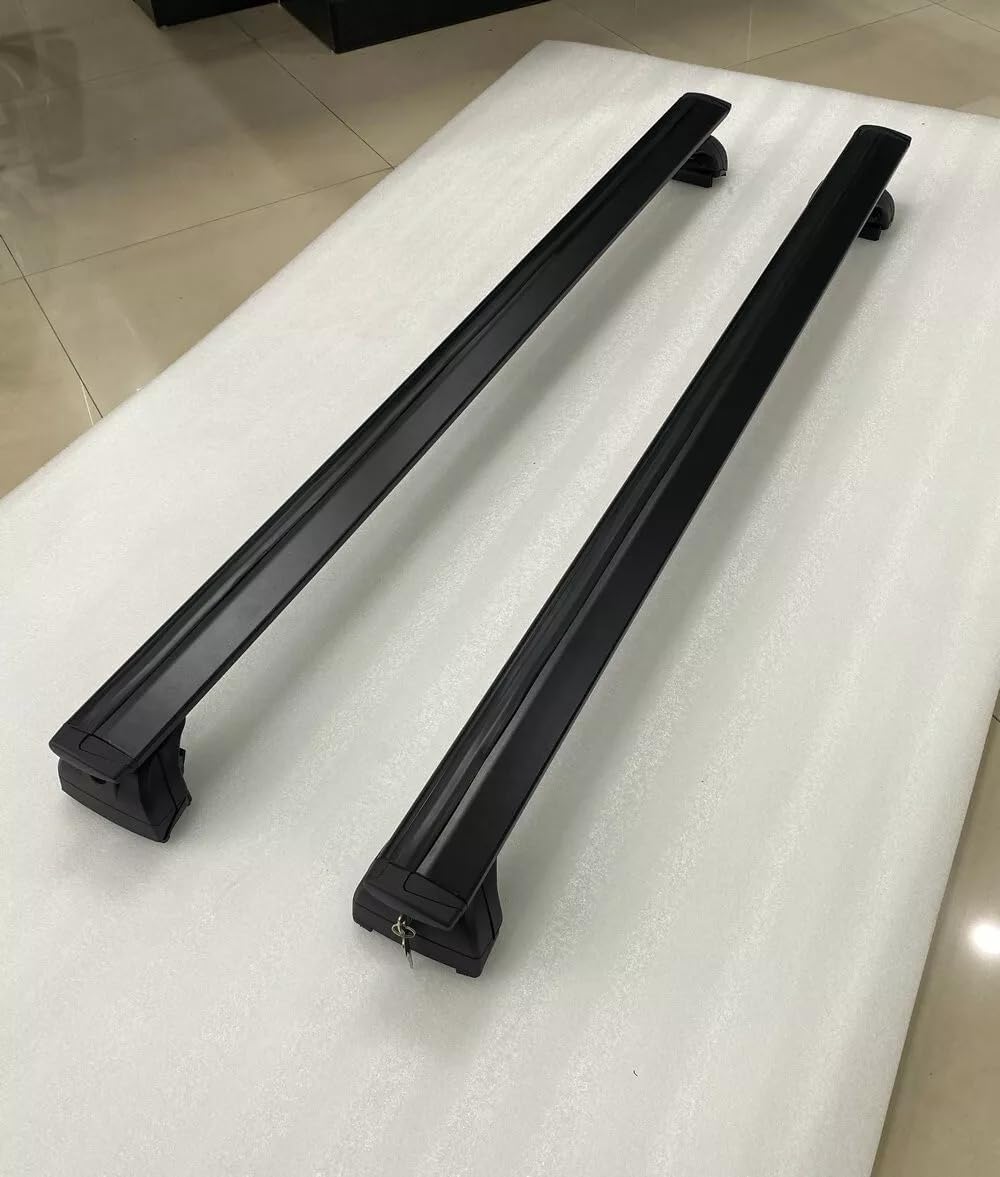

Image 3.1: Contents of the TINIANHHCT Roof Rack Cross Bars package, showing the two cross bars and their mounting feet.

4. Setup and Installation

The installation process is designed to be straightforward and typically takes approximately 15 minutes. Ensure your vehicle is parked on a level surface and the engine is off before starting.

1. Identify Front and Rear Bars: The cross bars may have slight differences in length or curvature. Identify which bar is designated for the front and which for the rear of your Buick Enclave 2025.
2. Position Mounting Brackets: Loosely attach the four mounting brackets to the ends of the cross bars. Do not tighten them fully at this stage.
3. Place Cross Bars on Roof Rails: Carefully place the assembled front cross bar onto the existing roof rails of your Buick Enclave. Ensure the brackets align with the roof rails. Repeat for the rear cross bar.
4. Adjust Position: Slide the cross bars along the roof rails to achieve the desired spacing. Ensure they are parallel to each other and centered on the vehicle.
5. Secure Brackets: Using the provided installation tool, tighten the screws on each mounting bracket. Tighten them evenly and securely, but do not overtighten. Ensure the cross bars are firmly attached and do not move when tested.
6. Final Check: Double-check all four mounting points to confirm they are fully tightened and the cross bars are stable. Gently shake the bars to ensure there is no play.

Image 4.1: An overview of the TINIANHHCT Roof Rack Cross Bars installed on a Buick Enclave 2025, demonstrating proper fitment.

Image 4.2: Detailed view of a cross bar mounting point, showing how it attaches to the vehicle's existing roof rail.

5. Operating (Usage)

Once installed, your TINIANHHCT Roof Rack Cross Bars are ready for use. Follow these guidelines for safe operation:

• Load Limits: Adhere strictly to the 225 lbs (102 kg) maximum load capacity of the cross bars and your vehicle's roof load limit.
• Cargo Types: These cross bars are suitable for carrying various items such as luggage, cargo boxes, bicycles, canoes, kayaks, fishing gear, camping equipment, surfboards, or skis.
• Securing Cargo: Always use appropriate and robust tie-down straps, bungee cords, or cargo nets to secure your load. Ensure cargo cannot shift, slide, or become airborne during travel.
• Aerodynamics: Large or irregularly shaped cargo can significantly affect vehicle aerodynamics and fuel efficiency. Position cargo to minimize wind resistance.
• Pre-Trip Check: Before each trip, especially when carrying cargo, inspect the cross bars and cargo for secure attachment.

6. Maintenance

Proper maintenance will ensure the longevity and safe operation of your roof rack cross bars.

• Cleaning: Clean the cross bars regularly with mild soap and water. Avoid abrasive cleaners or solvents that could damage the anodized aluminum finish.
• Inspection: Periodically inspect all components for signs of wear, cracks, bends, or corrosion. Pay close attention to the mounting brackets and fasteners.
• Fastener Tightness: Re-check the tightness of all mounting screws and bolts every few months, or more frequently if the rack is used often or for heavy loads.
• Storage: If the cross bars are removed for extended periods, store them in a dry, protected area to prevent damage or corrosion.

7. Troubleshooting

This section addresses common issues you might encounter.

• Noise/Whistling: If you experience excessive wind noise or whistling, ensure the cross bars are installed correctly and all gaps are minimized. Adjusting the position slightly may help. Ensure no accessories are creating turbulence.
• Loose Cross Bars: If the cross bars feel loose, immediately pull over and re-tighten all mounting screws. Do not drive with loose cross bars.
• Difficulty Installing: Review the installation steps carefully. Ensure you have identified the correct front and rear bars and that the brackets are oriented properly. If issues persist, contact customer support.

8. Specifications

9. Warranty and Support

Warranty: The TINIANHHCT Roof Rack Cross Bars (Model BKHG05) come with a 5-year warranty from the date of purchase, covering manufacturing defects in materials and workmanship.

This warranty does not cover damage caused by improper installation, misuse, neglect, accidents, or normal wear and tear. Any modifications to the product will void the warranty.

Customer Support: For technical assistance, warranty claims, or any questions regarding your product, please contact TINIANHHCT customer service through your original point of purchase or refer to the contact information provided with your product packaging.
