JUFZQO W1609-101 Bulb Refrigeration Thermostat Temperature Controller Instruction Manual

1. Product Overview

The JUFZQO W1609-101 Bulb Refrigeration Thermostat Temperature Controller is designed for precise temperature management in various refrigeration and freezing applications. This robust unit replaces models like TH-1609 and features a dual-scale temperature knob for both Fahrenheit and Celsius readings.

Figure 1: JUFZQO W1609-101 Bulb Refrigeration Thermostat Temperature Controller.

Key Features:

• Precise Temperature Control: Utilizes high-precision temperature sensing technology for real-time monitoring and adjustment.
• Wide Temperature Range: Adjustable from -30°F to 90°F (-34°C to 32°C).
• Adjustable Differential: Customizable from 3.5°F to 16°F (1.6°C to 9°C).
• Durable Construction: Made from high-quality alloy steel, offering excellent anti-interference ability and long-term reliable performance in harsh environments.
• Flexible Installation: Features a 5-foot (1.5m) capillary tube for versatile placement of the sensing bulb.
• Manual Control: Simple and direct temperature adjustment via a manual knob.

Applications:

This thermostat is suitable for various scenarios requiring precise temperature control, including:

• Refrigerated milk tanks
• Crop drying and tobacco curing
• Beverage dispensers
• Ice cube machines
• Dishwashers
• Commercial and domestic refrigerators and freezers
• Refrigerated trucks and cold chain systems

Figure 2: Multi-scenario application of the W1609-101 thermostat.

2. Setup and Installation

Proper installation is crucial for the optimal performance of your W1609-101 thermostat. Ensure all power is disconnected before beginning installation.

2.1 Mounting the Thermostat

• The thermostat is designed for wall-mounted installation.
• Identify a suitable location that is easily accessible for temperature adjustment and away from direct heat sources or extreme vibrations.
• Use appropriate fasteners to secure the thermostat housing to the wall through the pre-drilled mounting holes on the back plate.

Figure 3: Internal wiring and mounting dimensions for installation.

2.2 Positioning the Capillary Bulb

• The thermostat features a 5-foot (1.5m) copper capillary tube with a sensing bulb at its end.
• Position the sensing bulb in the area where temperature control is desired. Ensure it is not in direct contact with cooling coils or heating elements, which could lead to inaccurate readings.
• Avoid kinking or sharply bending the capillary tube, as this can damage the sensor and affect performance.
• The bulb size is 3/8 x 5 3/4 inches.

Figure 4: The capillary tube and sensing bulb, crucial for accurate temperature detection.

2.3 Electrical Connection

• The thermostat operates on battery power.
• Connect the electrical wiring according to the diagram provided on the product or in the packaging. Ensure all connections are secure and comply with local electrical codes.
• The switch style is "Close when rising," meaning the circuit closes when the temperature rises above the set point.

3. Operating Instructions

The W1609-101 thermostat features a simple manual control for temperature adjustment.

3.1 Setting the Temperature

• Locate the temperature adjustment knob on the front of the thermostat.
• The knob features a dual scale, allowing you to set the desired temperature in both Fahrenheit (°F) and Celsius (°C).
• Rotate the knob to align the desired temperature with the indicator mark. The available range is -30°F to 90°F (-34°C to 32°C).

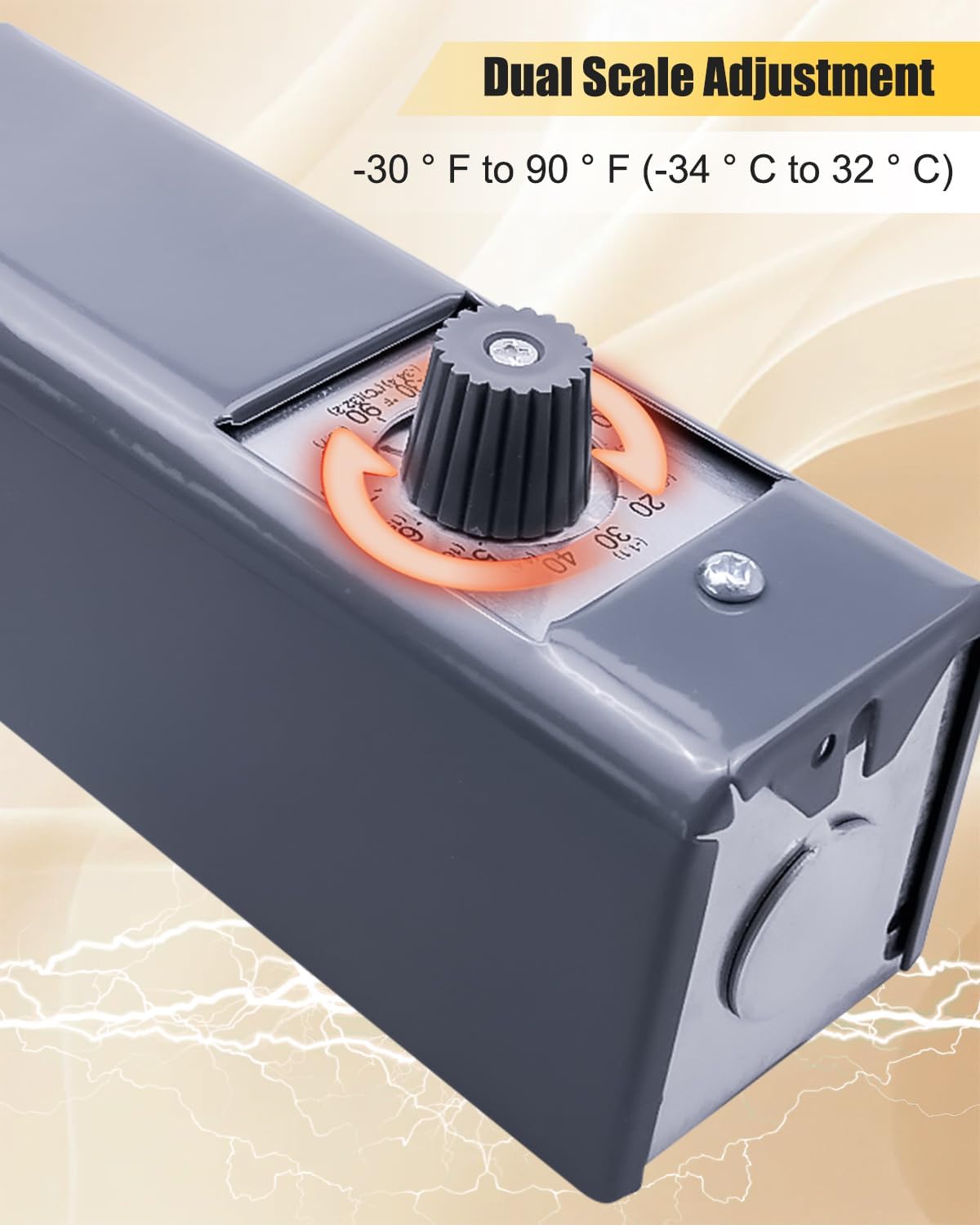

Figure 5: Dual scale adjustment knob for precise temperature setting.

3.2 Understanding Differential

• The thermostat has an adjustable differential range of 3.5°F to 16°F (1.6°C to 9°C).
• The differential determines the temperature swing between when the system turns on and off. For example, if set to 40°F with a 5°F differential, the system might turn on at 45°F and off at 35°F.
• Adjust the differential as needed for your specific application to prevent rapid cycling and maintain stable temperatures.

4. Maintenance and Care

The JUFZQO W1609-101 thermostat is designed for durability and minimal maintenance. Following these guidelines will help ensure its long-term reliable performance.

4.1 General Care

• Regularly inspect the thermostat and capillary tube for any visible damage or wear.
• Keep the unit clean and free from dust and debris. Use a soft, dry cloth for cleaning. Avoid abrasive cleaners or solvents.
• Ensure the sensing bulb remains unobstructed and is not covered by ice or other materials, which could impair its accuracy.

Figure 6: Durable alloy steel material and anti-interference design for stable operation.

4.2 Durability and Longevity

• The thermostat is constructed from high-quality alloy steel, providing excellent corrosion resistance, wear resistance, and aging resistance.
• Its robust design ensures stable operation even in harsh environments.

5. Troubleshooting

If you encounter issues with your W1609-101 thermostat, refer to the common problems and potential solutions below. Always disconnect power before performing any inspection or repair.

For issues not listed here or if problems persist, consult a qualified technician.

6. Specifications

7. Warranty and Support

Information regarding product warranty and customer support details is not provided in the available product data. Please refer to the product packaging, included documentation, or contact the manufacturer directly for specific warranty terms and support options.
