1. Introduction
This manual provides detailed instructions for the safe and effective use of your SAVILAND Advanced 50000RPM Professional Nail Drill. Please read this manual thoroughly before operation and retain it for future reference.

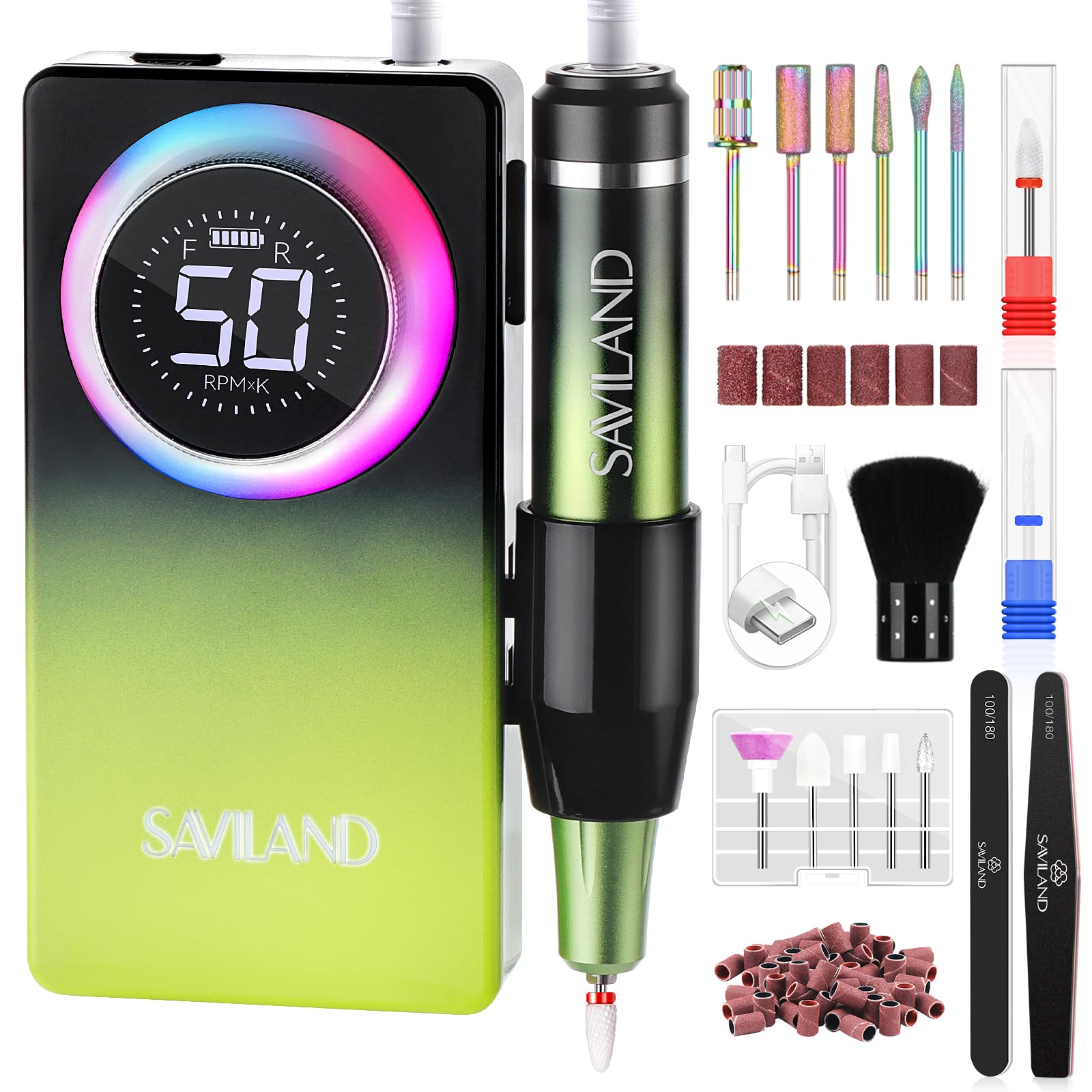

Image 1.1: SAVILAND Advanced 50000RPM Professional Nail Drill.
2. Safety Information
WARNING: Always wear safety glasses when using the nail drill to protect against flying debris or dust. Be cautious of the rotating bit and motor to avoid burns. Store the nail drill in a safe, dry place when not in use.
- Keep the device away from water and other liquids.
- Do not disassemble or attempt to repair the device yourself. Contact customer support for assistance.
- Ensure the power adapter is compatible with your local voltage.
- Keep out of reach of children.
- Avoid touching the rotating bit during operation.
3. Package Contents
Verify that all items are present in your package:
- SAVILAND Advanced 50000RPM Professional Nail Drill Main Unit
- Nail Drill Handpiece
- Power Adapter/Charging Cable
- 13 High-Quality Drill Bits
- 56 Sanding Bands
- User Manual
Image 3.1: Contents of the SAVILAND Nail Drill Kit.
4. Product Features
- High Speed Performance: Up to 50,000 RPM for efficient nail work.
- Long-Lasting Battery: 6000mAh battery provides up to 12 hours of continuous use after a 5-hour charge.
- Low Noise & Vibration: Designed for a comfortable and quiet operation (approx. 40dB).
- Low Heat: Aerospace-grade aluminum alloy structure helps minimize heat during use.
- Intuitive Display: LCD screen shows battery level, RPM, and rotation direction.
- Five-Color Rainbow Light System: Indicates current speed setting for visual feedback.
- Forward/Reverse Function: Easily change rotation direction for left or right-handed use.
- Portable Design: Compact and lightweight for professional and home use.
Image 4.1: Overview of key features.
5. Setup
5.1 Charging the Device
Before first use, fully charge the nail drill. Connect the charging cable to the device and a suitable power source. The battery indicator on the LCD screen will show charging progress.
Image 5.1: Charging the nail drill for extended use.
5.2 Attaching a Drill Bit
- Turn the handpiece clockwise to unlock the chuck.
- Carefully remove any existing bit.
- Insert the desired drill bit firmly into the chuck.
- Turn the handpiece counter-clockwise to lock the chuck and secure the bit.
Image 5.2: Steps for replacing a drill bit.
6. Operating Instructions
6.1 Basic Operation
- Connect Power Supply: Ensure the handpiece is connected to the main unit.
- Power On: Press and hold the ON/OFF button to start the device.
- Change Rotation Direction: Press the F/R button to switch between forward and reverse rotation.
- Adjust Speed: Rotate the speed switch to increase or decrease the RPM. The LCD screen and rainbow light will indicate the current speed. (Tip: Press the ON/OFF button briefly for one second to pause operation.)
- Begin Polishing: Gently apply the rotating bit to the nail surface.
Image 6.1: Step-by-step application guide.
6.2 Speed Settings and Corresponding Colors
The device features a five-color rainbow light system to indicate speed ranges:
- Purple: 0-10,000 RPM (Gentle, precise control)
- Blue: 11,000-20,000 RPM (Everyday nail art)
- White: 21,000-30,000 RPM (Quickly shortening nail length)
- Pink: 31,000-40,000 RPM (Efficient nail tasks)
- Red: 41,000-50,000 RPM (Removing thick acrylic nails)
Image 6.2: Speed settings and corresponding light colors.
6.3 Using Different Drill Bits
The kit includes 13 different drill bits for various applications:
- Coarse Disc Bit: For polishing and trimming the nail edge after cutting nails.
- Felted Wool Bit: Used to polish the nail for a natural and shiny surface.
- Barrel Bit: Used to polish nail surfaces and remove cuticles.
- Umbrella Top Bit: For polishing the nail surface.
- Cone Bit: For polishing the nail edge and cuticles.
- Needle Bit: For removing hangnails and polishing cuticles from nail edges.
- Safety Bit: For removing bulge parts on the nail surface and nail polish.
- Small Barrel: Buff nail surface and remove nail polish & acrylic nails.
- Large Barrel: Buff nail surface and remove nail polish & acrylic nails.
- Mandrel + Sanding Band: Used with sanding bands to polish hard and rough nails.
- Ceramic Corn Head: Use for removing all kinds of nail art.
- Ceramics Conical Head: For polishing residual curing gel or cuticles in hard-to-reach areas.
Image 6.3: Overview of included nail drill bits.
7. Maintenance
7.1 Cleaning
- After each use, disconnect the device from power and clean the handpiece and drill bits.
- Use a soft brush or cloth to remove dust and debris from the handpiece and bits.
- Do not use harsh chemicals or abrasive materials for cleaning.
- Ensure the device is completely dry before storing.
7.2 Storage
Store the nail drill and its accessories in a cool, dry place, away from direct sunlight and moisture. Keep the drill bits organized to prevent damage.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on | Low battery; Power button not pressed long enough; Faulty connection | Charge the device; Press and hold the ON/OFF button for 2-3 seconds; Check all cable connections. |
| Handpiece stops rotating | Bit not properly secured; Overload; Internal issue | Re-secure the drill bit; Reduce pressure during use; Contact customer support. |
| Excessive vibration or noise | Bent or damaged drill bit; Bit not inserted correctly; Loose chuck | Replace damaged bit; Re-insert bit correctly; Ensure chuck is tightly locked. |
| Device gets hot | Prolonged use at high speed; Blocked ventilation | Allow device to cool down; Ensure ventilation ports are clear. |
If you encounter problems not listed here or if solutions do not resolve the issue, please contact SAVILAND customer support.
9. Specifications
| Feature | Specification |
|---|---|
| Brand | SAVILAND |
| Model | Advanced 50000RPM Professional Nail Drill |
| Maximum Rotational Speed | 50,000 RPM |
| Battery Capacity | 6000mAh |
| Battery Life | Up to 12 Hours |
| Charging Time | Approximately 5 Hours |
| Power Source | Battery Powered |
| Material | Aluminum, Metal/Tungsten |
| Package Dimensions | 8.98 x 7.2 x 2.83 inches |
| Weight | 1.83 Pounds |
10. Product Video
Video 10.1: An overview of the SAVILAND Advanced 50000RPM Professional Nail Drill's features and operation. This video demonstrates the product in use, highlighting its speed, low noise, and portability.
11. Warranty and Support
For warranty information, product support, or to purchase replacement parts, please contact SAVILAND customer service through their official website or the retailer where the product was purchased. Keep your purchase receipt as proof of purchase.
