Amewi ATXB6 6-Channel Remote Control System User Manual

Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your Amewi ATXB6 6-Channel Remote Control System. Please read this manual thoroughly before using the product to ensure proper function and safety.

Product Overview

The Amewi ATXB6 is a versatile 6-channel pistol grip remote control system designed for various remote-controlled models. It offers advanced programming capabilities and real-time telemetry feedback.

Figure 1: The Amewi ATXB6 6-Channel Remote Control and its accompanying receiver unit.

Key Features:

• 6-Channel Control: Provides precise control over multiple functions of your model.
• Integrated Mixing Functions: Combine channels 1+2 or 5+6 for complex control setups.
• Telemetry Function: Real-time display of model battery voltage or receiver power supply.
• Dual Rate Function: Adjustable sensitivity for throttle and steering.
• Reversible Servos: Adjust servo direction for steering and throttle.
• USB-C Port: For system updates and simulator connectivity.
• Digital Trim: Ensures settings are retained even after power-off.
• Hybrid Mode: Allows two control channels (1+2 or 5+6) to be assigned to a single receiver channel.
• Automatic Shutdown: Power-saving feature with a warning beep.

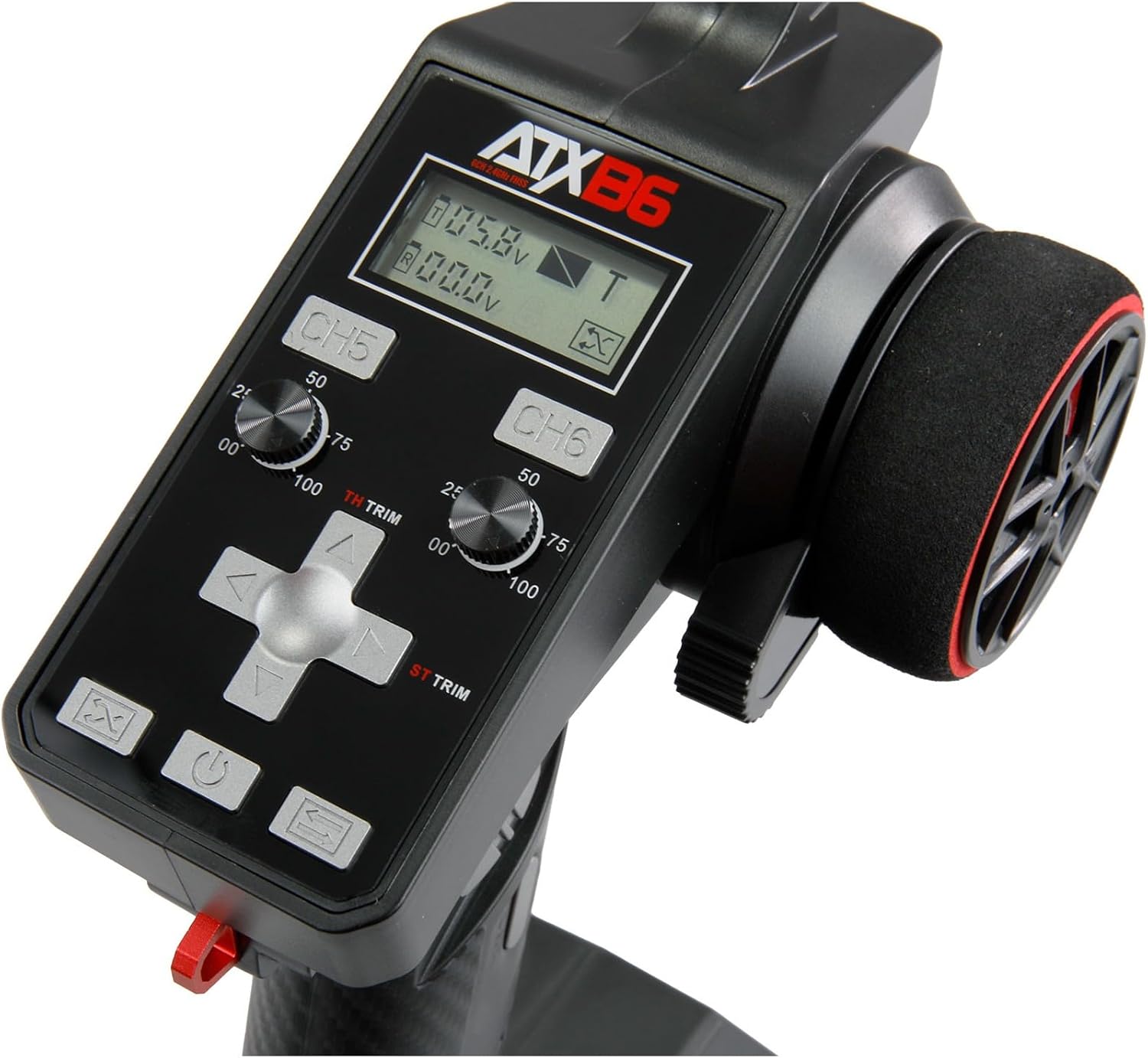

Figure 2: Detailed view of the ATXB6's display screen and control buttons, showing telemetry data and channel trims.

Components Included

• Amewi ATXB6 6-Channel Remote Control Transmitter
• 6-Channel Receiver Unit
• Operating Instructions Manual (this document)

Setup

1. Battery Installation

The ATXB6 remote control requires a Lithium Polymer (LiPo) battery for operation. Ensure the battery is fully charged before installation.

1. Locate the battery compartment cover on the back of the transmitter.
2. Open the cover and connect the LiPo battery to the designated connector, observing correct polarity.
3. Carefully place the battery inside the compartment and close the cover securely.

2. Receiver Connection

Connect the receiver to your model's electronic speed controller (ESC) and servos according to your model's specific wiring diagram. Ensure all connections are secure.

3. Initial Power-On

1. Ensure the receiver is properly connected and powered by your model's battery.
2. Turn on the Amewi ATXB6 remote control using the power button.
3. Observe the display for initial boot-up and telemetry data.

Operating Instructions

Basic Controls:

• Gas Trigger: Controls forward and reverse movement.
• Steering Wheel: Controls left and right steering. An additional lever is attached for one-handed operation.
• SWB Button: A push button located on the handle for auxiliary functions.
• SWA Switch: A three-way switch located above the handle for auxiliary functions.
• Top Buttons: Two simple buttons on the top for additional controls.

Figure 3: Side profile of the ATXB6, highlighting the gas trigger and the USB-C port for connectivity.

Advanced Functions:

• Programming Functions: The ATXB6 offers extensive programming for all channels. Refer to the on-screen menu for detailed adjustments.
• Mixing Functions: Channels 1+2 or channels 5+6 can be combined and used as a single channel. Access this feature through the system's menu.
• Telemetry Display: The display shows real-time battery voltage of the model or the power supply of the receiver. Monitor these values during operation.
• Dual Rate: Adjust the sensitivity of gas and steering for different driving conditions or personal preference.
• Servo Reversing: The steering and throttle servo directions can be reversed if needed.
• USB-C Port: Use this port to update the system firmware or connect the remote control to a simulator for practice.
• Digital Trim: All trim settings are automatically saved and retained even when the remote control is turned off.
• Hybrid Mode: This special feature allows two control channels (1+2 or 5+6) to be placed on one receiver channel.
• Servo Path Adjustment: Servo paths for channels 3, 4, 5, and 6 can be set separately for fine-tuning.

Automatic Shutdown Protection:

The remote control features an integrated protection function that automatically switches off the unit if no input is detected for 15 minutes. One minute before shutdown, the transmitter will emit a warning beep.

Maintenance

• Cleaning: Use a soft, dry cloth to clean the exterior of the remote control. Avoid using harsh chemicals or abrasive materials.
• Storage: Store the remote control in a cool, dry place away from direct sunlight and extreme temperatures. Remove the battery if storing for extended periods.
• Battery Care: Follow the manufacturer's guidelines for charging and discharging your LiPo battery to ensure its longevity and safety.

Troubleshooting

Specifications

Warranty and Support

For warranty information and technical support, please contact your retailer or the manufacturer directly. Keep your proof of purchase for any warranty claims.

Manufacturer: Amewi
