KCCLVER Kitchen Trolley Monza Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, safe operation, and proper maintenance of your KCCLVER Kitchen Trolley Monza. Please read this manual thoroughly before beginning assembly or using the product to ensure correct usage and to prevent damage or injury. Keep this manual for future reference.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in injury or product damage.

• Ensure all components are securely fastened before placing items on the trolley or moving it.
• Do not overload the trolley. Distribute weight evenly to maintain stability.
• Always use the trolley on a level and stable surface.
• Engage the wheel locks when the trolley is stationary to prevent unintended movement.
• Keep small parts and assembly hardware away from children and pets to prevent choking hazards.
• Avoid exposing the trolley to excessive moisture or direct heat sources.

3. Package Contents

Before assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Trolley Frame Components (legs, shelves, top panel)
• Drawer Components (drawer front, sides, back, bottom)
• Cabinet Door Components (2 doors, hinges, handles)
• 4 Wheels (2 with locking mechanism)
• Wooden Hanger
• Metal Hooks
• Assembly Hardware (screws, dowels, cam locks, etc.)
• Assembly Tools (e.g., Allen wrench, if included; screwdriver not included)

4. Setup and Assembly Instructions

Assembly is required for this product. It is recommended to have two people for assembly. Clear a spacious area and lay out all components on a soft, clean surface to prevent scratches.

1. Unpack and Identify Parts: Carefully remove all components from the packaging. Refer to the parts list to ensure all items are present.
2. Assemble the Base: Attach the four wheels to the bottom of the trolley legs. Ensure the two lockable wheels are positioned at the front for easy access.
3. Construct the Main Frame: Connect the side panels and shelves using the provided hardware. Follow the diagrams in the separate assembly guide (if provided) for specific screw and dowel placement.
4. Install the Drawer: Assemble the drawer box and install the drawer slides onto the trolley frame and the drawer. Insert the assembled drawer into its designated slot.
5. Attach Cabinet Doors: Secure the hinges to the cabinet doors and then attach the doors to the lower cabinet section of the trolley. Install the door handles.
6. Mount Accessories: Attach the wooden hanger to the side of the trolley. Install the metal hooks as desired for additional storage.
7. Final Check: Once assembled, gently shake the trolley to ensure all connections are secure and stable. Tighten any loose fasteners.

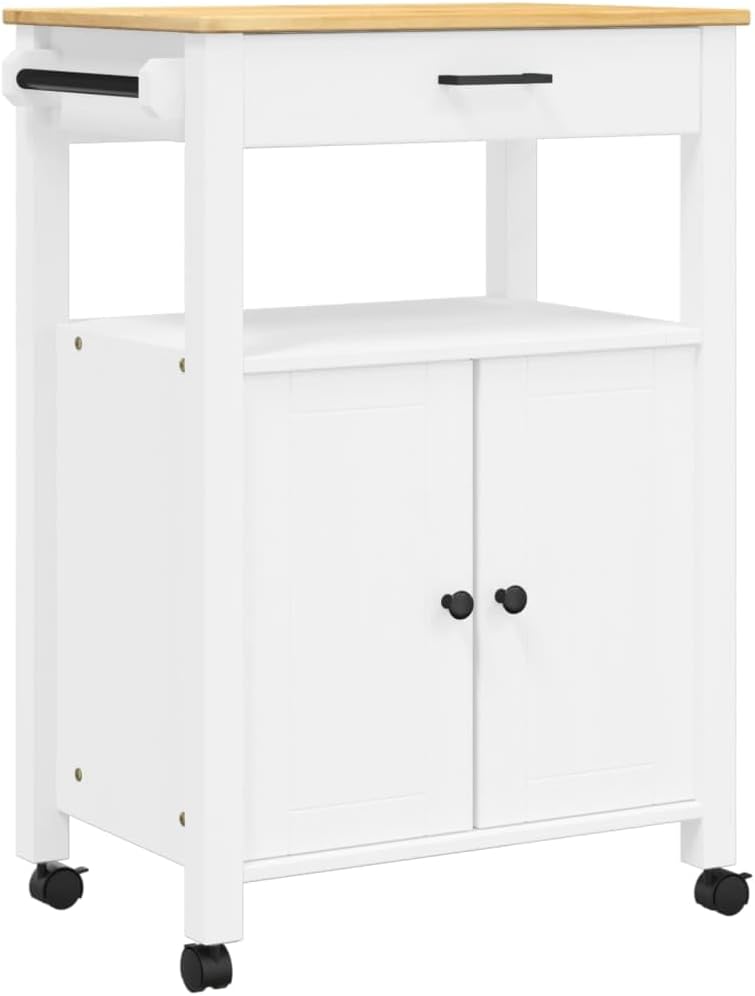

Figure 4.1: Assembled KCCLVER Kitchen Trolley Monza (Front View)

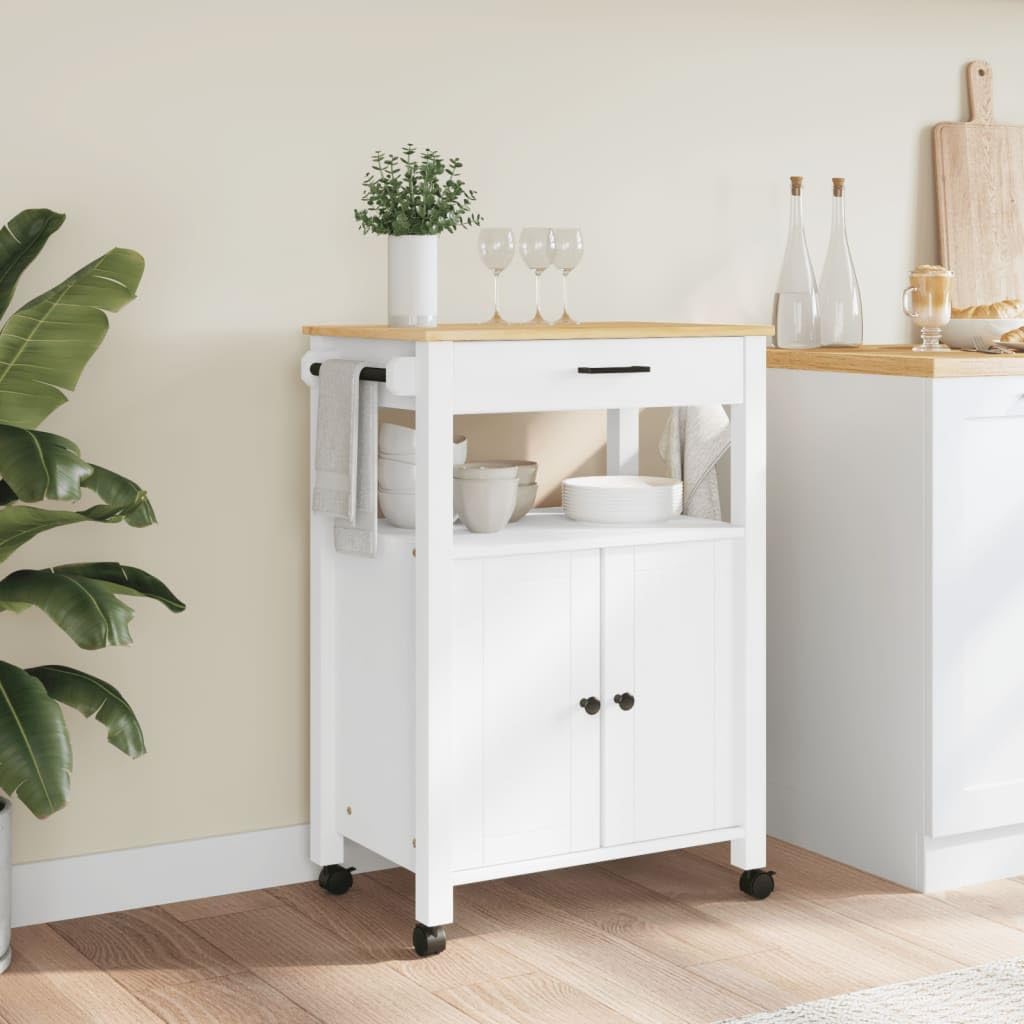

Figure 4.2: KCCLVER Kitchen Trolley Monza in a kitchen environment

5. Operating Instructions

The KCCLVER Kitchen Trolley Monza is designed to provide additional storage and a mobile workspace in your kitchen or other areas.

• Storage: Utilize the top drawer for smaller utensils, cutlery, or kitchen gadgets. The two-door cabinet below offers enclosed storage for larger items, dishes, or pantry staples.
• Mobility: To move the trolley, ensure the locks on the two front wheels are disengaged. Push or pull the trolley to your desired location.
• Stability: Once the trolley is in position, engage the locks on the two front wheels by pressing down on the lever on each wheel. This will prevent the trolley from rolling.
• Accessory Use: The wooden hanger can be used for kitchen towels or paper towel rolls. The metal hooks are suitable for hanging frequently used utensils or small bags.

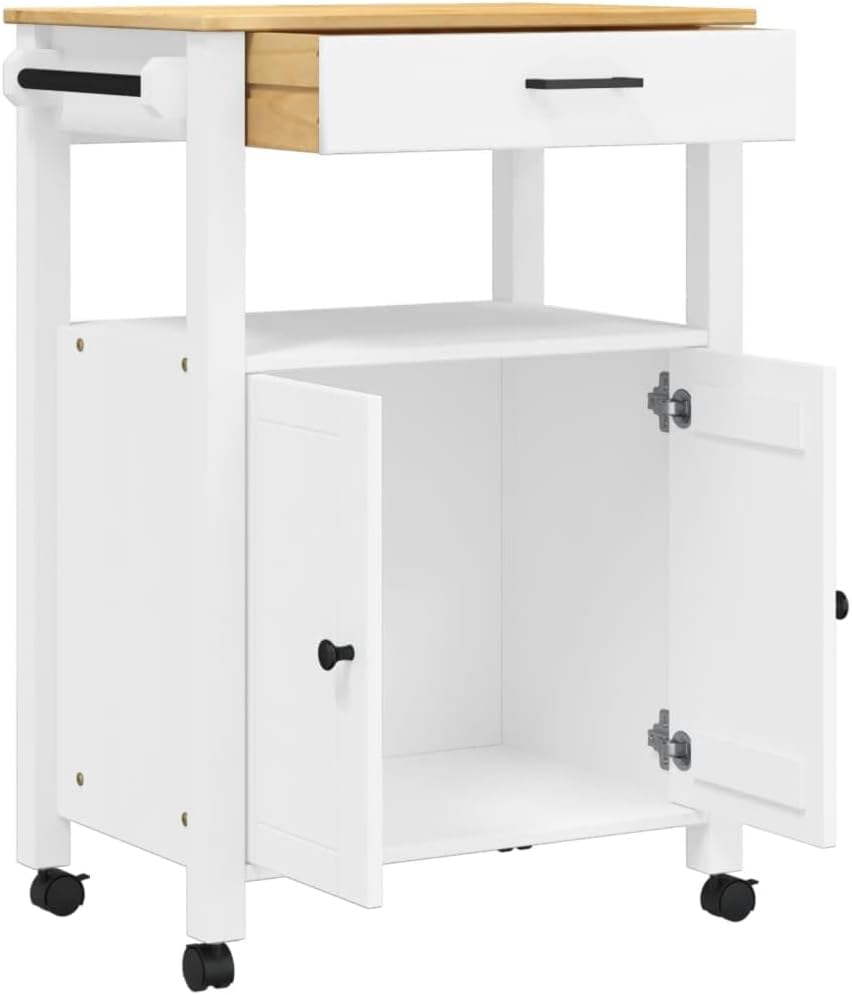

Figure 5.1: Trolley with drawer and cabinet open, showing storage capacity

Figure 5.2: Detail of the trolley wheels, including locking casters

6. Maintenance

Regular maintenance will help prolong the life and appearance of your kitchen trolley.

• Cleaning: Wipe surfaces with a soft, damp cloth. For stubborn stains, use a mild soap solution and immediately dry with a clean cloth. Avoid abrasive cleaners or harsh chemicals, as they can damage the wood finish.
• Wood Care: The solid pine wood top and engineered wood components are durable. To maintain their appearance, avoid prolonged exposure to direct sunlight or extreme temperature changes.
• Hardware Check: Periodically inspect all screws, bolts, and other fasteners. Tighten any that have become loose to ensure the trolley remains stable and secure.
• Wheel Care: Keep the wheels free of debris (hair, dust, etc.) to ensure smooth movement.

7. Troubleshooting

If you encounter any issues with your kitchen trolley, refer to the following common problems and solutions:

8. Specifications

Figure 8.1: KCCLVER Kitchen Trolley Monza Dimensions

9. Warranty and Support

For information regarding warranty coverage, replacement parts, or technical support, please contact KCCLVER customer service through the retailer where the product was purchased. Please have your purchase receipt and product model information (Monza) available when contacting support.
