LEMBERI DX-EOCUP-202411 600 Lbs Big and Tall Office Chair Instruction Manual

1. Product Overview

The LEMBERI DX-EOCUP-202411 is a heavy-duty, ergonomic office chair designed for big and tall individuals, supporting up to 600 pounds. It features comfortable PU leather, high-elastic sponge cushioning, built-in lumbar support, and thick padded seating for extended use.

This multi-functional chair includes a 120-degree rocking function, flip-up armrests for space-saving, 360-degree swivel, and height adjustment. Its sturdy construction incorporates a 4-level gas lift, reinforced steel frame, and durable nylon rubber wheels suitable for various floor types.

2. Safety Information

• Weight Limit: Do not exceed the maximum weight recommendation of 600 pounds (272 kg).
• Assembly: Ensure the chair is properly and securely assembled according to the instructions to maintain stability and prevent injury.
• Reclining: When reclining the chair, do so slowly and with caution to avoid tipping or sudden movements. Ensure the chair is locked into position before resting.
• Floor Protection: The wheels are designed to be gentle on various floor types, but it is always recommended to use a chair mat on delicate flooring to prevent potential marks or scratches.
• Maintenance: Regularly check all bolts and connections to ensure they remain tight. Tighten if necessary.

3. Package Contents

The package includes all necessary hardware and accessories for assembly. Please verify all components are present before beginning assembly.

• Chair Backrest
• Seat Cushion
• Armrests (2)
• Chair Base (5-star metal base)
• Casters/Wheels (5)
• Gas Lift Cylinder (Class-4)
• Mechanism Plate
• Lumbar Support Pump (if applicable)
• Assembly Hardware (screws, washers, Allen wrench)

4. Setup and Assembly Instructions

Assembly typically takes about 20 minutes. It is recommended to have an extra set of hands for certain steps, especially attaching the backrest.

Step 1: Attach Casters to the Base

1. Insert each of the 5 casters into the holes at the end of the chair base legs. Push firmly until they click into place.

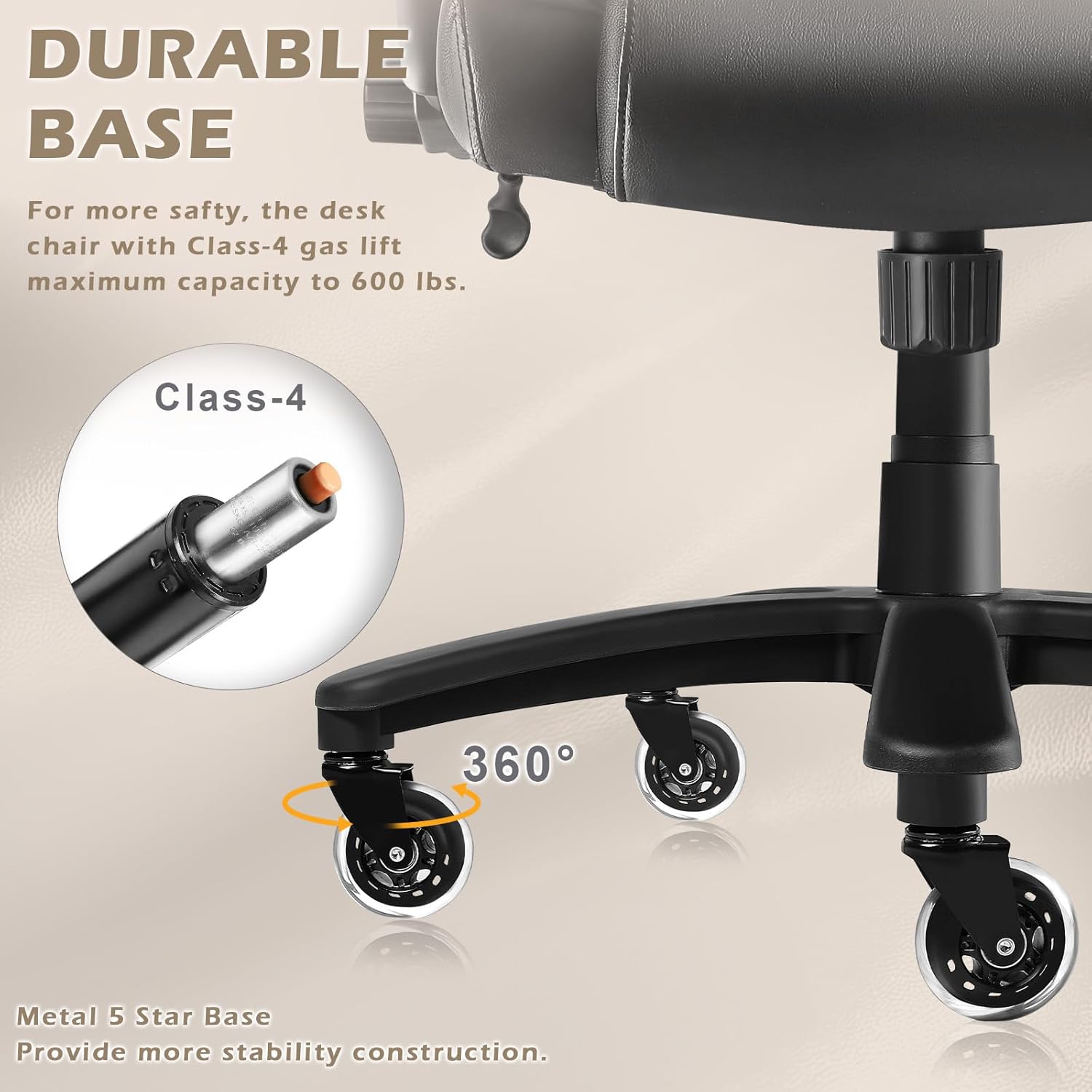

Image: The sturdy 5-star metal base with dual-wheel casters, designed for smooth and quiet movement.

Step 2: Install Gas Lift

2. Insert the larger end of the gas lift cylinder into the center hole of the assembled chair base.

Step 3: Attach Mechanism Plate to Seat Cushion

3. Align the mechanism plate with the screw holes on the underside of the seat cushion. Ensure the front of the mechanism faces the front of the seat.
4. Secure the mechanism plate using the provided screws and Allen wrench. Tighten all screws firmly.

Step 4: Connect Seat to Gas Lift

4. Carefully place the assembled seat cushion onto the top of the gas lift cylinder. Press down firmly to ensure a secure connection.

Step 5: Attach Armrests

5. Attach the armrests to the sides of the seat cushion using the provided screws. Ensure they are oriented correctly.
6. Secure the armrests to the backrest using the remaining screws. This step may require two people for easier alignment.

Step 6: Attach Backrest

6. Align the backrest with the armrests and the seat. Secure it using the remaining screws.

Image: The LEMBERI Big and Tall Office Chair fully assembled, showcasing its ergonomic design and black PU leather finish.

5. Operating Instructions

Height Adjustment

• To raise the chair: While seated, pull the lever located under the seat upwards. Lift your weight slightly off the seat. The chair will rise.
• To lower the chair: While seated, pull the lever upwards and apply pressure to the seat. The chair will lower.

Reclining and Rocking Function

• The chair features a 120-degree rocking function. To activate, pull the lever located under the seat outwards.
• To lock the chair in a reclined position, push the lever inwards at your desired angle.
• Adjust the rocking tension by turning the round knob located under the seat. Turn clockwise to increase tension (less rocking) and counter-clockwise to decrease tension (more rocking).

Image: Illustration of the chair's adjustable functions, including the 90-120 degree recline and flip-up armrests.

Adjustable Lumbar Support

• Locate the small squeezable handle (pump) on the side of the chair.
• Squeeze the pump multiple times to inflate the lumbar support to your desired firmness.
• To release air and decrease lumbar support, press the button on the pump.

Image: Detailed view of the chair's ergonomic features, including the adjustable lumbar support.

Flip-Up Armrests

• The armrests can be flipped up to allow the chair to be pushed closer to a desk or for easier movement.

6. Maintenance and Care

• Cleaning: Wipe clean with a damp cloth. The PU leather is stain-resistant and waterproof, making it easy to maintain. Avoid harsh chemicals.
• Regular Checks: Periodically inspect all screws and connections. Tighten any loose hardware to ensure the chair remains stable and safe.
• Cushion Care: The seat cushion features springs to maintain its shape and prevent flattening over time. Avoid prolonged exposure to direct sunlight or extreme temperatures.

7. Specifications

Image: Visual representation of the chair's key dimensions and 600 lbs weight capacity.

8. Troubleshooting

• Chair is unstable/wobbly: Ensure all assembly screws are tightened securely. Check that the gas lift is properly seated in the base and seat mechanism.
• Casters not rolling smoothly: Verify that no debris (hair, dust) is caught in the caster wheels. Clean if necessary. Ensure casters are fully inserted into the base.
• Lumbar support not inflating/deflating: Check the connection of the pump to the lumbar bladder. Ensure there are no kinks in the tubing.
• Seat cushion feels flat: The chair uses springs to maintain cushioning. If the cushion feels excessively flat, ensure the chair is not overloaded beyond its weight capacity.

9. Warranty and Support

For any questions regarding assembly, operation, or product issues, please contact LEMBERI customer support. The product includes a 30-day easy return policy.

Protection plans are available for purchase separately:

• 2-Year Protection Plan
• 3-Year Protection Plan
• Complete Protect (monthly billing, covers all eligible past and future purchases)
