Sparklingtrack 120W COB Spotlights LED Par Can Blinder Light User Manual

Introduction

This manual provides essential information for the safe and efficient operation of your Sparklingtrack 120W COB Spotlights LED Par Can Blinder Light. Please read these instructions thoroughly before use and retain them for future reference.

What's in the Box

Upon unpacking, please verify that all components are present and in good condition:

• Par light x 1
• Power cord x 1
• Instruction manual x 1

Image: Contents of the product packaging, including the stage light, power cord, and user manual.

Product Features

• Professional-Grade Lighting Performance: Features Dual 60W chips (Cool White and Warm White) with adjustable color temperature (3200K-6500K) and a CRI 90+ rating, delivering high-quality illumination.
• Ultra Portable Design: Weighing 35% less than traditional blinder lights, this compact unit features an aerospace-grade aluminum housing with integrated carrying handles for easy transportation and rigging.
• Multiple Color & Control Modes: Offers Static color, Color combination, Fade, Jump, and Strobe effects. Control modes include Auto, Sound activated, DMX, and Master-slave. Customized colors can be created using the built-in panel display.
• Advanced Control Integration: Full DMX-512 support with 8-channel mode selection. Features independent zone control with 0-100% dimming and programmable scene memories. Includes 3-pin XLR interfaces for universal compatibility.
• Versatile Scenarios: Suitable for a wide range of indoor and outdoor applications, including bedroom decoration, public plazas, parties, family gatherings, bars, banquets, weddings, dance events, hotels, concerts, halls, theaters, and churches.

Image: The 120W COB Par Light showcasing its main features and control options.

Setup

1. Unpacking: Carefully remove the light and all accessories from the packaging.
2. Mounting: The light can be floor-mounted, wall-mounted, or truss-mounted using the adjustable bracket. Secure the bracket firmly in the desired position.
3. Power Connection: Connect the provided power cord to the light's power input and then to a standard 110V AC power outlet. Ensure the power source is stable.
4. DMX Connection (Optional): For DMX control, connect a DMX cable from your DMX controller to the DMX IN port on the light. If linking multiple lights, connect the DMX OUT of the first light to the DMX IN of the next.

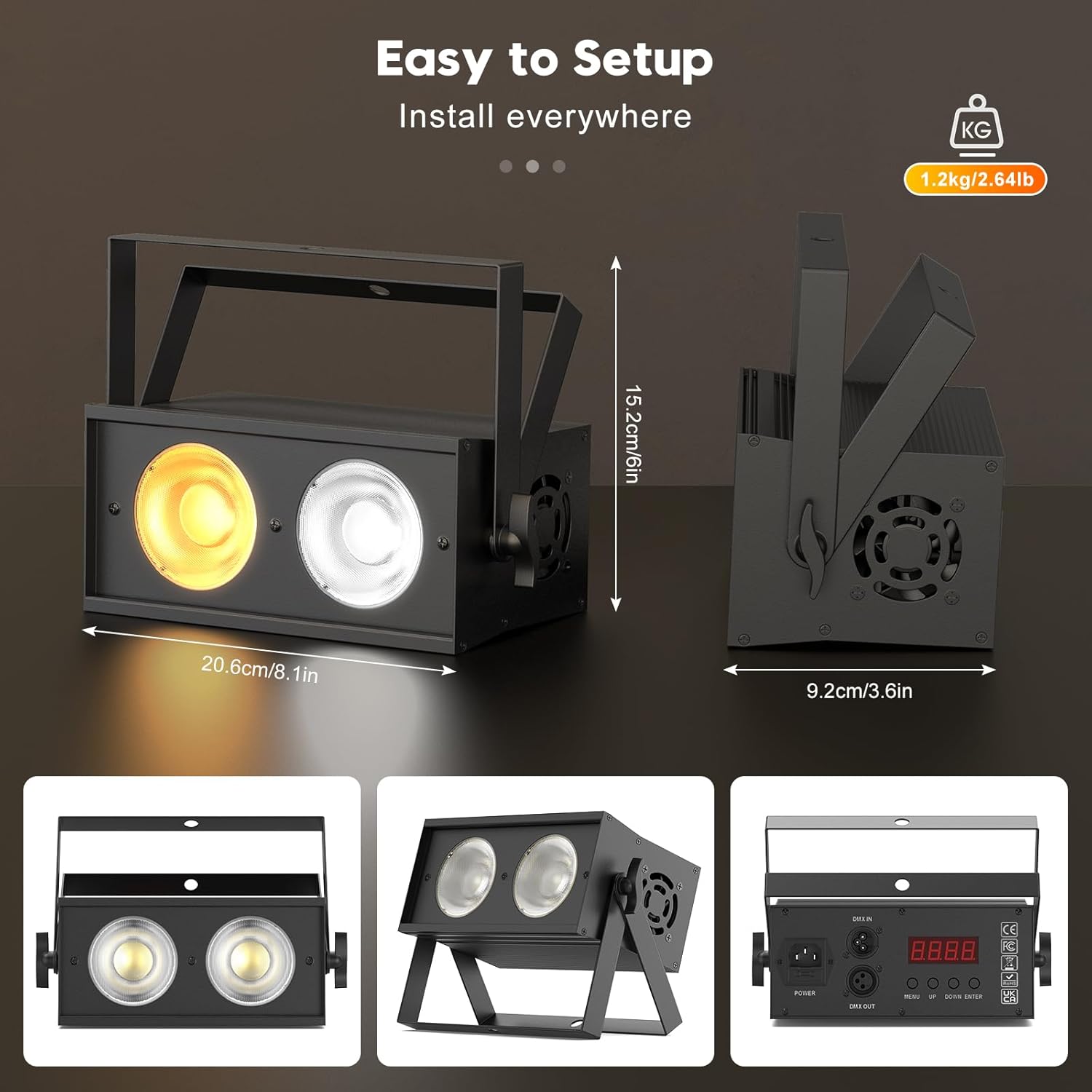

Image: Product dimensions and control panel layout for easy setup and connection.

Operating Modes

The light features a 4-digit digital display and four control buttons (MENU, UP, DOWN, ENTER) on the rear panel for mode selection and parameter adjustment.

• DMX Mode (A001-A512): Allows external control via a DMX-512 controller. The light supports an 8-channel mode. Refer to the DMX channel table in the specifications section for detailed channel functions.
• Auto Mode: The light cycles through various pre-programmed effects automatically.
• Sound Activated Mode: The light reacts to ambient sound or music, changing effects in sync with the audio.
• Master-Slave Mode: Connect multiple lights via DMX cables. Set one unit as the master, and others as slaves to synchronize effects across all connected lights.
• Color Jump (CC01-CC99): Rapidly switches between different color combinations. Use UP/DOWN keys to adjust speed.
• Color Gradient (DE01-DE99): Smoothly transitions between colors. Use UP/DOWN keys to adjust speed.
• Color Pulse (CP01-CP99): Pulsating color changes. Use UP/DOWN keys to adjust speed.
• Strobe (FH00-FH99): Flashing effect. Use UP/DOWN keys to adjust the strobe speed (1-20 times/second).
• Dimming (C255, U255): Adjust the brightness of the cold white and warm white LEDs from 0-100%.

Demonstration Videos

Specifications

Maintenance

To ensure the longevity and optimal performance of your stage light, follow these maintenance guidelines:

• Cleaning: Regularly clean the exterior of the light with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Ventilation: Ensure that the cooling fan and ventilation grilles are free from dust and obstructions to prevent overheating.
• Storage: When not in use for extended periods, store the light in a cool, dry place away from direct sunlight and extreme temperatures.
• Inspection: Periodically check the power cord and DMX connections for any signs of wear or damage. Replace immediately if any damage is found.

Troubleshooting

If you encounter any issues with your stage light, refer to the table below for common problems and solutions:

Warranty and Support

This Sparklingtrack 120W COB Spotlights LED Par Can Blinder Light comes with a 2-year manufacturer's warranty. For warranty claims, technical support, or any other inquiries, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.
