1. Introduction

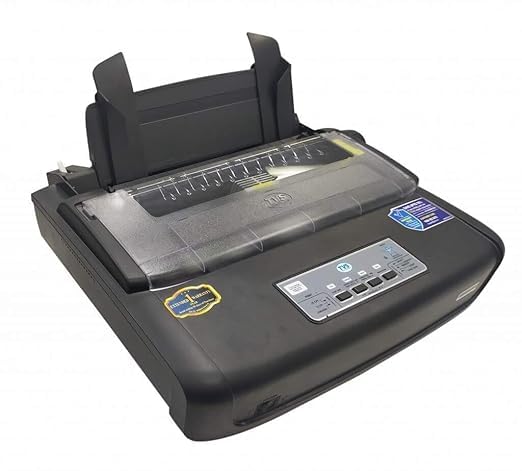

This manual provides essential instructions for the proper setup, operation, and maintenance of your TVS MSP 270 Star Box Dot Matrix Printer. Designed for high-speed and efficient printing of billing, reports, and invoices, this printer offers reliable performance for various business needs. Please read this manual thoroughly before using the printer to ensure optimal performance and longevity.
2. Setup
2.1 Unpacking the Printer
- Carefully remove the printer and all accessories from the packaging.
- Retain the packaging materials for future transportation or storage.
- Verify that all components listed in the packing list are present.
2.2 Connecting Cables
- Connect the power cable to the printer's power input and then to a grounded electrical outlet.
- Connect the USB cable to the printer's USB port and the other end to an available USB port on your computer.
2.3 Installing the Ink Ribbon
The TVS MSP 270 Star Box printer uses an ink ribbon cartridge. Follow these steps to install it:
- Ensure the printer is powered off.
- Open the printer cover to access the ribbon cartridge area.
- Carefully insert the new ribbon cartridge into its designated slot, ensuring it clicks into place.
- Route the ribbon correctly around the print head mechanism as indicated by the printer's internal guides.
- Close the printer cover.
3. Operating Instructions
3.1 Loading Paper
The MSP 270 supports continuous form paper and single cut sheets.
- For Continuous Form Paper: Ensure the paper is aligned with the tractor feed mechanism. Engage the tractors and adjust the paper guides to hold the paper securely.
- For Single Cut Sheets: Open the front paper guide and insert a single sheet of paper, ensuring it is straight and aligned with the paper sensor.
3.2 Basic Printing
Once the printer is connected and paper is loaded, you can send print jobs from your computer. Ensure the printer is powered on and the 'Online' indicator light is illuminated.
- From your application, select 'Print'.
- Choose 'TVS MSP 270 Star Box' from the list of available printers.
- Adjust print settings (e.g., paper size, print quality) as needed.
- Click 'Print' to start the printing process.
3.3 Control Panel Functions
The printer's control panel typically includes buttons for basic operations:
- FEED: Advances the paper by one line or page.
- PAUSE: Temporarily stops printing. Press again to resume.
- ONLINE/OFFLINE: Toggles the printer's online status. The printer must be online to receive print jobs.
4. Maintenance
4.1 Replacing the Ink Ribbon
Replace the ink ribbon cartridge when print quality begins to fade or characters become faint. Refer to section 2.3 for detailed ribbon installation steps.
4.2 Cleaning the Printer
Regular cleaning helps maintain printer performance and extends its lifespan.
- Exterior: Gently wipe the exterior surfaces with a soft, dry, lint-free cloth. Avoid using liquid cleaners or abrasive materials.
- Interior: Periodically remove any paper dust or debris from the paper path using a soft brush or compressed air. Ensure the printer is powered off before cleaning internal components.
5. Troubleshooting
This section addresses common issues you might encounter with your TVS MSP 270 Star Box printer.
| Problem | Possible Cause | Solution |
|---|---|---|
| Printer does not power on. | Power cable disconnected; power outlet faulty. | Check power cable connections. Try a different power outlet. |
| Printer is not printing. | Printer is offline; USB cable disconnected; print job error. | Ensure printer is online. Check USB cable connection. Restart printer and computer. |
| Poor print quality (faint, streaky). | Ink ribbon worn out; ribbon incorrectly installed. | Replace the ink ribbon cartridge. Verify ribbon installation (Section 2.3). |
| Paper jam. | Paper incorrectly loaded; foreign object in paper path. | Power off the printer. Carefully remove jammed paper. Reload paper correctly. |
6. Specifications
Key technical specifications for the TVS MSP 270 Star Box Dot Matrix Printer:
| Feature | Specification |
|---|---|
| Model | MSP 270 |
| Printing Technology | Dot Matrix |
| Connectivity Technology | USB |
| Printer Output | Monochrome |
| Maximum Black and White Print Resolution | 24 dpi |
| Duplex Printing | Simplex (No) |
| Ink Colour | Black |
| Item Weight | 6 kg 660 g |
7. Warranty and Support
The TVS MSP 270 Star Box Dot Matrix Printer is backed by a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For technical assistance, warranty claims, or service inquiries, please contact your authorized TVS dealer or visit the official TVS customer support website. Please have your printer's model number and purchase details ready when contacting support.
