1. Introduction
Thank you for choosing the ALongDeng RYJ-002 5500W Electric Tankless Water Heater. This appliance is designed to provide instant hot water for various domestic applications, including showers, kitchen sinks, and general washing needs. Featuring a powerful 5500W heating system, LED display for temperature control, and an IPX4 waterproof rating, this unit offers convenience and efficiency. Please read this manual thoroughly before installation and operation to ensure safe and optimal performance.
2. Safety Information
Important Safety Instructions:
- Read all instructions before using this water heater.
- This appliance must be properly grounded. Consult a qualified electrician if you are unsure.
- Do not operate the water heater if it has a damaged cord or plug, or if it is not working properly.
- Do not install the unit in areas where it may be exposed to freezing temperatures.
- Ensure the water pressure is within the specified range (0.05-0.6MPa) before operation.
- The unit features IPX4 waterproofing, making it suitable for bathroom and kitchen environments. However, avoid direct water spray onto electrical connections.
- Equipped with advanced safety features: dry burn protection, leakage protection, and overheating protection.
- Always disconnect power before performing any maintenance or repairs.
3. Package Contents
Verify that all items listed below are present in your package:
- Product Main Unit (Water Heater)
- Instruction Manual
- Simple Tee Connector
- 50cm Inlet Hose
- Water Flow Regulator
- Electricity Isolation Wall
- Pressure Boosting Showerhead
- No-Drilling Shower Bracket
- Outlet Shower Hose
- No-Drilling Installation Kit for Machine
4. Specifications
| Feature | Specification |
|---|---|
| Model | RYJ-002 |
| Brand | ALongDeng |
| Power | 5500W |
| Material | Stainless Steel (heating element) |
| Color | White/Black |
| Waterproof Rating | IPX4 |
| Temperature Range | 30°C to 55°C (Adjustable) |
| Special Features | LED Display, Touch Control, Instant Heating |

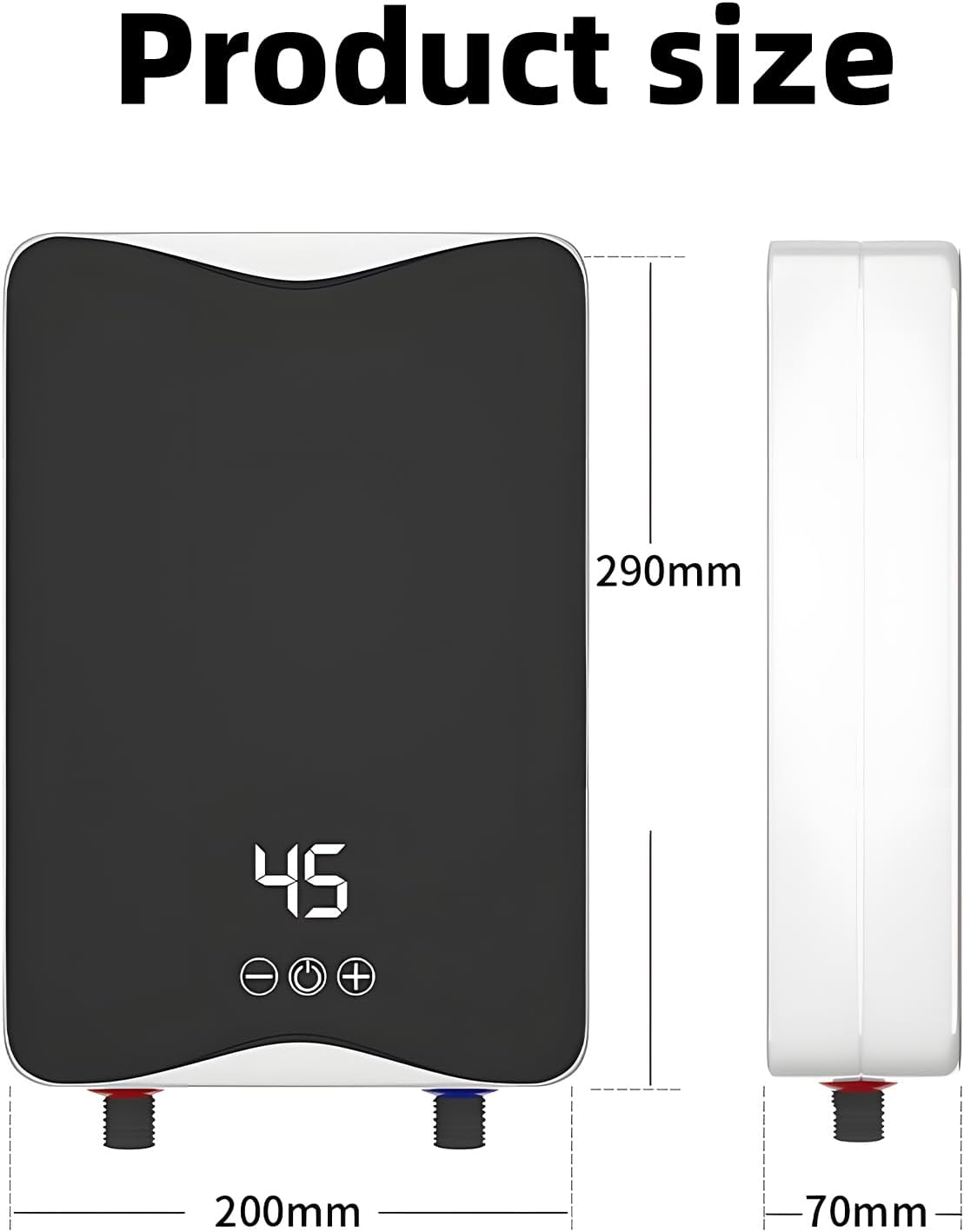

| Product Dimensions (L x W x H) | 20 cm x 20 cm x 29 cm |
| Product Weight | 1.73 kg |
| Minimum Water Pressure | 0.05 MPa |
| Maximum Water Pressure | 0.6 MPa |
5. Installation & Setup
5.1 Pre-Installation Checklist:
- Ensure the installation location has appropriate electrical wiring and water supply.
- Verify that the water pressure at the installation point is between 0.05-0.6MPa.
- Install the unit in an indoor environment where the ambient temperature is above 0°C.
- All pipelines should be arranged centrally.
- The hot water outlet should not be too far from the main hot water usage point to minimize heat loss.
5.2 Installation Steps:
- Mounting the Unit: Choose a suitable wall location. Use the provided No-Drilling Installation Kit or appropriate hardware to securely mount the main unit.
- Water Connections: Connect the cold water inlet (blue port) to your cold water supply using the 50cm inlet hose and simple tee connector. Connect the hot water outlet (red port) to your desired hot water fixture (e.g., showerhead or faucet) using the outlet shower hose. Ensure all connections are tight to prevent leaks.
- Electrical Connection: Install the leakage protection switch as per local electrical codes. Connect the water heater's power cord to the leakage protection switch, and then to a dedicated electrical circuit. Ensure the power switch is installed in a cabinet or area not exposed to dripping water.
- Water Flow Regulator: Install the water flow regulator as needed to optimize water pressure and flow for your specific setup.
- Showerhead and Bracket: Install the pressure boosting showerhead and the no-drilling shower bracket for convenient use.
- First Supply Water: Before powering on, open the cold water supply valve to allow water to flow through the unit and fill the heating chamber. Check for any leaks.
- Power On: Once water is flowing and there are no leaks, connect the unit to the power supply.
6. Operating Instructions
The ALongDeng RYJ-002 water heater provides instant hot water with precise temperature control.
6.1 Powering On/Off:
- Ensure the unit is properly installed and connected to the water and power supply.
- Turn on the main power switch for the water heater. The LED display will illuminate.
- To turn off, simply switch off the main power supply to the unit.
6.2 Temperature Adjustment:
- The water heater features an intuitive LED touch screen for temperature control.
- Use the + and - buttons on the touch screen to adjust the desired water temperature.
- The temperature can be set between 30°C and 55°C. The digital display provides real-time temperature monitoring.
6.3 Instant Hot Water Feature:
- The 5500W heating system provides hot water in approximately 3 seconds upon activation.
- The reinforced 304 stainless steel heating element ensures continuous hot water supply as long as water flows through the unit.
7. Maintenance
Regular maintenance ensures the longevity and efficient operation of your water heater.
- Cleaning: Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Water Inlet Filter: Periodically check and clean the filter screen at the water inlet to prevent blockages from sediment. Turn off the water supply and power before cleaning.
- Descaling: In areas with hard water, mineral deposits can accumulate over time. Consult a qualified plumber for professional descaling if you notice reduced water flow or heating efficiency.
- Leakage Check: Regularly inspect all water connections for any signs of leaks. Tighten connections if necessary.
8. Troubleshooting
If you encounter issues with your water heater, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No hot water | No power supply Water flow too low Overheating protection activated | Check circuit breaker and power connection Ensure adequate water flow (0.05-0.6MPa) Turn off power, wait 10 minutes, then restart |
| Water not hot enough | Temperature setting too low Inlet water temperature too cold Insufficient power supply | Increase temperature setting on LED display This unit heats water from its inlet temperature; adjust flow rate if necessary Ensure proper electrical connection and voltage |
| Water leakage | Loose connections Damaged seals/hoses | Turn off water and power, tighten all connections Inspect hoses and seals for damage, replace if necessary |
| Unit not turning on | No power Leakage protection switch tripped | Check power outlet and circuit breaker Reset the leakage protection switch |
If the problem persists after attempting these solutions, please contact customer support.
9. Warranty Information
This ALongDeng product is covered by a standard manufacturer's warranty against defects in materials and workmanship. The warranty period typically begins from the date of purchase. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, refer to the warranty card included in your package or contact ALongDeng customer support.
10. Customer Support
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact ALongDeng customer support. Please have your model number (RYJ-002) and purchase information ready when contacting support.
Contact information can typically be found on the product packaging, the official ALongDeng website, or your purchase receipt.
