User Manual for Generic Security Camera CG3A

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Generic CG3A Outdoor Security Camera. Designed for reliable outdoor surveillance, this camera features 1080P live video, full-color night vision, wireless connectivity, and a rechargeable battery. Please read this manual thoroughly before using the product to ensure proper setup and optimal performance.

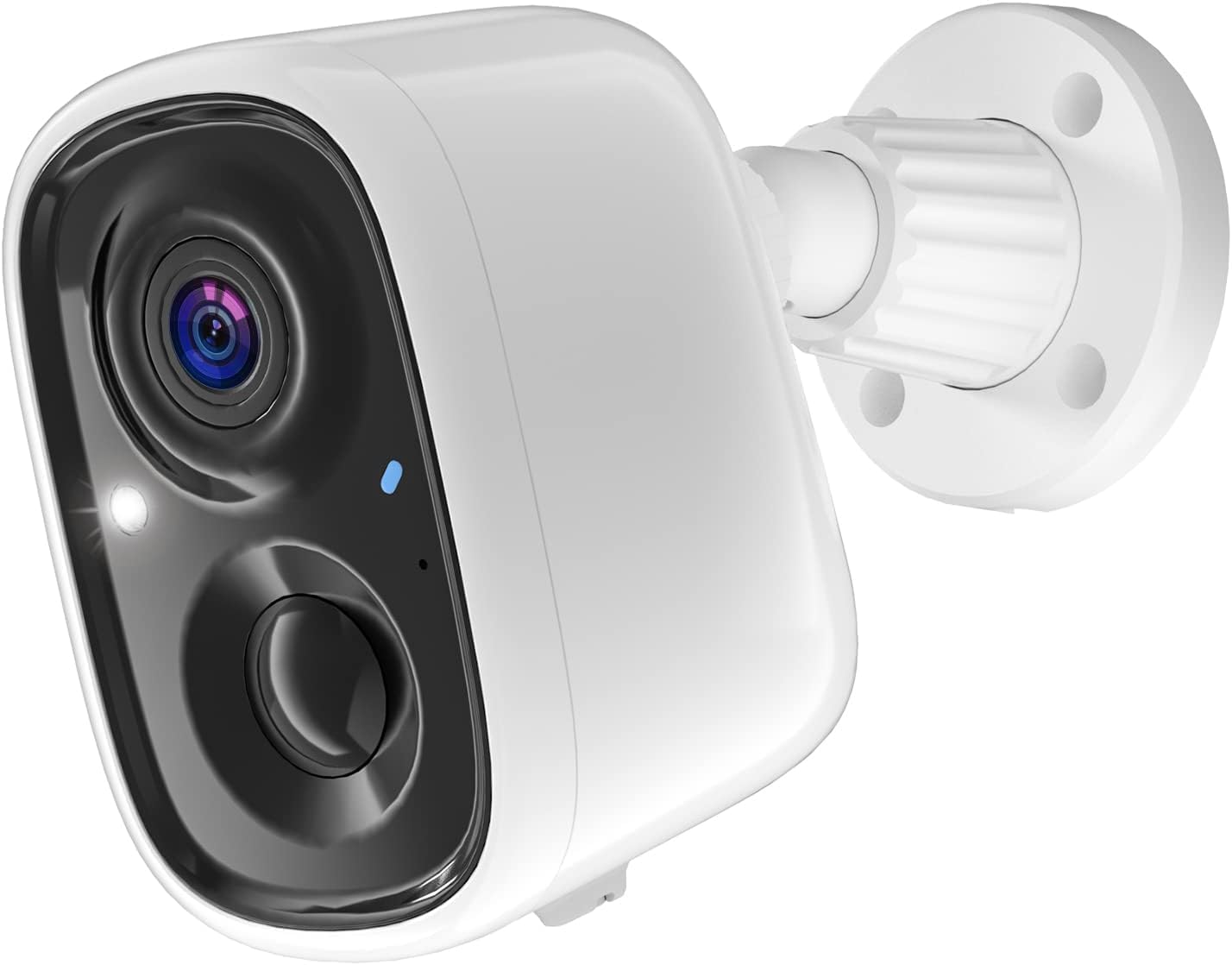

Figure 1: Generic CG3A Outdoor Security Camera. This image shows the white bullet-style camera with its lens, infrared lights, and a blue status indicator, attached to a white wall-mount base.

2. Package Contents

Verify that all items listed below are present and in good condition upon opening the package. If any items are missing or damaged, please contact customer support.

• Generic CG3A Outdoor Security Camera
• Wall Mount Bracket
• USB Charging Cable
• Mounting Screws and Wall Anchors (typically 4 sets)
• Instruction Manual (this document)

Figure 2: Package Contents. This image displays the security camera, its wall mount, a USB charging cable, a set of screws and wall anchors, and a small instruction manual booklet.

3. Product Features

• 1080P Full HD Video: Captures clear and detailed video footage.
• Full Color Night Vision: Provides vivid, full-color video even in low-light conditions, enhancing visibility and detail compared to traditional black-and-white infrared night vision.
• Wireless Connectivity: Connects to your home Wi-Fi network for flexible placement without network cables.
• Rechargeable Battery: Equipped with a long-lasting battery for wire-free operation.
• IP65 Weatherproof: Designed to withstand various outdoor weather conditions, ensuring durability and reliable performance.
• PIR Motion Detection & AI Recognition: Advanced passive infrared (PIR) sensor detects human motion, and AI technology helps differentiate between humans, pets, cars, and packages, reducing false alarms.
• Two-Way Audio: Built-in microphone and speaker allow for real-time communication with visitors or to deter intruders.
• Cloud Storage: Offers free 3-day video history cloud storage for convenient access to recorded events.

Figure 3: PIR Motion Detection & AI Recognition. This image illustrates the camera's ability to distinguish between humans, pets, cars, and packages, with examples of detected objects highlighted by green boxes on a smartphone screen displaying the camera's app interface.

4. Setup Guide

4.1 Initial Charging

Before first use, fully charge the camera battery. Connect the provided USB cable to the camera's charging port and plug the other end into a 5V/1A USB power adapter (not included). The indicator light will show charging status and turn solid when fully charged.

4.2 App Installation and Account Creation

1. Download the "Smart Camera" app from your smartphone's app store (Google Play Store for Android or Apple App Store for iOS).
2. Open the app and follow the on-screen instructions to create a new account.
3. Log in to your newly created account.

4.3 Camera Pairing

1. In the app, tap the "+" icon to add a new device.
2. Select "Security Camera" or "Wireless Camera" from the device list.
3. Power on the camera. Ensure the camera's indicator light is blinking, indicating it's ready for pairing. If not, press and hold the reset button for 5 seconds until it blinks.
4. Enter your 2.4GHz Wi-Fi network name (SSID) and password into the app. Note: This camera supports 2.4GHz Wi-Fi only.
5. The app will generate a QR code. Hold your smartphone approximately 6-8 inches (15-20 cm) in front of the camera lens until you hear a confirmation sound from the camera.
6. Once connected, the camera's indicator light will turn solid blue, and the app will confirm successful pairing. You can then name your camera.

4.4 Mounting the Camera

1. Choose a suitable outdoor location for mounting. Consider Wi-Fi signal strength, viewing angle, and proximity to a charging point if needed.
2. Use the wall mount bracket as a template to mark the drilling points on the wall.
3. Drill holes at the marked positions. Insert wall anchors if mounting on masonry or drywall.
4. Secure the wall mount bracket to the wall using the provided screws.
5. Attach the camera to the wall mount bracket and adjust the angle for optimal coverage. Ensure it is securely fastened.

5. Operating Instructions

5.1 Live View

Open the "Smart Camera" app and select your camera from the device list. You will see the live video feed. From here, you can take screenshots, record manually, or use the two-way audio function.

5.2 Motion Detection and Recording

• The camera automatically records video clips when motion is detected. These clips are stored in the cloud for 3 days.
• To adjust motion detection sensitivity or set detection zones, navigate to the camera settings within the app.
• You will receive push notifications on your smartphone when motion is detected, allowing you to view the live feed or recorded event.

5.3 Full Color Night Vision

The camera automatically switches to full-color night vision mode in low-light conditions. This feature utilizes built-in spotlights to illuminate the area, providing clear, color images at night.

5.4 Two-Way Audio

While in live view, tap the microphone icon in the app to speak through the camera's speaker. Tap it again to end speaking. The speaker icon allows you to hear audio from the camera's microphone.

5.5 Playback Recorded Videos

Access the "Playback" or "History" section in the app to review recorded motion-triggered events. You can filter by date and time.

6. Maintenance

6.1 Battery Charging

Monitor the battery level via the app. When the battery is low, remove the camera from its mount and recharge it using the USB cable. A full charge typically takes several hours.

6.2 Cleaning the Camera

Periodically clean the camera lens and housing with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners, as these can damage the camera's finish or lens coating.

6.3 Firmware Updates

Check the app regularly for firmware updates. Keeping your camera's firmware updated ensures optimal performance, security, and access to new features. Follow the in-app instructions for any available updates.

7. Troubleshooting

8. Specifications

9. Warranty and Support

This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact the retailer. For technical support, troubleshooting assistance, or inquiries regarding your Generic CG3A Security Camera, please contact the manufacturer's customer service. Contact information can typically be found on the product packaging or the manufacturer's official website.

Please retain your purchase receipt for warranty claims.
