Modern Shade 12'x20' Hardtop Gazebo User Manual

1. Introduction

Thank you for choosing the Modern Shade 12'x20' Hardtop Gazebo. This outdoor pavilion is designed to enhance your patio, backyard, or courtyard with a durable, stylish, and functional space. Featuring a galvanized steel double roof, integrated LED lighting, and convenient USB charging ports, this gazebo provides comfort and utility for various outdoor activities. This manual provides essential information for the safe assembly, operation, and maintenance of your new gazebo.

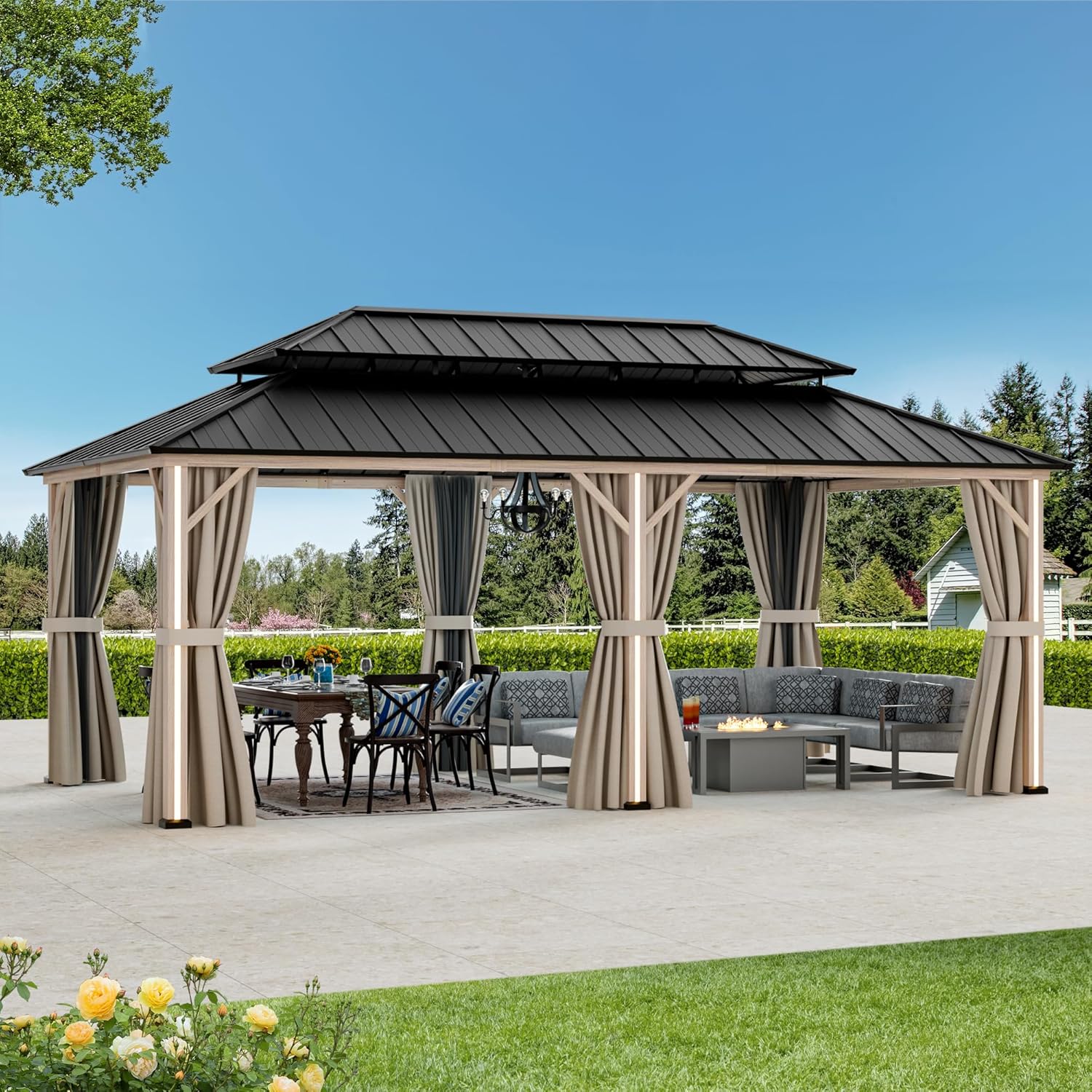

Image: The Modern Shade 12'x20' Hardtop Gazebo, showcasing its spacious design and integrated lighting, perfect for outdoor gatherings.

2. Safety Information

Please read and understand all safety warnings and instructions before assembly and use. Failure to follow these guidelines may result in serious injury or property damage.

• Always assemble the gazebo on a stable, level surface.
• Do not exceed the weight limit of 3500 lbs for snow capacity on the roof.
• Be cautious when handling electrical components and follow all safety guidelines for outdoor electrical use.
• Always secure the gazebo to a stable foundation using the provided expansion bolts to prevent it from tipping over in windy conditions or during heavy rain.
• Keep children and pets away from the assembly area.
• Inspect all parts for damage before assembly. Do not assemble if any parts are damaged.
• Ensure all connections are tight and secure after assembly and periodically check them.

3. Package Contents

Your Modern Shade Hardtop Gazebo is delivered in 8 boxes. Please verify that all components listed in the separate packing list are present and undamaged before beginning assembly.

Typical components include:

• Aluminum Frame Components (posts, beams, supports)
• Galvanized Steel Roof Panels
• LED Light Strips and Wiring
• USB/USB-C Charging Ports and Standard Outlets
• Curtains (180G M2 polyester)
• Mosquito Netting
• Hardware Kit (screws, bolts, washers, expansion bolts for anchoring)
• Tools (basic wrenches, hex keys - power tools may be required)
• Instruction Manual

Image: Secure packaging of gazebo components for safe shipping.

4. Setup and Assembly

Assembly of the Modern Shade Hardtop Gazebo requires careful attention to detail. An installation manual is included in the packaging. We recommend 2-4 people for installation, with an estimated timeframe of 3-6 hours. For visual guidance, an installation video may be available upon request from customer service.

4.1 Pre-Assembly Checklist

• Choose a level and stable location for your gazebo.
• Clear the assembly area of any obstructions.
• Unpack all boxes and identify all parts according to the packing list.
• Gather necessary tools (e.g., cordless drill, ladder, safety glasses).

4.2 Assembly Steps (General Overview)

Refer to the detailed step-by-step instructions provided in your physical installation manual. The general process involves:

1. Assembling the main frame structure (posts and beams).
2. Attaching the roof support system.
3. Installing the galvanized steel roof panels.
4. Wiring and installing the LED lights and electrical outlets.
5. Attaching the curtains and mosquito netting to the dual tracks.
6. Securing the gazebo to the ground using expansion bolts for concrete or decking.

Image: Simple installation with detailed instructions.

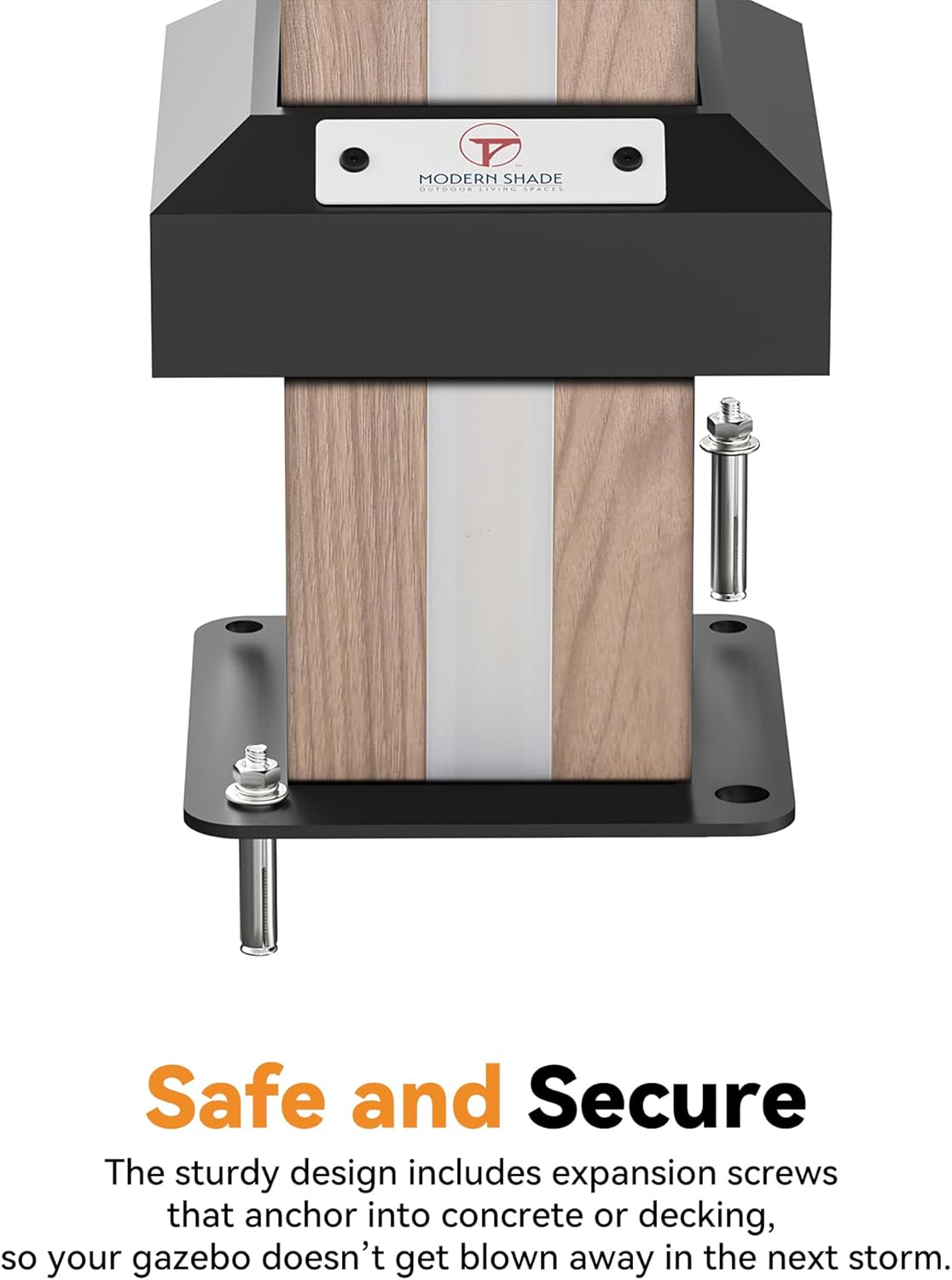

Image: The sturdy design includes expansion screws that anchor into concrete or decking, ensuring stability.

5. Operating Instructions

5.1 LED Lighting

The gazebo features 6 integrated LED lights on the aluminum frames. These lights are designed to provide ambient illumination for evening use. Connect the gazebo's main power cord to a suitable outdoor power source. The LED lights are typically controlled by a switch located on one of the posts or via a remote control (if included).

Image: The gazebo's LED lights provide a romantic ambiance for evening enjoyment.

5.2 USB Charging Ports and Outlets

Equipped with USB and USB-C charging ports, along with 2 standard outlets, the gazebo allows you to power your devices outdoors. Ensure the main power supply to the gazebo is active for these ports to function. Always keep the protective covers closed when not in use to prevent water ingress.

Image: Waterproof socket with USB connection and charging socket for convenient outdoor power.

5.3 Curtains and Mosquito Netting

The gazebo includes curtains and mosquito netting, both adjustable on dual tracks. This allows for versatile use, providing privacy, weather protection, and insect deterrence as needed. Simply slide them along the tracks to open or close.

Image: Double-track system for easy installation and adjustment of mosquito nets and curtains.

5.4 Double Roof Design

The double roof design facilitates air circulation, allowing hot air and smoke to escape. This feature helps keep the interior cool and comfortable during warmer weather and allows for smoke to vent if using a grill or fire pit within the gazebo (ensure proper ventilation and safety distances).

Image: The dual roof design allows hot air and smoke to rise and escape, keeping you cool.

6. Maintenance

Regular maintenance will prolong the life and appearance of your gazebo.

• Cleaning the Frame and Roof: Use a mild soap and water solution with a soft cloth to clean the aluminum frame and galvanized steel roof. Rinse thoroughly with clean water. Avoid abrasive cleaners or harsh chemicals.
• Curtains and Netting Care: The 180G M2 polyester curtains and netting can be spot cleaned with mild soap and water. For deeper cleaning, they may be removed and hand washed or machine washed on a gentle cycle with cold water. Air dry only. Ensure they are completely dry before storing or re-attaching to prevent mildew.
• Hardware Inspection: Periodically check all bolts, screws, and connections to ensure they remain tight and secure. Re-tighten as necessary.
• Anchoring: Regularly inspect the expansion bolts and the foundation for any signs of loosening or damage, especially after strong winds or storms. Re-secure if needed.
• Snow Removal: While the roof is designed to withstand 3500 lbs of snow, it is recommended to clear heavy snow accumulation to prevent excessive stress on the structure.

7. Troubleshooting

8. Specifications

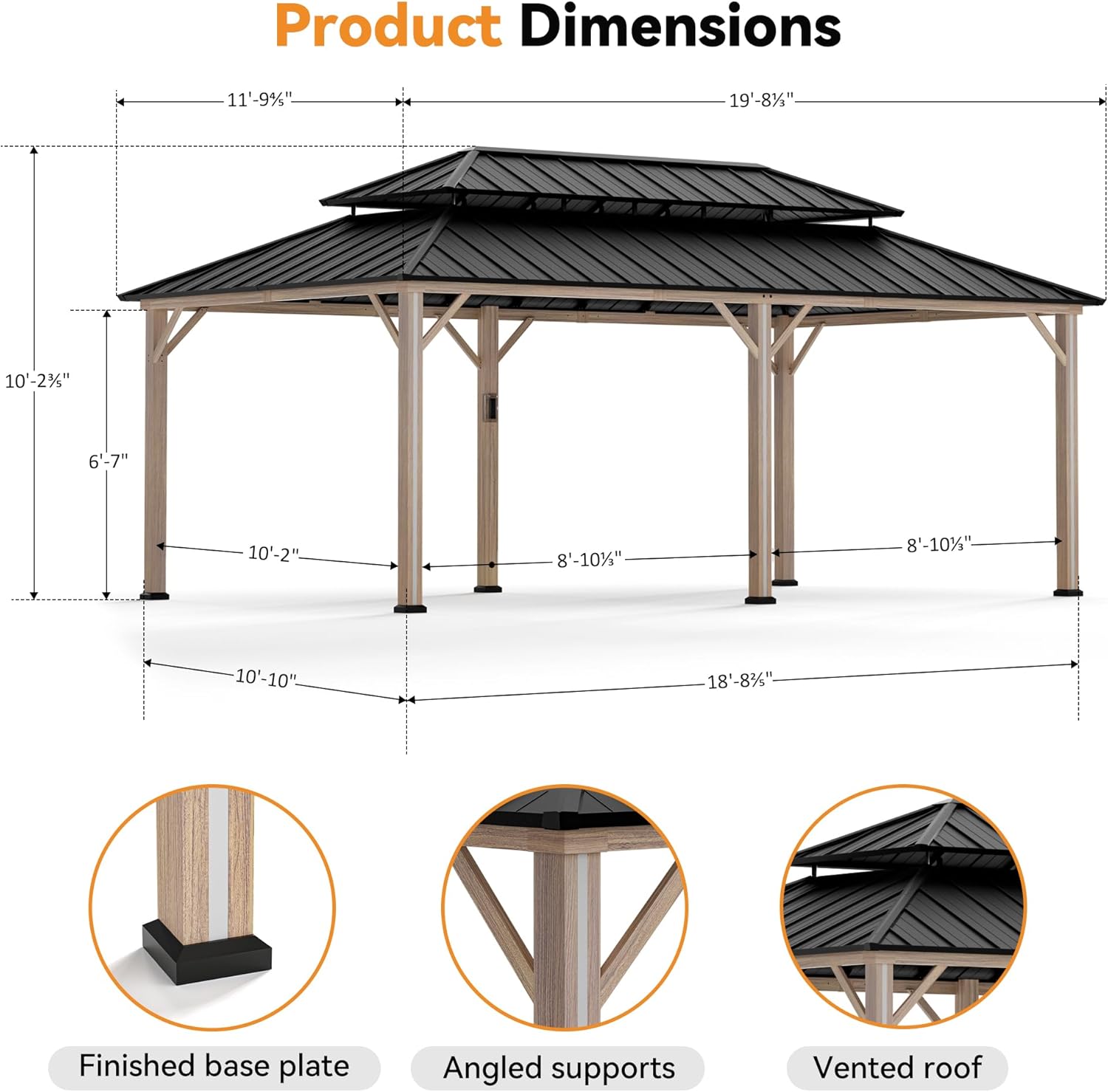

Image: Product dimensions and key structural features.

Image: The pavilion is designed to be steadfast under snow, with a high snow capacity.

9. Warranty Information

Specific warranty details for your Modern Shade Hardtop Gazebo are typically provided with the product packaging or can be obtained by contacting Modern Shade customer service. Please retain your proof of purchase for any warranty claims.

10. Customer Support

For any questions, concerns, or assistance with your Modern Shade Hardtop Gazebo, please contact our professional customer service team. We are happy to assist you.

Contact Information: Please refer to the contact details provided in your product packaging or visit the official Modern Shade website for the most up-to-date support information.

Image: Modern Shade's commitment to quality customer service and support.
