EROMMY 10 x 13 Gazebo Instruction Manual

1. Introduction

Thank you for choosing the EROMMY 10 x 13 Gazebo. This metal patio gazebo is designed to provide a comfortable and protected outdoor space with its mosquito netting and double air roofs. It is a heavy-duty, waterproof outdoor canopy suitable for decks, lawns, and gardens. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure safe and enjoyable use of your gazebo.

Image: The EROMMY 10 x 13 Gazebo, showcasing its spacious design and integrated mosquito netting, providing an ideal outdoor living area.

2. Safety Information

Please read and understand all safety warnings and instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Assembly: Always assemble the gazebo with at least two people. Ensure all parts are correctly aligned and securely fastened.
• Anchoring: The gazebo must be properly anchored to the ground using the provided ground stakes or other suitable anchoring methods to prevent wind uplift.
• Weather Conditions: While designed to be heavy-duty and waterproof, it is recommended to remove the canopy and netting during strong winds, heavy rain, or snow to prevent damage to the structure.
• Fire Safety: Keep all flame and heat sources away from the gazebo fabric. The fabric is not fireproof.
• Overhead Clearance: Be aware of the gazebo's height and ensure adequate overhead clearance from trees, power lines, or other structures.
• Regular Inspection: Periodically check all connections and components for tightness and wear. Replace any damaged parts immediately.

3. Product Features

The EROMMY Gazebo is engineered with several key features for durability, comfort, and versatility:

• Sturdy Frame: Constructed with a powder-coated steel frame that resists rust and corrosion. The top is supported by 8 steel poles, and 8 ground stakes are included for stability in various weather conditions.
• Dual-Layer Roof Design: Features a unique double-layer roof structure for enhanced ventilation and wind resistance. The top mesh design improves air circulation and reduces heat buildup.
• Spacious and Versatile: Provides 130 square feet of coverage, comfortably accommodating 8-10 people. Ideal for family gatherings, entertaining guests, or parties.
• High-Quality Fabrics: The canopy is made of 180 g/m² polyester fabric, offering 99% UV protection and waterproof performance.
• Removable Mosquito Netting: Includes 4 removable high-density nettings to effectively keep mosquitoes out, protect privacy, and improve overall comfort.
• Canopy Central Hook: The top is designed with a hook for hanging fans, lights, or decorations, allowing for personalization of your outdoor space.

Image: Key structural advantages of the EROMMY gazebo, including a convenient top hook, single steel pipe for enhanced stability, and a robust assembled frame, contrasting with common alternatives.

Image: Detailed view of the gazebo's enhanced design, featuring an elegant arc, double roof with integrated netting, a smooth zipper for the netting, and the waterproof quality of the fabric.

Image: The gazebo's performance in various weather, highlighting its ventilation, sun-proof, and waterproof properties.

Image: Illustrates the gazebo's versatility with options for unobstructed views or full enclosure with high-density mesh for insect protection, emphasizing its ventilation and insect-free environment.

4. Package Contents

Please verify that all components listed below are present and undamaged before beginning assembly. If any parts are missing or damaged, please contact customer support.

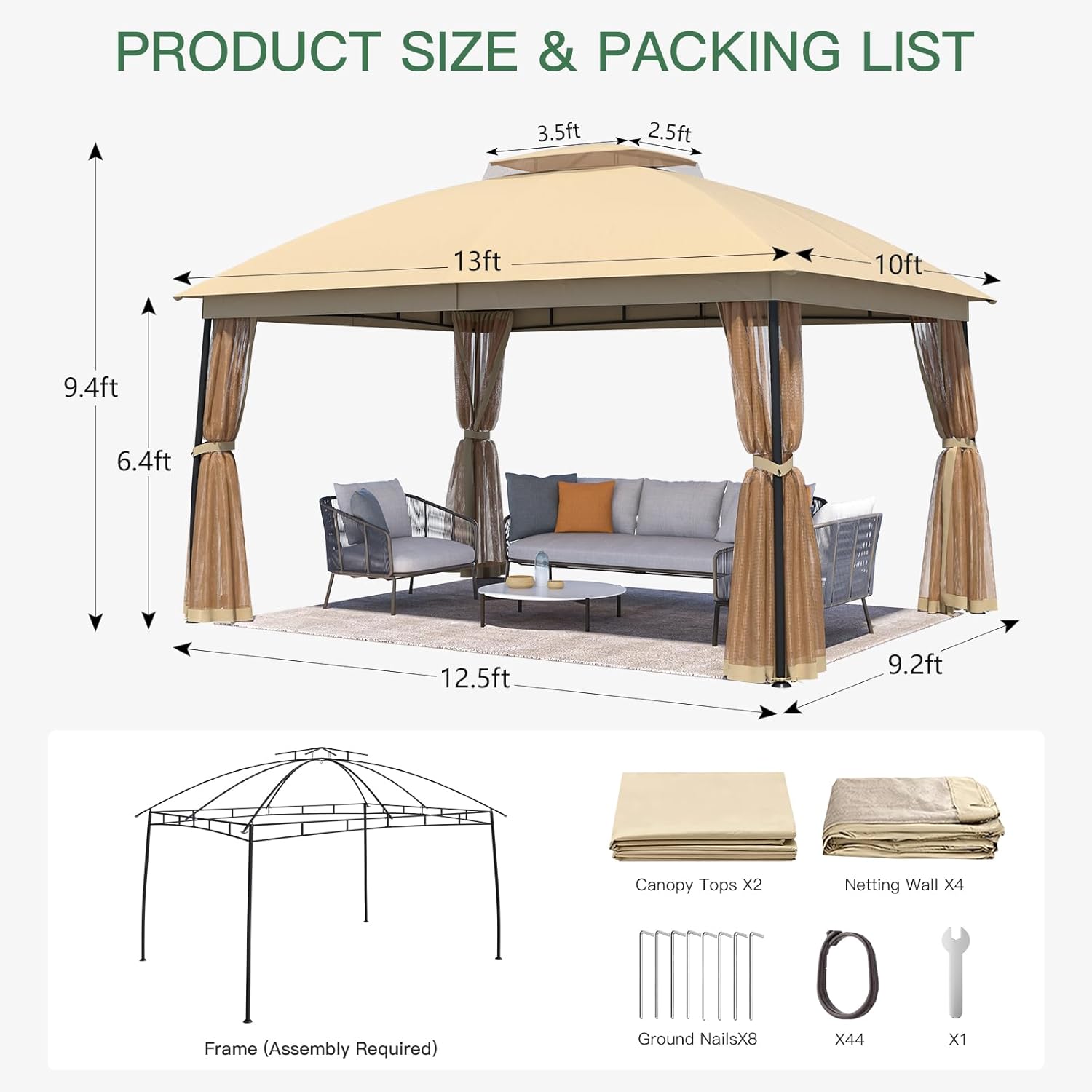

Image: A visual representation of the gazebo's dimensions and a comprehensive list of all parts included in the package, such as the frame, canopy tops, netting walls, ground nails, and necessary tools.

• Gazebo Frame (Assembly Required)
• Canopy Tops (x2)
• Netting Walls (x4)
• Ground Nails (x8)
• Small Parts (x44) - e.g., screws, bolts, connectors
• Wrench (x1)

5. Setup and Assembly

Assembly of the EROMMY Gazebo requires two or more adults. An illustrated manual is included in the package to guide you through the step-by-step process. Please follow the instructions carefully.

1. Preparation: Choose a level area for assembly. Clear any debris or obstacles. Ensure you have enough space to work around the gazebo.
2. Unpack and Identify Parts: Lay out all components and verify against the package contents list. Familiarize yourself with each part.
3. Assemble the Frame: Begin by assembling the base frame, then connect the vertical support poles. Follow the numerical sequence provided in the detailed assembly manual.
4. Install Roof Structure: Attach the roof support beams and central hub. Ensure all connections are secure.
5. Attach Canopy Tops: Carefully place the canopy fabric over the roof structure. Secure it according to the manual's instructions, ensuring a snug fit.
6. Install Mosquito Netting: Hang the four removable high-density netting walls. The smooth zippers allow for easy opening and closing.
7. Secure the Gazebo: Use the provided ground stakes to anchor the gazebo firmly to the ground. For additional stability, especially in areas prone to strong winds, consider using heavier-duty anchors (not included).

Important: Do not force any parts together. If a part does not fit, recheck the assembly steps and part orientation. Ensure all bolts and screws are tightened securely before use.

6. Operating Instructions

The EROMMY Gazebo is designed for ease of use and adaptability to your outdoor needs.

• Mosquito Netting: The four netting walls can be easily opened and closed using the smooth zippers. They can be tied back to the poles when not in use for an open feel, or fully closed to provide privacy and protection from insects.
• Canopy Central Hook: Utilize the integrated hook at the center of the canopy to hang lightweight items such as outdoor fans, decorative lights, or small hanging plants. Ensure the weight does not exceed the hook's capacity.
• Weather Adaptability: The double-layer roof promotes airflow, helping to keep the interior cooler on sunny days. The waterproof fabric provides protection from light rain. In anticipation of severe weather conditions (strong winds, heavy rain, snow), it is advisable to remove the canopy and netting to prevent damage to the structure.

7. Maintenance

Regular maintenance will extend the life and appearance of your EROMMY Gazebo.

• Cleaning Fabric: Clean the canopy and netting with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as these can damage the fabric. Rinse thoroughly and allow to air dry completely before storage.
• Cleaning Frame: Wipe down the metal frame with a damp cloth and mild detergent. Dry thoroughly to prevent rust.
• Seasonal Storage: For prolonged periods of non-use or during off-season, it is recommended to disassemble the gazebo and store the components in a dry, protected area to prevent wear and tear from extreme weather.
• Hardware Check: Periodically inspect all nuts, bolts, and connections to ensure they remain tight. Tighten as necessary.

8. Troubleshooting

This section addresses common issues you might encounter with your gazebo.

• Gazebo feels unstable:
  • Ensure all frame connections are securely tightened.
  • Verify that the gazebo is properly anchored to the ground using all ground stakes. Consider additional anchoring if in a windy area.
  • Check that the ground surface is level.
• Water pooling on canopy:
  • Ensure the canopy is stretched taut and properly secured to the frame.
  • The double-layer roof is designed to minimize pooling, but heavy rainfall may still cause some accumulation. It is advisable to gently push up on the underside of the canopy to release pooled water.
• Mosquito netting not closing properly:
  • Check for any obstructions in the zipper path.
  • Ensure the netting is correctly attached to the frame and not twisted.

If you encounter issues not covered here, please contact EROMMY customer support for assistance.

9. Specifications

10. Warranty and Support

EROMMY is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, if you have any questions about the product, require assistance with assembly, or need to report missing/damaged parts, please do not hesitate to reach out to EROMMY customer support.

Please refer to your purchase documentation or the EROMMY official website for the most current warranty information and contact details.
