1. Introduction
The Bomieux L6696 is a versatile military-style analog watch designed for both practicality and durability. This manual provides essential information for setting up, operating, and maintaining your watch to ensure optimal performance and longevity.
Image: Bomieux L6696 Unisex Military Analog Watch with Green Nylon Strap.
2. Package Contents
Verify that all items are present in the package:
- Bomieux L6696 Watch x1
- Instruction Manual x1
3. Product Features
- Luminous Display: Hands and hour markers glow in the dark for easy readability in low-light conditions.
- 5ATM Water Resistance: Suitable for daily use, including splashes, handwashing, and rain. Not suitable for swimming or diving.
- Durable Nylon Slip-Thru Strap: Breathable, lightweight, and comfortable for extended wear.
- Date Display: Convenient display of the current day and date.
- 12/24 Hour Format: Clear and easy-to-read dial with both standard and military time markings.
- High Hardness Glass Mirror: Provides durability and scratch resistance.
Image: Luminous hands and markers for night visibility.
Image: 5ATM Water Resistance for daily activities.
4. Setup
4.1 Setting Time and Date
- Set the Week: Gently pull the crown (the knob on the side of the watch) out to the first gear position. Turn the crown counter-clockwise to adjust the day of the week.
- Set the Date: While the crown is still in the first gear position, turn it clockwise to adjust the date.
- Set the Time: Pull the crown out further to the second gear position. Turn the crown to adjust the hour and minute hands to the correct time. Ensure you set the correct 12-hour or 24-hour cycle if applicable for the date change.
- Push Crown Back: Once the time and date are set, push the crown completely back into its original position to start the watch movement.
Image: Visual guide for setting the date and time.
Video: Setting Time and Date
Video demonstrating how to set the week, day, and time on the Bomieux L6696 watch using the crown.
4.2 Adjusting the Nylon Slip-Thru Strap
The nylon slip-thru strap is designed for comfort and adjustability. To adjust the strap:
- Thread the long end of the strap through the two spring bars on the watch case.
- Pass the strap through the buckle and adjust it to your desired wrist circumference.
- If the excess strap is too long, fold it back and tuck it into the keepers for a secure fit.
Video: Strap Adjustment
Video illustrating the process of attaching and adjusting the nylon slip-thru strap on the Bomieux L6696 watch.
5. Operating the Watch
5.1 Reading the Time
The watch features a clear analog display with both 12-hour and 24-hour (military) markings. The luminous hands and hour markers ensure visibility in various lighting conditions.
5.2 Water Resistance
The Bomieux L6696 watch is rated for 5ATM (50 meters) water resistance. This means it is suitable for:
- Splashes
- Handwashing
- Rain
It is not recommended for swimming, diving, or prolonged water immersion. Avoid operating the crown while the watch is wet to prevent water ingress.
6. Maintenance
- Cleaning: Wipe the watch case and crystal with a soft, dry cloth. The nylon strap can be gently hand-washed with mild soap and water, then air-dried.
- Avoid Chemicals: Do not expose the watch to harsh chemicals, solvents, or detergents, as these can damage the case, strap, or internal components.
- Temperature Extremes: Avoid exposing the watch to extreme temperatures (hot or cold) or sudden temperature changes, which can affect its accuracy and water resistance.
- Battery Replacement: The watch uses a quartz movement. If the watch stops running, the battery may need replacement. This should be performed by a qualified watch technician to maintain water resistance.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch not running | Dead battery | Replace battery (professional service recommended). |
| Incorrect time/date | Not set correctly or crown pulled out | Refer to Section 4.1 to reset time and date. Ensure crown is fully pushed in. |
| Condensation under crystal | Exposure to extreme temperature changes or water ingress | Seek professional service immediately to prevent damage. |
8. Specifications
| Feature | Specification |
|---|---|
| Model Name | L6696 |
| Dial Diameter | 38 mm (1.5 inches) |
| Dial Thickness | 10 mm (0.39 inches) |
| Band Width | 20 mm (0.79 inches) |
| Strap Length (including case) | 270 mm (10.63 inches) |
| Min. Wrist Circumference | 170 mm (6.7 inches) |
| Max. Wrist Circumference | 240 mm (9.45 inches) |
| Weight | 49 grams (0.11 pounds) |
| Movement Type | Quartz |
| Water Resistance | 50 Meters (5ATM) |
| Strap Material | Nylon Fabric |
| Case Material | Metal |
| Crystal Material | Glass |
| Clasp Type | Buckle |

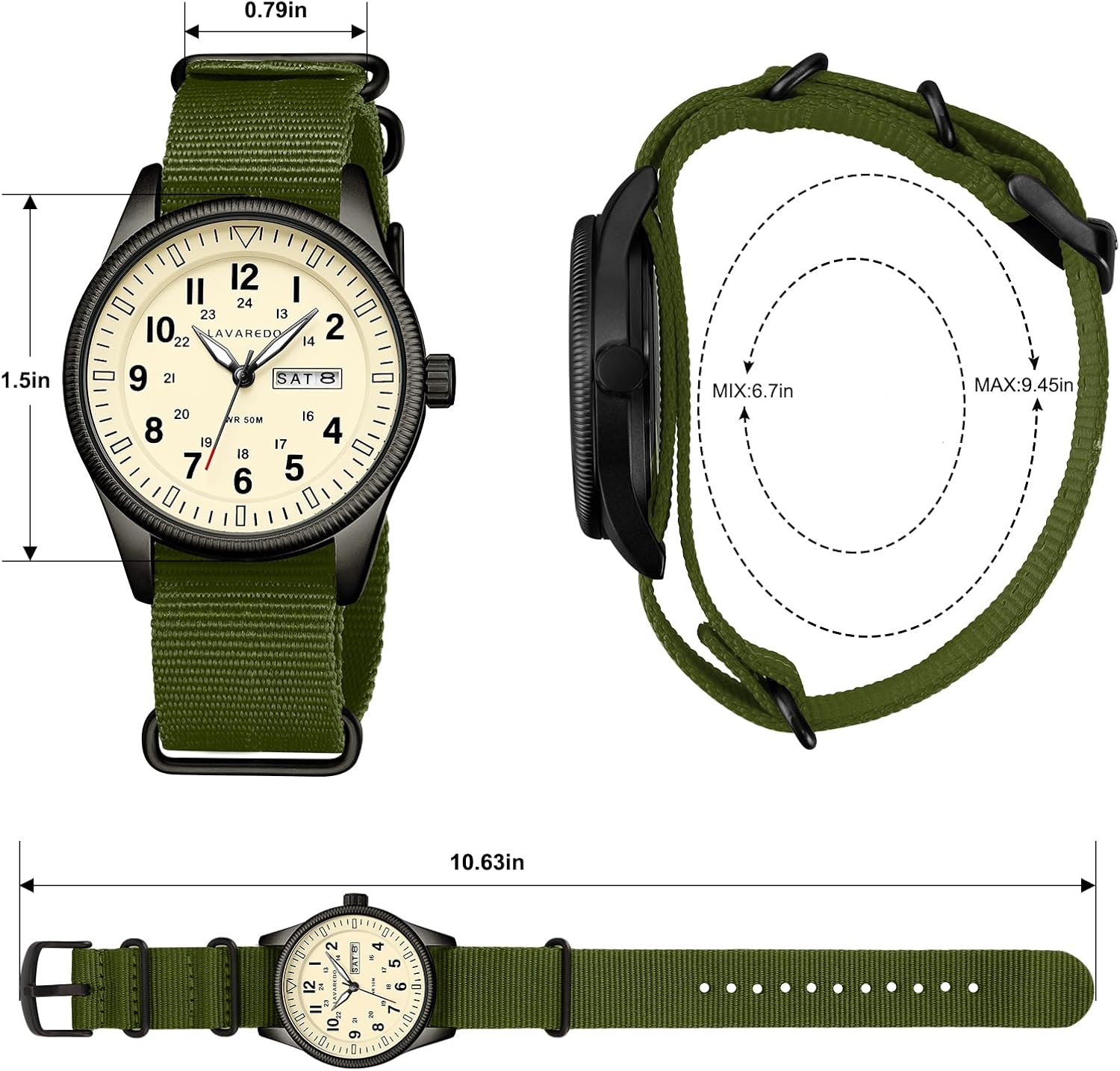

Image: Detailed dimensions of the Bomieux L6696 watch.

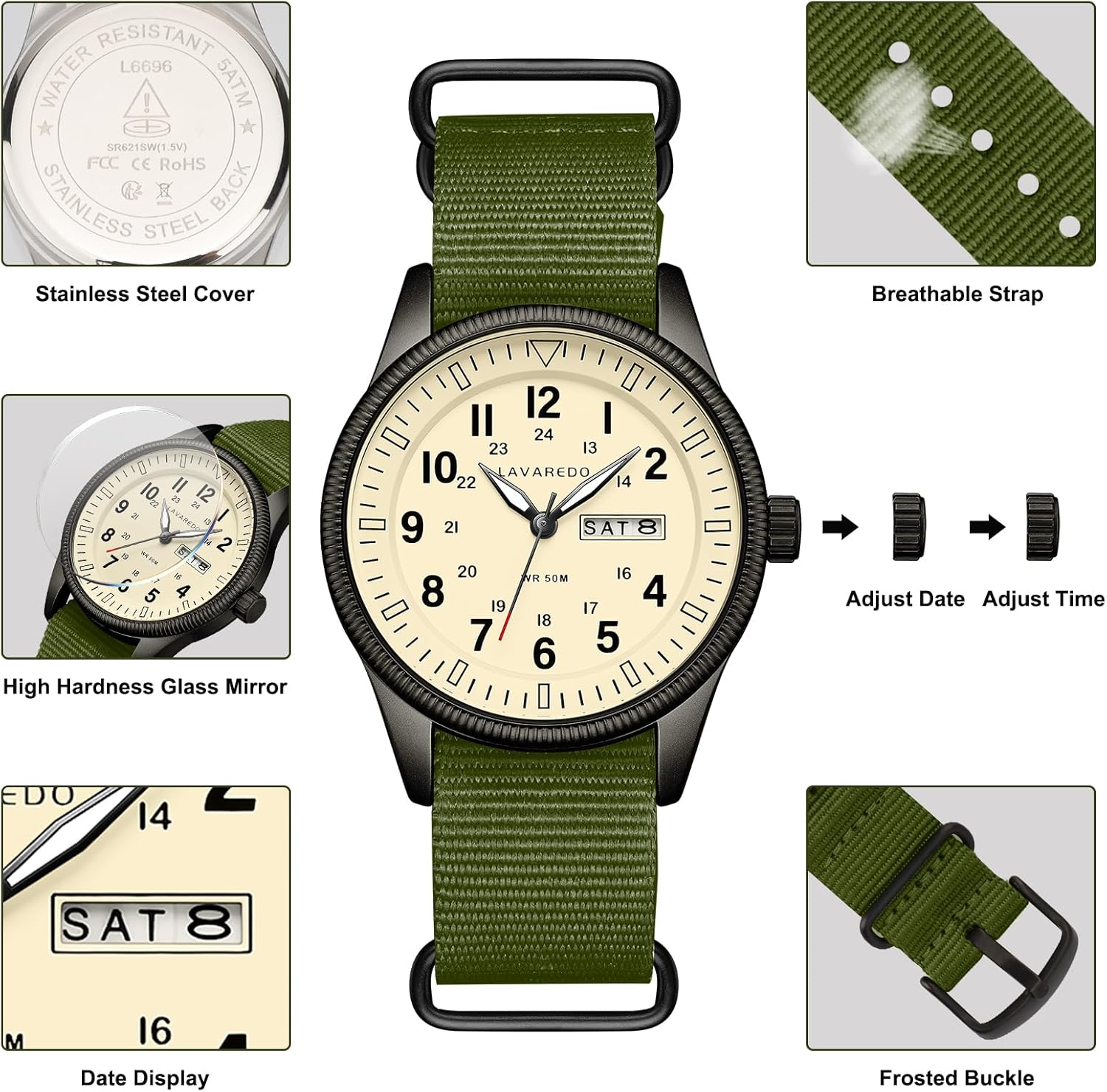

Image: Exploded view of watch components and features.
