CS361 Cylinder Piston Kit 39mm Instruction Manual

1. Introduction

This instruction manual provides essential information for the installation and maintenance of the CUIPPWRJ CS361 Cylinder Piston Kit. This kit is designed as a replacement part for compatible Echo Chainsaw models, aiming to restore engine performance and extend the life of your equipment. Please read this manual thoroughly before attempting any installation.

2. Safety Information

Working with internal engine components requires caution. Always observe the following safety guidelines:

• Disconnect Spark Plug: Before beginning any work, ensure the chainsaw's spark plug wire is disconnected to prevent accidental starting.
• Wear Protective Gear: Use appropriate personal protective equipment, including safety glasses and gloves.
• Work in a Well-Ventilated Area: Ensure adequate ventilation if using cleaning solvents.
• Consult Professional: If you are unsure about any step, consult a qualified small engine mechanic.
• Keep Parts Organized: Lay out all parts in an organized manner to prevent loss and aid reassembly.

3. Package Contents

The CUIPPWRJ CS361 Cylinder Piston Kit includes the following components:

• 1 x Cylinder
• 1 x Piston (39mm diameter)
• 1 x Piston Pin
• 2 x Piston Rings
• 2 x Circlips (for piston pin)
• 1 x Needle Bearing (for piston pin)

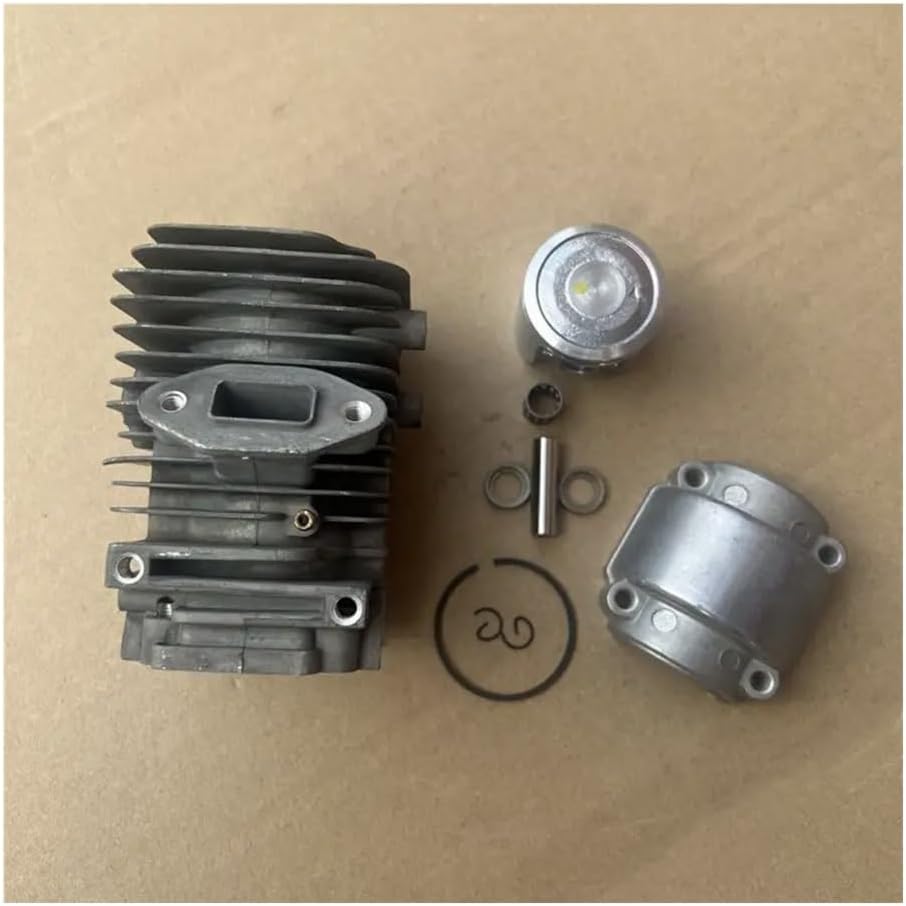

Figure 3.1: Overview of the CS361 Cylinder Piston Kit components.

4. Compatibility

This cylinder piston kit is compatible with the following Echo Chainsaw models:

• Echo CS-361
• Echo CS-361P
• Echo CS361P
• Echo CS-361WES

Always verify the dimensions of your existing cylinder and piston against the specifications provided in Section 6 to ensure proper fitment.

5. Installation Guide

This section outlines the general steps for replacing the cylinder and piston. Specific procedures may vary slightly depending on your chainsaw model. Refer to your chainsaw's original service manual for detailed instructions.

5.1. Preparation and Disassembly

1. Ensure the chainsaw is off, cool, and the spark plug wire is disconnected.
2. Remove the air filter cover, air filter, and carburetor.
3. Remove the muffler.
4. Unbolt and carefully remove the old cylinder head. Note the orientation of any gaskets.
5. Rotate the crankshaft to bring the piston to Top Dead Center (TDC).
6. Carefully remove the circlips from one side of the piston pin. Push the piston pin out.
7. Remove the old piston and piston rings.
8. Clean the crankcase mating surface thoroughly, removing all old gasket material.

5.2. Assembly of New Components

1. Install one circlip into one side of the new piston.
2. Install the piston rings onto the new piston, ensuring the ring gap aligns with the locating pin on the piston.
3. Apply a thin coat of two-stroke oil to the piston, piston rings, and the inside of the new cylinder.
4. Position the piston onto the connecting rod, aligning the piston pin hole. Insert the piston pin, ensuring it slides smoothly.
5. Install the second circlip to secure the piston pin. Ensure both circlips are fully seated.
6. Compress the piston rings carefully and slide the new cylinder over the piston. Ensure the cylinder slides down smoothly without forcing.
7. Align the cylinder with the crankcase mounting holes and secure it with the appropriate bolts. Torque to manufacturer specifications if available.

5.3. Reassembly and Testing

1. Reinstall the muffler, carburetor, air filter, and air filter cover.
2. Reconnect the spark plug wire.
3. Perform a compression test if possible to ensure proper sealing.
4. Start the chainsaw and allow it to idle for a few minutes. Listen for any unusual noises.
5. Perform a break-in period as recommended by the chainsaw manufacturer for new engine components.

6. Specifications

Key specifications for the CUIPPWRJ CS361 Cylinder Piston Kit:

Figure 6.1: Dimensional details of the kit components.

7. Maintenance

Proper maintenance of your chainsaw, including its engine components, is crucial for longevity and performance:

• Fuel Mixture: Always use the correct fuel-to-oil mixture as specified by your chainsaw manufacturer. Incorrect mixtures can lead to premature wear of the piston and cylinder.
• Air Filter: Regularly clean or replace the air filter to prevent dirt and debris from entering the engine, which can cause cylinder and piston scoring.
• Spark Plug: Inspect and replace the spark plug as needed to ensure efficient combustion.
• Storage: When storing the chainsaw for extended periods, follow the manufacturer's guidelines for fuel stabilization and engine preparation.

8. Troubleshooting

If you encounter issues after installing the kit, consider the following common problems and solutions:

• No Start/Hard Start:
  • Check spark plug connection and condition.
  • Verify fuel mixture and supply.
  • Ensure cylinder bolts are properly torqued and no air leaks are present.
  • Confirm piston rings are correctly seated and not broken.
• Loss of Power/Poor Performance:
  • Inspect air filter for clogging.
  • Check for proper carburetor adjustment.
  • Listen for abnormal engine noises that might indicate internal damage or improper assembly.
• Excessive Smoke:
  • Ensure correct fuel-to-oil ratio.
  • Check for oil leaks or improper sealing.

If problems persist, it is recommended to seek assistance from a qualified service technician.

9. Support

For further assistance or inquiries regarding this product, please contact the seller or manufacturer directly through the platform where the purchase was made. Provide your order details and a clear description of the issue for prompt support.
