Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your PYKFVTGL 551A-60 Type 12 Mechanical Seal. This mechanical seal is designed for use in water pump applications and is compatible with various systems including BT-RN, VUL-CAN 12, ROTE-N 2, U2, and AES-SEAL T03. Adhering to these instructions will ensure optimal performance and longevity of the product.
Product Overview
Figure 1: Assembled PYKFVTGL 551A-60 Type 12 Mechanical Seal. This image shows the complete mechanical seal unit, consisting of the spring-loaded rotating part and the stationary seat, ready for installation.
The PYKFVTGL 551A-60 is a Type 12 mechanical seal, specifically designed for shaft sizes of 60mm. Its primary function is to prevent the ingress of dust and impurities into machinery while simultaneously preventing the leakage of lubricating oil or process fluid. This seal offers good resistance to petroleum oils, greases, hydraulic fluids, and mineral oil.

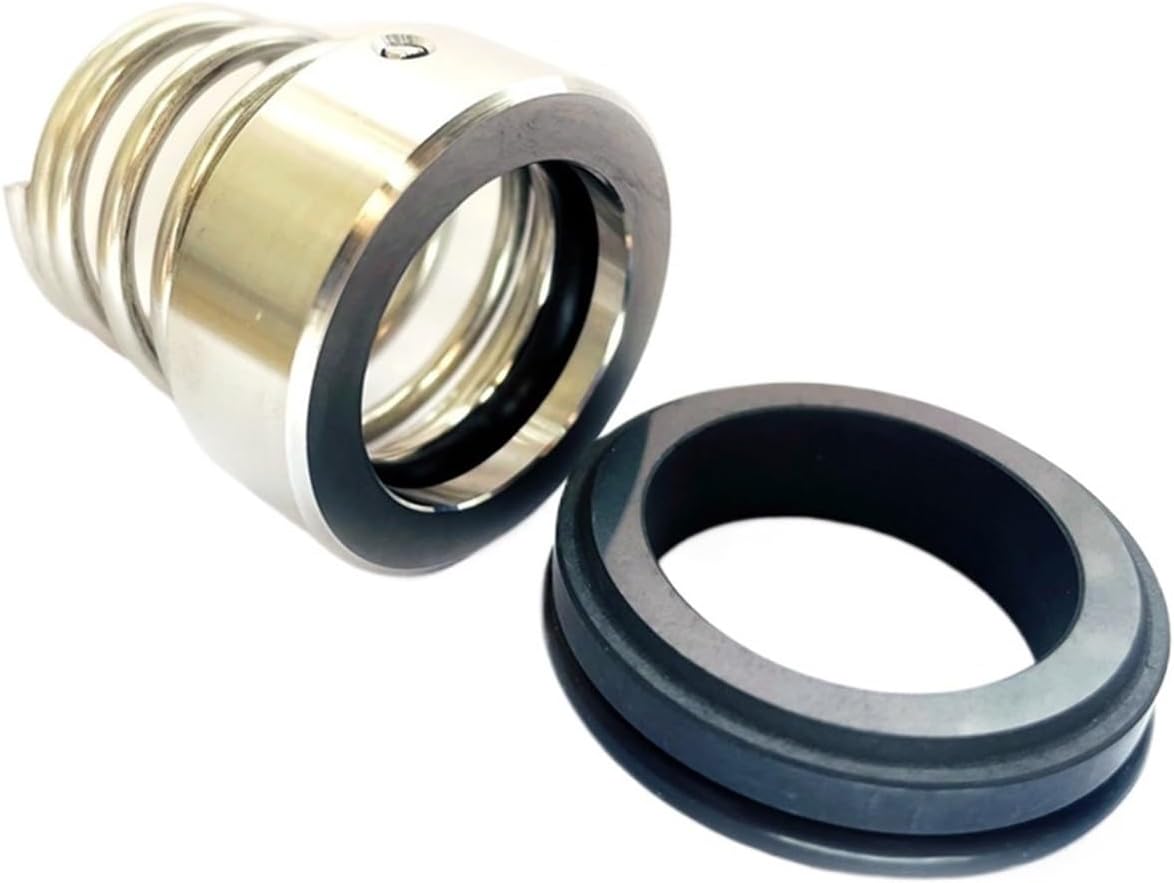

Figure 2: Disassembled components of the PYKFVTGL 551A-60 Type 12 Mechanical Seal. This view illustrates the separate rotating and stationary elements of the seal, highlighting their individual construction.
Setup and Installation
Proper installation is crucial for the effective operation and longevity of the mechanical seal. Always ensure the correct size and material are selected for your specific application before proceeding with installation.
- Preparation: Ensure the shaft and seal housing are clean, free from burrs, scratches, and any foreign particles. Inspect the seal faces for any damage.
- Component Identification: Familiarize yourself with the rotating and stationary components of the seal. The rotating part typically includes the spring and is installed on the shaft, while the stationary part is fitted into the pump housing.
- Lubrication: Lightly lubricate the shaft and the inner diameter of the rotating seal component with a clean, compatible fluid (e.g., water or the process fluid) to aid installation and prevent damage.
- Shaft Installation: Carefully slide the rotating part of the seal onto the shaft. Ensure it is seated correctly and not cocked. Avoid applying excessive force directly to the seal faces.
- Housing Installation: Install the stationary part of the seal into the pump housing. Ensure it is fully seated and aligned.
- Assembly: Assemble the pump components, ensuring that the seal faces meet squarely and with even pressure. Avoid overtightening bolts that could distort the seal housing.
- Final Check: After assembly, manually rotate the shaft to ensure there is no binding and the seal operates smoothly.
Figure 3: Separated components of the PYKFVTGL 551A-60 Type 12 Mechanical Seal, showing the spring-loaded rotating element and the carbon/ceramic stationary ring. This image helps in identifying each part during installation.
Operating Principles
Mechanical seals operate by maintaining a thin film of fluid between two precisely lapped faces, one rotating with the shaft and the other stationary in the pump housing. This fluid film lubricates the faces and prevents leakage. The PYKFVTGL 551A-60 seal is designed to create a reliable barrier, protecting internal components from external contaminants and preventing the escape of process fluids.
Figure 4: Close-up view of the PYKFVTGL 551A-60 Type 12 Mechanical Seal components, highlighting the precision-machined surfaces and the spring mechanism. This detail is important for understanding the sealing mechanism.
Maintenance
Mechanical seals are generally designed for long-term, maintenance-free operation. However, regular inspection of the pump system can help identify potential issues before they lead to seal failure.
- Leakage Monitoring: Periodically check for any signs of leakage around the seal area. A slight weep may be normal for some seals, but continuous or heavy leakage indicates a problem.
- Vibration and Noise: Listen for unusual noises or feel for excessive vibration from the pump, which could indicate seal wear or misalignment.
- System Conditions: Ensure the operating conditions (temperature, pressure, fluid compatibility) remain within the seal's specified limits. Deviations can accelerate wear.
- Replacement: Mechanical seals are wear items. If significant leakage or performance degradation occurs, the seal should be replaced. Always replace with a seal of the correct size and material.
Troubleshooting
If you experience issues with your mechanical seal, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Excessive Leakage | Improper installation, damaged seal faces, incorrect material, excessive vibration, system pressure spikes. | Re-install correctly, inspect and replace damaged seal, verify material compatibility, check pump alignment, review system operating parameters. |
| Short Seal Life | Operating outside temperature/pressure limits, abrasive particles in fluid, chemical incompatibility, dry running. | Verify operating conditions, install filtration, ensure fluid compatibility, prevent dry running. |
| Overheating | Insufficient lubrication, excessive face pressure, misalignment. | Ensure adequate fluid film, check installation for proper compression, verify pump and motor alignment. |
Specifications
- Model: 551A-60
- Type: 12 Mechanical Seal
- Shaft Size: 60mm
- Material (Current Variant): SS-CAR-EPDM (Stainless Steel, Carbon, EPDM)
- Temperature Range: -13°F (-25°C) to 392°F (200°C)
- Resistance: Good resistance to petroleum oils, greases, hydraulic fluids, mineral oil.
- Applications: Water Pumps (compatible with BT-RN, VUL-CAN 12, ROTE-N 2, U2, AES-SEAL T03 systems)
- Item Weight: Approximately 3.53 ounces (100 grams)
- Package Dimensions: Approximately 1.18 x 0.79 x 0.39 inches
- Manufacturer: PYKFVTGL
- ASIN: B0DX9KN67R
Warranty and Support
For information regarding warranty coverage or technical support for your PYKFVTGL 551A-60 Type 12 Mechanical Seal, please refer to the documentation provided at the point of purchase or contact your supplier. Specific warranty terms and support channels may vary.
