Kienzle Mechanical Edition Watch KM-425 User Manual

1. Introduction

This manual provides detailed instructions for the proper setup, operation, maintenance, and care of your Kienzle Mechanical Edition KM-425 automatic watch. Please read this guide thoroughly to ensure optimal performance and longevity of your timepiece.

2. Product Overview

The Kienzle Mechanical Edition KM-425 is an automatic men's watch featuring a sophisticated design and a reliable TY 2505 automatic movement. Its polished steel case measures 42 mm in diameter, complemented by a polished white dial with a guilloché pattern. Key functions include a calendar display at the ten o'clock position, a power reserve indicator at two o'clock, and a visible 'flying wheel' at six o'clock, showcasing the intricate mechanics of the movement. The watch is fitted with a high-quality crocodile-print leather strap, Made in Italy, and is water-resistant up to 5 ATM (50 meters).

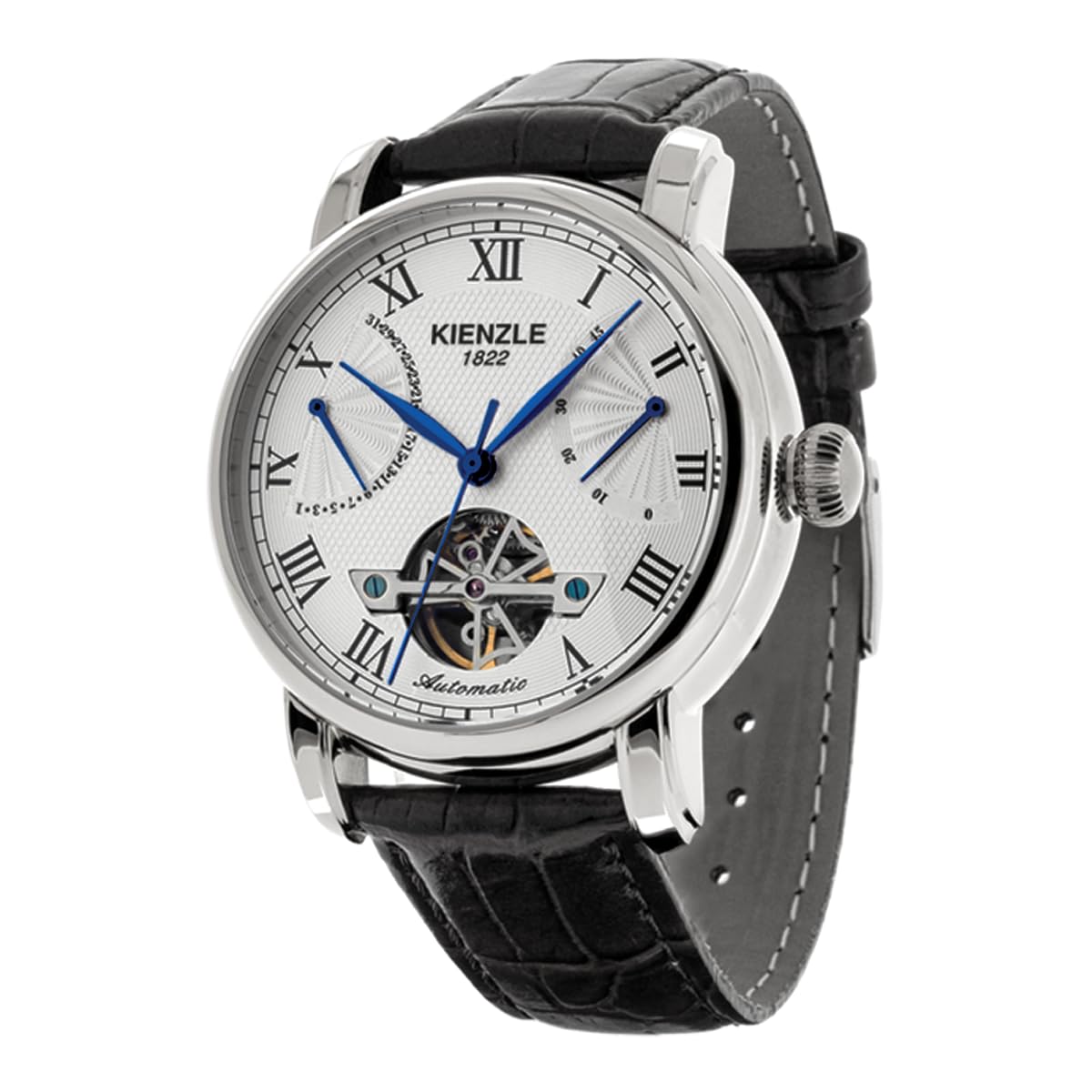

Figure 2.1: Front view of the Kienzle Mechanical Edition KM-425 watch, showcasing the dial and strap.

3. Setup

3.1 Unboxing

Your Kienzle Mechanical Edition KM-425 watch comes in its original packaging, accompanied by a 2-year warranty certificate. Please retain these items for future reference and warranty claims.

Figure 3.1: The Kienzle watch presented in its open original packaging.

3.2 Winding the Watch

As an automatic watch, the KM-425 is primarily powered by the motion of your wrist. However, if the watch has stopped or for initial setup, it can be manually wound. To do so, ensure the crown (located on the side of the watch case) is in its fully pushed-in position (Position 0). Rotate the crown clockwise approximately 20-30 times until the power reserve indicator shows a sufficient charge. Avoid over-winding.

3.3 Setting the Time

1. Gently pull the crown out to Position 2 (the outermost position).
2. Rotate the crown in either direction to move the hour and minute hands to the correct time.
3. Once the time is set, push the crown back into Position 0 (fully pushed-in) to engage the movement.

3.4 Setting the Date

1. Gently pull the crown out to Position 1 (the middle position).
2. Rotate the crown (typically counter-clockwise, but may vary) to adjust the date display at the ten o'clock position.
3. Avoid setting the date between 9 PM and 3 AM, as this can interfere with the automatic date change mechanism and potentially damage the movement. If the current time falls within this window, first set the time outside this period, then adjust the date, and finally reset the correct time.
4. Once the date is set, push the crown back into Position 0.

Figure 3.2: Side view of the watch, highlighting the crown for time and date adjustments.

4. Operating the Watch

4.1 Automatic Movement (TY 2505)

The Kienzle KM-425 is equipped with a TY 2505 automatic mechanical movement. This movement is self-winding, meaning it gains power from the natural motion of your wrist while wearing the watch. When fully wound, the watch has a power reserve that allows it to run for a certain period (typically 36-40 hours) even when not being worn. If the watch is not worn for an extended period, it will stop and require manual winding or wearing to restart.

4.2 Power Reserve Indicator

The sub-dial at the two o'clock position indicates the remaining power reserve of the watch. This gauge shows how much energy is stored in the mainspring, allowing you to monitor when the watch might need winding or more active wear.

4.3 Calendar Display

The calendar window at the ten o'clock position displays the current date. This feature automatically advances once every 24 hours. For manual adjustment, refer to Section 3.4.

4.4 Flying Wheel

The 'flying wheel' at the six o'clock position is an open-heart design element that provides a glimpse into the watch's intricate mechanical movement, specifically the balance wheel, which is crucial for timekeeping accuracy.

5. Maintenance

5.1 Cleaning

To maintain the appearance of your watch, wipe the case and crystal with a soft, dry, lint-free cloth. For the leather strap, avoid excessive moisture and harsh chemicals. If the watch comes into contact with saltwater, rinse it gently with fresh water and dry thoroughly with a soft cloth.

5.2 Water Resistance (5 ATM / 50 Meters)

Your Kienzle KM-425 watch is water-resistant up to 5 ATM (50 meters). This rating means the watch is suitable for everyday use and can withstand splashes, rain, and short periods of recreational swimming. It is not suitable for diving, snorkeling, or high-pressure water activities such as showering or bathing, especially with hot water, as temperature changes can affect seals. Always ensure the crown is fully pushed in before any contact with water.

5.3 Strap Care

The leather strap is susceptible to wear and tear from moisture, sweat, and direct sunlight. To prolong its life, avoid prolonged exposure to water and direct sunlight. Clean with a dry cloth and allow it to air dry if it becomes damp. The strap is interchangeable, allowing for customization or replacement if needed.

5.4 Storage

When not wearing your watch, store it in a cool, dry place away from direct sunlight, extreme temperatures, and strong magnetic fields. The original watch box is ideal for storage.

6. Troubleshooting

• Watch Not Running: If the watch has stopped, it may need to be manually wound (refer to Section 3.2) or worn for a sufficient period to build up power reserve. Automatic watches require consistent wrist movement to stay wound.
• Inaccurate Time: Ensure the watch is fully wound. Exposure to strong magnetic fields can affect accuracy. If persistent, professional service may be required.
• Date Not Changing: Check if the time is set correctly, especially past midnight. If the date is stuck, try manually advancing it (refer to Section 3.4).
• Condensation Under Crystal: This indicates a breach in the watch's water resistance. Immediately seek professional service to prevent further damage to the movement.

7. Specifications

8. Warranty and Support

8.1 Limited Warranty

Your Kienzle Mechanical Edition KM-425 watch is covered by a 2-year limited warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage resulting from improper handling, accidents, unauthorized repairs, or normal wear and tear of the strap or battery (if applicable). Please retain your warranty certificate and proof of purchase for any warranty claims.

8.2 Return Policy

In addition to your legal right of withdrawal, you may have a 30-day return right for many products. For specific exceptions and conditions regarding returns, please consult the retailer's return policy where the watch was purchased.

8.3 Customer Support

For technical assistance, service, or warranty inquiries, please contact your authorized Kienzle retailer or the Kienzle customer service department. Contact details can typically be found on the official Kienzle website or on your warranty documentation.
