VOCIC V57 Electric Wheelchair User Manual

1. Introduction

Thank you for choosing the VOCIC V57 Electric Wheelchair. This manual provides essential information for the safe and effective operation, maintenance, and care of your new electric wheelchair. Please read this manual thoroughly before initial use and keep it for future reference.

Image 1.1: The VOCIC V57 Electric Wheelchair, showcasing its ergonomic design and adjustable features.

2. Safety Information

Always prioritize safety when operating the VOCIC V57 Electric Wheelchair. Failure to follow these guidelines may result in injury or damage to the product.

• Weight Capacity: Do not exceed the maximum weight capacity of 150 kg (330 lbs).
• Terrain: While designed for various terrains, avoid extremely steep slopes, soft sand, or deep water.
• Braking: Always engage the electronic braking system and handbrake when stationary, especially on inclines. The sensitive electronic braking system ensures immediate stop upon joystick release.
• Anti-Tip Wheels: Ensure the anti-tip wheels are properly deployed to prevent backward tipping, especially on inclines.
• Seatbelt: Always use the provided seatbelt for added security.
• Night Use: Utilize the integrated LED light for safe navigation in low-light conditions.
• Obstacles: Exercise caution when navigating over obstacles. The 500W motor is powerful, but awareness is key.
• Charging: Only use the original charger provided. Do not operate the wheelchair while charging.

Image 2.1: Illustration of the double braking system and robust anti-tip wheels for enhanced safety on inclines.

3. Product Overview

The VOCIC V57 Electric Wheelchair is designed for comfort, durability, and ease of use. Key components include:

• Ergonomic 3D Headrest: Provides full support and comfort for the head and neck.
• Adjustable Backrest: Continuously reclines from 90° to 165° for optimal comfort.
• Adjustable Footrests: Flexible footrests with 4 height adjustment levels to reduce leg fatigue.
• 360° Waterproof Control Joystick: Sensitive and intuitive control for effortless movement and rotation. Can be mounted on either side for left or right-handed users.
• LED Display: Clearly indicates battery level and speed settings.
• 500W Motor: Powerful and quiet motor for smooth navigation over various terrains.
• High-Quality Pneumatic Rear Tires: 40 cm wide, air-filled rubber tires for excellent shock absorption and wear resistance.
• 360° PU Front Wheels: Equipped with double shock absorbers for flexible maneuverability and stability.
• Aircraft-Grade Carbon Steel Frame: 8mm thick double X-frame design for exceptional durability and stability, supporting up to 150 kg.
• Removable Lithium Battery (24V/20Ah): Provides an impressive range of 30 km.
• Foldable Armrests: 90° flip-up armrests for easy entry and exit.
• Storage: Includes a small rear pocket and side pockets on the armrests.
• USB Charging Port: Integrated for convenient device charging.

Image 3.1: Detailed view of key components including the 500W motor, breathable cushioning, ergonomic 3D headrest, and 90° flip-up armrests.

4. Setup

The VOCIC V57 Electric Wheelchair is designed for quick and easy assembly. Most components come pre-assembled.

1. Unpacking: Carefully remove the wheelchair and all accessories from the packaging.
2. Unfolding: Gently unfold the wheelchair frame until it locks securely into place. Ensure all locking mechanisms are engaged.
3. Battery Installation: Insert the lithium battery into its designated compartment. Ensure it clicks into place.
4. Joystick Attachment: Attach the 360° control joystick to either the left or right armrest, depending on user preference. Secure it firmly.
5. Footrest Adjustment: Adjust the height of the footrests to a comfortable position for the user.
6. Initial Charge: Before first use, fully charge the battery. Refer to the "Charging the Battery" section for details.

Image 4.1: The wheelchair's quick folding mechanism, demonstrating its portability for storage or transport in a car trunk.

5. Operating Instructions

5.1. Powering On/Off

• To power on, press the power button on the joystick control panel. The LED display will illuminate.
• To power off, press and hold the power button until the display turns off.

5.2. Driving the Wheelchair

• Joystick Control: Use the 360° joystick to control movement. Push forward to move forward, pull back to move backward, and push left/right to turn.
• Speed Adjustment: The wheelchair has 5 speed levels. Use the speed adjustment buttons on the joystick panel to increase or decrease speed (maximum 6 km/h).
• Braking: Release the joystick to engage the automatic electronic brake. For additional security, use the manual handbrake.
• Horn: Press the horn button on the joystick panel to alert others.
• Reverse Warning: The wheelchair is equipped with a reverse warning system for added safety when backing up.

Image 5.1: Close-up of the 360° control joystick, showing speed adjustment, horn, battery display, and power buttons.

5.3. Adjusting Comfort Features

• Backrest Recline: Use the recline mechanism to continuously adjust the backrest angle from 90° (upright) to 165° (nearly flat). This allows for comfortable sitting, semi-reclining, or full reclining for rest.
• Footrest Height: Adjust the footrests to one of the 4 available height levels to support different postures and reduce leg fatigue.
• Armrest Flip-Up: The armrests can be flipped up 90° to facilitate easy transfer into and out of the wheelchair.

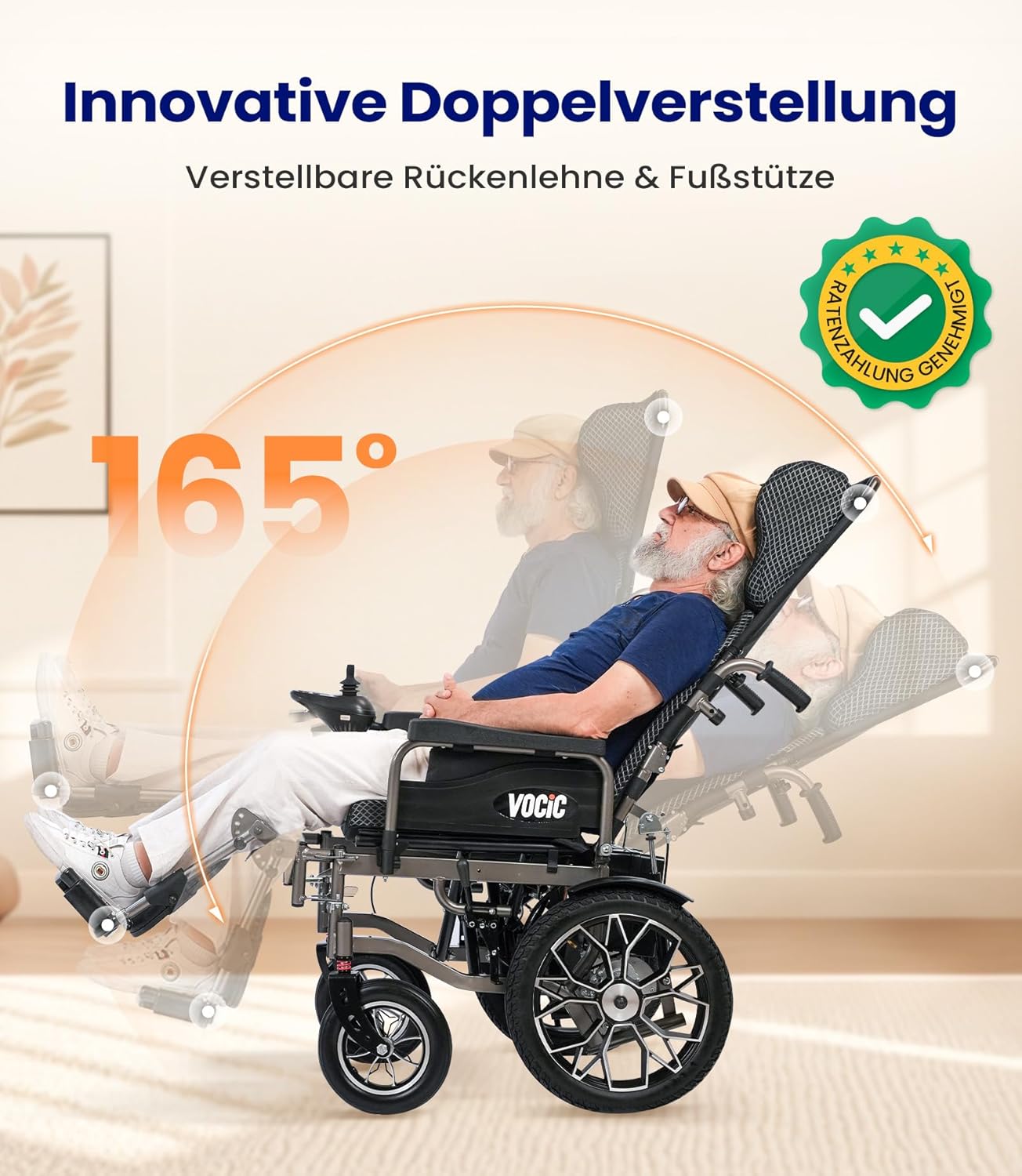

Image 5.2: Demonstrating the 165° adjustable backrest and flexible footrests for personalized comfort.

5.4. Charging the Battery

The VOCIC V57 offers dual charging modes:

• Mode 1 (On-board Charging): Plug the charger directly into the charging port on the wheelchair.
• Mode 2 (Off-board Charging): Remove the battery from the wheelchair and plug the charger directly into the battery. This is convenient for charging the battery separately.
• A full charge provides approximately 30 km of range.

Image 5.3: Illustration of the two charging methods: charging the battery while installed in the wheelchair or charging the removable battery separately.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your VOCIC V57 Electric Wheelchair.

• Cleaning: Wipe down the frame and components with a damp cloth. Avoid using abrasive cleaners or excessive water. The joystick is waterproof, but avoid submerging any part of the wheelchair.
• Tire Pressure: Periodically check the air pressure in the pneumatic rear tires and inflate as needed to the recommended pressure.
• Battery Care: Store the battery in a cool, dry place. If storing the wheelchair for an extended period, charge the battery every 1-2 months to maintain its health.
• Inspections: Regularly inspect all bolts, screws, and connections to ensure they are tight. Check for any signs of wear or damage to the frame, wheels, or electrical components.
• Cushion Care: The breathable gel cushion can be wiped clean. Ensure it is dry before use.

7. Troubleshooting

This section addresses common issues you might encounter with your VOCIC V57 Electric Wheelchair.

8. Specifications

Detailed technical specifications for the VOCIC V57 Electric Wheelchair:

Image 8.1: Visual representation of the wheelchair's dimensions and key specifications.

9. Warranty and Support

VOCIC is committed to providing excellent customer service and support for your V57 Electric Wheelchair.

• Warranty: The VOCIC V57 Electric Wheelchair comes with a 5-year warranty. Please retain your proof of purchase for warranty claims.
• Returns: VOCIC offers a simple 30-day free return option.
• Customer Service: For any questions, technical assistance, or warranty claims, please contact VOCIC customer support. Our professional support team is available to respond within 24 hours.
• Spare Parts: Spare parts are available through VOCIC customer service.

For further assistance, please visit the official VOCIC store or contact their customer service directly.
