YTE PRO Cordless Vacuum Cleaner User Manual
Model: WSD2401PNK
Introduction
Thank you for choosing the YTE PRO Cordless Vacuum Cleaner. This versatile and powerful cleaning device is designed to provide efficient and convenient cleaning for your home and car. With its lightweight design, strong suction, and multi-stage filtration system, it offers a superior cleaning experience. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new vacuum cleaner.
Safety Instructions
- Read all instructions before using the appliance.
- Do not use the vacuum cleaner to pick up liquids, burning or smoking objects, or sharp objects.
- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
- Use only as described in this manual. Use only manufacturer's recommended attachments.
- Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle plug or appliance with wet hands.
- Turn off all controls before unplugging.
- Do not use in outdoor environments.
- Store the appliance indoors in a cool, dry place.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Package Contents
Your YTE PRO Cordless Vacuum Cleaner package includes the following components:
- Floor Brush
- Handheld Vacuum Unit
- 2-in-1 Crevice Nozzle Tool
- Wall Mounted Bracket
- Adjustable Telescopic Alloy Tube
- Replacement HEPA Filter
- Charger
- Instruction Manual
Figure 1: All components included in the YTE PRO Cordless Vacuum Cleaner package, laid out neatly.
Setup
Assembling your YTE PRO Cordless Vacuum Cleaner is a straightforward process, typically taking only a few seconds. Follow these steps to get your vacuum ready for use:
- Unpack Components: Carefully remove all items from the packaging. Ensure all listed components are present.
- Attach Telescopic Tube: Connect the adjustable telescopic alloy tube to the main handheld vacuum unit. Ensure it clicks securely into place.
- Attach Floor Brush: Connect the floor brush to the other end of the telescopic tube. This connection should also click firmly.
- Install Wall Mount (Optional): The included wall-mounted storage bracket allows for convenient storage. Secure the bracket to a suitable wall using the provided screws. Once installed, you can hang the assembled vacuum and store additional accessories on it.
Figure 2: The YTE PRO Cordless Vacuum Cleaner fully assembled with its various attachments.
Figure 3: The wall-mounted storage solution for the YTE PRO Cordless Vacuum Cleaner, offering a space-saving design.
Operating Instructions
Your YTE PRO Cordless Vacuum Cleaner is designed for ease of use across various cleaning tasks. It features a powerful 180W brushless motor and two suction modes.
Powering On/Off and Suction Modes
To power on the vacuum, press the power button located on the main unit. The display will illuminate, showing the battery level. You can switch between the two suction modes (Standard and MAX) by pressing the mode selection button. The MAX mode provides a powerful 25KPA suction for stubborn dirt and debris.
Versatile Cleaning Configurations
The 6-in-1 design allows you to adapt the vacuum for different cleaning needs:
- Stick Vacuum: Use with the telescopic tube and floor brush for cleaning low-pile carpeting, hardwood floors, and tiles. The flexible floor brush head can rotate 180° and 90° for easy maneuverability around furniture.
- Handheld Vacuum: Detach the telescopic tube to use the main unit as a handheld vacuum for cleaning sofas, car interiors, stairs, and other elevated surfaces.
- With Crevice Tool: Attach the 2-in-1 long crevice tool brush head directly to the handheld unit or the telescopic tube for reaching tight corners, crevices, and delicate surfaces.
Figure 4: The YTE PRO Cordless Vacuum Cleaner adapts to various cleaning scenarios, from floors to ceilings and furniture.
LED Light Feature
The floor brush is equipped with a green LED light. This light illuminates the cleaning path, making hidden dust, crumbs, and pet hair visible on various surfaces, ensuring a thorough clean.
Figure 5: The flexible floor brush with its green LED light, designed to reveal hidden debris.
Battery Runtime
The vacuum is powered by a 6*2500mAh ultra-durable battery, providing up to 50 minutes of runtime in minimum suction mode. This allows for thorough cleaning of your entire home on a single charge.
Figure 6: The powerful battery provides up to 50 minutes of runtime.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your YTE PRO Cordless Vacuum Cleaner.
Dust Cup Emptying and Cleaning
The dust collection cup can be emptied with a single click, preventing direct contact with dirt. Both the dust cup and the HEPA filter are removable and washable. To clean, simply remove them from the main unit, wash with water, and ensure they are completely dry before reassembling.
Figure 7: Steps for one-click dust cup clearing and washable filter maintenance.
6-Layer High-Efficiency Filtration System
The vacuum is equipped with a 6-layer filtration system that captures 99.9% of tiny dust particles, releasing purified air and preventing secondary dust pollution. Regular cleaning of these filters is crucial for maintaining suction power and air quality.
- Post-motor Filter: Expels fresh air.
- HEPA Filter: Captures 0.1 micron dust.
- Debris Secondary Filter: Captures 0.3 micron dust.
- Cone Filter: Traps fine dust particles.
- Stainless Steel Filter: Separates debris and blocks hair.
- Dust Cup Filter: Removes the largest particles.

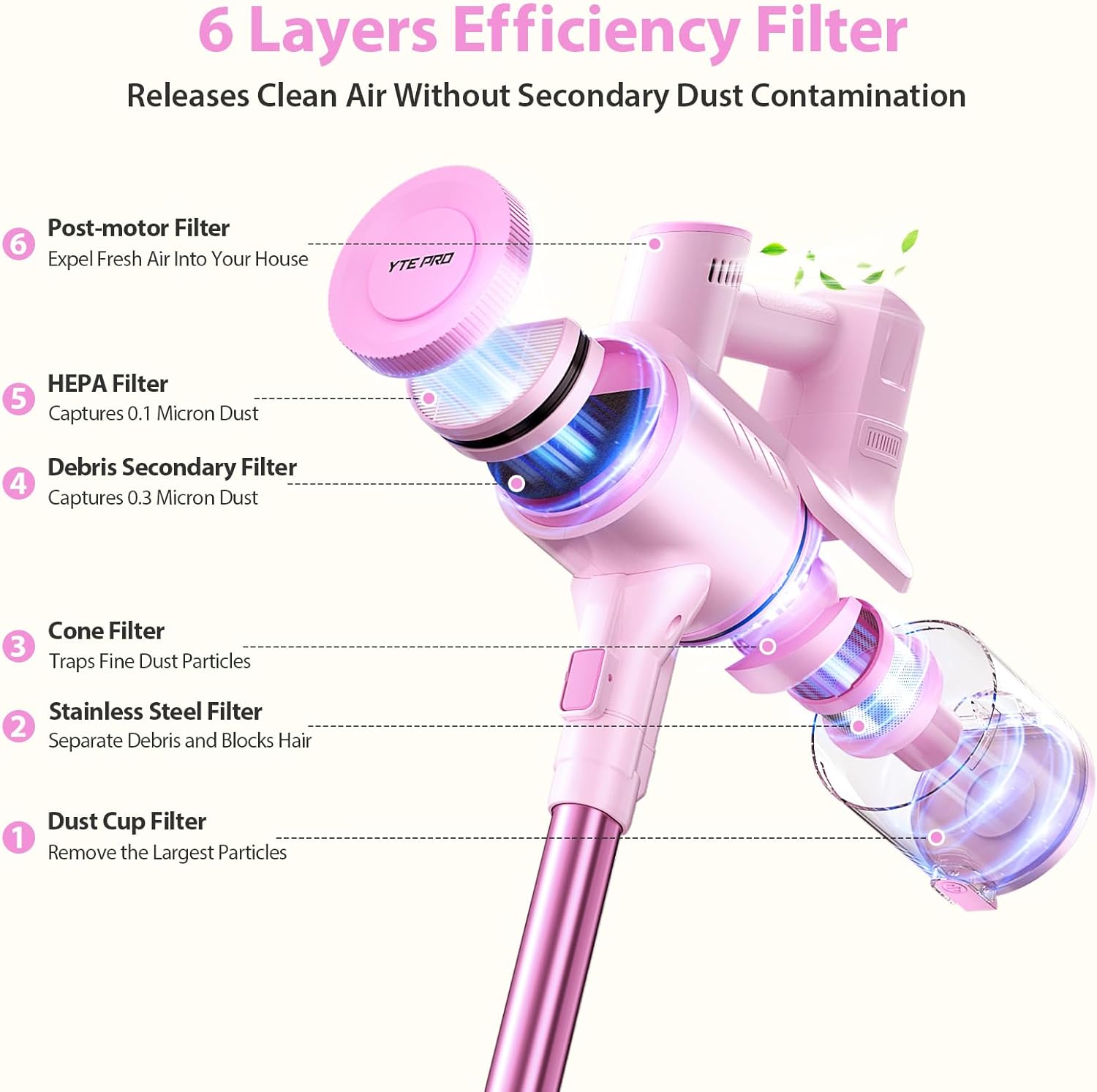

Figure 8: Detailed view of the 6-layer efficiency filter system.
Troubleshooting
If you encounter any issues with your YTE PRO Cordless Vacuum Cleaner, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on | Battery is depleted | Charge the battery fully. |
| Low suction power | Dust cup is full | Empty the dust cup. |
| Low suction power | Filters are clogged | Clean or replace the HEPA and other filters. Ensure they are completely dry before reinstallation. |
| Low suction power | Brush roll is tangled | Remove any hair or debris tangled around the brush roll. |
| Vacuum stops unexpectedly | Battery is low or overheated | Charge the battery. If overheated, turn off the vacuum and allow it to cool down for at least 30 minutes before resuming use. |
Specifications
- Brand: YTE PRO
- Model Name: WSD2401PNK
- Color: Pink
- Special Feature: Cordless
- Filter Type: HEPA Filter
- Included Components: Battery
- Capacity: 1 Kilograms (Dust Cup)
- Runtime: Up to 50 minutes (in minimum suction mode)
- Maximum Suction: 25KPa
- Motor Power: 180W
- Form Factor: Stick
- Product Dimensions: 17"L x 12"W x 6"H
- Portable: Yes
- Number of Power Levels: 2
- Indoor/Outdoor Usage: Indoor
- Item Weight: 6.82 pounds
- Batteries: 1 Lithium Ion battery required (included)
Warranty and Support
For warranty information or technical support, please contact the manufacturer or seller directly. Keep your purchase receipt as proof of purchase. You can visit the official YTE PRO store for more information and product details: YTE PRO Store.
