1. Introduction
Thank you for choosing the Bevivog 71"H-2 Door Metal Farmhouse Pantry Cabinet. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and efficient use of your new storage cabinet. Please read this manual thoroughly before assembly and retain it for future reference.
Image: The Bevivog 71"H-2 Door Metal Farmhouse Pantry Cabinet in a kitchen environment.
2. Safety Information
WARNING: Failure to follow these safety instructions could result in injury or property damage.
- Ensure the total weight stored in the cabinet does not exceed 300 lbs.
- Always follow the assembly instructions carefully to avoid injury.
- Use appropriate safety gear, such as gloves, when assembling the cabinet.
- It is recommended to have two people for assembly to prevent injury and ensure proper construction.
- Anchor the cabinet to the wall using the provided hardware to prevent tipping, especially in households with children or pets.
- Place the cabinet on a level, stable surface.
- Do not climb on or hang from the cabinet doors or shelves.
3. Package Contents
Before beginning assembly, verify that all parts are present and undamaged. Refer to the included parts list in your package for specific component identification. Typical components include:
- Cabinet panels (sides, top, bottom, back)
- Adjustable shelves (4 included)
- Barn-style doors (2 included)
- Gold-finished handles (2 included)
- Magnetic door latches
- Adjustable leveling feet
- Assembly hardware (screws, shelf pins, wall anchor kit)
- Screwdriver
- Assembly instructions manual
4. Assembly Instructions
Assembly typically requires two adults. Follow the step-by-step instructions provided in the included manual. A screwdriver is provided for convenience.
4.1. Assembly Overview Video
Video: Detailed assembly guide for the Bevivog Farmhouse Metal Storage Cabinet.
4.2. Step-by-Step Guide
- Prepare the Base: Lay the bottom panel (A*1) on a soft, clean surface to prevent scratches. Attach the side panels (B*1) to the bottom panel using the provided screws (L*3). Ensure the panels are aligned correctly.
- Attach the Back Panel: Secure the back panel (C*1) to the assembled sides and bottom using screws (N). Ensure all connections are tight for stability.
- Install the Top Panel: Carefully place the top panel (H*1) onto the cabinet frame, ensuring it aligns with the pre-drilled holes. Secure it with screws (R*8).
- Attach the Legs: Assemble the legs (G*4) by screwing in the adjustable leveling feet. Attach the assembled legs to the bottom of the cabinet using screws (N).
- Install Shelf Supports and Shelves: Insert the shelf pins (V*12) into the desired height holes on the side panels. Place the adjustable shelves (F*1, I*3) onto the pins.
- Attach Doors and Handles: Mount the barn-style doors (J*2) to the cabinet frame using the hinges. Install the magnetic door latches (Q*4) and then attach the gold-finished handles to the doors.
- Wall Anchoring: For safety, secure the cabinet to the wall using the anti-tip kit provided. This prevents accidental tipping.
Image: Attaching the side panels to the cabinet base.
Image: Securing the back panel to the cabinet frame.
Image: Installing the top panel of the cabinet.
Image: Attaching the cabinet legs with adjustable feet.
Image: Inserting shelf pins for adjustable shelves.
Image: Attaching the cabinet doors.
5. Product Features
- Multi-purpose Design: This 71-inch tall cabinet (15.74"D x 31.5"W x 71"H) offers substantial storage, suitable for kitchens, bathrooms, laundry rooms, home offices, and living rooms.
- High-Quality Metal Construction: Constructed from thickened cold-rolled steel with an electrostatic cermet powder coating, ensuring durability, water resistance, fire resistance, and easy cleaning. Each shelf supports up to 120 lbs.
- Adjustable Shelves: Features four adjustable shelves, allowing flexible storage configurations for items of various heights, such as small appliances, tableware, cleaning supplies, or books.
- Stylish Farmhouse Aesthetic: Two barn-style doors with a bright white finish and sleek gold handles blend seamlessly with various home decor styles. Includes removable decorative strips for customization.
- Magnetic Door Latches: Ensures secure closure of the cabinet doors, keeping contents safely stored.

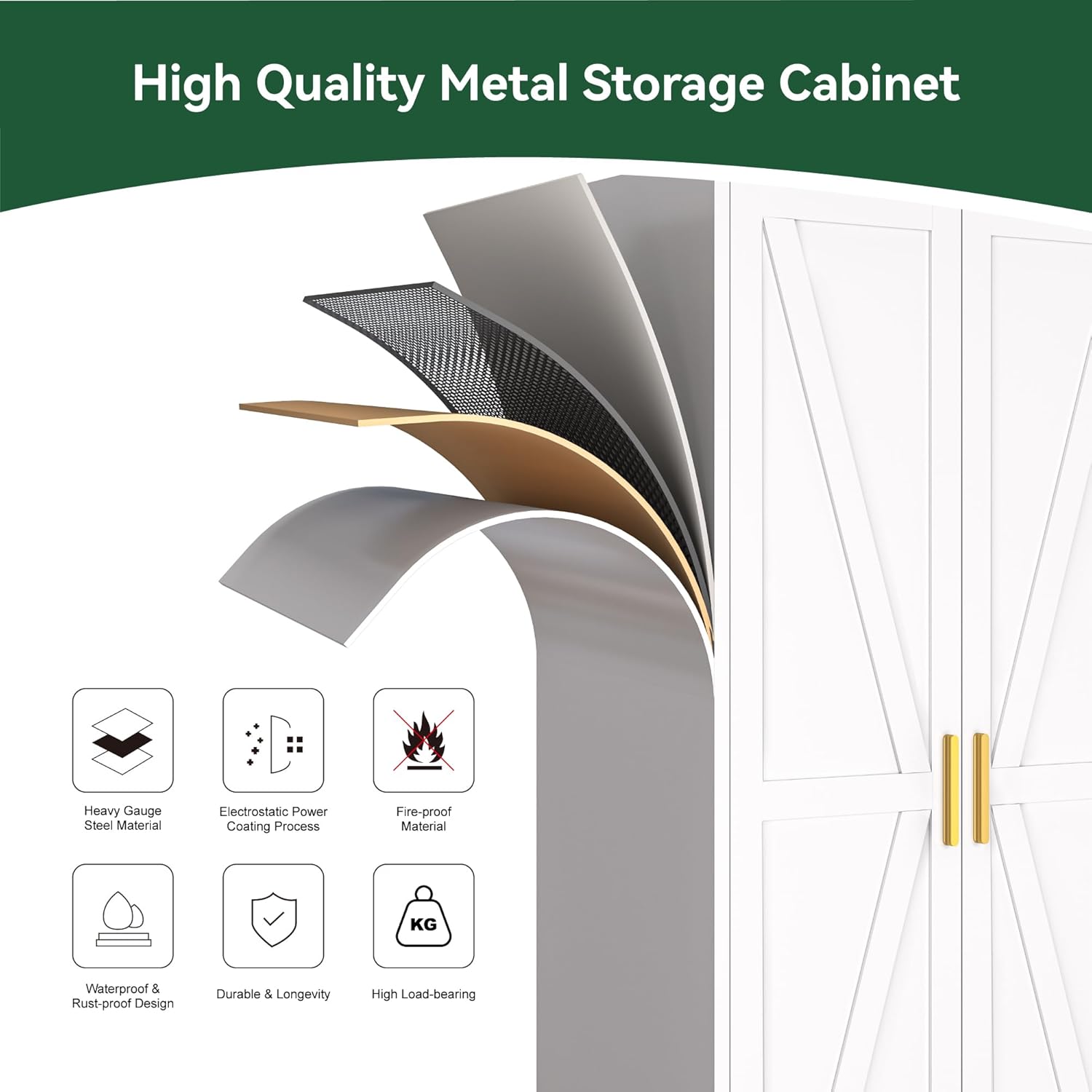

Image: High-Quality Metal Storage Cabinet construction details.

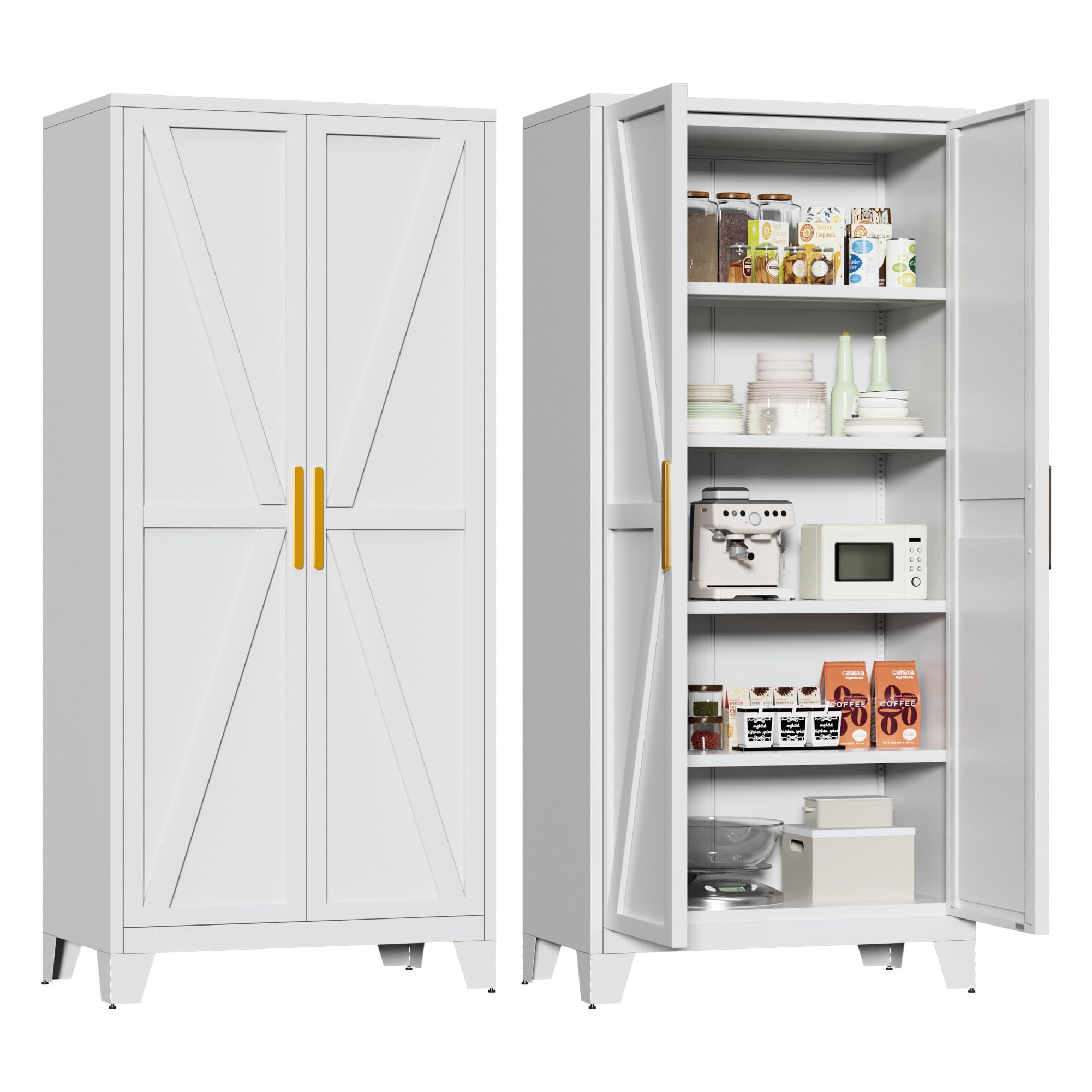

Image: Cabinet interior demonstrating large storage space and adjustable shelves.
Image: Detailed view of magnetic door latch, metal handles, and decorative strips.
6. Usage and Operation
This cabinet is designed for versatile storage in various rooms. Its adjustable shelves allow for customized organization.
6.1. Adjusting Shelves
To adjust the height of the shelves:
- Empty the shelf you wish to adjust.
- Remove the shelf pins from their current positions.
- Insert the shelf pins into the desired new height holes on the side panels. Ensure all four pins are at the same level.
- Carefully place the shelf onto the newly positioned pins.
6.2. Capacity and Weight Limits
Each adjustable shelf can hold up to 120 lbs. The total weight capacity for the entire cabinet is 300 lbs. Distribute weight evenly across shelves to maintain stability.
6.3. Usage Demonstration Video
Video: Demonstration of the cabinet's storage capacity and adjustable shelves.
7. Maintenance
To keep your Bevivog cabinet in optimal condition:
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
- Moisture: While the cabinet is water-resistant, avoid prolonged exposure to excessive moisture. Wipe up spills immediately.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cabinet is wobbly/unstable. | Uneven floor; loose connections. | Adjust the leveling feet at the bottom of the cabinet. Ensure all screws are tightened securely. |
| Doors do not close properly or are misaligned. | Loose hinge screws; improper door installation. | Check and tighten all hinge screws. Re-align doors if necessary by adjusting hinges. Ensure magnetic latches are correctly installed. |
| Shelf is not level. | Shelf pins not inserted correctly or unevenly. | Remove the shelf and re-insert all four shelf pins into corresponding holes at the same height. |
9. Specifications
- Brand: Bevivog
- Model: 71H-2 Door
- Color: White
- Product Dimensions: 15.7"D x 31.5"W x 71"H
- Material: Alloy Steel (Metal)
- Finish Type: Powder Coated
- Number of Shelves: 4 (adjustable)
- Weight Limit per Shelf: 120 lbs
- Total Weight Limit: 300 lbs
- Mounting Type: Freestanding (wall anchor kit included)
- Door Style: Barn Doors
- Hardware Color: Gold
- Assembly Required: Yes
- Item Weight: 74 pounds
Image: Product dimensions and key attributes.
10. Warranty and Customer Support
For any questions regarding your Bevivog 71"H-2 Door Metal Farmhouse Pantry Cabinet, its assembly, or operation procedures, please contact Bevivog customer support. Refer to your purchase documentation for specific warranty details and contact information.
