SQUADO 48V Electric Pruning Shears User Manual

Introduction

Thank you for choosing the SQUADO 48V Electric Pruning Shears. This professional-grade tool is designed for efficient and precise pruning in gardening, orchards, and green spaces. Featuring a powerful 48V Li-ion battery system and an ergonomic design, it allows for comfortable and extended use. Please read this manual thoroughly before operation to ensure safe and optimal performance of your new pruning shears.

Safety Instructions

WARNING: Failure to follow these safety instructions may result in electric shock, fire, and/or serious injury.

• Always wear appropriate personal protective equipment, including safety glasses and heavy-duty gloves, when operating the pruning shears.
• Keep hands and body parts away from the blades during operation. The blades are sharp and move rapidly.
• Ensure the work area is clear of bystanders, children, and pets.
• Do not operate the shears in wet conditions or expose them to rain.
• Use only the specified SQUADO 48V Li-ion batteries and charger provided with the tool.
• Disconnect the battery from the shears before performing any maintenance, cleaning, or when storing the tool.
• Store the tool and batteries in a dry, secure place, out of reach of children.
• Inspect the blades for damage before each use. Do not use if blades are bent or cracked.

Package Contents

Your SQUADO 48V Electric Pruning Shears package includes the following items:

• 1 x Electric Pruning Shears
• 2 x 48V Li-ion Batteries
• 1 x Battery Charger
• 1 x Wrench/Tool Set
• 1 x Sharpening Stone
• 1 x Lubricant Bottle
• 1 x Storage Case

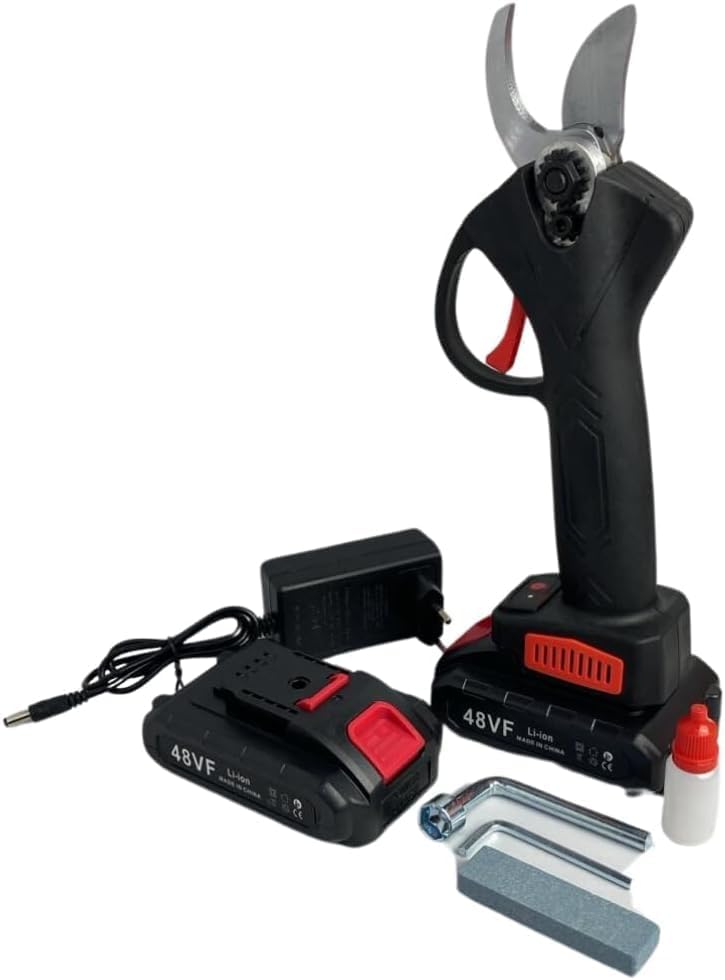

Image: The complete SQUADO Electric Pruning Shears kit, including the shears, two 48V Li-ion batteries, a battery charger, a set of tools, a sharpening stone, and a lubricant bottle.

Image: The SQUADO Electric Pruning Shears and all its accessories, including batteries and charger, securely stored within its durable black carrying case.

Setup

1. Charge Batteries: Before first use, fully charge both 48V Li-ion batteries. Connect the charger to a power outlet and then connect the battery to the charger. The indicator light on the charger will show the charging status. Ensure batteries are fully charged for optimal performance and battery life.
2. Install Battery: Once a battery is charged, slide it firmly into the battery slot at the base of the pruning shears handle until it clicks into place. Ensure it is securely seated.


   Image: The SQUADO Electric Pruning Shears with a 48V Li-ion battery securely attached to its base, ready for operation.

3. Initial Check: After installing the battery, perform a quick visual inspection. Ensure the blades are clean and free from obstructions. Do not activate the trigger until you are ready to prune.

Operating Instructions

1. Power On: Press and hold the power button (if present, or activate the trigger safety) to turn on the shears. The blades will typically open to their maximum position.
2. Test Cut: Before pruning live plants, make a few test cuts on scrap material to familiarize yourself with the tool's operation and power.
3. Pruning Technique: Position the open blades around the branch you wish to cut. Ensure the branch fits within the maximum cutting capacity of 28mm. Press the trigger to close the blades and make the cut. Avoid twisting the shears during a cut.


   Image: A close-up view of the SQUADO Electric Pruning Shears in action, cleanly cutting through a tree branch. Blue arrows indicate the cutting motion.

4. Ergonomic Grip: The shears feature an ergonomic handle designed for comfort and reduced fatigue during prolonged use. Maintain a firm, balanced grip.
5. Avoid Overloading: Do not attempt to cut branches exceeding the maximum diameter of 28mm. Forcing the shears can damage the blades or motor.
6. Power Off: After completing your pruning tasks, release the trigger, engage any safety lock, and remove the battery from the shears. This prevents accidental activation.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your SQUADO Electric Pruning Shears.

• Blade Cleaning: After each use, clean the blades thoroughly to remove sap, debris, and plant residue. Use a damp cloth and, if necessary, a mild cleaning solution. Ensure blades are dry before storage.
• Blade Lubrication: Apply a few drops of the provided lubricant (or a suitable machine oil) to the pivot point and along the cutting edges of the blades after cleaning. This reduces friction and prevents rust.
• Blade Sharpening: If cutting performance decreases, sharpen the blades using the provided sharpening stone. Follow the original blade angle. Always disconnect the battery before sharpening.
• Battery Care: Store batteries in a cool, dry place. Avoid storing fully discharged or fully charged for extended periods. Recharge batteries before long-term storage and every few months if not in use.
• General Storage: Store the pruning shears and all accessories in the provided storage case in a dry, secure location, away from direct sunlight and extreme temperatures.

Troubleshooting

Specifications

• Manufacturer: SQUADO
• Model: 1
• Power: 48V (Li-ion Battery System)
• Max Cutting Diameter: 28 mm
• Product Dimensions (L x W x H): 30 x 15 x 0.1 cm
• Item Weight: 1.2 Kilograms
• Blade Material: Alloy Steel
• Handle Material: Plastic
• Style: Cordless
• Color: Black

Warranty and Support

SQUADO provides a 2-year availability for spare parts for this product, ensuring long-term usability and maintenance. For any questions, technical assistance, or warranty claims, please contact your retailer or the SQUADO customer support team. Please have your product model number (Model 1) and purchase information ready when contacting support.
