Mobiclinic® Garden Greenhouse Instruction Manual

Introduction

Thank you for choosing the Mobiclinic® Garden Greenhouse. This manual provides essential information for the safe assembly, operation, and maintenance of your new greenhouse. Designed to offer an efficient and protected environment for your plants, this greenhouse features a compact design with 4 integrated shelves, a rolling door for ventilation, and a durable PVC cover. Please read this manual thoroughly before assembly and retain it for future reference.

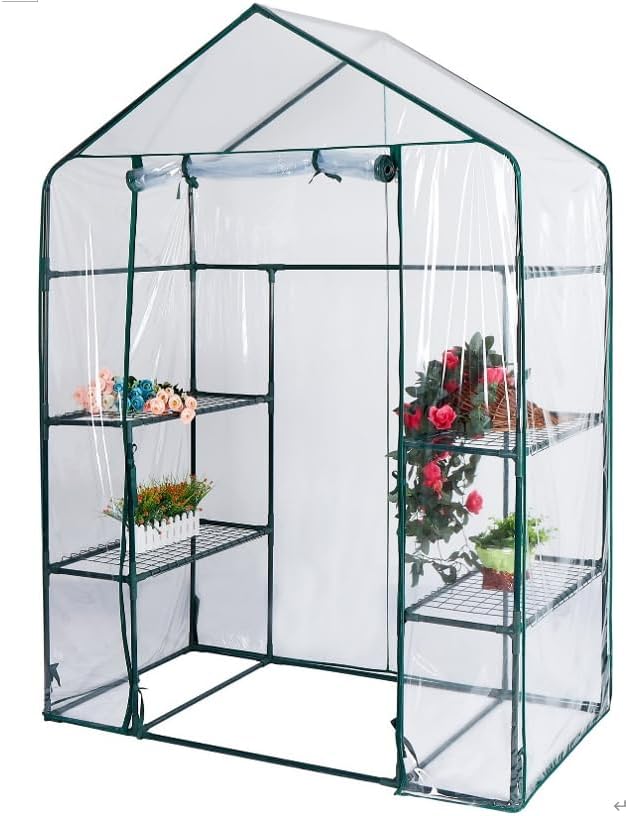

Image: The Mobiclinic Garden Greenhouse, fully assembled, showcasing its transparent PVC cover, sturdy frame, and four internal shelves filled with various potted plants and flowers. The front rolling door is partially open.

Safety Information

Always observe the following safety precautions to prevent injury or damage to the product:

• Ensure all components are securely fastened during assembly.
• Do not assemble in strong winds or adverse weather conditions.
• Anchor the greenhouse securely to the ground using the provided ropes and nails, especially in windy areas. The 10 cm extended edge can be buried or weighted down for additional stability.
• Keep children and pets away from the assembly area.
• Do not hang heavy objects from the frame or shelves.
• Regularly inspect the PVC cover and frame for any damage or wear.

Parts List

Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, contact Mobiclinic customer support.

Setup and Assembly

Assembly typically takes 15-20 minutes with two people. No special tools are required.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Identify each part using the Parts List.
2. Assemble Base Frame: Connect the shortest frame poles using the appropriate connectors to form the rectangular base of the greenhouse. Ensure all connections are snug.
3. Build Vertical Supports: Attach the vertical poles to the base frame using connectors. Follow the diagram in your printed manual (if applicable) to ensure correct orientation for shelf placement.
4. Install Shelves: Slide the four wire grid shelves onto the designated support bars. Ensure they are level and stable.
5. Construct Roof Frame: Assemble the angled roof poles and connect them to the top of the vertical supports, forming the peaked roof structure.
6. Drape PVC Cover: Carefully drape the transparent PVC cover over the assembled frame. Ensure the rolling door is positioned at the front. Align the cover so that the extended 10 cm edge is at the bottom, ready for securing.
7. Secure Cover: Fasten the PVC cover to the frame using the integrated ties or straps. Ensure the zipper for the rolling door functions smoothly.
8. Anchor Greenhouse: Position the greenhouse in your desired location. Use the provided fastening ropes and mounting nails (ground stakes) to secure the greenhouse to the ground. For added stability, bury the 10 cm extended edge of the PVC cover or place heavy objects on it.

Operating Instructions

The Mobiclinic Garden Greenhouse is designed for optimal plant growth and protection.

• Plant Placement: Utilize the four shelves to organize your plants efficiently. Place taller plants on lower shelves or directly on the ground inside the greenhouse.
• Ventilation: The rolling door with a zipper allows for easy access and temperature regulation. Open the door partially or fully to improve air circulation and prevent excessive moisture buildup, especially on warm days. Close the door during colder periods or adverse weather to retain heat and protect plants.
• Light Transmission: The transparent PVC cover allows ample sunlight to reach your plants, promoting healthy growth.
• Watering: Water plants as needed. Be mindful of humidity levels inside the greenhouse, as they may be higher than outdoors.

Maintenance

Regular maintenance will extend the lifespan of your greenhouse.

• Cleaning: Periodically clean the PVC cover with a soft cloth and mild soapy water to remove dirt and maintain light transmission. Avoid abrasive cleaners.
• Frame Inspection: Regularly check all frame connections and joints to ensure they remain secure. Tighten any loose connections.
• Cover Inspection: Inspect the PVC cover for any tears, punctures, or signs of wear. Small tears can often be repaired with clear repair tape designed for plastics.
• Anchoring: Re-check the ground anchors and ropes periodically, especially after strong winds or heavy rain, to ensure the greenhouse remains securely fastened.
• Winter Care: While designed to be hardy, in areas with heavy snowfall, it is advisable to gently brush off accumulated snow from the roof to prevent structural stress.

Troubleshooting

Specifications

• Model: QM-00232/02-A
• Dimensions (L x W x H): 143 x 73 x 195 cm (56.3 x 28.74 x 76.77 inches)
• Weight: Approximately 6 kg (13.2 pounds)
• Cover Material: Transparent PVC
• Frame Material: Durable metal tubing
• Shelves: 4 integrated wire shelves
• Features: Rolling door with zipper, fastening ropes, mounting nails, 10 cm extended edge for stability.

Warranty and Support

Mobiclinic S.L. has been offering quality and reliability since 1985. For warranty information, missing parts, or technical support, please refer to the contact details provided with your purchase documentation or visit the official Mobiclinic website. Please have your model number (QM-00232/02-A) and purchase date available when contacting support.
