1. Introduction
Thank you for choosing the Killerbody CH-ICB006 Self-Cleaning Automatic Cat Litter Box. This device is designed to provide a hygienic and convenient solution for cat waste management, featuring automated cleaning, odor control, and smart app connectivity. Please read this manual thoroughly before use to ensure proper operation and maintenance.
2. Safety Information
Your safety and the safety of your pet are paramount. This litter box incorporates multiple safety features:
- Infrared Pyroelectric Sensing: Stops operation when pets approach.
- Weighing Sensor Module: Stops operation when a cat enters the unit.
- Motor Overcurrent Protection: Automatically stops the motor if abnormal current is detected.
- PTC Anti-Pinch Protection: The rotary drum performs physical melting and self-reversal to prevent pinching.
- Infrared Sensor Pair Module: Provides an additional layer of operational protection.
- Top Cover Protection: Opening the top cover will automatically stop the machine.
- Waste Compartment Protection: Operation stops automatically when the waste compartment is opened.
Always ensure the litter box is placed on a stable, level surface. Do not allow children to play with or operate the device without adult supervision. Keep the power adapter away from water.
3. Package Contents
Please check the package for the following items:
- Self-Cleaning Litter Box Unit
- Power Adapter
- Deodorization Device (x1)
- Trash Bag (x1)
- User Manual
4. Product Overview
The Killerbody CH-ICB006 is an advanced self-cleaning litter box designed for convenience and hygiene. It features a spacious interior suitable for cats weighing between 2.2 lbs and 24.2 lbs, an 80L roller capacity, and a 15L waste bin that can hold waste for up to 15 days.
- Hands-Free Self-Cleaning: Automatically separates and discards waste after each use.
- Effective Odor Control: Features an odor-proof structure and scented box compatibility to maintain a fresh environment.
- Intelligent App Control: Connects via 2.4G Wi-Fi for remote monitoring and control of cleaning cycles, and tracking of cat's health data.
- UV Disinfection: Integrated ultraviolet light for enhanced hygiene.
- Wide Litter Compatibility: Works with various types of cat litter including plant-based, bentonite, mineral, and mixed litters.
5. Setup
- Placement: Place the litter box on a firm, level surface in a dry area, away from direct sunlight and heat sources. Ensure there is enough space around the unit for proper ventilation and access.
- Power Connection: Connect the power adapter to the litter box and then plug it into a standard electrical outlet.
- Fill with Litter: Open the top lid and pour suitable cat litter into the drum. Ensure the litter level is between the MIN and MAX indicators inside the drum. The unit is compatible with plant-based, bentonite, mineral, and mixed litters.
- Install Deodorization Device: Insert the deodorization device into its designated slot, typically located near the waste bin or within the main unit.
- Install Trash Bag: Line the waste bin with the provided trash bag. Ensure it is securely fitted to prevent leakage.
- Initial Calibration: After powering on, the unit may perform an initial calibration cycle. Allow it to complete before your cat uses it.
6. Operating Instructions
6.1 Automatic Cleaning
The litter box is designed to automatically detect when your cat has used it and exited. After a preset delay (typically a few minutes to allow the litter to clump), the self-cleaning cycle will begin. The internal drum will rotate, sifting clean litter and depositing waste into the sealed waste bin below.
6.2 Manual Cleaning
You can initiate a cleaning cycle manually via the control panel on the unit or through the mobile application. Refer to the app section for detailed instructions.

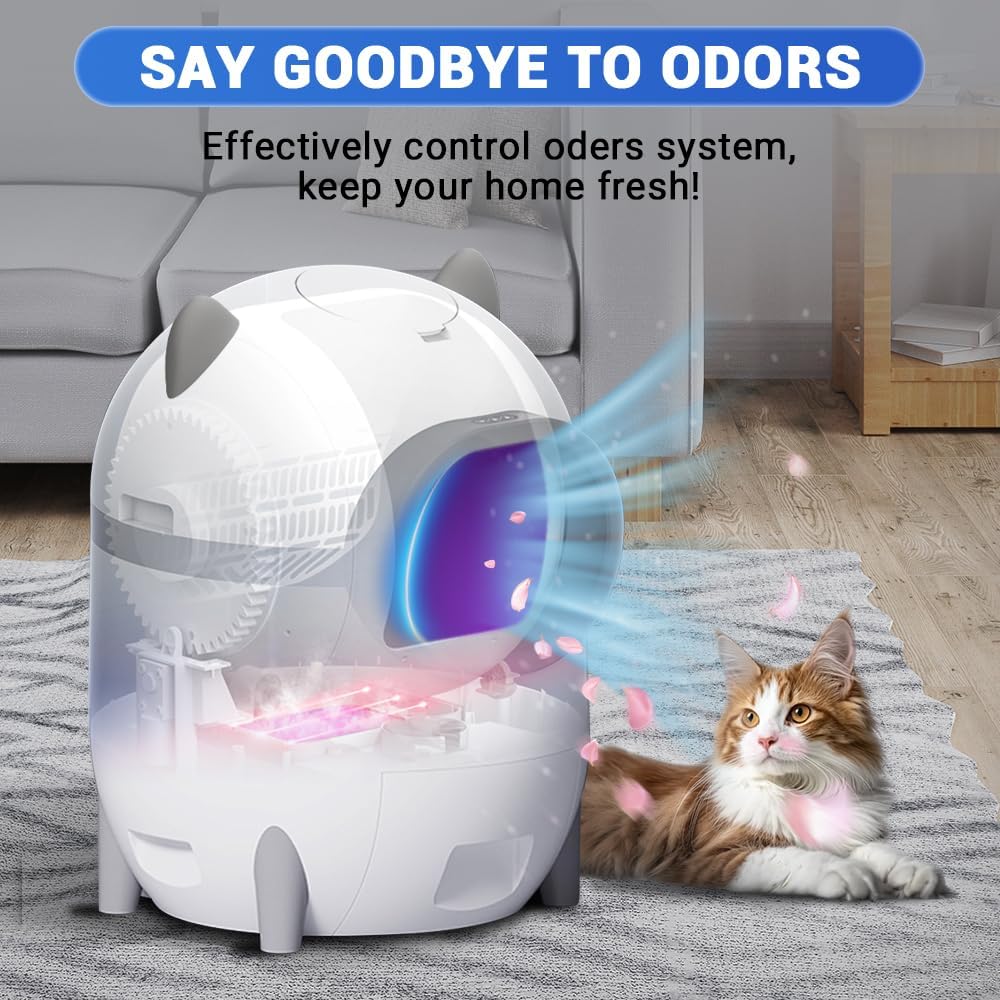

6.3 Odor Control
The integrated odor-proof structure and optional deodorization device work together to minimize unpleasant smells. Ensure the waste bin is emptied regularly for optimal odor control.
7. App Connectivity & Features
The Killerbody CH-ICB006 can be connected to your smartphone via a 2.4G Wi-Fi network, providing enhanced control and monitoring capabilities.
7.1 App Installation
- Download the companion app from your device's app store (iOS or Android).
- Create an account and log in.
7.2 Device Pairing
- Ensure your smartphone is connected to a 2.4G Wi-Fi network.
- Follow the in-app instructions to add a new device. This typically involves pressing a pairing button on the litter box and confirming connection in the app.
7.3 App Functions
- Remote Cleaning: Initiate a cleaning cycle from anywhere.
- Health Monitoring: Track your cat's bathroom habits, including visit frequency, timing, and weight changes. The app provides real-time data and activity reports.
- Notifications: Receive alerts for waste bin full, cleaning cycle completion, or any detected issues.
- Settings: Adjust cleaning schedules, delay times, and other preferences.
8. Maintenance & Cleaning
Regular maintenance ensures optimal performance and hygiene.
8.1 Emptying the Waste Bin
The 15L waste bin can hold waste for up to 15 days for a single cat. When the app or indicator light signals that the bin is full, carefully remove the waste compartment, seal the trash bag, and dispose of it. Replace with a new trash bag.
8.2 Deep Cleaning the Drum
For thorough cleaning, the inner drum can be easily removed. Disconnect power before attempting to remove the drum. Wash the drum with mild soap and water, rinse thoroughly, and ensure it is completely dry before reassembling. Do not immerse the main unit in water.
8.3 Cleaning Sensors
Periodically wipe down the infrared and weighing sensors with a soft, dry cloth to ensure they remain free of dust and debris, which could affect their accuracy.
9. Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit not cleaning automatically. | Cat still inside or near the unit; sensors obstructed; litter level incorrect. | Ensure cat has exited; clean sensors; adjust litter level. |
| Odor persists. | Waste bin full; deodorization device needs replacement; poor ventilation. | Empty waste bin; replace deodorization device; ensure proper room ventilation. |
| App not connecting. | Incorrect Wi-Fi network (not 2.4G); poor Wi-Fi signal; pairing mode not activated. | Verify 2.4G Wi-Fi connection; move unit closer to router; re-enter pairing mode. |
| Drum not rotating. | Obstruction; motor overcurrent protection activated; top cover or waste bin open. | Check for obstructions; ensure all covers/bins are securely closed; power cycle the unit. |
10. Specifications
- Model Name: CH-ICB006
- Brand: Killerbody
- Product Dimensions: 20.52"L x 20.9"W x 27.2"H (52.12 cm L x 53.09 cm W x 69.09 cm H)
- Material: Plastic
- Color: Grey
- Litter Box Type: Automated Self-Cleaning Litter Box
- Roller Capacity: 80L
- Waste Bin Capacity: 15L
- Suitable Cat Weight: 2.2 lbs to 24.2 lbs
- Connectivity: 2.4G Wi-Fi
- Specific Uses for Product: Indoor
11. Warranty & Support
Warranty: This product comes with a 1-year warranty from the date of purchase, covering manufacturing defects.
Customer Support: We offer lifetime support for our products. Should you experience any issues or have questions, please contact our professional customer service team. Your satisfaction is our priority, and we are ready to provide quick and effective solutions.
For support, please refer to the contact information provided on the product packaging or our official website.
