AIRTHRYL Model 205 Windowless Portable Evaporative Air Cooler User Manual

Introduction

This manual provides detailed instructions for the safe and efficient operation of your AIRTHRYL Model 205 Windowless Portable Evaporative Air Cooler. Please read this manual thoroughly before use and retain it for future reference.

Product Components

The AIRTHRYL Model 205 Evaporative Air Cooler package includes the following items:

Portable Evaporative Air Cooler (1 unit)
High-Quality Ice Packs (3 units)
Swivel Wheels (4 units)
Remote Control (1 unit)
User Manual (1 unit)

AIRTHRYL Model 205 Evaporative Air Cooler with remote and ice packs — Image of the AIRTHRYL Model 205 Evaporative Air Cooler, showing its compact tower design, front grille, water level indicator, and swivel wheels. The remote control and three ice packs are also visible alongside the unit.

Safety Information

General Safety Precautions

Always unplug the unit before cleaning, maintenance, or when not in use.
Do not operate the unit with a damaged cord or plug.
Keep the unit away from heat sources, open flames, and direct sunlight.
Do not block air inlets or outlets.
Ensure the unit is placed on a stable, level surface to prevent tipping.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Bladeless Design and Child Safety

The AIRTHRYL Model 205 features a bladeless design and child-safe grille, enhancing safety for households with children and pets.

AIRTHRYL Model 205 Evaporative Air Cooler with safety features — Image highlighting the safety features of the AIRTHRYL Model 205 Evaporative Air Cooler, including its bladeless design, ETL listing, safety grid, and safety plugs. A baby is shown crawling near the unit, emphasizing its child-friendly attributes.

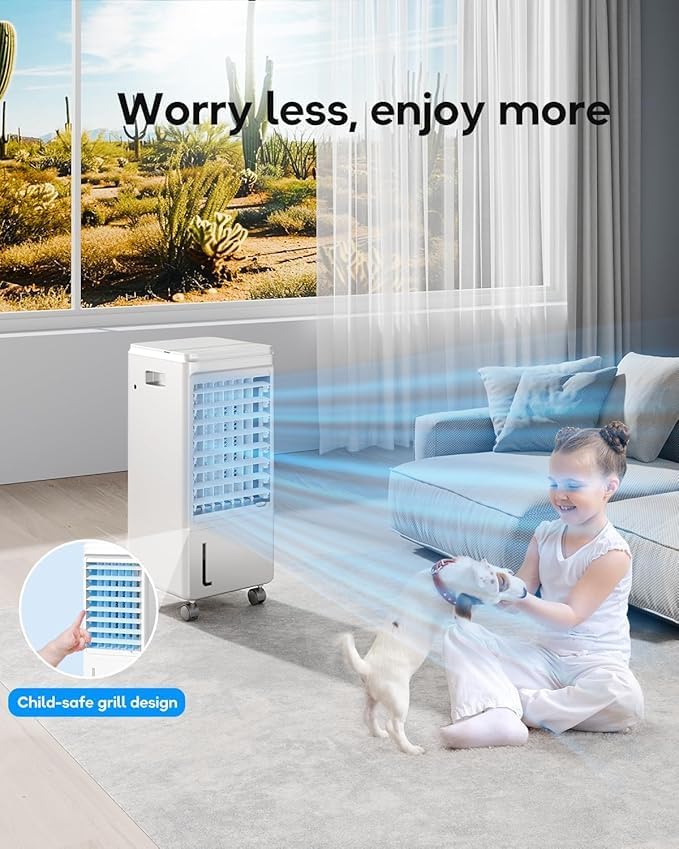

Child-safe grill design on AIRTHRYL Model 205 — Image showing a child interacting safely near the AIRTHRYL Model 205 Evaporative Air Cooler, with a close-up inset of the child-safe grill design, reinforcing the unit's safety features.

Setup and Installation

Unpacking

Remove all packaging materials and ensure all components listed in the "Product Components" section are present and undamaged. Place the unit on a flat, stable surface.

Attaching Swivel Wheels

The four swivel wheels are included for easy mobility. Insert each wheel into the designated slots at the bottom of the unit until securely fastened. No tools are required for this step.

AIRTHRYL Model 205 Evaporative Air Cooler portability — Image showing a person easily moving the AIRTHRYL Model 205 Evaporative Air Cooler, highlighting its portability and the tool-free assembly of its swivel wheels.

Filling the Water Tank

The unit features a 2-gallon dual water tank for extended operation.

Open the top cover of the unit.
Carefully pour clean water into the water tank. Do not exceed the maximum fill line indicated on the unit.
For enhanced cooling, place the included ice packs (after freezing them) into the water tank.
Close the top cover securely.

Filling the 2-gallon dual water tank of AIRTHRYL Model 205 — Image illustrating the top-fill mechanism of the AIRTHRYL Model 205 Evaporative Air Cooler's 2-gallon dual water tank. A hand is shown pouring water into the open top, with ice cubes visible in the lower tank section, emphasizing its large capacity and cooling potential.

Cooling mechanism of AIRTHRYL Model 205 — Diagram illustrating the cooling process of the AIRTHRYL Model 205 Evaporative Air Cooler. Warm air enters the back, passes through a cooling pad and water vapor, and is expelled as cool air from the front. Three ice packs are shown as part of the cooling mechanism.

Power Connection

Plug the power cord into a standard 120V electrical outlet.

Operating Instructions

The AIRTHRYL Model 205 can be controlled via the top touch panel or the included remote control.

Control panel and features of AIRTHRYL Model 205 — Image displaying the control options for the AIRTHRYL Model 205 Evaporative Air Cooler. The unit's top panel shows touch controls, while an overlay lists features like top water filling, Normal, Nature, Sleep, Cooling modes, 7-hour timer, 3 speed levels, and remote control functionality.

Power On/Off

Press the Power button on the control panel or remote to turn the unit on or off.

Mode Selection

Press the Mode button to cycle through the available operating modes:

Cooler Mode: Provides the strongest cooling effect by utilizing water and ice packs. Ideal for rapid cooling.
Sleep Mode: Features soft, varying airflow with intermittent stops for quiet operation and optimal comfort during rest.
Normal Mode: Delivers a steady airflow at your selected speed.
Nature Mode: Simulates a natural breeze with alternating speeds and occasional pauses.

Speed Adjustment

Press the Speed button to select from three dynamic fan speeds:

Low Speed (Gentle Breeze Mode): Approximately 15 ft/s airflow, operating quietly at less than 35dB. Suitable for sleeping or quiet environments.
Medium Speed: Approximately 18 ft/s airflow, providing balanced air circulation for work or reading.
High Speed (Cooling Storm Mode): Approximately 22 ft/s airflow, designed for rapid cooling in about 5 minutes.

Oscillation Function

Activate the oscillation function by pressing the Oscillation button. The unit will swing 80° horizontally to distribute cool air across a wider area (up to 500 sq.ft). The vertical angle can be manually adjusted up to 120°.

80-degree oscillation and 120-degree manual vertical tilt of AIRTHRYL Model 205 — Image demonstrating the wide air distribution of the AIRTHRYL Model 205 Evaporative Air Cooler. The unit is shown in a living room, with arrows indicating an 80° oscillation range and a note about 120° manual vertical tilt, ensuring comprehensive room coverage.

Timer Setting

Use the Timer button to set an automatic shut-off time for up to 7 hours. This feature helps conserve energy, especially during sleep.

Low noise level of AIRTHRYL Model 205 for quiet operation — Image illustrating the low noise level of the AIRTHRYL Model 205 Evaporative Air Cooler in a bedroom setting. A graph shows its noise output at 36.9dB, significantly quieter than typical library noise levels, emphasizing its suitability for undisturbed sleep.

Remote Control

The remote control allows you to adjust all settings from a distance of up to 20 feet. Ensure the remote is pointed towards the unit's receiver.

Maintenance

Regular maintenance ensures optimal performance and longevity of your evaporative air cooler.

Cleaning the Water Tank

It is recommended to clean the water tank weekly to prevent mold and mildew growth.

Unplug the unit from the power outlet.
Remove the water tank (if detachable) or access the tank from the top opening.
Drain any remaining water.
Clean the tank with a soft cloth and mild detergent. Rinse thoroughly with clean water.
Ensure the tank is completely dry before refilling and reassembling.

Cleaning the Cooling Pad

The cooling pad should be cleaned periodically, or when you notice reduced airflow or cooling efficiency.

Unplug the unit.
Refer to the unit's design for accessing the cooling pad (often located behind the rear grille).
Gently remove the cooling pad.
Rinse the cooling pad under running water to remove dust and mineral deposits. Do not use harsh chemicals.
Allow the cooling pad to air dry completely before reinstalling.

Exterior Cleaning

Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or allow water to enter the control panel.

Storage

If storing the unit for an extended period, ensure the water tank and cooling pad are clean and dry. Store the unit in a cool, dry place, away from direct sunlight.

Troubleshooting

Refer to the following table for common issues and their solutions.

Problem	Possible Cause	Solution
Unit does not power on.	No power supply.	Check if the power cord is securely plugged into a working outlet.
No cool air or insufficient cooling.	Low water level; Cooling pad is dirty; Ice packs not used or frozen.	Refill the water tank; Clean or replace the cooling pad; Ensure ice packs are frozen and placed in the tank.
Unusual noise during operation.	Unit not on a level surface; Obstruction in fan blades; Water pump issue.	Place the unit on a flat, stable surface; Unplug and check for obstructions; Contact customer support if noise persists.
Remote control not working.	Batteries are dead; Obstruction between remote and unit.	Replace remote control batteries; Ensure no objects block the signal path.

Specifications

The following are the technical specifications for the AIRTHRYL Model 205 Evaporative Air Cooler:

Feature	Detail
Brand	AIRTHRYL
Model Name	205
Mounting Type	Freestanding
Color	White
Controls Type	Remote, Touch Panel
Reservoir Capacity	2 Gallons
Floor Area Coverage	Up to 400 Square Feet
Product Dimensions (D x W x H)	10.24"D x 9.45"W x 22"H
Item Weight	10.33 pounds
Voltage	120 Volts
Noise Level	37 Decibels (typically below 36dB in Sleep Mode)
Power Source	Corded Electric
Special Features	2Gal Dual Water Tank, Remote Control, Touch Control, 80° Oscillation, 7-Hour Timer, 3-Speed Settings, Built-In Handle, Removable Cooling Pad, Detachable Water Tank, Visible Water Level Indicator

Warranty and Support

Warranty Information

This AIRTHRYL Model 205 Evaporative Air Cooler comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.

Customer Support

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact AIRTHRYL customer support. Contact information can typically be found on the product packaging or the official AIRTHRYL website.
