1. Introduction
The U UNNI UN03 Outdoor Sensor Protection Shield is designed to safeguard your outdoor weather station sensors from harsh environmental elements. This shield effectively reduces the impact of direct sunlight, rain, and other weather conditions, helping to ensure more accurate temperature and humidity readings while extending the lifespan of your sensor. It features a layered design for optimal airflow and can be wall-mounted or placed on a flat surface.
Figure 1: U UNNI UN03 Outdoor Sensor Protection Shield
2. Safety Information
- This product is not a toy. Keep out of reach of children.
- Do not attempt to disassemble or modify the shield.
- Ensure the shield is securely mounted to prevent falling and potential damage to the sensor or property.
- Avoid placing the shield near extreme heat sources or open flames.
3. Package Contents
Please check the package contents to ensure all items are present:
- 1 x UN03 Outdoor Sensor Protection Shield
- Mounting hardware (screws and anchors, if applicable)
4. Product Overview
The UN03 shield features a multi-layered, louvered design that allows air to circulate freely around the sensor while blocking direct sunlight and precipitation. The rotary locking base provides a secure fit for your sensor and facilitates easy installation.
Angled View

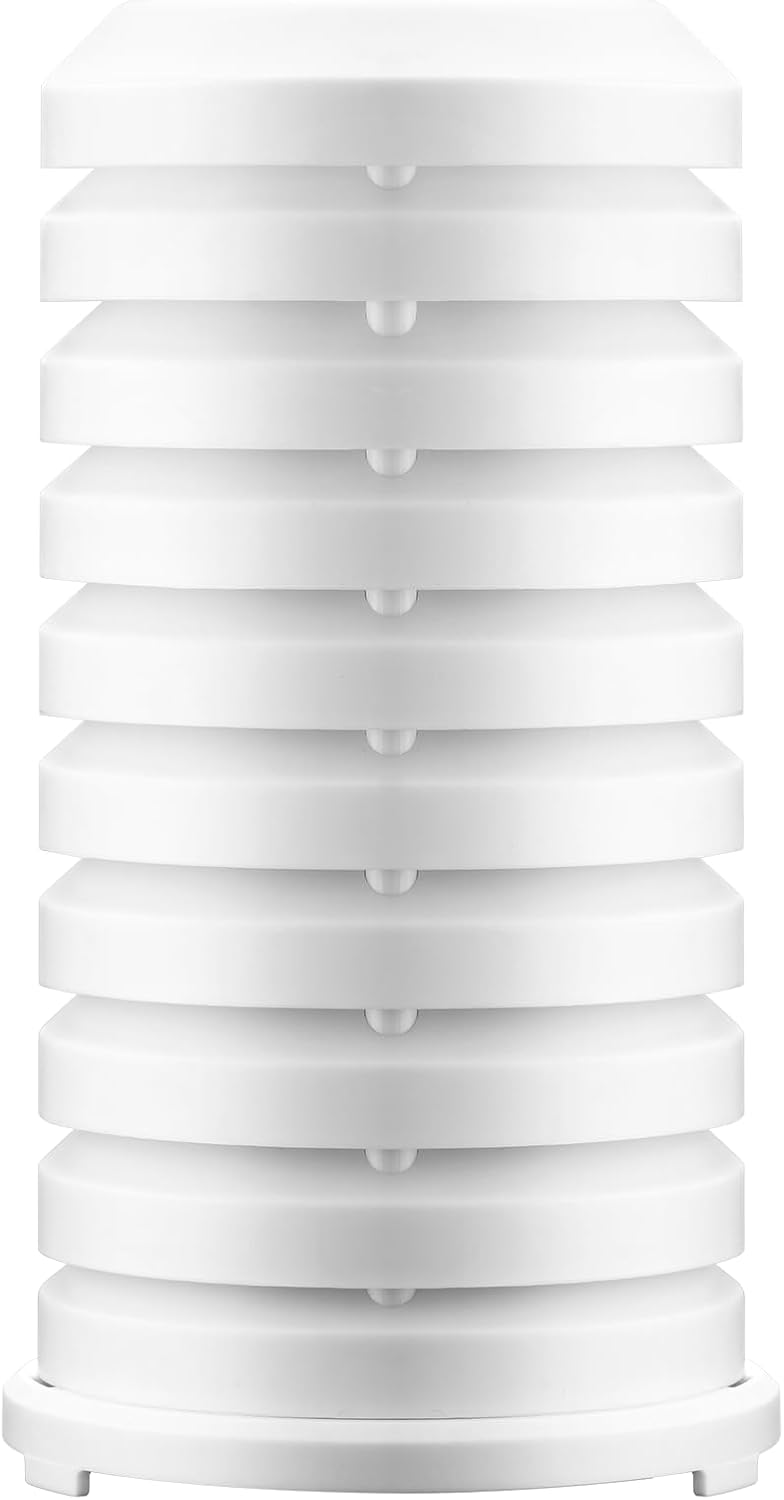

Front View
Bottom View with Ventilation
Rotary Locking Base
5. Setup and Installation
The UN03 shield is designed for easy installation, allowing for wall-mounting or placement on a flat surface. It is compatible with UNNI sensors (e.g., UN0581, UN0582, UN0585, UN0512) and suitable for most brands of sensors with external dimensions within 3.35*4.13*7.05 inches.
- Prepare Your Sensor: Ensure your outdoor weather station sensor is ready for placement within the shield. (Sensor not included).
- Open the Shield: Gently twist the top section of the shield counter-clockwise to unlock it from the base.
- Insert Sensor: Place your outdoor sensor securely inside the shield's main compartment.
- Close the Shield: Align the top section with the base and twist clockwise until it locks into place.
- Choose Mounting Location: Select a location that provides optimal exposure for your sensor while allowing the shield to protect it from direct elements. Consider areas that receive direct sunlight or heavy rain.
- Mounting (Wall-Mounted Option):
- Identify the mounting bracket on the back of the shield.
- Mark the desired screw hole location on your chosen surface.
- Drill a pilot hole if necessary and insert a wall anchor (if mounting into drywall or masonry).
- Secure the shield using an appropriate screw (not always included, may need to be purchased separately).
- Placement (Flat Surface Option): The shield's base allows it to stand upright on any flat, stable surface.
Figure 2: Rear view with mounting bracket

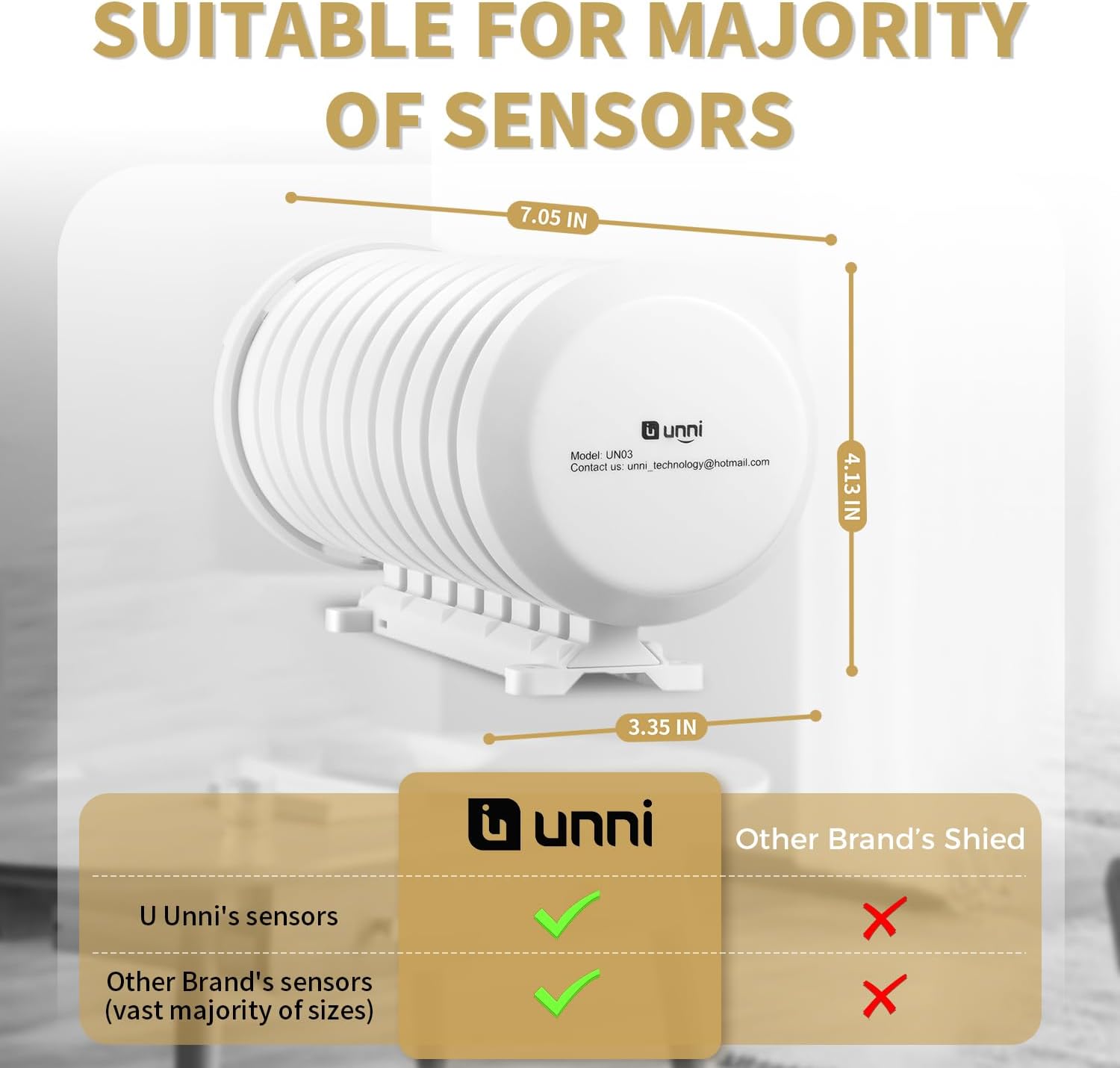

Figure 3: Dimensions and Sensor Compatibility
6. Operating Principles
The UN03 shield operates passively by creating a protective barrier around your weather sensor. Its layered design promotes natural convection, allowing air to flow through the shield and around the sensor. This airflow helps to dissipate heat generated by direct sunlight and prevents moisture accumulation from rain, ensuring that the sensor's readings remain as accurate as possible by minimizing external environmental interference.
7. Maintenance
- Cleaning: Periodically wipe the exterior of the shield with a soft, damp cloth to remove dust, dirt, or debris. Avoid using abrasive cleaners or solvents.
- Inspection: Regularly inspect the shield for any signs of damage, cracks, or loose components. Ensure the rotary locking base remains secure.
- Sensor Access: If you need to access or replace your sensor, simply twist the top section of the shield to unlock and remove it.
8. Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Sensor does not fit inside the shield. | Sensor dimensions exceed the shield's internal capacity. | Verify your sensor's dimensions against the shield's specifications (3.35*4.13*7.05 inches). This shield is designed for smaller, common weather station sensors. |
| Shield appears to not be protecting the sensor effectively. | Improper placement or extreme environmental conditions. | Ensure the shield is positioned to fully block direct sunlight and rain. While designed for protection, extreme conditions may still affect readings. |
| Shield feels loose after assembly. | Rotary locking base not fully engaged. | Twist the top section firmly clockwise until it clicks and feels secure. |
9. Specifications
- Model: UN03
- Material: Plastic
- Color: White-Shield
- External Dimensions: Approximately 3.35 x 4.13 x 7.05 inches (Width x Depth x Height)
- Compatibility: Suitable for UNNI sensors (e.g., UN0581, UN0582, UN0585, UN0512) and most other brands of weather station sensors within specified dimensions.
- Power Source: No Power Source (passive device)
10. Warranty and Support
For any questions, concerns, or support regarding your U UNNI UN03 Outdoor Sensor Protection Shield, please contact U UNNI customer service. We are committed to your satisfaction.
Email: unni_technology@hotmail.com
