Hand-Push Precision and Fertilizer Applicator

Introduction

The Parliky Hand-Push Precision and Fertilizer Applicator is a multi-functional tool designed to streamline planting and fertilizing tasks for gardeners and farmers. This innovative device combines sowing and fertilizing capabilities, reducing physical strain and improving efficiency in agricultural activities. Its precise quantitative roller technology ensures accurate seed and fertilizer distribution, promoting optimal crop growth.

Image: The Parliky Hand-Push Precision and Fertilizer Applicator, showcasing its main components including the clear seed/fertilizer compartment, handles, and roller mechanism.

Safety Information

• Always read the entire manual before operation.
• Wear appropriate personal protective equipment (PPE) such as gloves and eye protection when handling seeds or fertilizers.
• Keep hands and feet clear of moving parts during operation.
• Do not allow children or untrained individuals to operate the applicator.
• Store the applicator in a dry, secure location away from direct sunlight and extreme temperatures.
• Ensure the ground is clear of obstacles before use to prevent tripping or damage to the unit.

Package Contents

Verify that all components are present upon unpacking:

• 1 x Seeder Unit (main body with clear compartment and roller)
• 1 x Manual (this document)
• 1 x Packaging Box
• Multiple interchangeable sowing wheels (as shown in images)

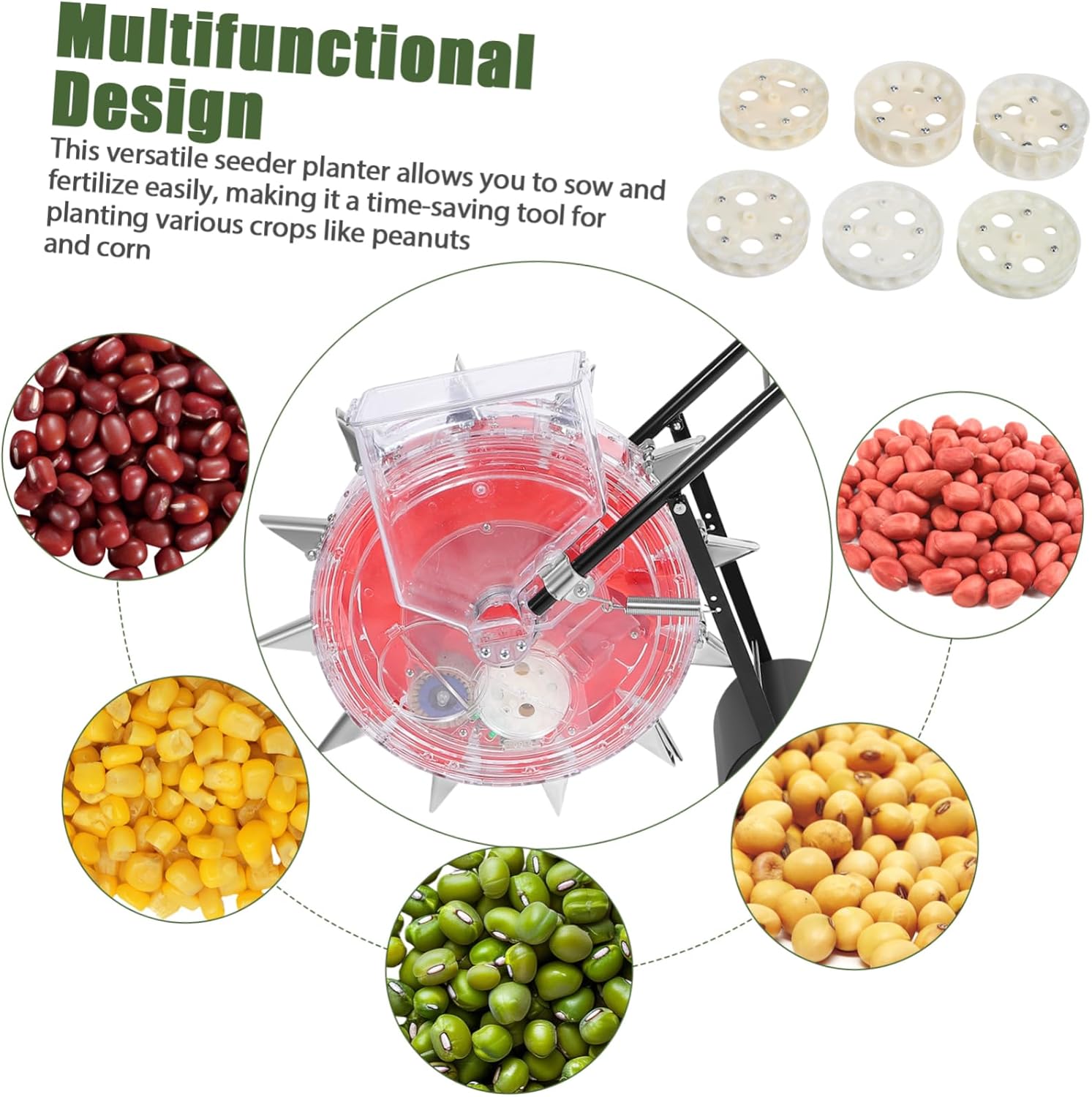

Image: Illustration of the seeder's multifunctional design, showing various seed types it can handle and the interchangeable sowing wheels for different seed sizes.

Setup and Assembly

1. Unpack Components: Carefully remove all parts from the packaging box and lay them out on a clean, flat surface.
2. Attach Handles: Connect the two long handle sections to the main seeder unit using the provided fasteners. Ensure they are securely tightened to prevent wobbling during operation.
3. Install Crossbar: Attach the handle crossbar to the top of the two long handles. This provides a comfortable grip for pushing the applicator.
4. Select Sowing Wheel: Based on the size of your seeds (e.g., peanut, corn, soybean), select the appropriate sowing wheel from the included set. Open the clear compartment and carefully place the chosen wheel onto the designated spindle. Close the compartment securely.
5. Fill Compartment: Open the clear compartment lid and fill it with your desired seeds or granular fertilizer. Do not overfill; leave some space for the contents to move freely.

Operating Instructions

This hand-push seeder is designed for ease of use and efficiency. Follow these steps for optimal performance:

1. Prepare the Soil: Ensure your planting rows are properly prepared and free of large debris.
2. Position the Applicator: Place the seeder at the beginning of your planting row. The roller should be in contact with the soil.
3. Begin Pushing: Grasp the handles firmly and begin to push the applicator forward at a steady, consistent pace. The wheels will rotate, and the quantitative roller technology will automatically dispense seeds or fertilizer at the set spacing and depth.
4. Monitor Compartment: Periodically check the clear compartment to monitor content levels. Refill as needed to maintain continuous operation.
5. Maintain Straight Rows: Guide the applicator to maintain straight planting rows.
6. Adjust Depth: The planting depth is approximately 3.5-7.8 cm. This is determined by the design of the seeder and the pressure applied during pushing.
7. Sowing Amount: The seeder is designed to dispense 1-3 seeds per drop, depending on the seed type and selected sowing wheel.

Image: A person operating the hand-push seeder in a cultivated field, showing the clear compartment filled with seeds and the machine in action.

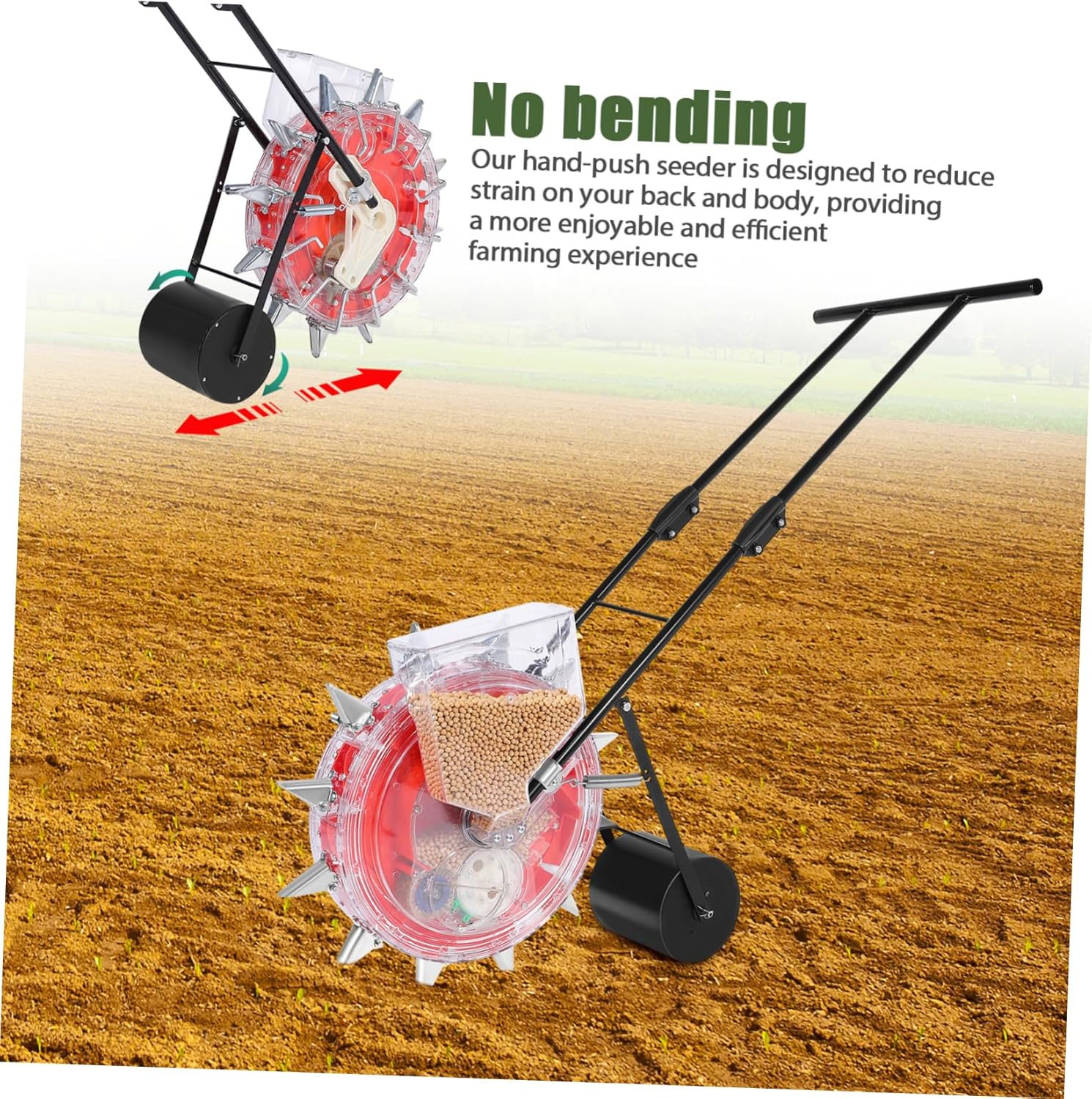

Image: A visual representation emphasizing the ergonomic "No Bending" design of the seeder, illustrating how it reduces strain on the user's back during operation.

Image: A detailed view of the seeder's precision control mechanism, illustrating how individual seeds are accurately dispensed into the soil.

Maintenance

• Cleaning: After each use, especially when using fertilizer, thoroughly clean the seeder unit, particularly the clear compartment and the sowing wheel, to prevent clogging and corrosion. Use a damp cloth and mild soap if necessary, then dry completely.
• Storage: Store the applicator in a dry, covered area to protect it from weather elements.
• Inspection: Periodically inspect all fasteners and moving parts for wear or damage. Tighten any loose screws.
• Lubrication: Apply a light lubricant to any moving metal parts as needed to ensure smooth operation.

Troubleshooting

Specifications

• Brand: Parliky
• Model Number: FT3747G27GJ0076TJZ
• Color: Red
• Material: Iron, Plastic
• Product Dimensions: 135 cm (L) x 70 cm (W) x 48 cm (H) / 53.15" (L) x 27.56" (W) x 18.9" (H)
• Item Weight: Approximately 22.1 pounds (10 kg)
• Planting Depth: 3.5-7.8 cm
• Sowing Spacing: 13.5 cm (fixed by design)
• Number of Sowing Amount: 1-3 seeds per drop

Image: Diagram illustrating the key dimensions of the Hand-Push Precision and Fertilizer Applicator, including length, width, and height.

Warranty and Support

For warranty information and customer support, please refer to the purchase documentation or contact Parliky customer service directly. Keep your proof of purchase for any warranty claims.

Typical return policy allows for returns within 30 days of purchase. Protection plans may be available for extended coverage.

For further assistance, visit the official Parliky store on Amazon: Parliky Store
