LDHTHOPI 1600W Buffer Polisher Instruction Manual

1. Introduction

Thank you for choosing the LDHTHOPI 1600W Buffer Polisher. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new polishing machine. Please read these instructions thoroughly before first use and retain them for future reference.

This powerful tool is designed for various polishing, waxing, and paint correction tasks on surfaces such as vehicles, metal, wood, marble, and floors. Its robust 1600W motor and adjustable speed settings ensure efficient performance for a range of applications.

2. Safety Instructions

WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

General Power Tool Safety

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Avoid body contact with earthed or grounded surfaces.
• Personal Safety: Always wear eye protection. Use hearing protection when operating for extended periods. Dress properly; do not wear loose clothing or jewelry. Keep hair and clothing away from moving parts.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
• Service: Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Specific Polisher Safety

• Always ensure the polishing pad is securely attached before starting the polisher.
• Do not apply excessive pressure to the tool; let the polisher do the work.
• Keep hands and body parts clear of the rotating pad during operation.
• Ensure the work surface is clean and free of debris that could cause damage or kickback.
• Always start the polisher at a low speed and gradually increase as needed.

3. Package Contents

Verify that all items are present upon unpacking. If any items are missing or damaged, contact your retailer.

• LDHTHOPI 1600W Buffer Polisher Unit
• Detachable D-Handle
• Detachable Side Handle
• Polishing Backing Pads (6-inch and 7-inch)
• Various Sponge Polishing Pads
• Wool Polishing Pads
• Sandpaper Discs
• Hex Wrench for assembly
• Storage Bag
• User Manual

Image 3.1: Contents of the LDHTHOPI Buffer Polisher package, including the main unit, handles, various pads, and a storage bag.

4. Product Overview

Key Components

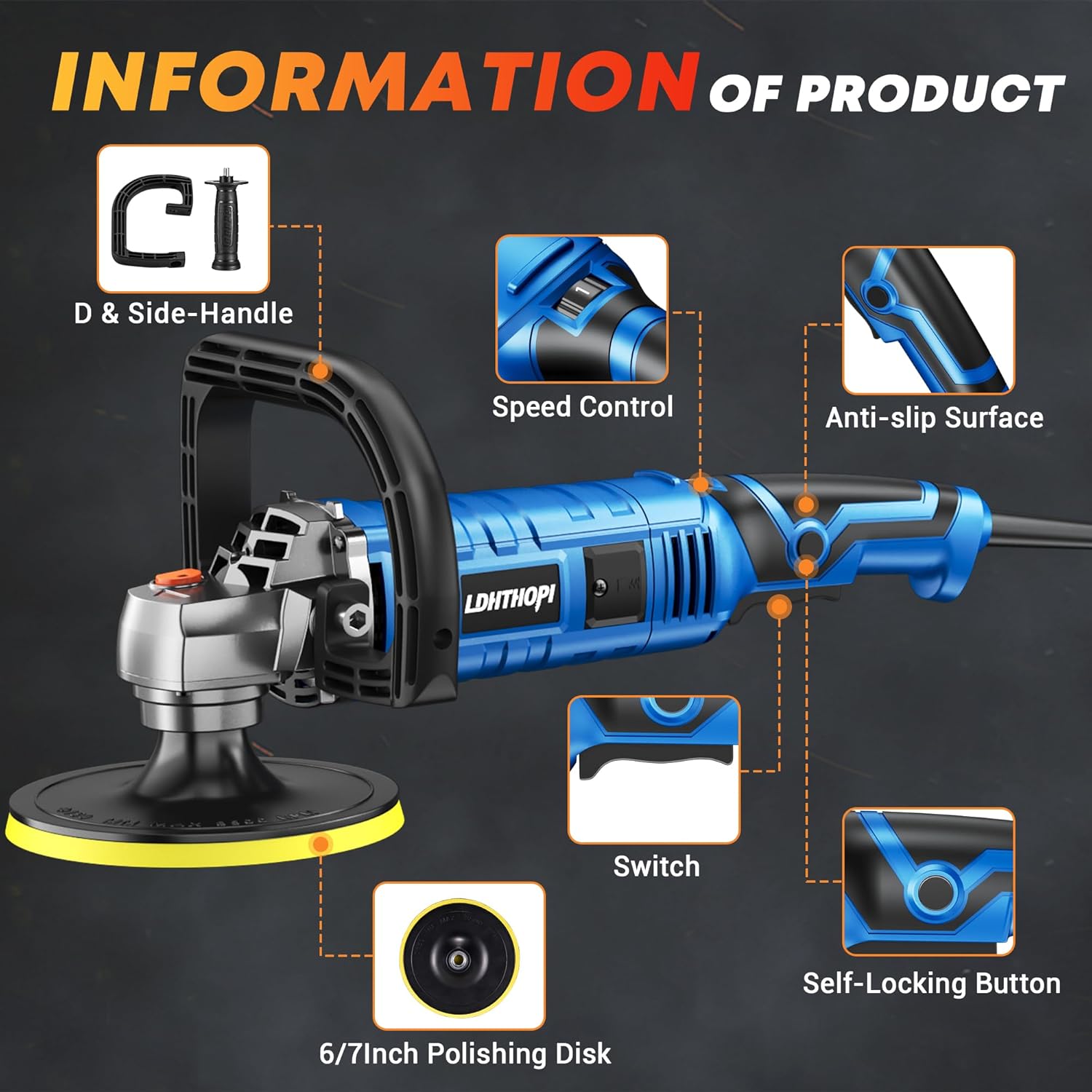

Image 4.1: Labeled diagram showing the D-handle, side handle attachment points, speed control dial, anti-slip surface, power switch, self-locking button, and 6/7-inch polishing disk.

• Powerful 1600W Motor: Ensures quiet and smooth operation, capable of handling oxidized layers, scratches, and stains.
• Variable Speed Control: Features 7 adjustable speed settings (1000-3500 RPM) for diverse applications.
• Ergonomic Design: Includes removable D-grip and side grips for comfortable handling and control.
• Safety Switch Lock: Allows continuous operation without holding the trigger, reducing user fatigue.
• 6/7-inch Polishing Disk: Accommodates different pad sizes for various tasks.

Image 4.2: Illustration highlighting the 1600W powerful motor and its high RPM capability for effective polishing.

5. Setup

Attaching Handles

The polisher offers three handle configurations for optimal comfort and control:

1. No-Handle: For precise work in confined spaces.
2. Side-Handle: Screws into either side of the gear housing for left or right-handed use.
3. D-Handle: Attaches to the top of the gear housing for two-handed operation and increased leverage.

Securely fasten the chosen handle(s) using the provided screws and hex wrench.

Image 5.1: Visual guide demonstrating the No-handle, Side-handle, and D-handle configurations for the polisher.

Attaching Polishing Pads

The polisher uses a hook-and-loop (Velcro-style) system for attaching pads. Ensure the backing pad is clean before attaching any polishing or sanding disc.

1. Select the appropriate backing pad (6-inch or 7-inch) and securely attach it to the polisher spindle.
2. Align the desired sponge pad, wool pad, or sandpaper disc with the backing pad.
3. Press firmly to ensure a secure attachment.

Image 5.2: Examples of sandpaper, sponge pads, and wool pads, illustrating their attachment to the polisher.

6. Operating Instructions

Powering On and Speed Adjustment

1. Ensure the polisher is connected to a suitable power outlet (110 Volts AC).
2. Set the variable speed dial to the lowest setting (1).
3. Press the power switch to turn on the tool.
4. To maintain continuous operation, press the safety switch lock button.
5. Adjust the speed dial to the desired RPM for your task.

Recommended Speed Settings

Image 6.1: Guide to 7 variable speed settings and their recommended uses for waxing, buffing, cleaning, polishing, and scratch removal.

• Speed 1-3 (1000-1500 RPM): Ideal for waxing and light buffing.
• Speed 4-5 (1500-2500 RPM): Suitable for general cleaning and polishing.
• Speed 6-7 (2500-3500 RPM): Recommended for scratch removal and fine polishing.

Application Techniques

• Apply a small amount of polishing compound or wax directly to the pad or the work surface.
• Place the pad flat on the surface before starting the polisher.
• Move the polisher in a consistent, overlapping pattern (e.g., cross-hatch or circular motions).
• Maintain even pressure and avoid tilting the polisher, which can cause uneven results or damage.
• For best results, work on small sections at a time.

Image 6.2: Demonstration of the polisher in use on a car surface, showing a 'before' image with scratches and an 'after' image with a polished finish.

Versatile Use

The LDHTHOPI Buffer Polisher is suitable for a wide range of applications beyond automotive detailing:

• Automotive: Car detailing, waxing, paint correction, swirl mark removal.
• Home: Polishing furniture, glass, marble countertops, and wooden floors.
• Marine: Buffing boats and other marine surfaces.
• Metal: Polishing various metal surfaces.

Image 6.3: Visual examples of the polisher's wide application, including cars, glass, furniture, metal, floors, and marble.

7. Maintenance

Cleaning

• Always unplug the tool before cleaning.
• Wipe down the exterior of the polisher with a clean, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Clean polishing pads thoroughly after each use. Rinse sponge pads with water and mild soap, then allow them to air dry completely.
• Remove any dust or debris from the air vents to ensure proper motor cooling.

Carbon Brush Replacement

The motor of this polisher uses carbon brushes, which are wear-and-tear components. Over time, these brushes will wear down and may need replacement to maintain optimal performance. Refer to the product diagram for the location of the brush caps. Consult a qualified technician if you are unsure about replacing carbon brushes.

Storage

Store the polisher and its accessories in the provided storage bag in a clean, dry place, out of reach of children.

8. Troubleshooting

• Polisher does not start:
  • Check if the power cord is securely plugged into a working outlet.
  • Ensure the power switch is in the 'ON' position.
  • Inspect the power cord for any damage.
  • Check if carbon brushes are worn out and need replacement.
• Excessive vibration or noise:
  • Ensure the polishing pad is securely attached and centered.
  • Check for any foreign objects caught in the rotating parts.
  • Verify that the backing pad is not damaged or warped.
• Poor polishing results:
  • Ensure the correct type of pad and compound/wax is being used for the task.
  • Adjust the speed setting according to the application.
  • Clean or replace worn-out polishing pads.

9. Specifications

10. Warranty and Support

For warranty information or technical support, please contact LDHTHOPI customer service directly. Refer to the product packaging or the official LDHTHOPI website for contact details.
