COBIZI 10x30 Pop Up Canopy Instruction Manual

Introduction

Thank you for choosing the COBIZI 10x30 Pop Up Canopy. This manual provides essential information for the safe and efficient setup, operation, and maintenance of your canopy. Please read these instructions thoroughly before assembly and retain them for future reference.

Image: COBIZI 10x30 Pop Up Canopy in Khaki, providing ample shade for outdoor events.

Safety Information

• Always secure the tent with the included stakes and ropes during use to prevent damage or injury.
• Do not use the canopy in winds stronger than 18 mph (29 km/h). High winds can cause structural failure.
• Avoid prolonged exposure to direct sunlight when the canopy is not in use to preserve fabric integrity.
• Use caution with fire and open flames near the tent. The fabric is not fireproof.
• Always follow the assembly and disassembly instructions provided to ensure safe handling.

Package Contents

Verify that all components are present before beginning assembly:

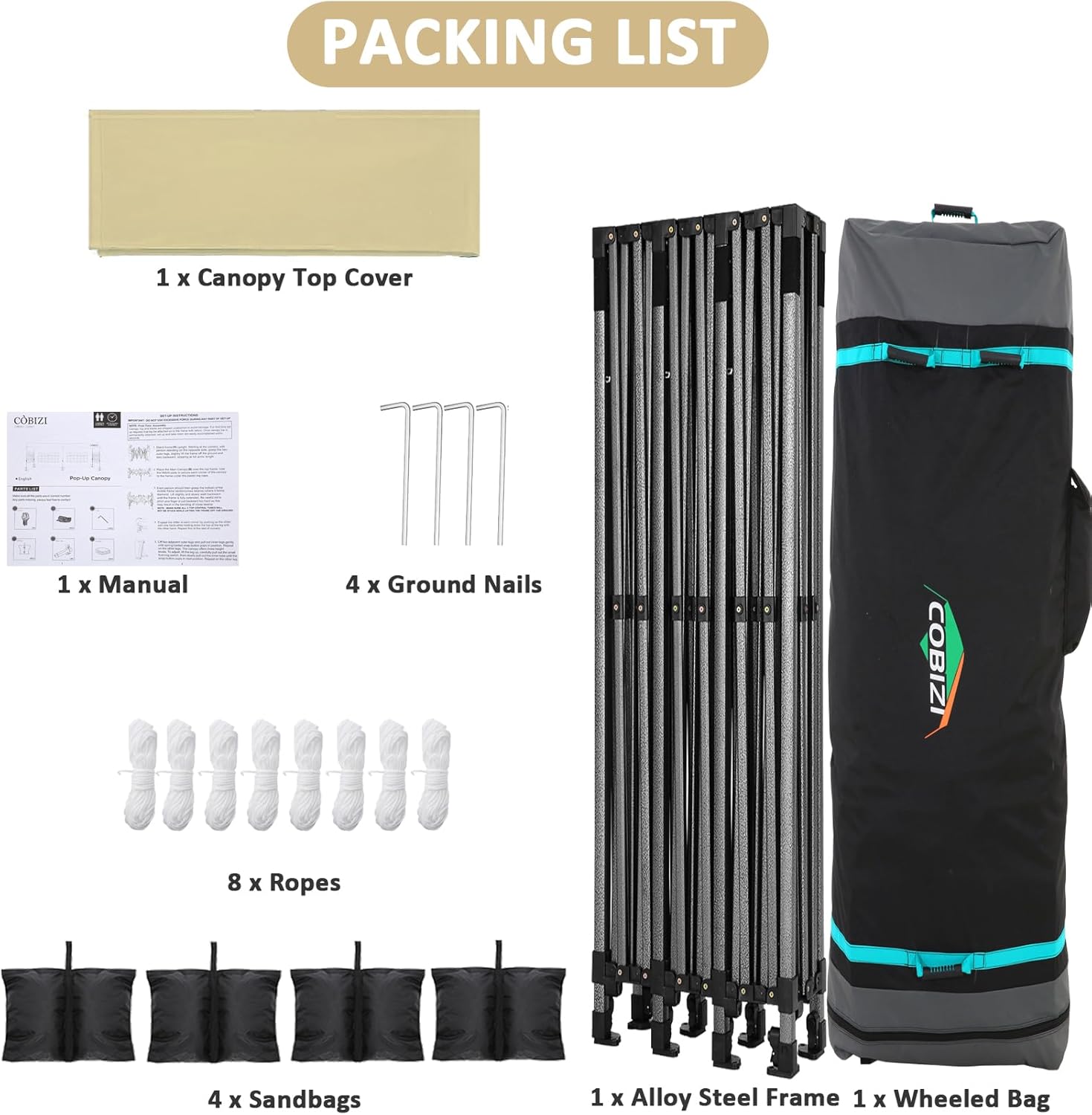

Image: Visual representation of all items included in the COBIZI 10x30 Pop Up Canopy package.

• 1 x Pop Up Canopy Frame (Alloy Steel)
• 1 x 10'x30' Canopy Tent Top Cover (500D PU Oxford Cloth)
• 4 x Sandbags
• 4 x Ground Nails
• 8 x Ropes
• 1 x Wheeled Storage Bag
• 1 x Instruction Manual

Setup Instructions

The COBIZI 10x30 Pop Up Canopy is designed for tool-free installation. Two people are recommended for efficient setup.

1. Unpack and Position the Frame: Remove the folded frame from the wheeled storage bag. Place the frame in the desired setup location.
2. Partially Extend the Frame: With a person on each end, pull the alloy steel frame outwards to about 60% of its full extension.
3. Attach the Canopy Top: Drape the 10'x30' canopy top cover over the partially extended frame. Secure the fabric to the frame using the attached Velcro straps at each corner and along the trusses.
4. Fully Extend the Frame: Continue pulling the frame outwards until it is fully extended and the top clicks into place.
5. Lock the Locking Mechanism: At each straight leg, locate the thumb latch lock system. Press the button and push the crossbars upwards until they lock securely into place.
6. Adjust Leg Height: Press the thumb button on each leg and extend the inner leg to the desired height setting. Ensure all legs are set to the same height for stability.
7. Secure the Canopy: Attach the provided ropes to the canopy corners and stake them into the ground. Fill the sandbags with sand and attach them to the canopy legs for additional stability.

Image: Visual guide illustrating the instant easy setup process of the canopy.

Operating Instructions

Your COBIZI canopy offers adjustable height settings and robust securing options for various outdoor conditions.

Height Adjustment

The canopy features 3 height settings for its straight legs, allowing you to customize the clearance and overall height. To adjust:

1. Locate the thumb button on each leg.
2. Press the thumb button to release the locking pin.
3. Carefully raise or lower the inner leg to the desired height.
4. Ensure the locking pin re-engages into one of the three holes (220cm/86.6inch, 230cm/90.5inch, 240cm/94.5inch) and is securely locked.
5. Repeat for all legs, ensuring they are all at the same height for stability.

Securing the Canopy

For optimal stability and safety, especially in windy conditions, always secure your canopy using the provided accessories.

• Ropes and Ground Nails: Use the ropes to tie down the canopy corners to the ground nails, pulling taut to create tension.
• Sandbags: Fill the four sandbags with sand and attach them to the base of each leg for added weight and stability.

Maintenance and Care

Proper maintenance will extend the life of your COBIZI canopy.

Cleaning

• Clean the canopy fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners.
• Rinse thoroughly and allow the fabric to air dry completely before folding and storing.
• Wipe down the alloy steel frame with a damp cloth to remove dirt and debris.

Storage

When not in use, or during adverse weather conditions, disassemble the canopy and store it in the provided wheeled storage bag. Ensure the fabric is dry to prevent mold and mildew.

Weather Precautions

• The canopy is designed to withstand up to 4 winds (less than 18 mph). Disassemble and store the canopy during strong winds, heavy rain, or snow.
• The 500D PU Oxford Cloth with two layers of PU coating provides UPF 50+ UV protection and is 100% waterproof with 1500mm waterproof pressure.

Troubleshooting

If you encounter any issues with your COBIZI canopy, please review the setup instructions to ensure correct assembly. Most common issues can be resolved by verifying that all locking mechanisms are engaged and the canopy is properly secured.

For further assistance, please contact COBIZI customer support.

Specifications

Image: Detailed diagram outlining the dimensions, height settings, and key features of the canopy.

Image: Visual comparison highlighting the robust construction of COBIZI frame components like wide feet, durable truss bars, and widened rod tubes.

Warranty and Support

Warranty Information

• Canopy Frame: One (1) year after-sale protection.
• Fabrics and Accessories: Six (6) months after-sale protection.

This warranty covers manufacturing defects under normal use. It does not cover damage due to improper setup, misuse, neglect, or extreme weather conditions.

Customer Support

Should you have any questions, require assistance, or encounter problems with your COBIZI canopy, please contact our professional service team. We aim to reply within 24 hours.

For support, please visit the COBIZI Store on Amazon or refer to your purchase documentation for direct contact methods.
