1. Introduction
This manual provides essential information for setting up, operating, and maintaining your KurieTim 14.1'' 2K Display Laptop. Designed for students and business professionals, this laptop combines a powerful Intel N5105 processor with ample memory and storage for efficient performance.

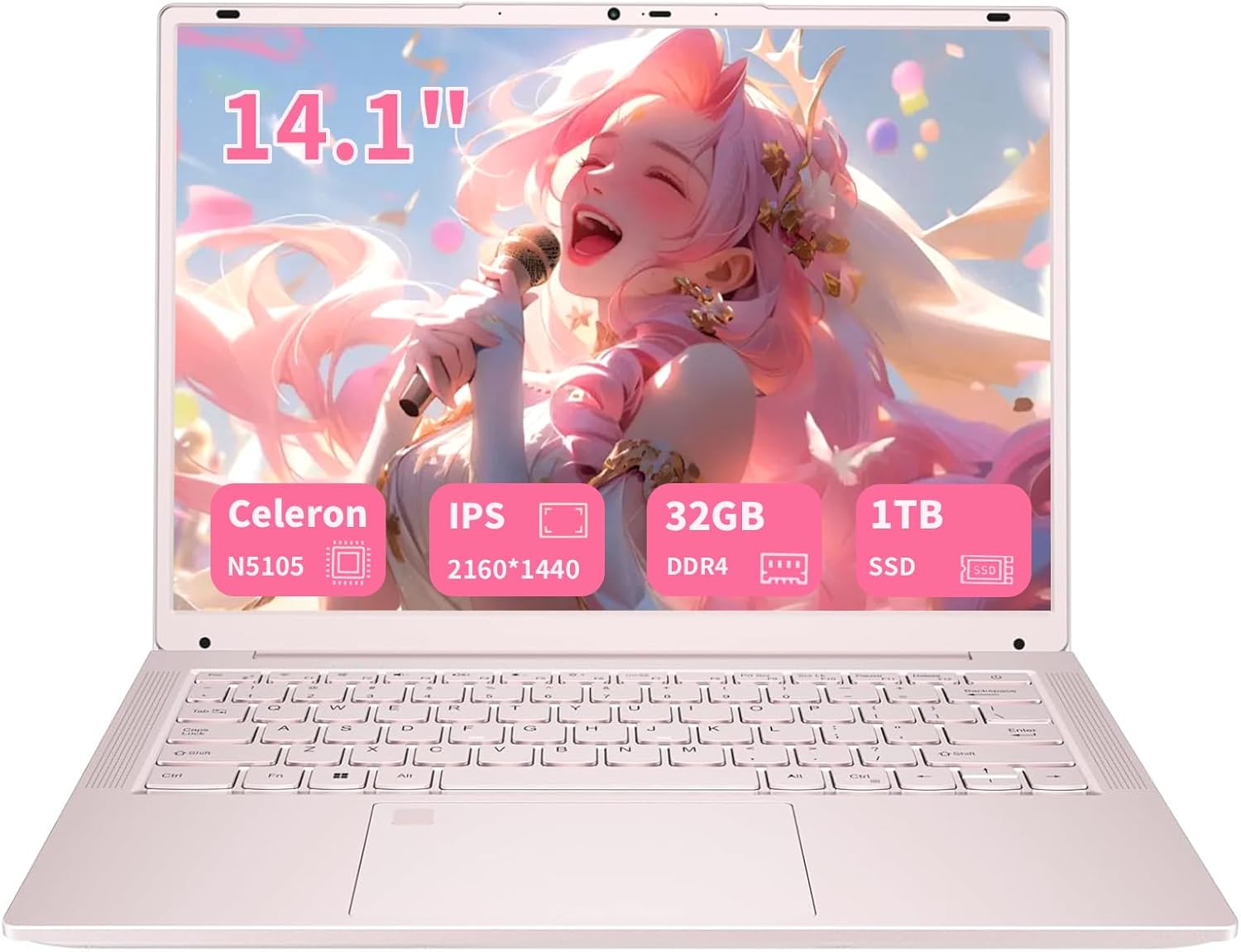

Figure 1: KurieTim 14.1'' 2K Display Laptop
2. Setup
2.1 Unboxing
Carefully remove all components from the packaging. Ensure all items listed in the 'What's in the Box' section are present.
Video 1: Unboxing the KurieTim Laptop. This video demonstrates the careful unboxing process and initial presentation of the laptop and its accessories.
Video 2: Initial setup and keyboard overview. This short preview shows the laptop's first boot screen and a close-up of the keyboard.
2.2 Initial Power-On and Charging
Before first use, connect the universal 100-240V charger to the laptop's charging port. The laptop features a 6000mAh, 46.2Wh battery. A 100W USB-C PD charger (not included, but compatible) can provide approximately 2 hours of use from a 15-minute charge.
Figure 2: Laptop ports including the charging port (labeled 2).
3. Features Overview
3.1 Display
The laptop is equipped with a 14.1-inch FHD (2160*1440) IPS screen, offering a 2K resolution for clear and vivid visuals, reducing eye fatigue.

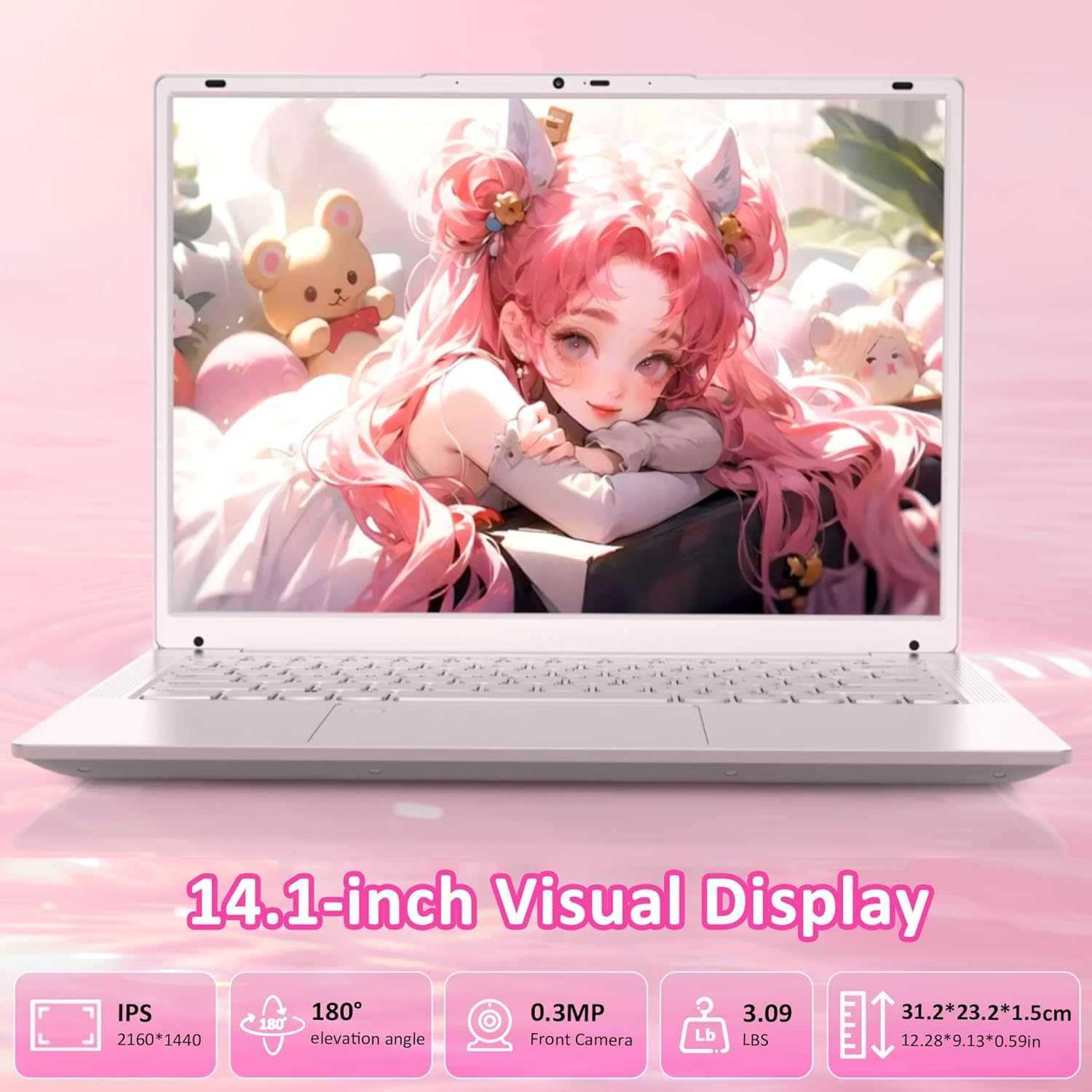

Figure 3: Visual features of the 14.1-inch display, including IPS technology and 2160x1440 resolution.
3.2 Processor and Graphics
Powered by an Intel Celeron N5105 processor (up to 2.90 GHz, 4 cores, 4MB Cache) and Intel UHD Graphics, the laptop is designed for daily tasks and online education.
Figure 4: Diagram illustrating the Intel Celeron N5105 Quad-Core CPU.
3.3 Memory and Storage
The laptop includes 32GB DDR4 RAM for smooth multitasking and a 1TB PCIe SSD for fast boot times and ample storage. Both RAM and SSD are user-upgradable.
3.4 Keyboard and Security
A full-size backlit keyboard (activated with Fn+F8) is included for comfortable typing in various lighting conditions. For enhanced security, the laptop features a fingerprint recognition device.
Figure 5: Close-up of the backlit keyboard, highlighting the fingerprint unlock sensor and privacy camera switch.
4. Operating Instructions
4.1 Power On/Off
To power on the laptop, press the power button located on the side. To power off, use the standard Windows 11 Pro shutdown procedure.
4.2 Backlit Keyboard
Activate or deactivate the keyboard backlight by pressing the Fn + F8 keys simultaneously.
4.3 Fingerprint Unlock
Configure your fingerprint for secure login through Windows 11 Pro settings. The fingerprint sensor is integrated into the touchpad area.
4.4 Touchpad
The touchpad supports multi-touch gestures for navigation. Refer to Windows 11 Pro settings for customizing touchpad gestures.
5. Connectivity
5.1 Ports
The laptop offers a variety of ports for external devices and displays:
- USB Ports: 1x USB 2.0, 2x USB 3.0
- Video Output: HDMI
- Universal Port: Type-C (Full Function)
- Storage Expansion: Micro SD card slot (TF Card Slot)
- Audio: Headphone Jack
- Network: Ethernet (RJ45) port (as per specifications table)
Figure 6: Diagram showing the various ports on the laptop, including USB, HDMI, Type-C, and Micro SD slot.
5.2 Wireless Connectivity
- Wi-Fi: Dual-band 5GHz Wi-Fi (802.11ac/g/n) for high-speed internet access.
- Bluetooth: Bluetooth 4.2 for connecting wireless peripherals.
6. Maintenance
6.1 Battery Care
To maximize battery life, avoid fully discharging the battery frequently. Store the laptop in a cool, dry place when not in use for extended periods. Use only the provided charger or a compatible 100W USB-C PD charger.
6.2 General Cleaning
Use a soft, lint-free cloth to clean the screen and exterior. Avoid harsh chemicals or abrasive materials. For the keyboard, use compressed air to remove dust and debris.
7. Troubleshooting
If you encounter any issues, please refer to the following general tips or contact customer service.
- No Power: Ensure the charger is properly connected and the power outlet is functional. Allow the battery to charge for at least 30 minutes before attempting to power on.
- Slow Performance: Close unnecessary applications, check for background updates, or restart the laptop. Ensure sufficient free space on the SSD.
- Wi-Fi Connectivity Issues: Restart your router and the laptop. Check Wi-Fi settings to ensure the correct network is selected and the password is entered correctly.
Video 3: Overview of the FUNYET Touchscreen Laptop. This video demonstrates various features and functionalities, which may be similar to your KurieTim laptop, including performance and connectivity.
8. Specifications
Figure 7: Comprehensive table of system hardware, network, interface, and software configurations.
| Feature | Specification |
|---|---|
| Standing Screen Display Size | 14.1 Inches |
| Screen Resolution | 2160x1440 Pixels |
| Max Screen Resolution | 2160x1440 Pixels |
| Processor | 2.9 GHz Celeron (Intel N5105) |
| RAM | 32 GB DDR4 SDRAM |
| Hard Drive | 1 TB SSD (PCIe) |
| Graphics Coprocessor | Intel UHD Graphics |
| Operating System | Windows 11 Pro |
| Wireless Type | 802.11ac (Dual-Band 2.4G/5G) |
| Bluetooth | Bluetooth 4.2 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 2 |
| Average Battery Life | 5 Hours (6000mAh, 46.2Wh) |
| Item Weight | 3 pounds |
| Product Dimensions | 17.3 x 2.4 x 10.3 inches |
| Special Features | Fingerprint Reader, HD Audio, Backlit Keyboard, Memory Card Slot, 0.3MP Webcam |
9. Warranty and Support
Your KurieTim laptop comes with a 24-month warranty for worry-free ownership. Additionally, we offer 100-day free returns.
9.1 Customer Service
For any product-related issues or support, our customer service is available 24/7. To contact us, find your order and click "Get Product Support". We aim to assist you within 24 hours.
