Generic 2.2 Qt Sage Green Air Fryer User Manual

1. Introduction

Thank you for purchasing the Generic 2.2 Qt Sage Green Air Fryer. This manual provides important information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before first use and retain it for future reference.

Important Safety Instructions

• Always place the air fryer on a stable, heat-resistant surface, away from walls or other appliances to allow for proper air circulation.
• Do not immerse the main unit, cord, or plug in water or other liquids.
• Ensure the voltage indicated on the appliance matches your local power supply before connecting.
• Keep children and pets away from the appliance during operation.
• Do not block the air inlet or outlet vents.
• Unplug the air fryer from the outlet when not in use and before cleaning. Allow it to cool completely before handling.
• Do not operate the appliance if the cord or plug is damaged, or if the appliance malfunctions or has been damaged in any way.
• Use only accessories recommended by the manufacturer.
• Exercise extreme caution when removing the hot air fryer basket or crisping tray.
• This appliance is for household use only.

2. Product Overview

The Generic 2.2 Qt Air Fryer is designed for healthier cooking, utilizing strong hot air convection to cook food evenly with minimal oil. Its compact design makes it suitable for small kitchens and dorm rooms.

Components

• Main Unit (with control panel)
• Removable Air Fryer Basket
• Nonstick Crisping Tray

Features

• Capacity: 2.2 Quarts / 2 Liters
• Adjustable Thermostat: Temperature range from 175°F to 400°F
• Built-in Timer: 1 to 30 minutes with automatic shutoff
• Automatic Shut-Off: For added safety and convenience
• Nonstick Coating: Basket and crisping tray for easy food release and cleaning
• Power: 1150 Watts

Image: The main unit of the Generic 2.2 Qt Sage Green Air Fryer, showing its compact design and control panel.

Image: A close-up view of the air fryer's control panel, featuring the temperature and timer dials, and power/heating indicator lights.

Image: The removable air fryer basket and the nonstick crisping tray, shown separated for cleaning or assembly.

3. Setup and First Use

Unpacking

1. Carefully remove all packaging materials from the air fryer.
2. Check that all components are present and undamaged.
3. Remove any stickers or labels from the appliance.

Initial Cleaning

1. Wipe the exterior of the air fryer with a damp cloth.
2. Wash the air fryer basket and crisping tray with hot, soapy water. Rinse thoroughly and dry completely. These parts are also dishwasher safe.
3. Ensure all parts are dry before use.

Placement

• Place the air fryer on a stable, level, and heat-resistant surface.
• Ensure there is at least 4 inches (10 cm) of clear space around the back and sides of the appliance for proper ventilation.
• Do not place the air fryer near flammable materials or heat sources.

First Use (Pre-heating)

It is recommended to run the air fryer empty for about 10 minutes before cooking food for the first time to eliminate any manufacturing odors.

1. Plug the power cord into a grounded electrical outlet.
2. Set the temperature to 400°F (200°C) and the timer to 10 minutes.
3. A slight odor may be present during this initial use; this is normal and will dissipate.
4. Once the timer finishes, unplug the appliance and let it cool down.

4. Operating Instructions

Cooking with Your Air Fryer

1. Place the crisping tray inside the air fryer basket.
2. Place your ingredients into the air fryer basket. Do not overfill the basket to ensure even cooking.
3. Slide the air fryer basket back into the main unit until it clicks securely into place.
4. Plug the power cord into a grounded electrical outlet.
5. Turn the temperature control dial to your desired cooking temperature (175°F - 400°F).
6. Turn the timer control dial to the desired cooking time (1 - 30 minutes). The air fryer will begin heating immediately. The power and heating indicator lights will illuminate.
7. For best results, shake the basket halfway through the cooking time for items like fries or nuggets. To do this, carefully pull out the basket, shake it, and then slide it back in. The air fryer will resume cooking.
8. When the timer reaches zero, the air fryer will automatically shut off, and a bell will sound. The heating indicator light will turn off.
9. Carefully pull out the basket and place it on a heat-resistant surface.
10. Remove cooked food using tongs or a spatula. Avoid using metal utensils that could scratch the nonstick coating.
11. Unplug the air fryer after use and allow it to cool before cleaning.

Image: The air fryer in operation, with the basket partially pulled out to show cooked food inside.

5. Cleaning and Maintenance

Regular cleaning will help maintain the performance and longevity of your air fryer.

Cleaning After Each Use

1. Unplug the air fryer and allow it to cool completely before cleaning.
2. Remove the air fryer basket and crisping tray.
3. Wash the basket and crisping tray in hot, soapy water using a non-abrasive sponge. For stubborn residue, soak them in warm water for about 10 minutes. These parts are also dishwasher safe.
4. Wipe the exterior of the air fryer with a damp cloth. Do not use abrasive cleaners or scouring pads.
5. Clean the interior of the appliance with a damp cloth and mild detergent if necessary.
6. Ensure all parts are thoroughly dry before storing or next use.

Storage

Store the air fryer in a cool, dry place. Ensure the power cord is neatly wrapped and secured.

6. Troubleshooting

If you encounter issues with your air fryer, please refer to the following common problems and solutions:

7. Specifications

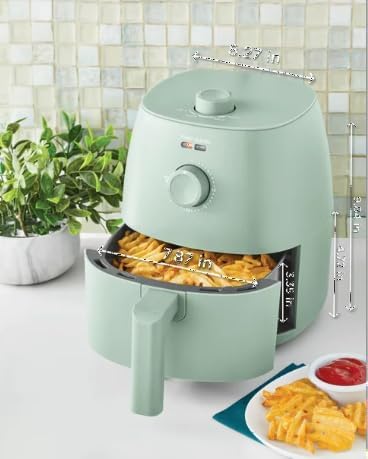

Image: A visual representation of the air fryer's dimensions, including height, width, and depth.

8. Warranty and Support

Warranty Information

This product is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, or contact the retailer for details.

Customer Support

For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact the retailer or manufacturer's customer support. Keep your purchase receipt and model number (PRT-ARF218648) handy when contacting support.
