Product Overview
The Samsers Foldable Bluetooth Keyboard is a portable and rechargeable wireless keyboard designed for travel and on-the-go productivity. It supports connection to up to three devices simultaneously, offering a seamless typing experience across various operating systems.

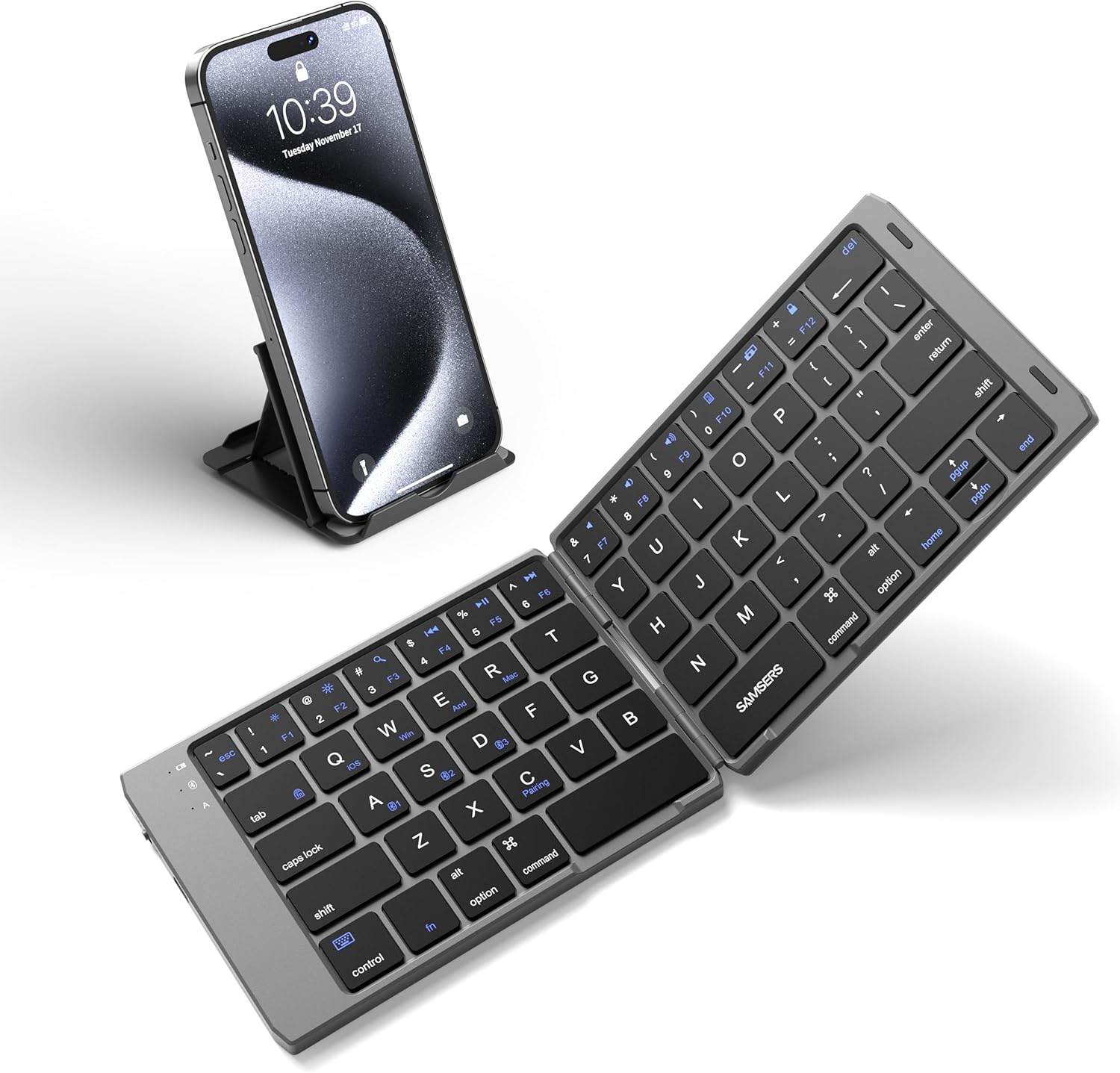

Image: The Samsers Foldable Bluetooth Keyboard in its unfolded state, positioned next to a smartphone resting on a foldable stand. This illustrates the keyboard's compact design and its intended use with mobile devices.
What's in the Box
- 1 x Foldable Keyboard
- 1 x Phone Stand
- USB Cable
- User Manual
Setup and Pairing
Follow these steps to set up and pair your Samsers Foldable Bluetooth Keyboard with your device:
- Power On: Unfold the keyboard to automatically power it on. The power indicator light will illuminate.
Image: A hand unfolding the keyboard, illustrating the power-on action. Folding the keyboard turns it off.
- Enter Pairing Mode: Press the Fn key simultaneously with the C key to put the keyboard into Bluetooth pairing mode. The Bluetooth indicator light will start blinking.
- Select Bluetooth Channel: To connect to one of the three available Bluetooth channels, press Fn + A for Bluetooth 1, Fn + S for Bluetooth 2, or Fn + D for Bluetooth 3. This allows you to switch between up to three paired devices.
Image: The keyboard connected to multiple devices (laptop, smartphone, tablet) via Bluetooth, demonstrating its multi-device capability.
- Connect on Your Device: On your smartphone, tablet, or laptop, go to the Bluetooth settings. Locate "KD07T" in the list of available devices and select it to connect.
- Match System: After successful pairing, press Fn + Q for iOS, Fn + W for Windows, or Fn + E for Android/Mac OS to optimize the keyboard layout for your operating system.
Image: A visual representation of the keyboard's wide compatibility with various devices and operating systems, including iPad, iPhone, DELL, HP, Samsung, Amazon, iOS, Windows, Android, and Mac OS.
Operating Instructions
The Samsers Foldable Bluetooth Keyboard offers a comfortable and efficient typing experience. Its standard-size keycaps and responsive design allow for accurate and fast typing, similar to a full-sized desktop keyboard.

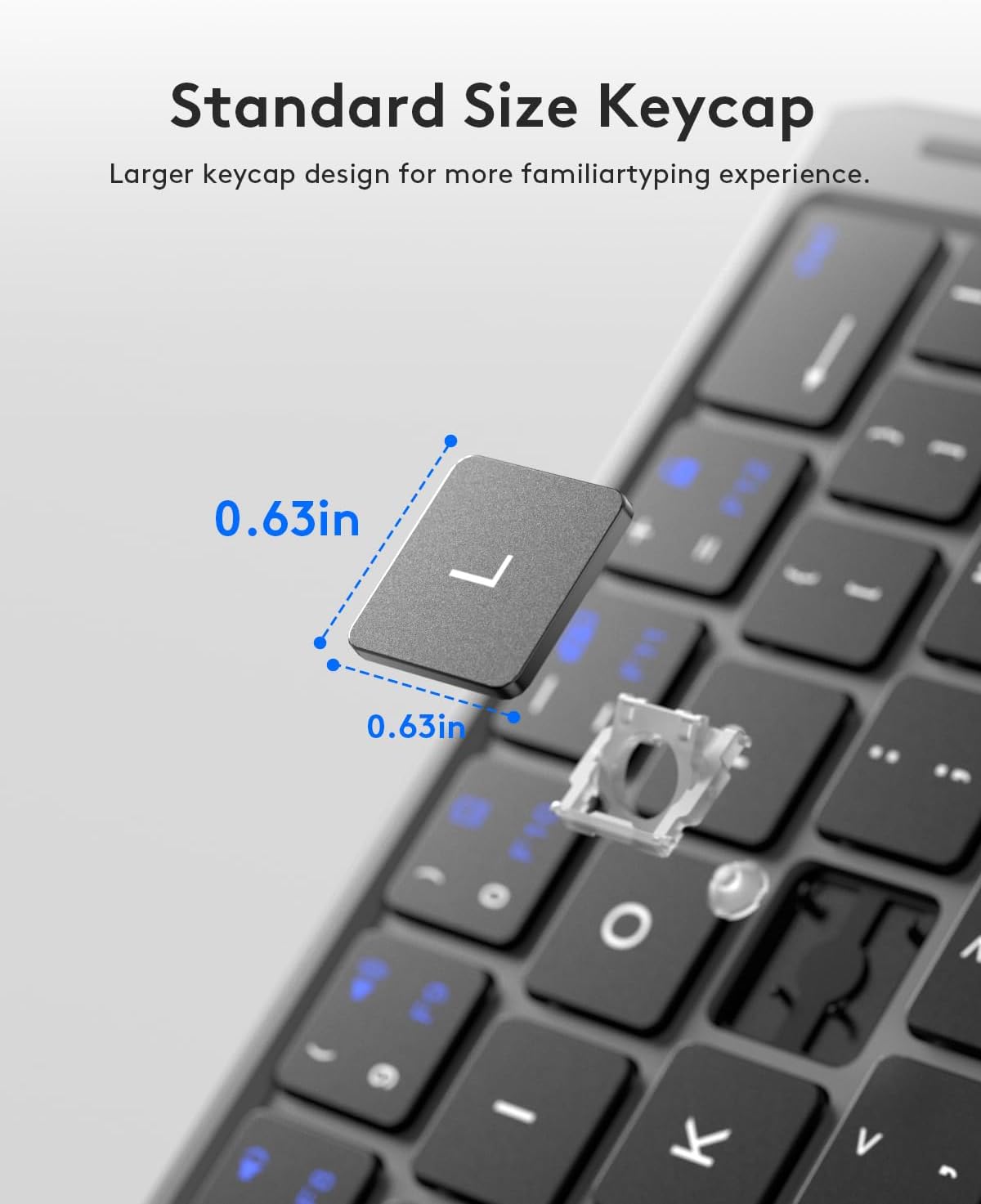

Image: A detailed view of a keycap, highlighting its standard size (0.63 inches by 0.63 inches) for a familiar typing feel.
Multimedia Functions
Utilize the function (Fn) key in combination with the F-keys for various multimedia and shortcut functions. Refer to the key labels for specific actions such as volume control, media playback, and screen brightness adjustments.
Wireless Range
The keyboard maintains a stable connection and provides fast response within a 10-meter (33-foot) operating range, allowing for flexible use in various environments.
Image: An illustration depicting the keyboard's effective wireless range of up to 33 feet in a typical room setting.
Battery and Charging
The keyboard is equipped with a built-in large capacity battery, designed for extended use.
- Continuous Operation: Up to 60 hours on a single charge.
- Standby Time: Up to 90 days.
- Charging: Easily recharged via the included Type-C cable.
Image: The keyboard connected to a power outlet via its USB-C charging cable, demonstrating its rechargeable feature.
Portability and Design
The Samsers Foldable Bluetooth Keyboard is designed for maximum convenience and portability.
- Foldable Design: Folds into a compact, palm-sized unit, making it easy to carry in a pocket or backpack.
- Lightweight: Weighs only 6.5 ounces (approximately 184 grams).
- Magnetic Lock: Features a magnetic lock to keep the keyboard securely closed when folded.
- Included Phone Holder: Comes with a foldable phone holder that offers 6 adjustable angles for optimal viewing.

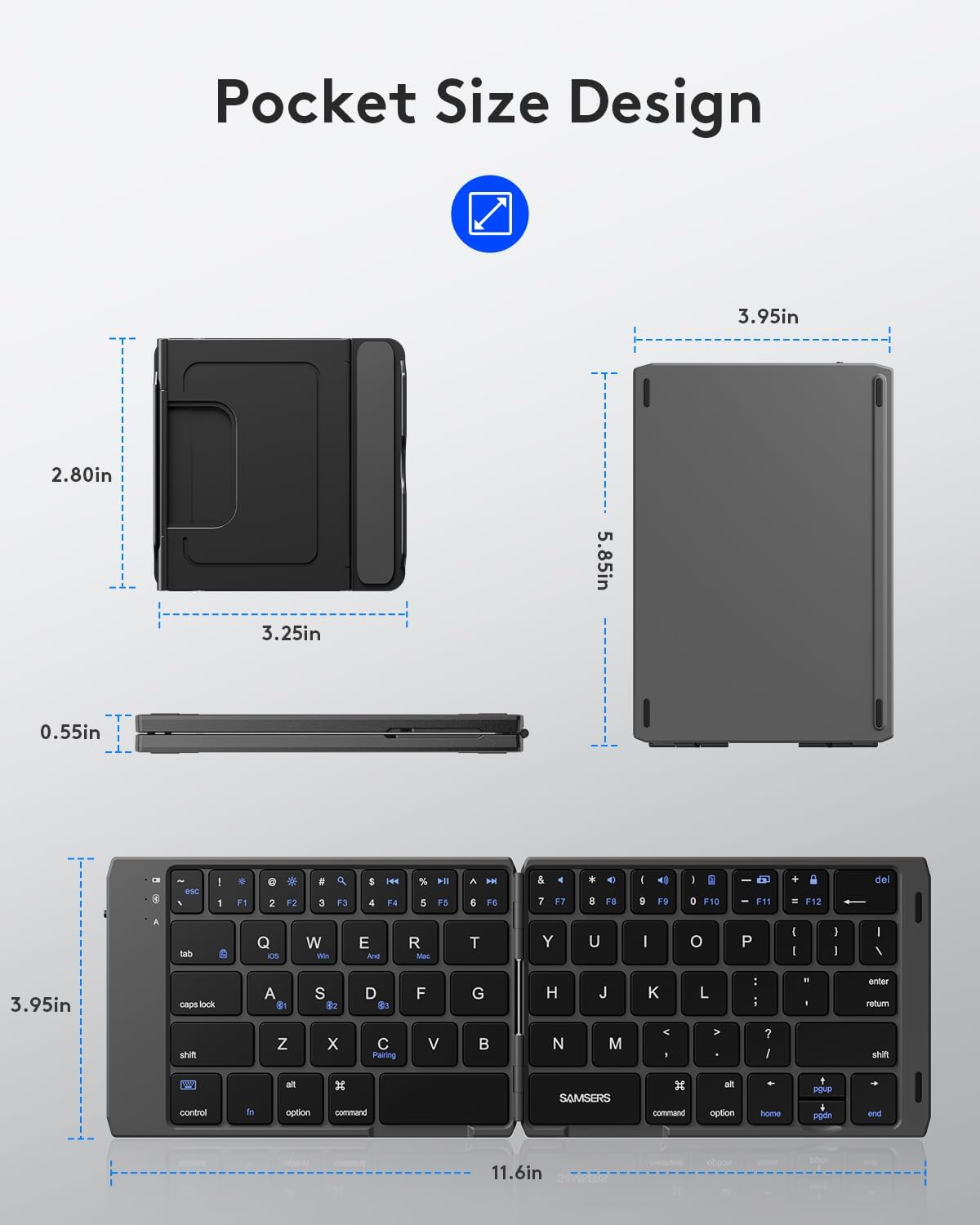

Image: A diagram illustrating the compact dimensions of the keyboard when folded (5.85 x 3.95 x 0.55 inches) and its full size when unfolded (11.6 x 3.95 x 0.25 inches).
Image: The folded keyboard resting on a laptop, with a backpack and notebook nearby, highlighting its travel-friendly and compact nature.
Specifications
| Feature | Detail |
|---|---|
| Product Dimensions (Unfolded) | 11.6 x 3.95 x 0.25 inches |
| Item Weight | 9.9 ounces |
| Item Model Number | KD07T |
| Batteries | 1 Lithium Ion battery required (included) |
| Brand | Samsers |
| Compatible Devices | Laptop, PC, Smartphone, Tablet |
| Connectivity Technology | Bluetooth |
| Keyboard Description | Pocket Size |
| Recommended Uses | Business, Education, Everyday Use, Student, Travel |
| Special Features | Foldable, Hotkeys and Media Keys, Lightweight, Rechargeable |
| Color | Gray |
| Number of Keys | 64 |
| Style | Modern |
Maintenance
To ensure the longevity and optimal performance of your Samsers Foldable Bluetooth Keyboard, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to wipe the surface of the keyboard. For stubborn dirt, slightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid excessive moisture.
- Storage: When not in use, fold the keyboard to protect the keys and store it in a cool, dry place away from direct sunlight and extreme temperatures.
- Charging: Charge the keyboard using the provided USB Type-C cable or a certified equivalent. Avoid using damaged cables or chargers.
- Avoid Liquids: Do not expose the keyboard to liquids, as this can cause internal damage.
- Handle with Care: Avoid dropping the keyboard or subjecting it to strong impacts.
Troubleshooting
If you encounter issues with your Samsers Foldable Bluetooth Keyboard, try the following troubleshooting steps:
- Keyboard Not Connecting/Pairing:
- Ensure the keyboard is fully charged.
- Make sure the keyboard is unfolded to power it on.
- Verify Bluetooth is enabled on your device.
- Put the keyboard into pairing mode (Fn + C) and re-scan for devices on your host device.
- Ensure you have selected the correct Bluetooth channel (Fn + A/S/D).
- Try restarting both the keyboard (fold and unfold) and your host device.
- Keys Not Responding:
- Check battery level and charge if necessary.
- Ensure the keyboard is properly connected via Bluetooth.
- Try re-pairing the keyboard with your device.
- Typing Lag or Disconnections:
- Ensure your device is within the 10-meter (33-foot) operating range.
- Minimize interference from other wireless devices.
- Check battery level.
- Incorrect Characters Typed:
- Ensure the correct system mode is selected (Fn + Q for iOS, Fn + W for Windows, Fn + E for Android/Mac OS).
If these steps do not resolve the issue, please contact Samsers customer support for further assistance.
Warranty and Support
Samsers provides comprehensive support for its products:
- Warranty: 1-Year Guarantee for quality and guide warranty.
- Return Policy: 30-Day Free Return or replacement policy.
- Lifetime Service: Technical service and support are available.
- Customer Support: 12 months of worry-free professional guide support. The after-sales service team is ready to serve you.
Image: Information regarding Samsers' customer care, including 12 months of support and a dedicated after-sales service team.
