VASAGLE Under-Sink Cabinet BBK515W01 Instruction Manual

1. Introduction

Thank you for choosing the VASAGLE Under-Sink Cabinet BBK515W01. This manual provides essential information for the safe assembly, proper use, and effective maintenance of your new cabinet. Please read these instructions carefully before beginning assembly and keep them for future reference.

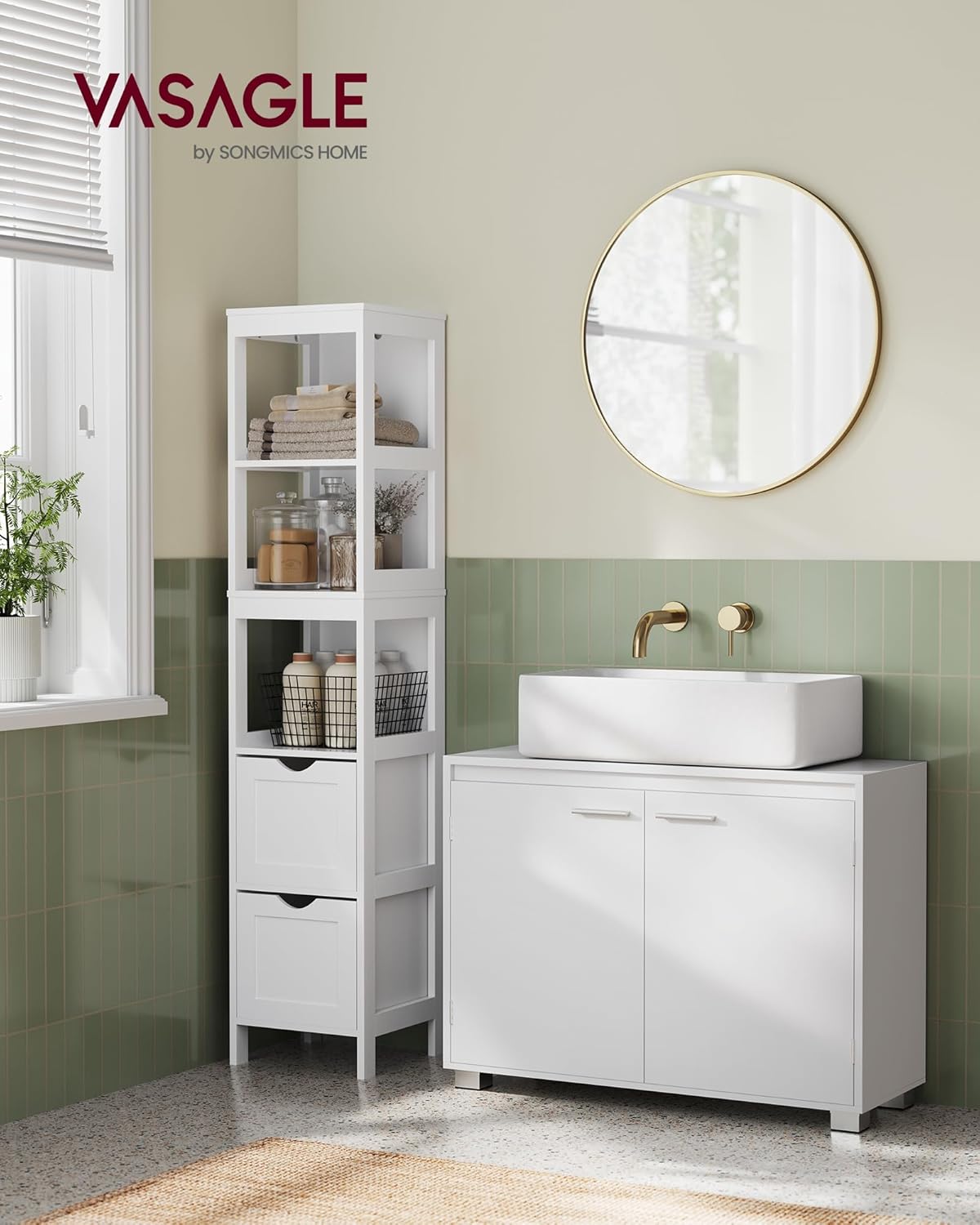

Image: The VASAGLE Under-Sink Cabinet BBK515W01 installed in a bathroom, showcasing its modern design and storage capabilities.

This cabinet is designed to fit under pedestal-free sinks, offering a stylish and practical storage solution for your bathroom. Its robust construction ensures durability, and the cloud white finish complements various decor styles.

2. Safety Information

Please observe the following safety precautions during assembly and use:

• Keep all packaging materials away from children and pets to prevent choking hazards.
• Assemble the product on a soft, clean surface to avoid scratches.
• Ensure all screws and fasteners are securely tightened before use. Do not overtighten.
• Do not stand or sit on the cabinet.
• Distribute weight evenly across shelves to prevent tipping.
• Anti-Tipping Device: Always install the included anti-tipping device to secure the cabinet to the wall. This is crucial for safety, especially in households with children or pets.

Image: A close-up view of the anti-tipping bracket, showing how it secures the cabinet to the wall for enhanced stability.

3. Package Contents

Before assembly, please verify that all parts listed in the assembly instructions are present and undamaged. If any parts are missing or damaged, please contact customer support.

Note: A detailed list of components and hardware will be provided in the separate assembly manual included with your product.

4. Assembly Instructions (Setup)

Follow the step-by-step instructions provided in the included assembly manual. Here are some key considerations:

1. Preparation: Clear a spacious area for assembly. Ensure you have the necessary tools (usually a screwdriver, which may be included).
2. Sink Compatibility: This cabinet is designed for pedestal-free sinks. Verify the dimensions of your sink and plumbing to ensure proper fit. The front edge of your sink's siphon should be less than 20 cm from the wall.

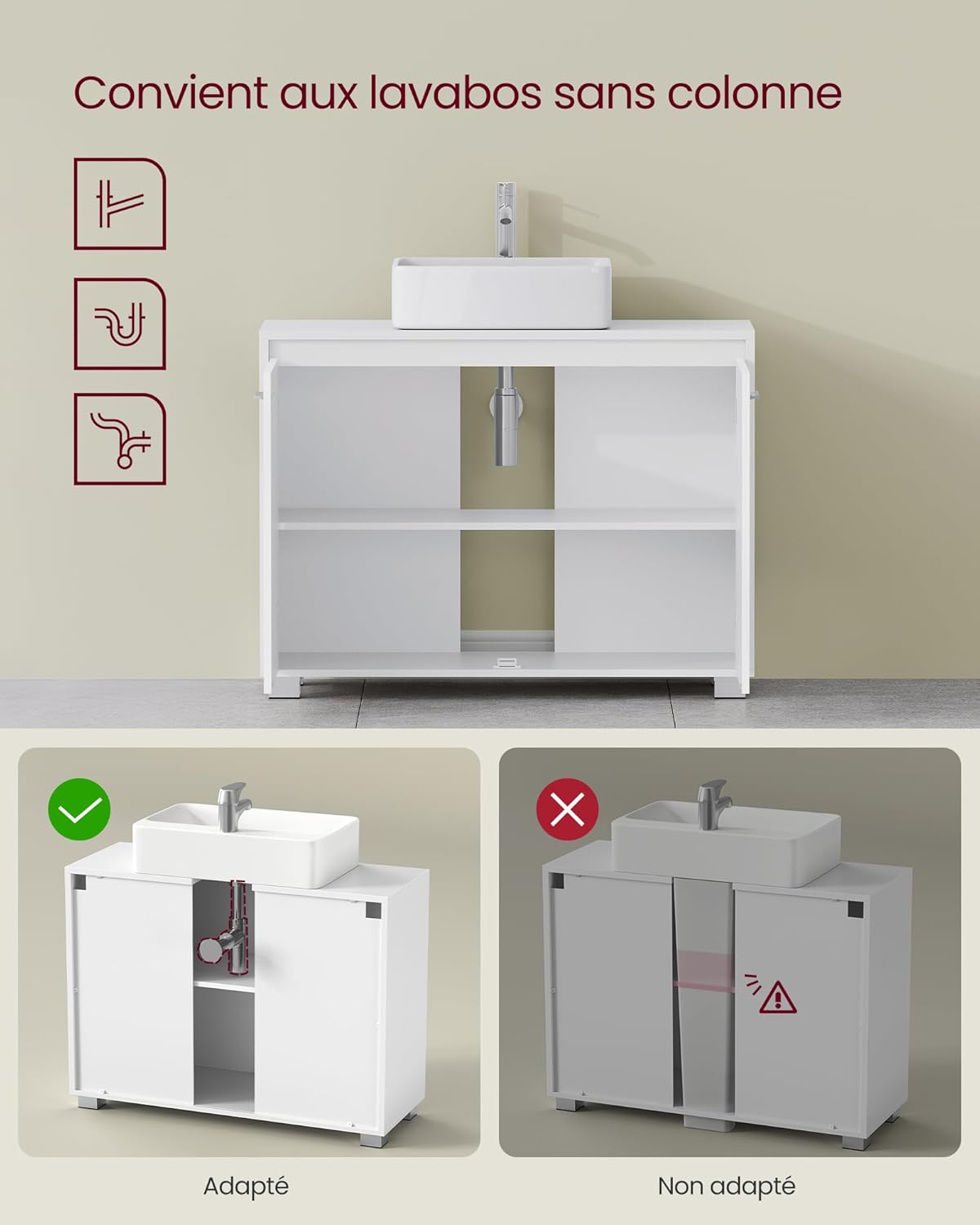

Image: Visual guide illustrating the correct sink type (pedestal-free) and an incorrect type (with pedestal) for this cabinet. It also shows the required clearance for plumbing.

3. Siphon Cutout: The cabinet features a pre-cut opening for the sink siphon. Ensure your plumbing aligns with this opening.


Image: Detailed dimensions of the cabinet, including the 80 cm width, 30 cm depth, 60 cm height, and the specific measurements of the siphon cutout (20 cm wide, 14.8 cm deep).

4. Recommended Installation Height: For optimal use and aesthetic, the recommended height between the bottom of the sink and the floor is 61 to 65 cm.

Image: A visual guide showing the precise measurement for sink installation (61-65 cm from floor to sink bottom) for a perfect fit with the cabinet, contrasting with an imprecise measurement.
5. Feet Installation: Attach the plastic feet to the base of the cabinet. These feet provide protection against moisture and ensure stability.


Image: A close-up of the cabinet's plastic feet, designed to protect the unit from floor moisture and provide stability.

6. Anti-Tipping Device: Secure the cabinet to the wall using the provided anti-tipping kit as per the assembly manual.

5. Usage (Operating)

The VASAGLE Under-Sink Cabinet BBK515W01 is designed for efficient bathroom storage.

• Storage: The two large compartments behind the doors offer ample space for cleaning products, towels, toiletries, and other bathroom essentials.
• Adjustable Shelf: The internal shelf is adjustable to three different height levels. This allows you to customize the storage space to accommodate various sizes of bottles, such as shampoo or shower gel.

Image: A diagram illustrating the adjustable shelf feature, showing three possible height options and how it can accommodate items of different sizes, from a minimum of 15.2 cm to a maximum of 37.1 cm.

6. Maintenance

To ensure the longevity and appearance of your VASAGLE cabinet, follow these maintenance guidelines:

• Cleaning: Wipe the cabinet surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the lacquered finish.

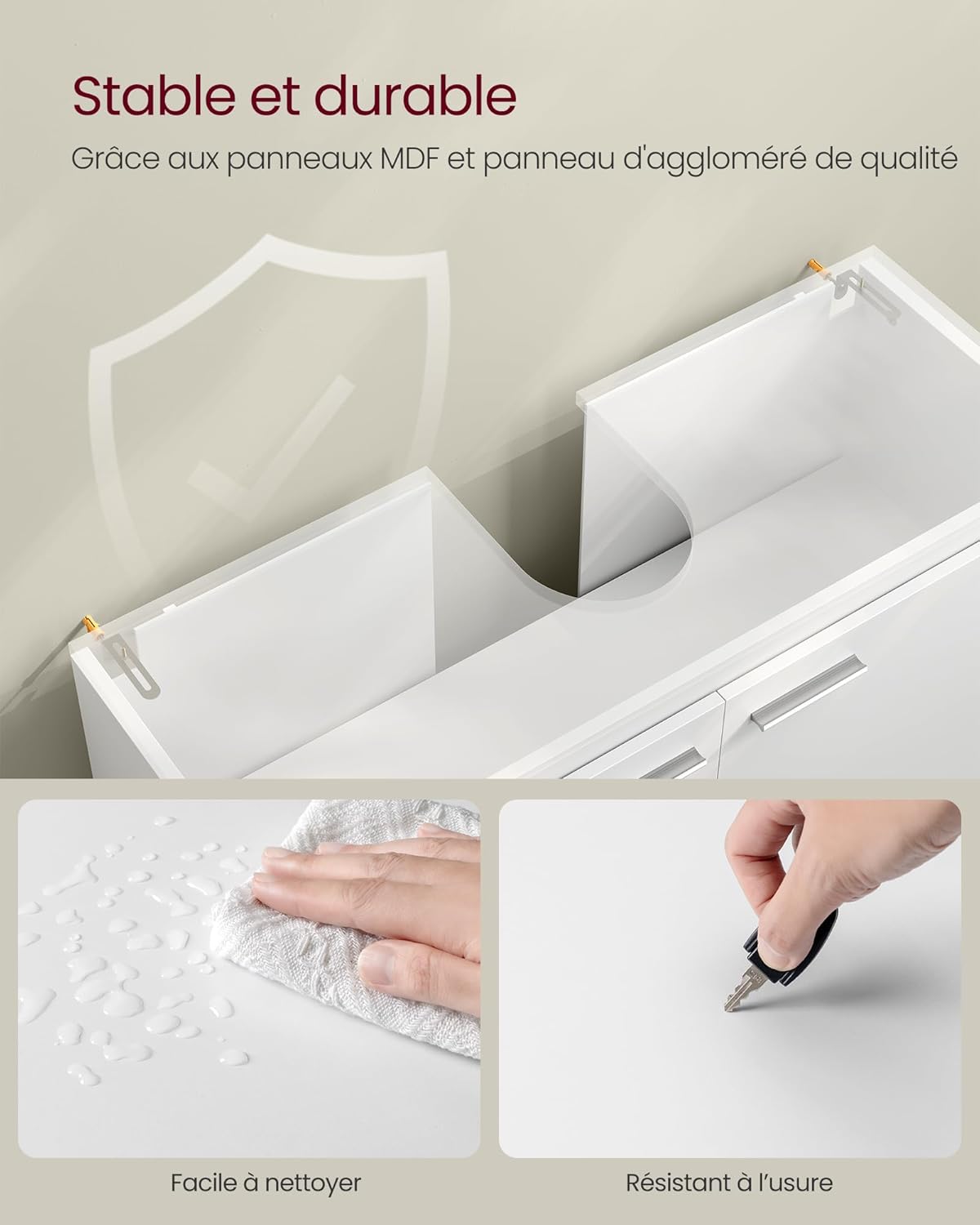

Image: A hand wiping the cabinet surface with a cloth, highlighting the easy-to-clean, water-resistant finish.

• Moisture Protection: While the cabinet is resistant to wear and moisture, avoid prolonged exposure to excessive water. Promptly wipe away any spills.
• Hardware Check: Periodically check all screws and fasteners to ensure they remain tight. Retighten if necessary.
• Avoid Overloading: Do not exceed the maximum weight capacity of 60 kg for the entire cabinet. Distribute items evenly.

7. Troubleshooting

If you encounter any issues with your cabinet, refer to the following common solutions:

• Wobbly Cabinet:
  • Ensure all screws are fully tightened.
  • Verify the cabinet is on a level surface. Adjust the feet if necessary.
  • Confirm the anti-tipping device is securely installed.
• Doors Not Aligning:
  • Check the hinge adjustments. Most hinges allow for minor adjustments to align doors.
  • Ensure the cabinet frame is assembled squarely.
• Difficulty with Sink Fit:
  • Re-measure your sink and plumbing against the cabinet dimensions and siphon cutout.
  • Ensure your sink is pedestal-free.

For further assistance, please contact customer support.

8. Specifications

9. Contact & Support

For any questions, missing parts, or assistance with assembly or troubleshooting, please contact VASAGLE customer support.

Website: Visit the VASAGLE Store on Amazon

Please have your model number (BBK515W01) and purchase information ready when contacting support.

Warranty information may be included with your product packaging or available on the VASAGLE website.
