Haier X11 Washing Machine & Dryer Undermount Kit - Instruction Manual

1. Introduction and Overview

The Haier X11 Stacking Kit is a specialized accessory designed to optimize space in your laundry area by securely fastening your Haier X11 washer and dryer in a vertical configuration. This kit provides a robust and stable solution, reducing vibration and noise during appliance operation, leading to a quieter and more efficient laundry experience. It is engineered to seamlessly integrate with the aesthetic design of Haier X11 models, enhancing both functionality and the visual appeal of your laundry space while promoting optimal airflow for appliance longevity.

Key Features:

• Space Saving: Allows safe vertical stacking of your dryer over the washing machine, freeing up valuable floor space. Ideal for compact laundry rooms.
• Safety and Stability: Specifically designed for Haier X11 models, ensuring a stable and secure installation that prevents tilting or shifting during operation.
• Easy Access: Positions the tumble dryer at an optimal height for convenient loading and unloading.
• Integrated Design: Blends perfectly with the aesthetics of X11 washer and dryer units, creating a cohesive and harmonious look.
• Easy Installation: Designed for straightforward installation without requiring specialized tools.

2. Safety Information

Please read all safety instructions carefully before installing and using the Haier X11 Stacking Kit. Failure to follow these instructions may result in property damage, personal injury, or death.

• Always disconnect power to both the washing machine and dryer before beginning installation.
• Installation should ideally be performed by two people due to the weight and size of the appliances.
• Ensure the washing machine is level and stable before placing the stacking kit and dryer.
• Use only the provided components and tools as specified in these instructions. Do not use substitute parts.
• Keep children and pets away from the installation area.
• Do not stack appliances other than the specified Haier X11 washer and dryer models.
• Periodically check the stability of the stacked appliances and the tightness of the kit's fasteners.

3. Package Contents

Verify that all components listed below are present in your Haier X11 Stacking Kit package:

• Installation kit with extension tube
• Self-tapping screws
• Self-sealing bag
• Installation instructions (English language)

Image 3.1: All components included in the Haier X11 Stacking Kit, including the main frame pieces, connecting tube, and various screws.

4. Setup and Installation

Follow these steps to correctly install your Haier X11 Stacking Kit and stack your washer and dryer:

1. Prepare the Washer: Ensure your Haier X11 washing machine is placed in its final desired location, is level, and stable. Disconnect it from the power supply.
2. Assemble the Stacking Kit Base: Place the main frame components of the stacking kit onto the top surface of the washing machine. Align the kit according to the instructions provided in the self-sealing bag, ensuring it fits snugly and securely.
3. Secure the Kit: Use the provided self-tapping screws to firmly attach the stacking kit to the washing machine. Refer to the specific screw points indicated in the included installation instructions. This step is crucial for stability.

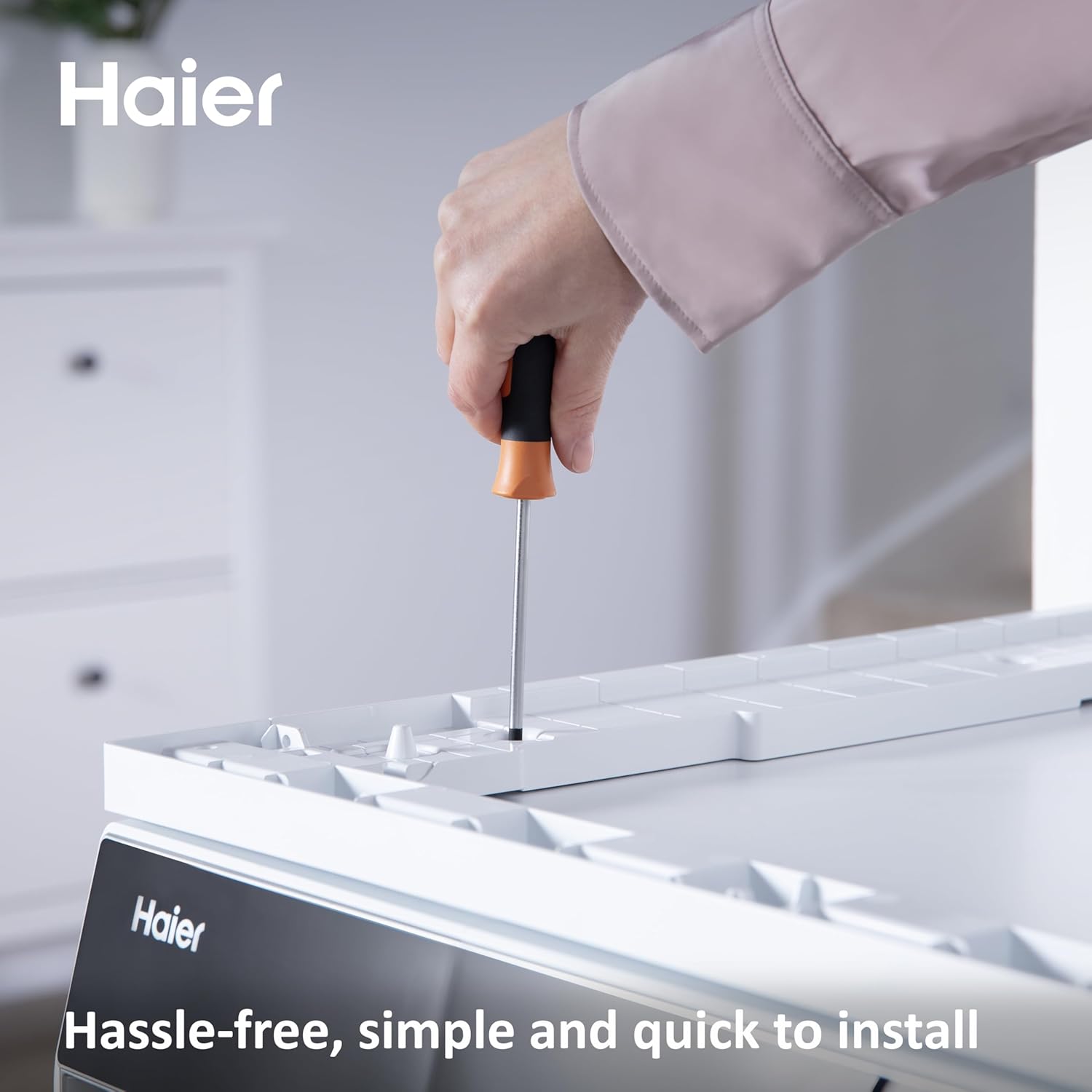

   Image 4.1: A close-up view of the installation process, showing a hand using a screwdriver to secure the stacking kit onto the top of the washing machine. This highlights the simple, tool-free installation.

4. Position the Dryer: Carefully lift the Haier X11 dryer and place it onto the installed stacking kit. Ensure the dryer is centered and aligned with the kit's guides. This step often requires two people.
5. Connect the Extension Tube (if applicable): If your setup requires it, connect the extension tube as per the detailed instructions to ensure proper drainage or ventilation.
6. Final Check: Once the dryer is in place, gently push and pull on the stacked appliances to confirm they are stable and do not wobble. Re-tighten any screws if necessary.


   Image 4.2: A Haier X11 washing machine and dryer perfectly stacked using the kit, demonstrating the space-saving solution in a modern laundry room.



   Image 4.3: An illustrative image demonstrating how stacking the appliances provides more flexibility and space in the room, with a visual representation of the washer moving from a side-by-side position to being stacked.

5. Operating Instructions

Once the Haier X11 Stacking Kit is installed, the operation of your washing machine and dryer remains largely the same as when they were unstacked. The kit's primary function is to provide a secure and stable platform for vertical arrangement.

• Ensure both appliances are connected to their respective power outlets and water/drainage lines (for the washer).
• The elevated position of the dryer facilitates easier loading and unloading of laundry, reducing the need to bend down.
• The kit is designed to minimize vibration and noise, allowing for a quieter operation even during high-speed spin cycles.


  Image 5.1: A woman loading laundry into the washing machine, demonstrating the accessibility and stability of the stacked Haier X11 units. The image emphasizes the durable materials ensuring stability.


  Image 5.2: A woman standing comfortably next to the stacked Haier X11 washer and dryer, holding a laundry basket, illustrating the convenience and ergonomic benefits of the stacked setup.

6. Maintenance

The Haier X11 Stacking Kit requires minimal maintenance. Regular checks will ensure its continued stability and performance:

• Periodic Inspection: Every few months, visually inspect the stacking kit and the connection points to ensure all screws are tight and there are no signs of wear or damage.
• Cleaning: Wipe down the kit with a soft, damp cloth as needed to remove dust or spills. Avoid abrasive cleaners.
• Leveling: Re-check the level of the washing machine periodically, as an unlevel base can affect the stability of the stacked units.

7. Troubleshooting

If you encounter any issues after installing the Haier X11 Stacking Kit, refer to the following common troubleshooting tips:

8. Specifications

9. Warranty and Support

For warranty information and customer support regarding your Haier X11 Stacking Kit, please refer to the documentation included with your purchase or visit the official Haier website. It is recommended to retain your proof of purchase for warranty claims.

If you require technical assistance or have questions not covered in this manual, please contact Haier customer service:

• Haier Official Website: www.haier.com (Please check for your regional website)
• Customer Service Contact: Refer to the contact details provided on the Haier website for your specific region.
