Introduction
This instruction manual provides essential information for the installation, use, and maintenance of your Traxxas Mini Maxx Roof Skidplate and Tailgate Protector, Model 10717-BLK. This accessory is designed to enhance the durability and appearance of your Mini Maxx vehicle by providing protection during rollovers and impacts.
Safety Information
Always ensure all components are securely fastened to prevent detachment during vehicle operation. Use appropriate tools and follow all safety guidelines when working on your remote-controlled vehicle. Keep small parts away from children.
Package Contents
Verify that all items listed below are present in your package:
- 1x Traxxas Mini Maxx Roof Skidplate (Black)
- 1x Traxxas Mini Maxx Tailgate Protector (Black)
- 7x 3x8 mm Screws
Setup and Installation
Follow these steps to properly install the roof skidplate and tailgate protector on your Traxxas Mini Maxx vehicle.
- Prepare the Vehicle: Ensure your Traxxas Mini Maxx vehicle is clean and powered off. Remove the body shell from the chassis.
- Identify Mounting Points: Locate the designated mounting points on the roof and tailgate sections of your Mini Maxx body shell. These are typically pre-drilled or marked areas.
- Install Roof Skidplate: Position the roof skidplate onto the roof of the body shell, aligning the screw holes. Secure it using the provided 3x8 mm screws. Do not overtighten.
- Install Tailgate Protector: Position the tailgate protector onto the rear section of the body shell, aligning the screw holes. Secure it using the remaining 3x8 mm screws. Do not overtighten.
- Final Check: Once both components are installed, gently tug on them to ensure they are firmly attached. Reinstall the body shell onto the chassis.

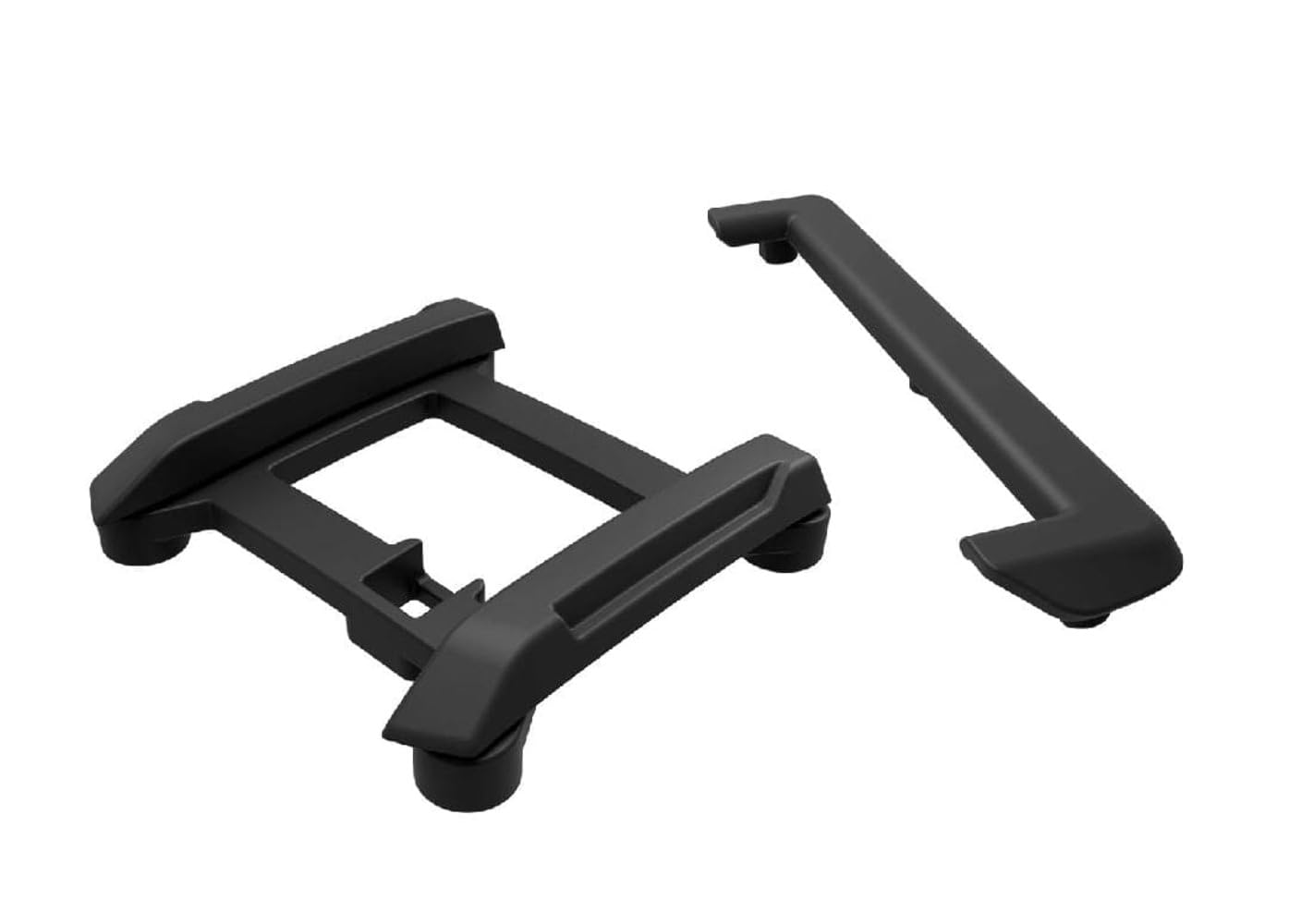

Image: The Traxxas Mini Maxx Roof Skidplate (left) and Tailgate Protector (right) components, both black composite parts, shown ready for installation on a Traxxas Mini Maxx vehicle.
Function and Purpose
The Traxxas Mini Maxx Roof Skidplate and Tailgate Protector are designed to provide additional protection to your vehicle's body during impacts and rollovers. Constructed from durable composite material, these accessories help absorb shock and prevent damage to the body shell, extending its lifespan and maintaining its appearance.
Maintenance
To ensure the longevity and effectiveness of your skidplate and protector, follow these maintenance guidelines:
- Cleaning: After use, especially in dirty or dusty conditions, clean the skidplate and protector with a soft brush or cloth to remove debris. A mild soap solution can be used for stubborn dirt, followed by rinsing and thorough drying.
- Inspection: Regularly inspect the components for any signs of damage, cracks, or loose screws. Replace any damaged parts immediately to maintain optimal protection.
- Fastener Check: Periodically check the tightness of all mounting screws. Vibrations during operation can cause screws to loosen over time.
Troubleshooting
This section addresses common issues you might encounter with the roof skidplate and tailgate protector.
- Loose Components: If the skidplate or protector feels loose, check and tighten all mounting screws. Avoid overtightening to prevent stripping the threads.
- Cracked or Broken Parts: In the event of severe impact, the composite material may crack or break. These parts are designed to absorb impact to protect the body. Replace any damaged components with genuine Traxxas parts (Model 10717-BLK) to ensure continued protection.
Specifications
| Feature | Detail |
|---|---|
| Model Number | 10717-BLK |
| Product Type | Roof Skidplate & Tailgate Protector |
| Material | Heavy-duty Composite |
| Color | Black |
| Included Hardware | 7x 3x8 mm Screws |
| Product Dimensions | Approximately 5 x 5 x 1 inches (packaging dimensions) |
| Item Weight | Approximately 1.12 ounces |
| Manufacturer | Traxxas |
Warranty and Support
For warranty information, technical support, or to purchase replacement parts, please visit the official Traxxas website or contact Traxxas customer service directly. Keep your purchase receipt as proof of purchase.
Traxxas Official Website: traxxas.com
