Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Yukimo 4 Drawer Lateral File Cabinet, Model LFC002. Please read these instructions carefully before assembly and use to ensure proper function and safety.

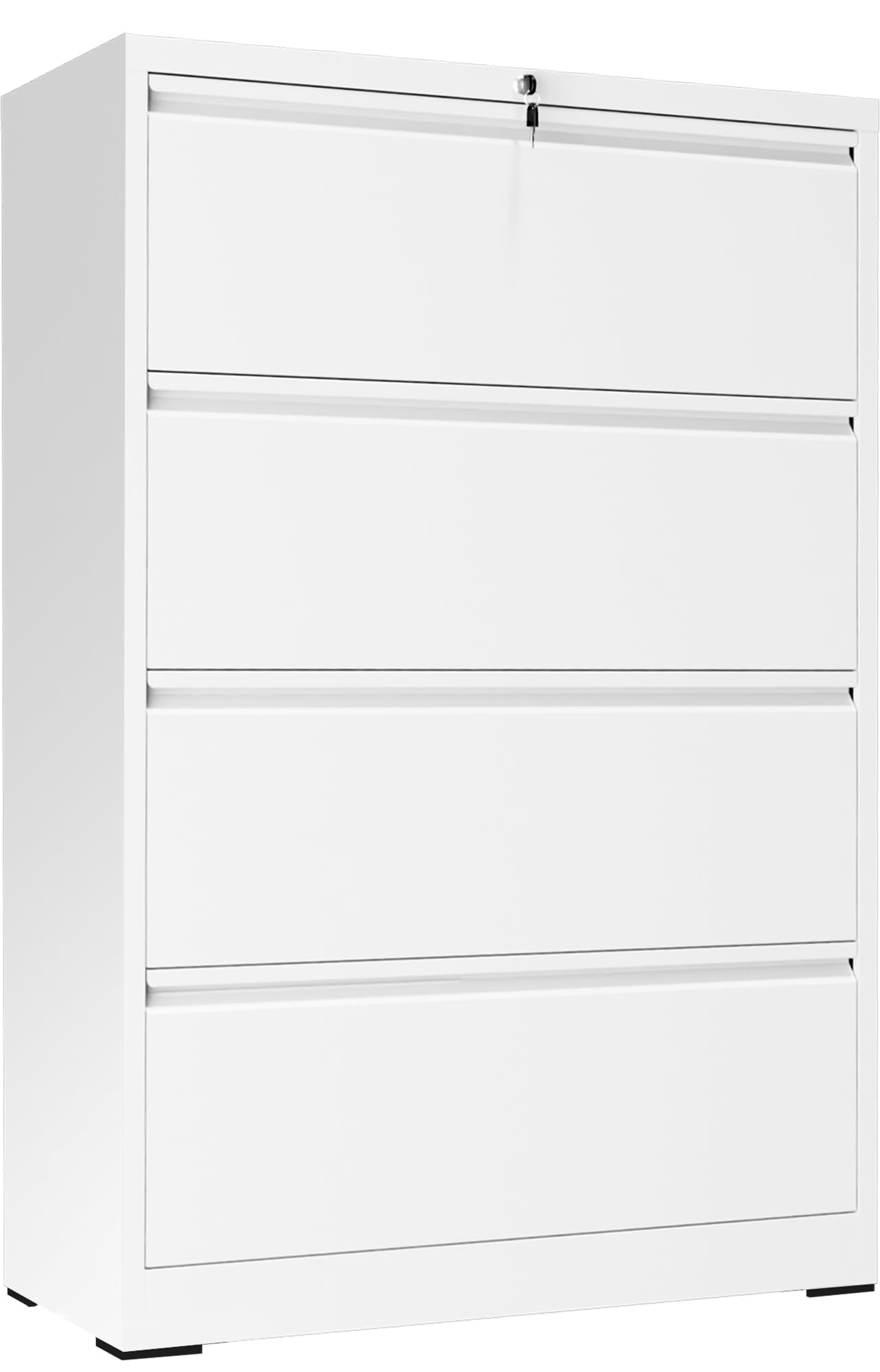

Figure 1: Yukimo 4 Drawer Lateral File Cabinet (White)
1. Setup and Assembly
Your Yukimo Lateral File Cabinet requires assembly. Please ensure all components are present before beginning. An assembly video is provided to assist you.
Assembly Steps Overview:
- Unpack all components and verify against the parts list in the included paper instructions.
- Follow the step-by-step diagrams provided in the manual.
- Secure all connections firmly, but avoid overtightening screws to prevent damage to the metal.
- Install the drawer slides and ensure they operate smoothly.
- Attach the drawer fronts and handles.
Figure 2: General Assembly Diagram
Assembly Video:
Video 1: Detailed assembly guide for the 4-drawer lateral file cabinet.
2. Operating Instructions
Large Storage Capacity:
The file cabinet drawers are designed to accommodate various document sizes, including Legal, Letter, A4, and F4. Adjustable hanging bars are included to customize the drawer interior for your specific filing needs.

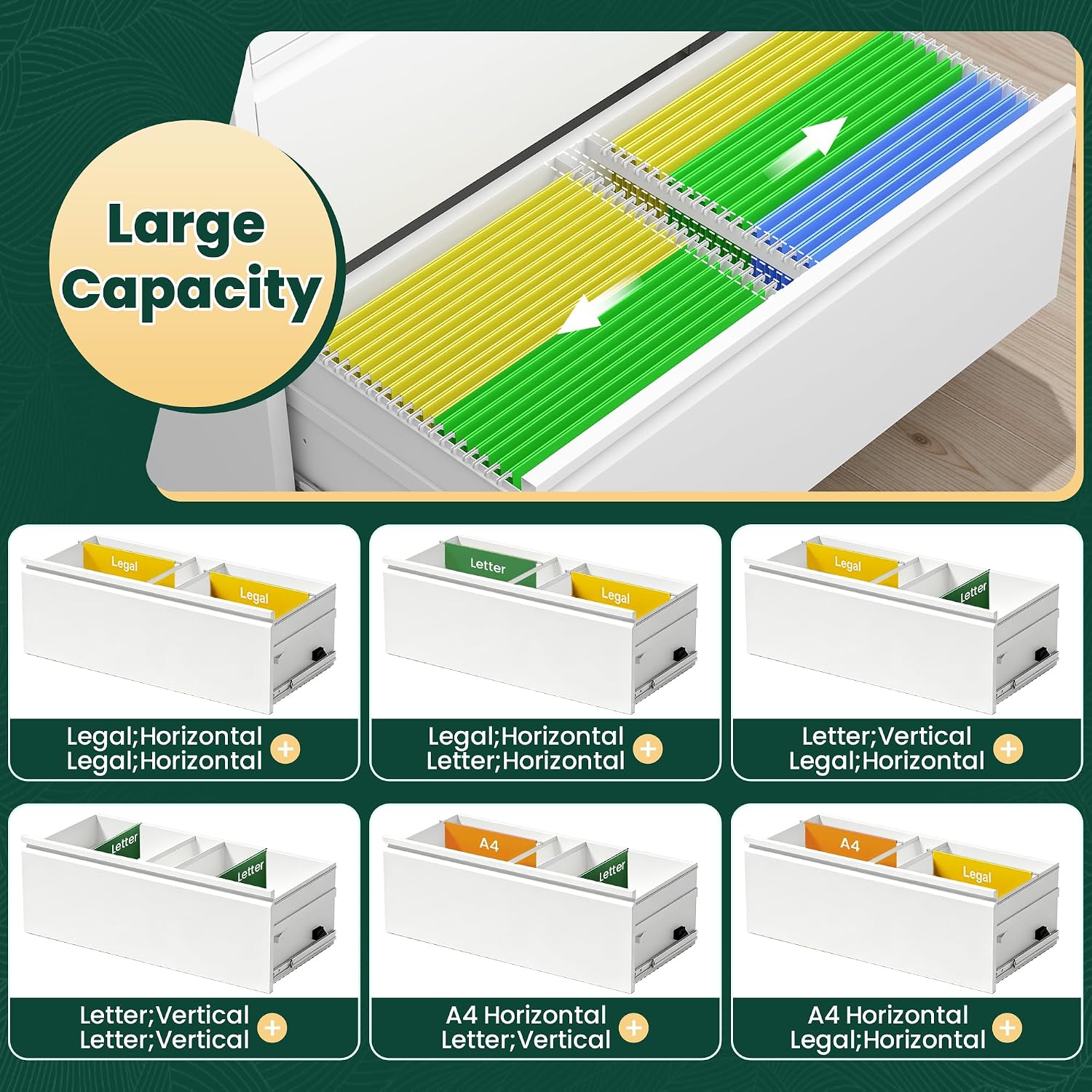

Figure 3: Drawer Capacity and File Organization
Figure 4: Cabinet in Use, Demonstrating File Organization
Locking Mechanism:
The cabinet features a single lock located on the top drawer that secures all four drawers simultaneously. Two keys are provided for convenience and security.
Figure 5: Security Lock Detail
Anti-tilt System:
For enhanced safety and stability, the cabinet is equipped with an anti-tilt design. This system ensures that only one drawer can be opened at a time, significantly reducing the risk of the cabinet tipping over.
Figure 6: Anti-tilt System Explanation
Drawer Operation:
Each drawer features steel ball-bearing full-extension slides, allowing for smooth and silent opening and closing. This design ensures easy access to all contents within the drawer.
Operation Video:
Video 2: Demonstration of drawer operation and locking mechanism.
3. Maintenance
Cleaning:
To clean the cabinet, wipe surfaces with a soft, damp cloth. Avoid using abrasive cleaners or harsh chemicals, as these may damage the powder-coated finish. Dry immediately with a clean cloth.
Material Durability:
The cabinet is constructed from heavy-duty steel with a powder-coated finish, making it resistant to scratches, rust, and wear. This material is also water-resistant and heat-resistant, ensuring long-term durability.
4. Troubleshooting
Drawers Not Opening/Closing Smoothly:
- Check for Obstructions: Ensure no items are blocking the drawer slides or caught within the drawer mechanism.
- Verify Level Surface: Make sure the cabinet is placed on a flat, level surface. Uneven surfaces can affect drawer alignment.
- Inspect Slides: Visually inspect the ball-bearing slides for any damage or debris.
Cabinet Tipping Hazard:
- Anti-tilt System: Remember that the cabinet's anti-tilt system allows only one drawer to be opened at a time. Attempting to open multiple drawers simultaneously can cause instability.
- Anchoring: For additional security, especially in high-traffic areas or homes with children, consider anchoring the cabinet to a wall. (Mounting hardware not included, consult a professional if unsure).
Assembly Difficulties (e.g., Misaligned Holes):
- If you encounter significant issues with component alignment during assembly, please contact customer support for assistance. Do not force parts together, as this may cause damage.
5. Specifications
| Feature | Detail |
|---|---|
| Brand | Yukimo |
| Model Number | LFC002 |
| Color | White |
| Material | Metal (Alloy Steel) |
| Product Dimensions (D x W x H) | 15.75"D x 35.43"W x 52.36"H |
| Item Weight | 108 pounds |
| Number of Drawers | 4 |
| Maximum Weight Capacity | 220 pounds (Total) |
| Lock Type | Key Lock (secures all drawers) |
| Installation Type | Freestanding |
Figure 7: Product Dimensions
6. Safety Information
- Anti-Tipping Precaution: Do not open more than one drawer at a time. The cabinet is designed with an anti-tilt system to prevent tipping, but opening multiple drawers can compromise stability.
- Weight Distribution: Distribute weight evenly across drawers. Avoid placing excessively heavy items in the top drawers.
- Top Surface Load: The cabinet can support a maximum of 220 pounds on its top surface. Do not exceed this weight limit.
- Secure Placement: Place the cabinet on a stable, level surface. Consider anchoring the cabinet to a wall for added safety, especially in households with children or pets.
7. Warranty and Support
Yukimo is committed to providing satisfactory service. Your product comes with comprehensive customer support.
Customer Service:
If you have any questions, concerns, or require assistance with your Yukimo 4 Drawer Lateral File Cabinet, please contact our customer support team. We offer:
- 24-hour professional services.
- Lifetime technical support.
Please refer to your purchase documentation or the Yukimo brand store for specific contact details.
