StarEcho 8x6 FT Wood Grill Gazebo Instruction Manual

1. Introduction

Welcome to your new StarEcho 8x6 FT Wood Grill Gazebo. This manual provides comprehensive instructions for the safe assembly, operation, and maintenance of your gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

2. Safety Information

Your safety and the safety of others are paramount. Failure to follow these instructions may result in serious injury or property damage.

• Anchoring: The product must be anchored as specified in this instruction manual. Ensure the gazebo is secured to a stable foundation to prevent tipping or collapse, especially in windy conditions.
• Assembly: Follow all assembly and disassembly instructions carefully to avoid injury. It is recommended that at least two adults participate in the assembly process.
• Clearance: Maintain adequate clearance around the gazebo, especially when using a grill or other heat sources. Do not place flammable materials near the gazebo structure.
• Weather Conditions: While designed with a hardtop steel roof for protection against various weather conditions, extreme weather such as heavy snow accumulation or strong winds may require additional precautions or temporary disassembly.
• Maintenance: Regularly inspect all components for wear, damage, or loose connections. Address any issues promptly to ensure continued safe operation.

3. Package Contents

Your StarEcho Wood Grill Gazebo is shipped in three (3) separate boxes. Please verify all parts are present and undamaged before beginning assembly. Refer to the included parts list for detailed component identification.

Ensure all components and hardware are accounted for.

4. Assembly Instructions

Assembly requires careful attention to detail. It is highly recommended to have at least two people for assembly. All necessary hardware is provided.

4.1. Overview and Dimensions

Familiarize yourself with the gazebo's overall structure and dimensions before starting. The gazebo measures 94 inches in length, 60.2 inches in width, and 88.4 inches in height.

Figure 4.1: Gazebo Dimensions (94"L x 60.2"W x 88.4"H)

4.2. Structural Assembly

The gazebo features a sturdy solid wood frame with triangular supports for enhanced stability. Assemble the main wooden posts and beams first, ensuring all connections are secure.

Figure 4.2: Robust Structural Design with Triangular Supports

4.3. Roof Installation

The hardtop sloping steel roof provides excellent protection from rain, snow, wind, and sun. Install the roof panels onto the pre-assembled frame, ensuring proper alignment for effective water drainage and UV protection.

Figure 4.3: Hardtop Sloping Steel Roof Features

4.4. Side Storage Shelves

Attach the two wide storage shelves to the side posts. These shelves provide convenient space for food preparation, BBQ accessories, or beverages.

Figure 4.4: Wide Storage Shelves for Convenience

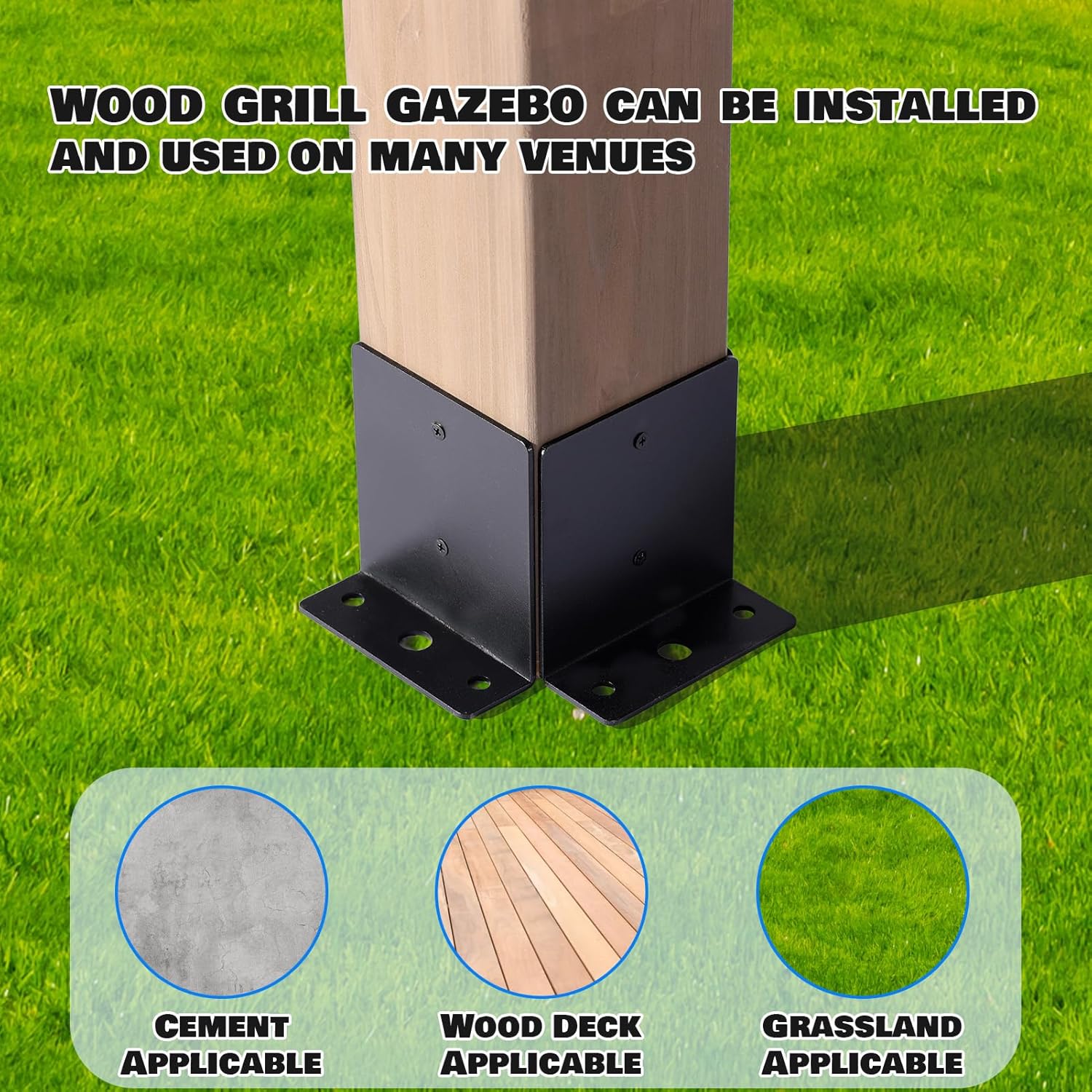

4.5. Anchoring the Gazebo

Proper anchoring is critical for the stability and safety of your gazebo. The gazebo can be installed on various surfaces including cement, wood decks, and grassland. Ensure the base is securely fastened to prevent movement.

Figure 4.5: Anchoring Options for Various Venues

4.6. Assembly Video Guide

For a visual guide to the assembly process, please watch the official product video below. This video demonstrates key steps including frame construction and roof panel installation.

5. Operating Instructions

Your StarEcho Wood Grill Gazebo is designed to enhance your outdoor grilling and entertainment experience. It provides a dedicated, sheltered space for your barbecue activities.

• Grilling Area: Position your grill centrally within the gazebo for optimal smoke ventilation and protection from elements.
• Storage Shelves: Utilize the two spacious side storage shelves for convenient access to grilling tools, food items, beverages, and other accessories.
• Ventilation: The roof design promotes good ventilation, preventing smoke from accumulating under the canopy.
• Multi-purpose Use: While ideal for grilling, this gazebo can also serve as a comfortable outdoor pavilion for various activities, providing shade and shelter.

Figure 5.1: Gazebo in Use for Grilling and Outdoor Entertainment

6. Maintenance

Regular maintenance will prolong the life and appearance of your StarEcho Wood Grill Gazebo.

• Cleaning: Clean the wooden frame with a mild soap and water solution. Rinse thoroughly and allow to air dry. For the steel roof, wipe with a damp cloth to remove dirt and debris. Avoid abrasive cleaners.
• Wood Care: Periodically inspect the cedar wood frame for any signs of weathering or damage. Applying a wood sealant or stain can help protect the wood and maintain its appearance over time.
• Hardware Check: Annually, or more frequently if exposed to harsh weather, check all bolts and screws to ensure they are tight. Re-tighten as necessary.
• Anchoring System: Verify that the gazebo's anchoring system remains secure, especially after strong winds or heavy rain. Re-secure anchors if any loosening is detected.
• Snow Removal: In areas with heavy snowfall, it is recommended to clear excessive snow accumulation from the roof to prevent structural strain, despite its snow support design.

7. Troubleshooting

This section addresses common issues you might encounter with your gazebo.

Issue: Gazebo feels unstable or wobbly.

Solution: Ensure the gazebo is properly anchored to the ground. Check all frame connections and tighten any loose bolts or screws. Verify that the ground surface is level.

Issue: Water pooling on the roof or poor drainage.

Solution: The roof is designed with a sloping steel roof and unique guttering for drainage. Ensure the roof panels are correctly installed and aligned according to the assembly instructions. Clear any debris from the roof and gutters that might obstruct water flow.

Issue: Wood components showing signs of wear or fading.

Solution: This is normal weathering for outdoor wood products. Apply a suitable wood sealant or stain to protect the cedar and restore its appearance. Regular maintenance as described in Section 6 will help mitigate this.

8. Specifications

9. Warranty and Support

StarEcho is committed to providing high-quality products. For any questions, missing parts, or support needs, please contact StarEcho customer service directly.

• Returns: This product typically includes a 30-day easy returns policy. Please refer to your purchase documentation for specific return conditions.
• Protection Plans: Extended protection plans may be available for purchase separately to cover your investment beyond the standard warranty. Check with your retailer for details.
• Contact: For direct assistance, please visit the official StarEcho store or contact their customer support as indicated on your packaging or purchase receipt.

Customer support is available to assist you.
