1. Product Overview
The Maigoo 56720 Recoil Pull Starter Assembly is a replacement component designed for the Harbor Freight Predator 3500 Inverter Generator. This assembly facilitates manual engine startup by providing a reliable pull mechanism. It is engineered for durability and ease of use, ensuring efficient generator operation.

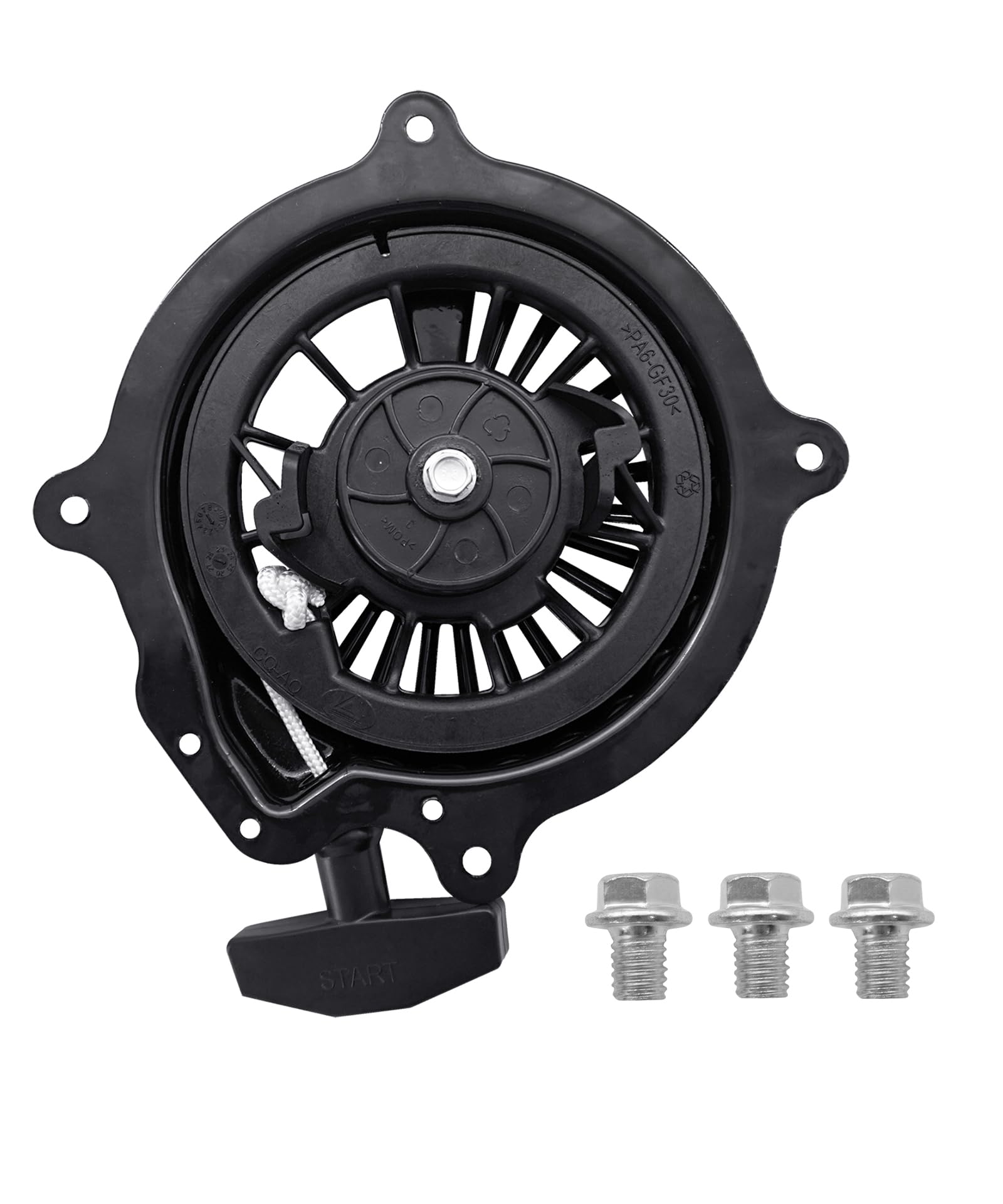

Image 1.1: Maigoo 56720 Recoil Pull Starter Assembly.
Key Features:
- Durable Construction: Made with a metal shell for sturdiness and longevity.
- Efficient Starting: Features a stable and efficient rope pulling mechanism for easy engine startup.
- High-Quality Rope: The pull rope is designed to be smooth and resistant to breakage.
- Direct Replacement: Designed to replace part numbers 56720, 63584, and 59137.
2. Safety Information
Always prioritize safety when working with generator components. Failure to follow safety instructions can result in injury or damage to equipment.
- Read Manuals: Always read the generator's owner's manual and this instruction manual before installation or operation.
- Disconnect Power: Ensure the generator is completely shut off, cooled down, and disconnected from any power sources or fuel before performing any maintenance or installation.
- Wear Protective Gear: Wear appropriate personal protective equipment (PPE), including gloves and eye protection, during installation and maintenance.
- Proper Tools: Use only the correct tools for the job to prevent damage to the part or injury.
- Secure Installation: Ensure all bolts and fasteners are securely tightened after installation.
- Keep Clear: Keep hands, feet, and clothing clear of moving parts during operation.
3. Compatibility
This recoil pull starter assembly is specifically designed to fit the Harbor Freight Predator 3500 Inverter Generator. It replaces original part numbers 56720, 63584, and 59137.
Image 3.1: The recoil pull starter assembly shown with a compatible generator.
4. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- 1 × Recoil Pull Starter Assembly
- 3 × Screw Bolts
Image 4.1: Product details showing the high-quality handle, 3 mounting bolts, built-in coil spring, and high-quality nylon rope.
5. Installation
The recoil starter features a reasonable design for easy installation. Always wear gloves before beginning the installation process.
- Ensure the generator is turned off and cooled down.
- Locate the existing recoil starter assembly on your generator.
- Carefully remove any bolts or fasteners securing the old assembly.
- Detach the old recoil starter assembly.
- Position the new Maigoo 56720 Recoil Pull Starter Assembly in place.
- Align the mounting holes and secure the new assembly using the provided three screw bolts.
- Tighten all bolts firmly, but do not overtighten.
Image 5.1: Demonstrating the ease of installing the recoil starter assembly. Remember to wear gloves.
Installation Video:
Video 5.1: A short video demonstrating the Maigoo 56720 Recoil Pull Starter for Harbor Freight Predator Generator, showing its components and how it functions.
6. Operation
Once installed, the recoil pull starter allows for manual engine startup. The stable and efficient rope pulling mechanism ensures a smooth start with minimal effort.
- Ensure the generator's fuel valve is open and the engine switch is in the 'ON' position.
- Grasp the starter handle firmly.
- Pull the starter handle slowly until you feel resistance.
- Give a quick, firm pull to start the engine. Do not pull the rope to its full extension.
- Allow the rope to retract slowly into the assembly. Do not let it snap back.
- Repeat if necessary until the engine starts.
Image 6.1: Illustrating the smooth and easy operation of the recoil starter to start the generator.
7. Maintenance
Regular maintenance helps ensure the longevity and reliable performance of your recoil pull starter assembly.
- Keep Clean: Periodically clean the exterior of the starter assembly to remove dirt, dust, and debris.
- Inspect Rope: Regularly inspect the pull rope for signs of fraying, wear, or damage. Replace if necessary.
- Check Housing: Examine the starter housing for cracks or damage. A damaged housing can affect the starter's function.
- Lubrication: Consult your generator's manual for any specific lubrication requirements for the starter mechanism.
- Storage: When not in use for extended periods, store the generator in a clean, dry environment to protect the starter and other components.
8. Troubleshooting
If you encounter issues with your recoil pull starter, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Rope does not pull out | Internal mechanism jammed or broken. | Inspect for obstructions. If broken, replace the assembly. |
| Rope pulls out but does not engage engine | Pawls not extending or worn. | Inspect pawls for wear or damage. Replace assembly if pawls are faulty. |
| Rope does not retract fully | Spring issue or rope tangled. | Gently guide the rope back. If spring is weak or broken, replace the assembly. |
| Engine does not start after multiple pulls | Not necessarily a starter issue; could be fuel, spark, or compression. | Check generator's fuel level, spark plug, and engine switch. Consult generator manual. |
9. Specifications
- Model Number: 56720
- Compatible Generator: Harbor Freight Predator 3500 Inverter Generator
- Replaces Part Numbers: 56720, 63584, 59137
- Product Dimensions: Approximately 1 x 1 x 1 inches (Note: These are general dimensions, actual part may vary slightly)
- Item Weight: Approximately 1.2 pounds
- Material: High-quality plastic and metal components
Image 9.1: Product size diagram indicating approximate dimensions of the recoil starter assembly.
10. Warranty and Support
Maigoo is committed to providing quality products and customer satisfaction. For any inquiries or support, please refer to the following information:
- Returns/Exchanges: No reason for returns or exchanges within 30 days.
- Online Service: 24-hour online service is available for assistance.
For further assistance, please contact Maigoo customer support through your purchase platform.
Image 10.1: Maigoo's commitment to professional services and customer satisfaction.
