1. Product Overview

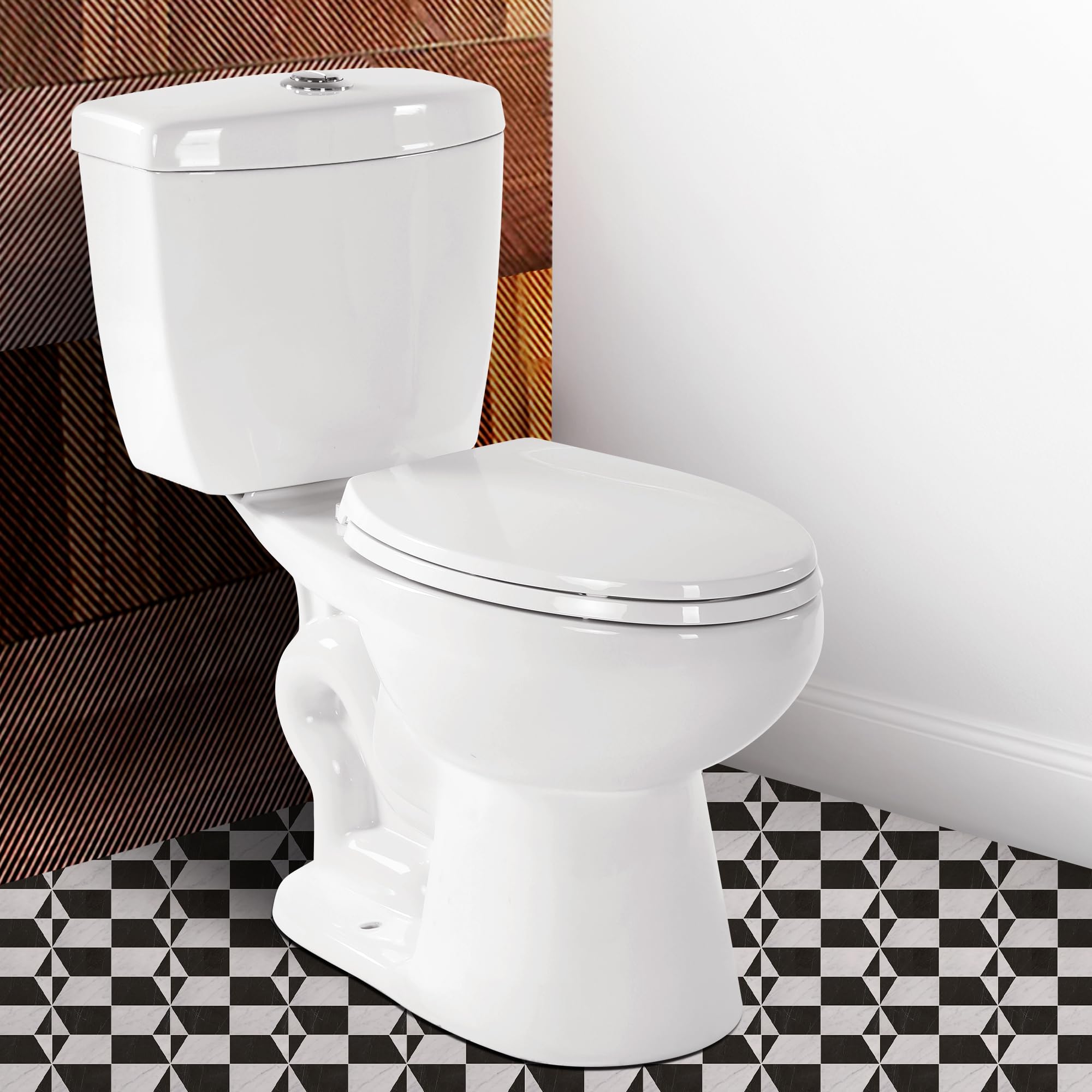

The Alphabath TPT002 is a 17-inch comfort height, two-piece toilet designed for modern bathrooms. It features a soft-close seat, Nano Self-Cleaning Glaze, and a dual flush system for efficient water usage. This ADA-compliant toilet is engineered for durability, hygiene, and ease of installation, providing a comfortable and reliable bathroom fixture.
2. Key Features
- Quality Assurance: Certified by the rigorous MAP test (1000g waste evacuation) and CUPC, ensuring high safety standards and premium materials for durability.
- Comfortable & ADA Compliant Seat: Features a 17.3-inch ADA-certified comfort height for ease of sitting and standing, preventing leg fatigue. The ultra-durable PP core lid is tested for over 100,000 cycles, offering silent, gentle soft-close action.
- 360° TSUNAMI Flush: An advanced siphonic vortex system ensures complete waste removal without dead zones. Fully ceramic-sealed drainage pipes provide an ultra-smooth, impervious surface that resists stains and clogs.
- Superior Water-saving Performance: Equipped with a sleek chrome dual-flush button (0.8/1.28 GPF), this toilet significantly reduces water consumption, saving over 16,500 gallons annually compared to older models. WaterSense certified for exceptional efficiency.
- Advanced NANO CLEAN Technology: An exclusive nano-ceramic shield with natural silver ions creates a smooth, 3-layer glazed surface that actively resists grime and reduces cleaning time. The 50mm drain diameter ensures instant waste removal, and the low water absorption (≤ 0.5%) prevents swelling or cracks.
- Clog-Free Experience: Innovative power flush design and advanced surface technology minimize blockages for a smooth, hassle-free flush every time.
3. Product Images
4. Official Product Videos
This video provides an overview of the Alphabath Comfort Height Toilet, demonstrating its features and benefits in a home setting. It highlights the comfort height, soft-close seat, and overall design.
A detailed video showcasing the dual flush functionality of the Alphabath Comfort Height Toilet. It illustrates how the two flush options work to conserve water while maintaining powerful performance.
This video focuses on the soft-close seat feature of the Alphabath toilet, demonstrating its quiet and gentle closing mechanism, which enhances user experience and prevents slamming.
A video illustrating the two-piece design of the Alphabath toilet, highlighting its aesthetic appeal and how it fits into various bathroom styles.
This video demonstrates the powerful gravity flush system of the Alphabath toilet, showcasing its efficiency in clearing waste and preventing clogs.
5. Setup and Installation
The Alphabath TPT002 toilet is designed for straightforward installation with a standard 12-inch rough-in. Follow these general steps for a successful setup:
- Prepare the Area: Ensure the water supply is turned off and the old toilet (if any) is removed. Clean the flange area thoroughly.
- Install Closet Bolts: Insert new closet bolts into the floor flange. These may need to be cut to size later.
- Apply Wax Ring: Place a new wax ring around the waste flange of the toilet bowl. Ensure a good seal.
- Position the Bowl: Carefully lower the toilet bowl onto the closet bolts, aligning the bolt holes. Press down firmly to create a seal with the wax ring.
- Secure the Bowl: Install plastic washers, followed by metal washers and nuts onto the closet bolts. Tighten the nuts evenly until the toilet is firmly seated on the floor. Do not overtighten to avoid cracking the ceramic.
- Install Tank: Place the tank onto the back of the toilet bowl, aligning the bolt holes. Secure with the provided bolts, washers, and nuts, ensuring a watertight seal.
- Connect Water Supply: Attach the water supply line to the fill valve on the toilet tank and to the shut-off valve on the wall. Hand-tighten, then use a wrench for a quarter turn.
- Install Toilet Seat: Attach the soft-close toilet seat according to the manufacturer's instructions, typically involving aligning hinges with the bolt holes and tightening.
- Test for Leaks: Turn on the water supply slowly and check for any leaks around the base, tank, and supply line connections. Flush the toilet several times to ensure proper operation.
- Caulk Base: Apply a bead of silicone caulk around the base of the toilet where it meets the floor for a finished look and to prevent water from seeping underneath.
6. Operating Instructions
The Alphabath TPT002 features a dual flush system, allowing you to choose between two water volumes for different needs, optimizing water conservation.
- Half Flush (0.8 GPF): For liquid waste, gently press the smaller button on the top of the tank. This uses less water, ideal for minor flushes.
- Full Flush (1.28 GPF): For solid waste, press the larger button on the top of the tank. This activates the powerful 360° TSUNAMI Flush for complete and efficient waste removal.
The soft-close seat mechanism ensures the lid and seat close slowly and quietly, preventing accidental slamming and extending product life. Simply push the seat or lid down gently, and it will close on its own.
7. Maintenance
Regular maintenance will ensure the longevity and optimal performance of your Alphabath TPT002 toilet.
- Cleaning the Bowl: The Nano Self-Cleaning Glaze makes cleaning effortless. Use a soft cloth or sponge with a mild, non-abrasive bathroom cleaner. Avoid harsh chemicals or abrasive tools that could damage the glaze.
- Cleaning the Seat: The high-quality soft-closing PP seat is easy to remove for thorough cleaning or tightening. Use mild soap and water.
- Checking for Leaks: Periodically inspect the water supply line and tank connections for any signs of leaks. Tighten connections if necessary, but do not overtighten.
- Flushing Mechanism: The dual flush mechanism is designed for reliability. If you notice any issues with flushing, consult a professional plumber.
8. Troubleshooting
If you encounter any issues with your Alphabath TPT002 toilet, refer to the following common troubleshooting tips:
| Problem | Possible Cause | Solution |
|---|---|---|
| Toilet not flushing properly | Low water level in tank, clogged trapway, faulty flush valve. | Check water level and adjust fill valve. Clear any visible clogs. Inspect flush valve for proper operation. |
| Continuous running water | Faulty flapper or fill valve, water level too high. | Check flapper for proper seal. Adjust fill valve to lower water level. Replace faulty components if necessary. |
| Leaking at base | Loose closet bolts, damaged wax ring, cracked bowl. | Tighten closet bolts evenly. Replace wax ring. If bowl is cracked, replacement is necessary. |
| Slow closing seat not working | Hinge mechanism worn or dirty. | Clean hinges thoroughly. If mechanism is worn, consider replacing the seat. |
For persistent issues or complex repairs, it is recommended to contact a qualified plumber.
9. Specifications
| Specification | Detail |
|---|---|
| Brand | Alphabath |
| Model Number | KBF-TPT002 |
| Style | TPT002-0.8/1.28 GPF Dual Flush |
| Color | White |
| Material | Ceramic |
| Seat Material Type | Polypropylene (PP) |
| Installation Type | Floor Mounted |
| Flush Type | Dual Flush (0.8 GPF / 1.28 GPF) |
| Toilet Height (ADA Compliant) | 17.3 inches (Comfort Height) |
| Rough-In Size | 12 inches |
| Drain Diameter | 50mm |
| Certifications | CUPC, WaterSense, MAP (1000g) |
| Included Components | Toilet Bowl, Tank, Soft-Close Seat, Wax Ring, Floor Bolts, Fill Valve, Flush Valve |
10. Warranty and Support
For warranty information, technical support, or replacement parts, please refer to the documentation included with your purchase or contact Alphabath customer service directly. Keep your proof of purchase for any warranty claims.
