Lfidontkl Washing Machine Reducer Part Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the Lfidontkl Washing Machine Reducer Part. This high-quality replacement component (Part Number: DC97-14818A) is specifically designed for compatibility with various Samsung washing machine models, including XQB150-C99, XQB30-F88X, and XQB80-C89A.

The reducer part plays a critical role in the washing machine's agitation and spin cycles, ensuring efficient and quiet operation. Correct installation and adherence to maintenance guidelines will help ensure the longevity and optimal performance of your appliance.

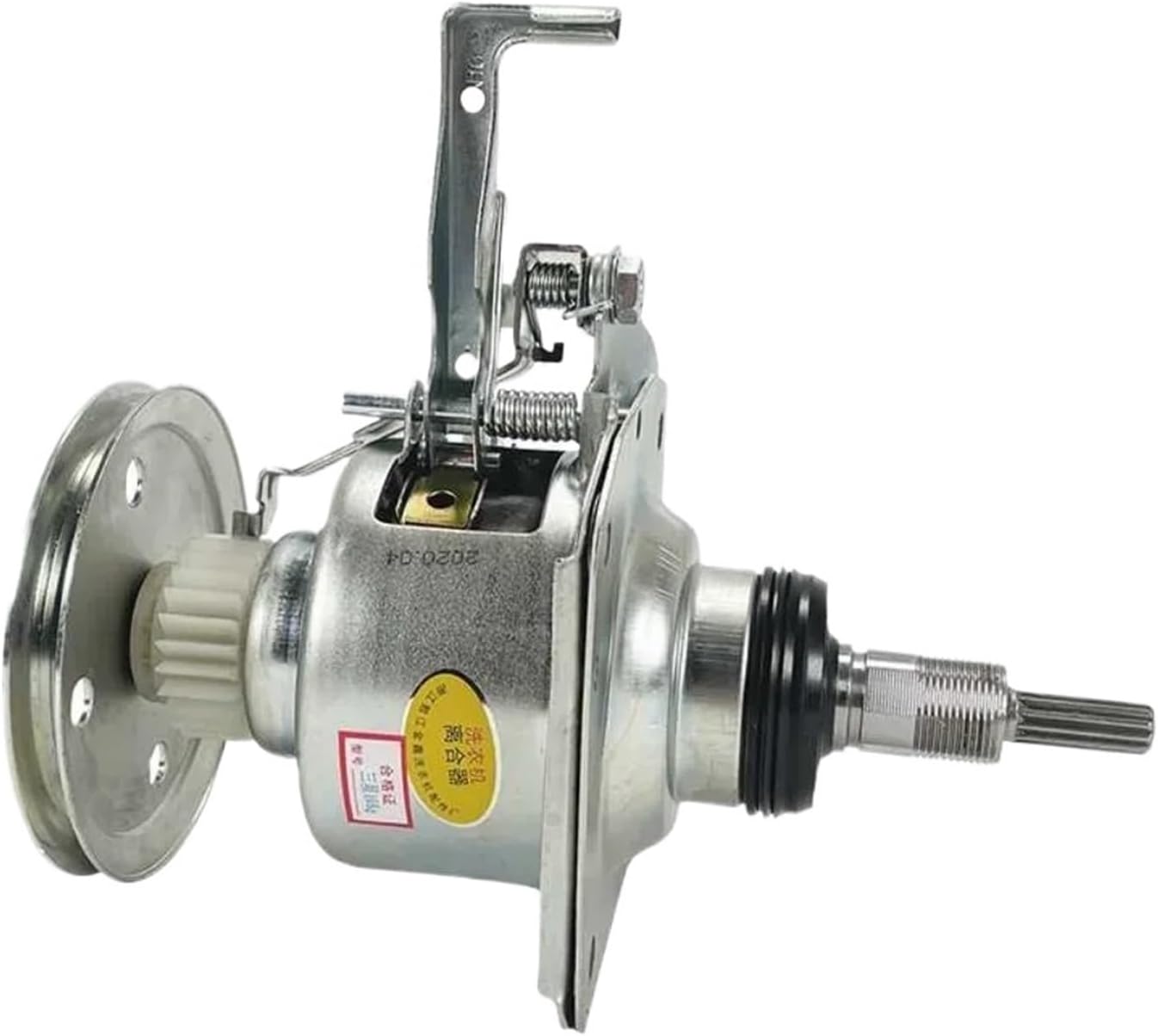

Figure 1: Overview of the Lfidontkl Washing Machine Reducer Part. This image displays the main assembly of the reducer, including the pulley, shaft, and clutch mechanism, indicating its robust construction.

2. Safety Information

Always prioritize safety when working with electrical appliances. Failure to follow these safety instructions may result in electric shock, injury, or damage to the appliance.

• Disconnect Power: Before beginning any installation or maintenance, always unplug the washing machine from the power outlet.
• Turn Off Water Supply: Close the water supply valves to the washing machine to prevent leaks.
• Wear Protective Gear: Use gloves and eye protection to prevent injury from sharp edges or debris.
• Professional Assistance: If you are unsure about any step, consult a qualified technician.

3. Setup and Installation

This section outlines the general steps for replacing the washing machine reducer part. Specific procedures may vary slightly depending on your Samsung washing machine model. Refer to your washing machine's service manual for detailed model-specific instructions if available.

Required Tools:

• Screwdriver set (Phillips and flathead)
• Wrench set or adjustable wrench
• Pliers
• Work gloves

Installation Steps:

1. Prepare the Appliance: Ensure the washing machine is unplugged and the water supply is turned off. Drain any remaining water from the machine.
2. Access the Reducer: Carefully tilt the washing machine or lay it on its side to access the bottom panel. Remove any screws or clips securing the bottom panel and set it aside.
3. Identify and Disconnect: Locate the existing reducer part. Disconnect any belts, wires, or hoses attached to it. Take photos if necessary to aid reassembly.
4. Remove Old Reducer: Unscrew or unbolt the old reducer from its mounting brackets. Carefully remove it from the machine.
5. Install New Reducer: Position the new Lfidontkl reducer part (DC97-14818A) into the mounting location. Secure it with the original screws or bolts, ensuring it is firmly seated.
6. Reconnect Components: Reattach any belts, wires, and hoses that were disconnected. Ensure all connections are secure and properly aligned.
7. Reassemble and Test: Replace the bottom panel and secure it. Return the washing machine to its upright position. Reconnect the power and water supply. Run a short test cycle to verify proper operation and check for any leaks or unusual noises.

Figure 2: Angled view of the reducer part, highlighting the clutch and gear mechanisms. This perspective helps in understanding the component's structure during installation.

4. Operating Instructions

The Lfidontkl Washing Machine Reducer Part is an internal component that facilitates the proper functioning of your washing machine's wash and spin cycles. It does not require direct user operation.

Once correctly installed, the washing machine should operate as designed by the manufacturer. This replacement part is intended to restore or enhance the efficiency of your washing machine, contributing to optimal performance and reduced operational noise.

For specific instructions on how to operate your Samsung washing machine (e.g., selecting wash cycles, water temperature, load sizes), please refer to the original user manual provided with your appliance.

5. Maintenance

The Lfidontkl Washing Machine Reducer Part is designed for durability and typically requires minimal maintenance. However, periodic checks can help ensure its continued optimal performance.

• Visual Inspection: Periodically inspect the area around the reducer for any signs of wear, corrosion, or damage.
• Check for Leaks: Look for any water leaks around the reducer or its seals. Address any leaks promptly to prevent further damage.
• Listen for Unusual Noises: Pay attention to any new or unusual grinding, squealing, or knocking sounds during the wash or spin cycles, which could indicate an issue with the reducer.
• Keep Area Clean: Ensure the area around the reducer is free from lint, debris, or foreign objects that could interfere with its operation.

If any issues are detected, refer to the Troubleshooting section or contact a qualified technician.

6. Troubleshooting

This section provides guidance for common issues that may arise after installing the reducer part. If problems persist, professional assistance may be required.

7. Specifications

Figure 3: Side view of the reducer part with key dimensions indicated. This image provides visual confirmation of the part's size for compatibility checks.

8. Warranty Information

Specific warranty details for the Lfidontkl Washing Machine Reducer Part are not provided in this manual. For information regarding product warranty, including coverage period and terms, please refer to the documentation included with your purchase or contact the seller directly.

9. Customer Support

If you encounter any difficulties during installation, operation, or maintenance that are not resolved by this manual's troubleshooting section, or if you require further assistance, please contact the retailer or manufacturer from whom you purchased this product. Provide your purchase details and the part number (DC97-14818A) for efficient support.
